Network Protocol Acceleration With CAPI SNAP
Dr. Endric Schubert, MLE
Dr. Andrew McCormick, Alpha-Data
Company Confidential2018-10-03

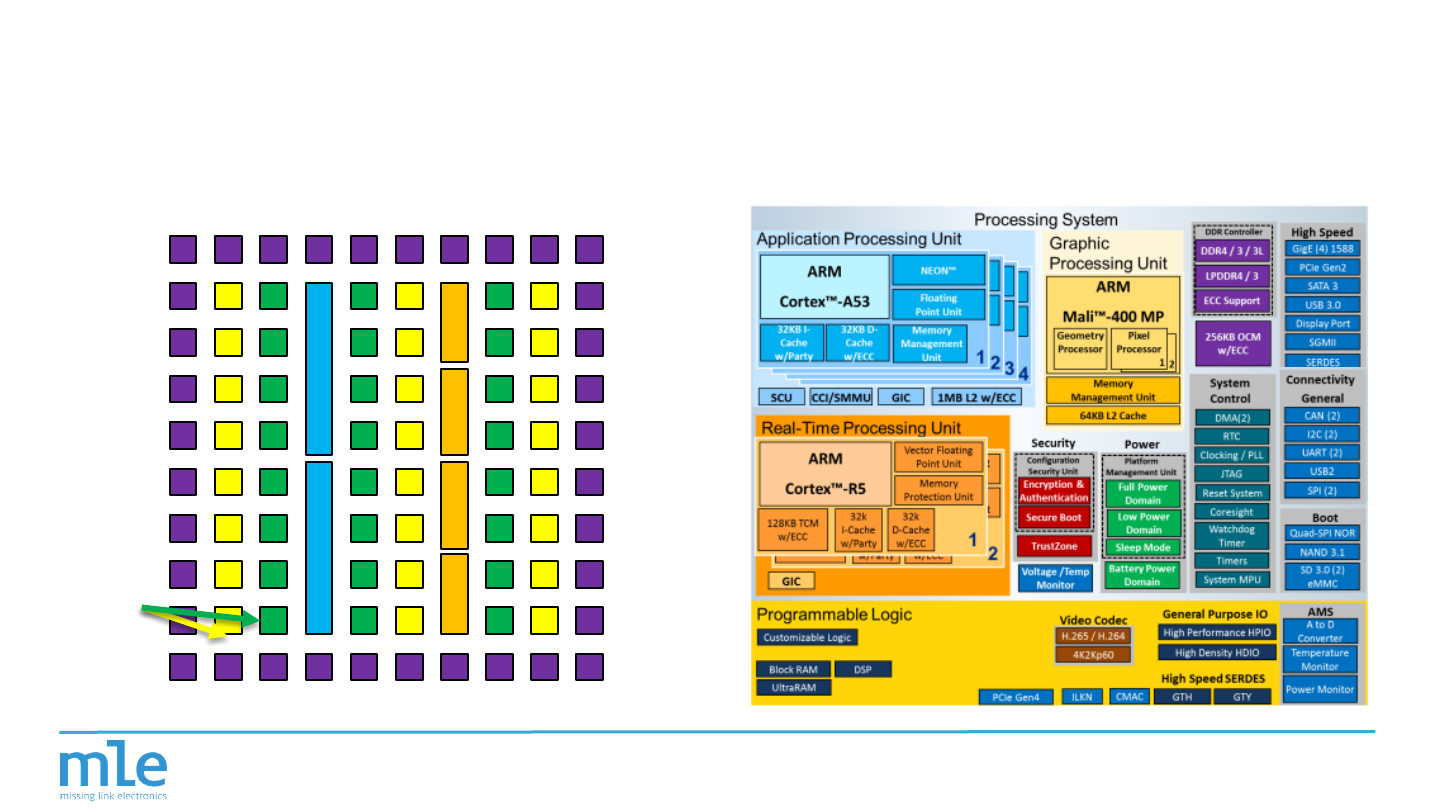

FPGAs Are Not Just Gate-Arrays Anymore
FPGA 1990 - 2010 FPGA 2016 - ...
2
CLB
Company Confidential2018-10-03
HOW? CAPI Accelerator Architectures
3
100 GigE? 100 GigE?
100 GigE?
Company Confidential2018-10-03

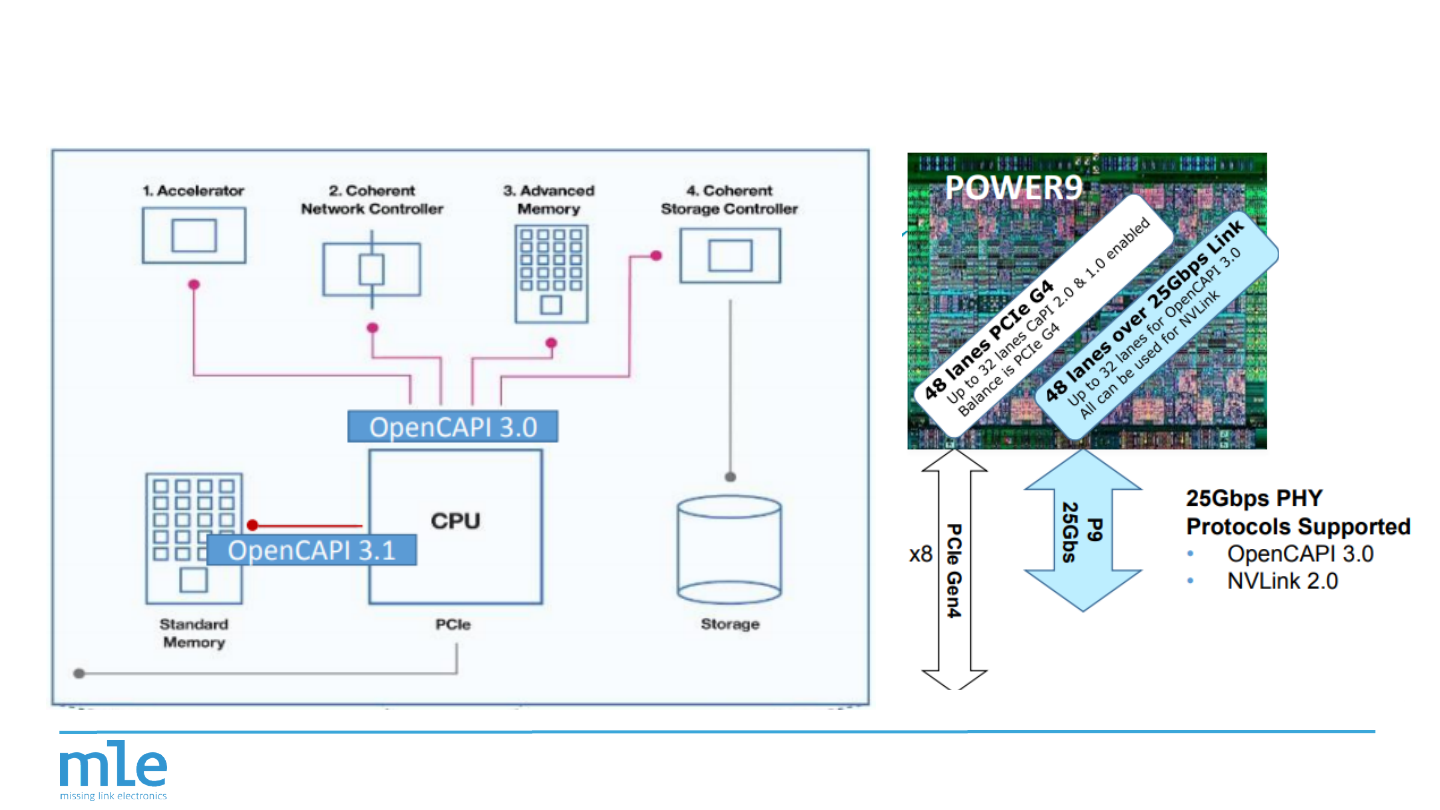

CAPI - Coherent Accelerator Processor Interface
4
Company Confidential2018-10-03

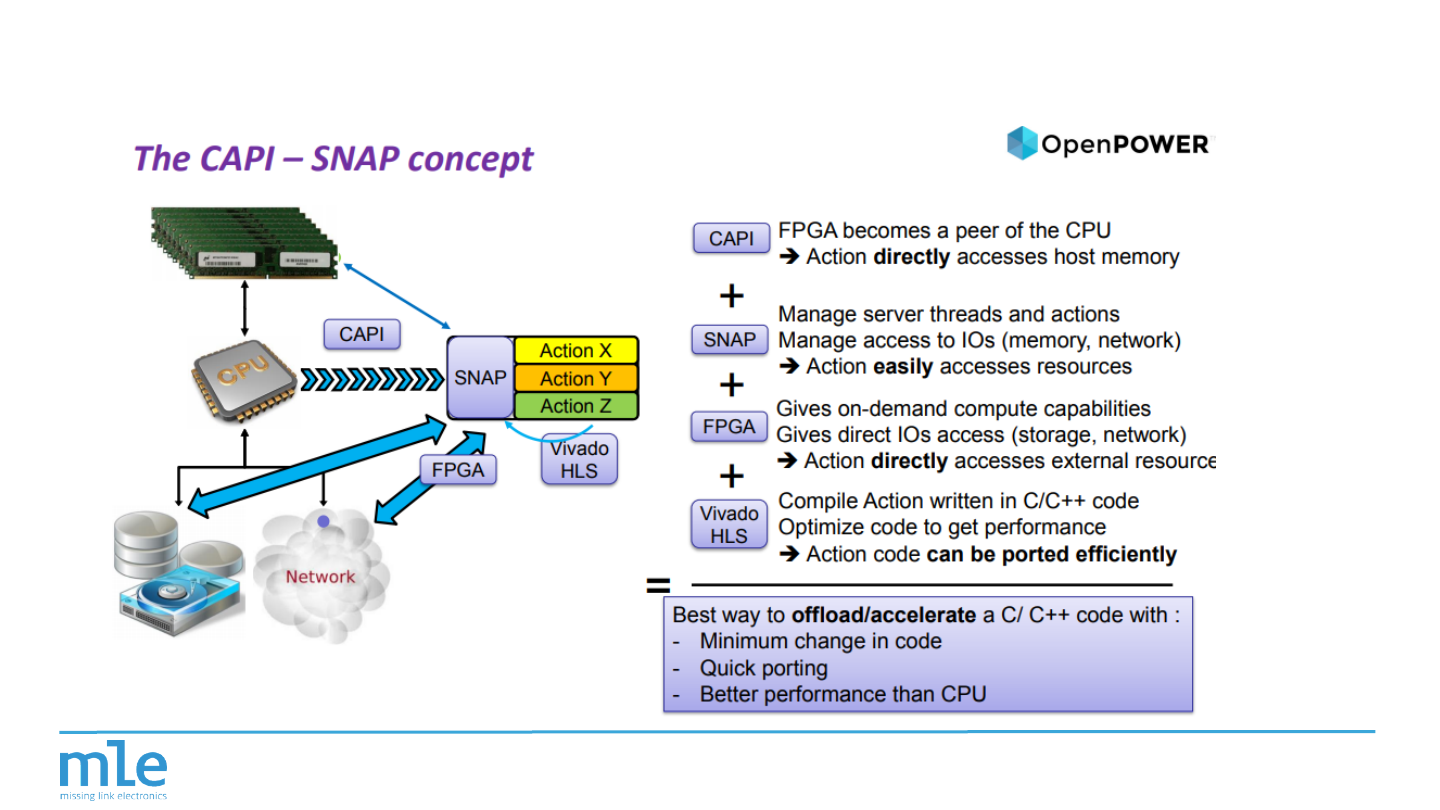

SNAP - Storage, Networking, Analytics Platform
5
Company Confidential2018-10-03

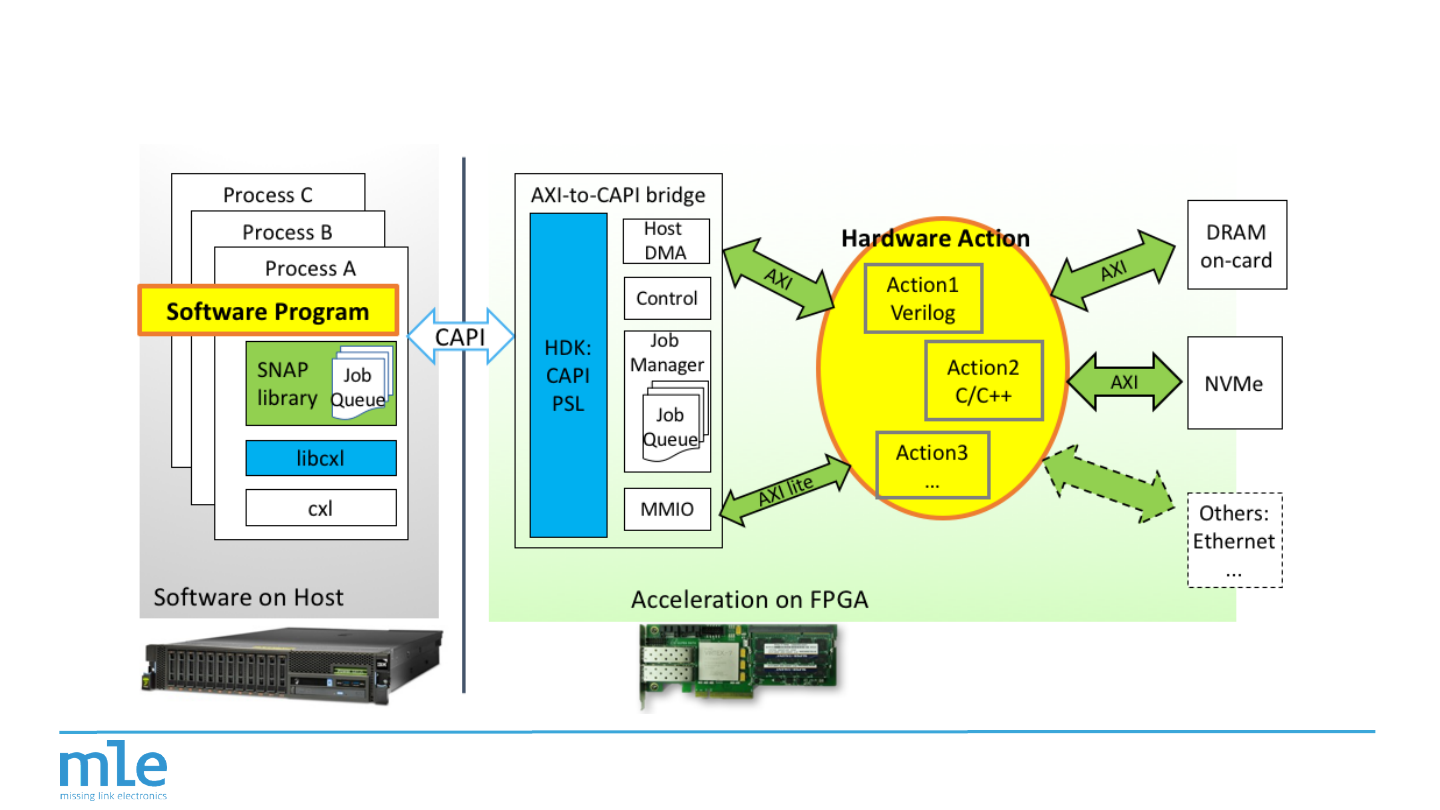

CAPI SNAP Framework
6
Company Confidential2018-10-03

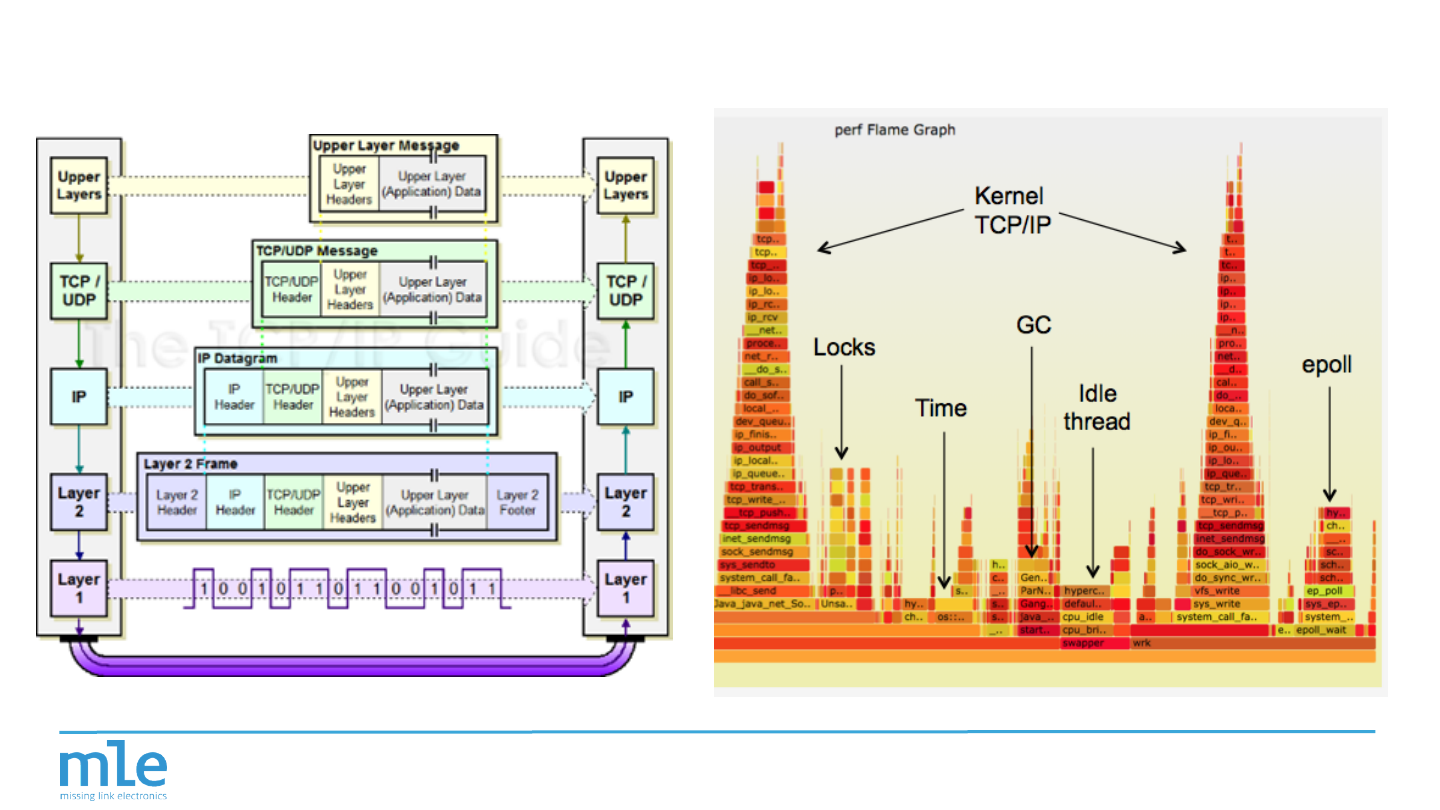

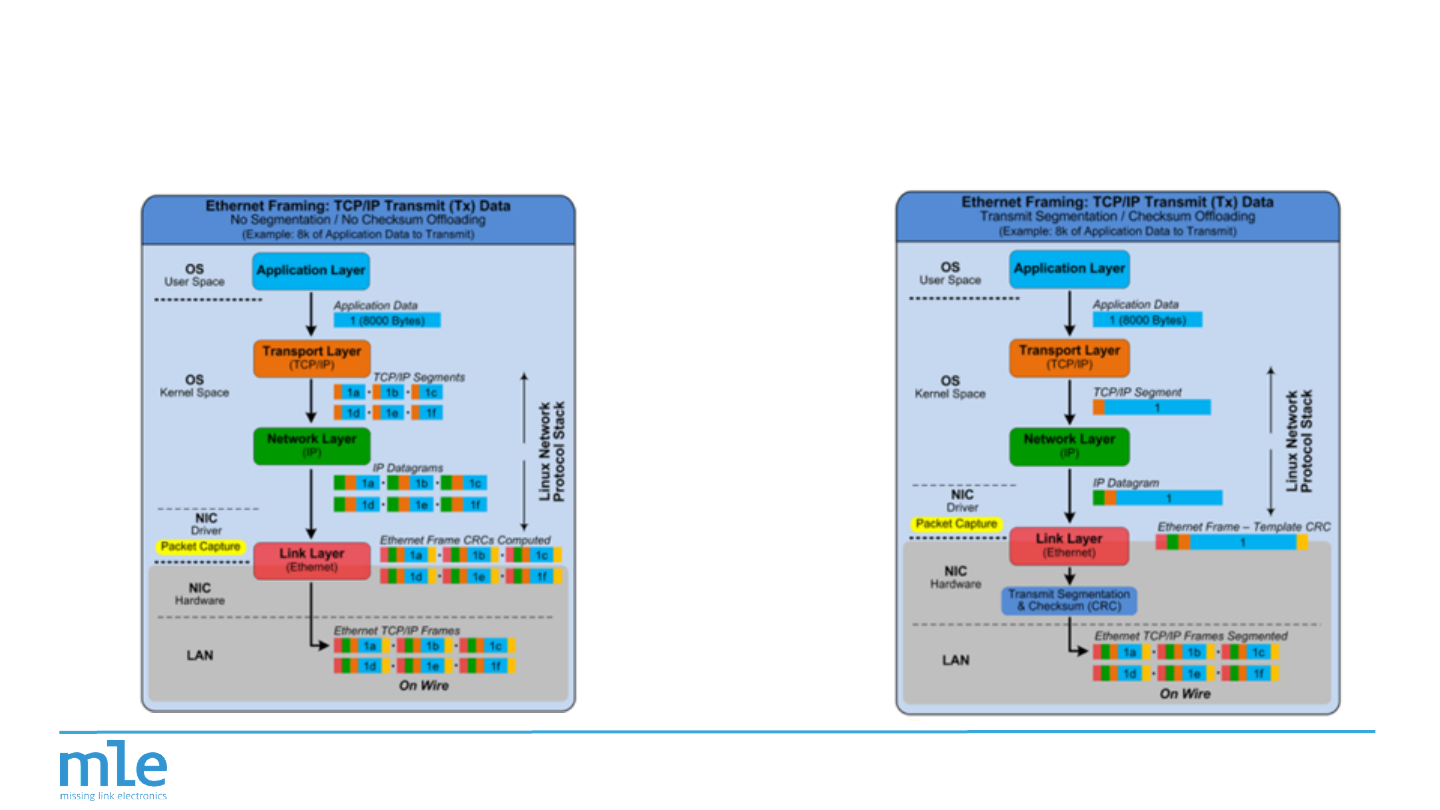

Computational Aspects of Network Protocols
7
Courtesy: Brendan Gregg
Company Confidential2018-10-03
Architecture Proposal for CAPI Smart NIC
8
+ Offload CPUs
+ Free up PCIe bus

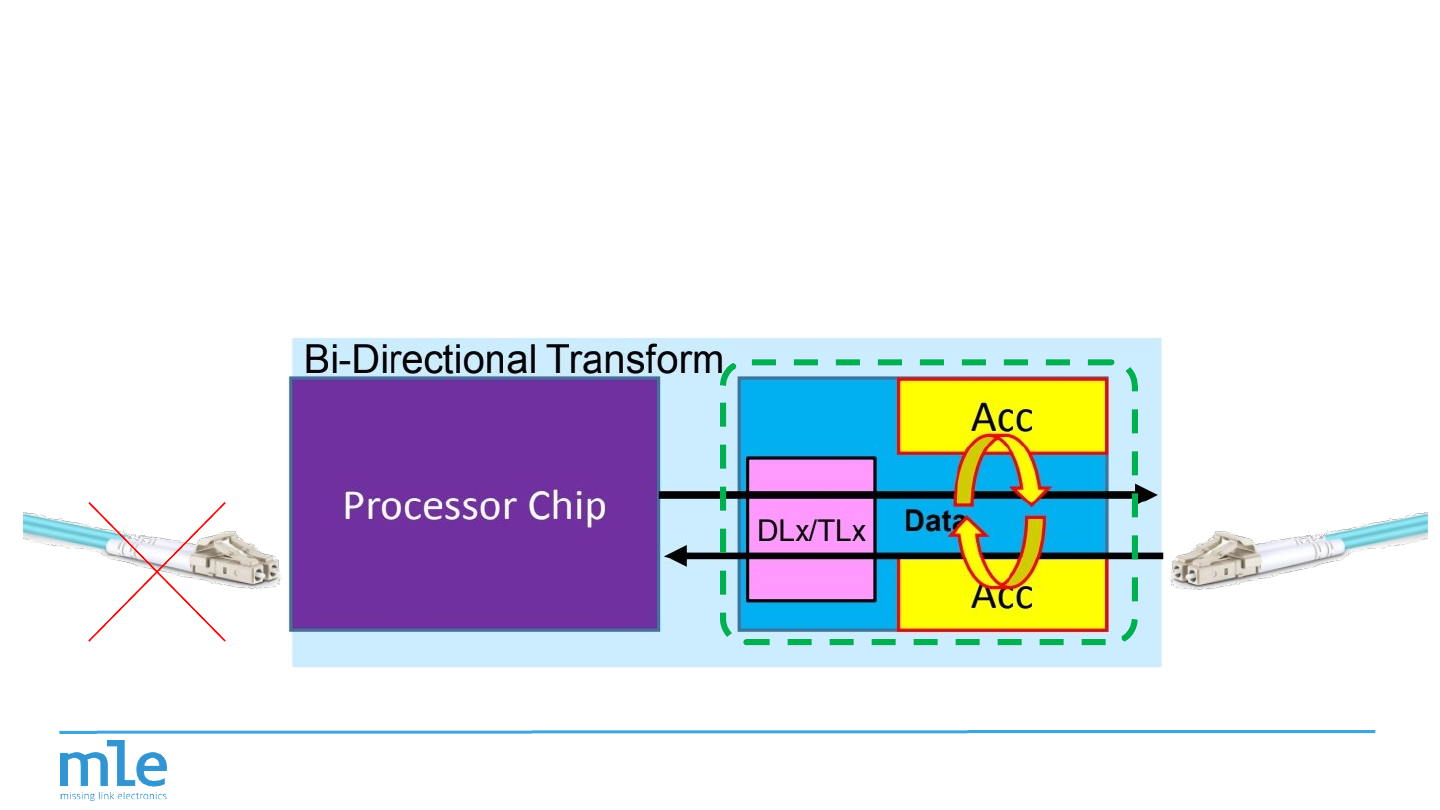

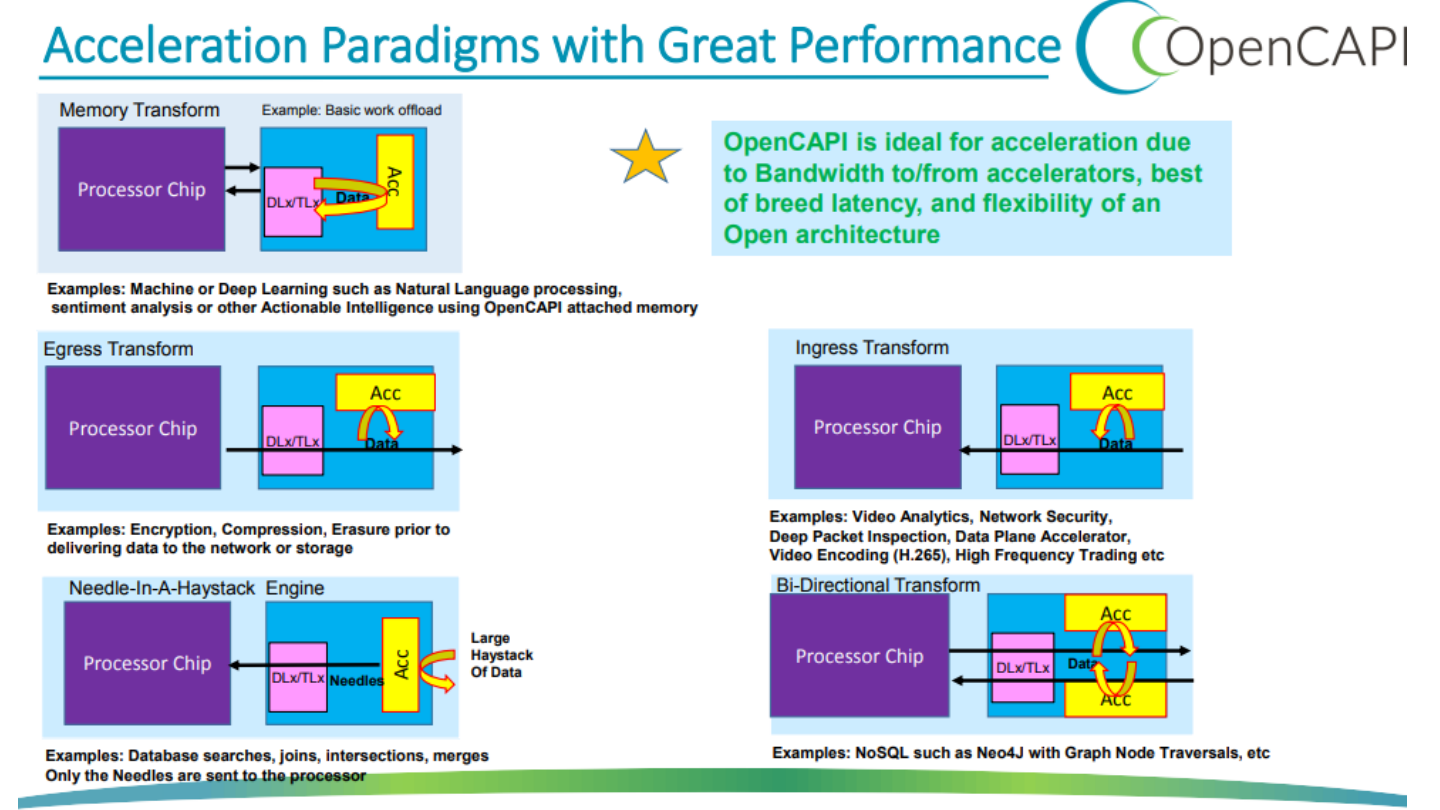

+ Enable “on-the-fly” egress/ingress/bi-dir processing
FPGA
100 GigE
!!!
100 GigE
Company Confidential2018-10-03
Capabilities of MLE / Fraunhofer HHI Technology

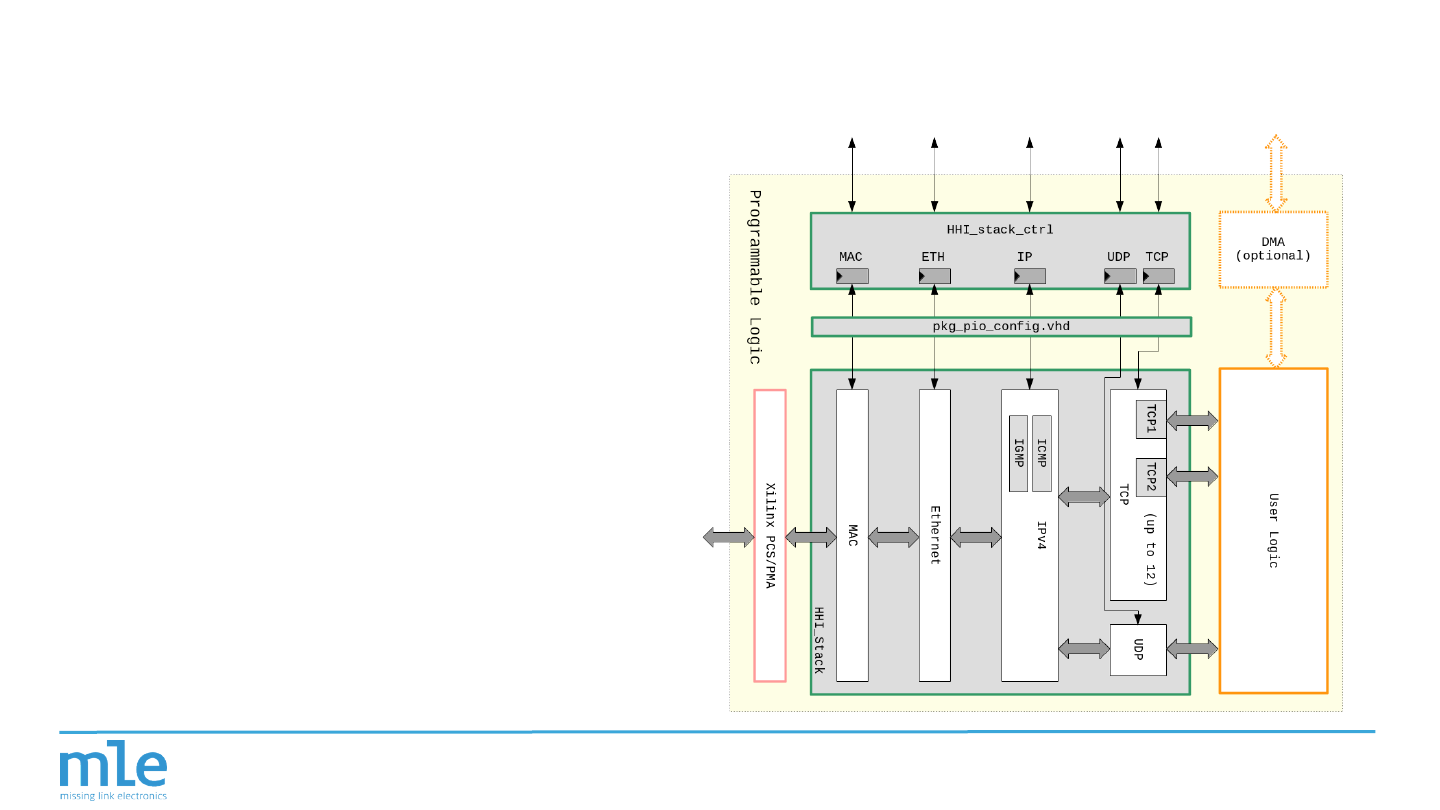

Network Protocol Accelerator Platform (NPAP)
● Modular TCP/UDP/IP stack implementation
in synthesizable HDL
● Parameterizable datapath architectures
○ 128-bit for 10/25 GigE (now)
○ 128-bit for 40/50 GigE (4Q18)
○ 512-bit for 100 GigE (1Q19)
● Multiple scalable single TCP session
engines for scalable processing
● Network Interface Card (NIC) functionality
with Bypass (optional)
● Session scaler to 10k+ sessions (roadmap)
9
Company Confidential2018-10-03

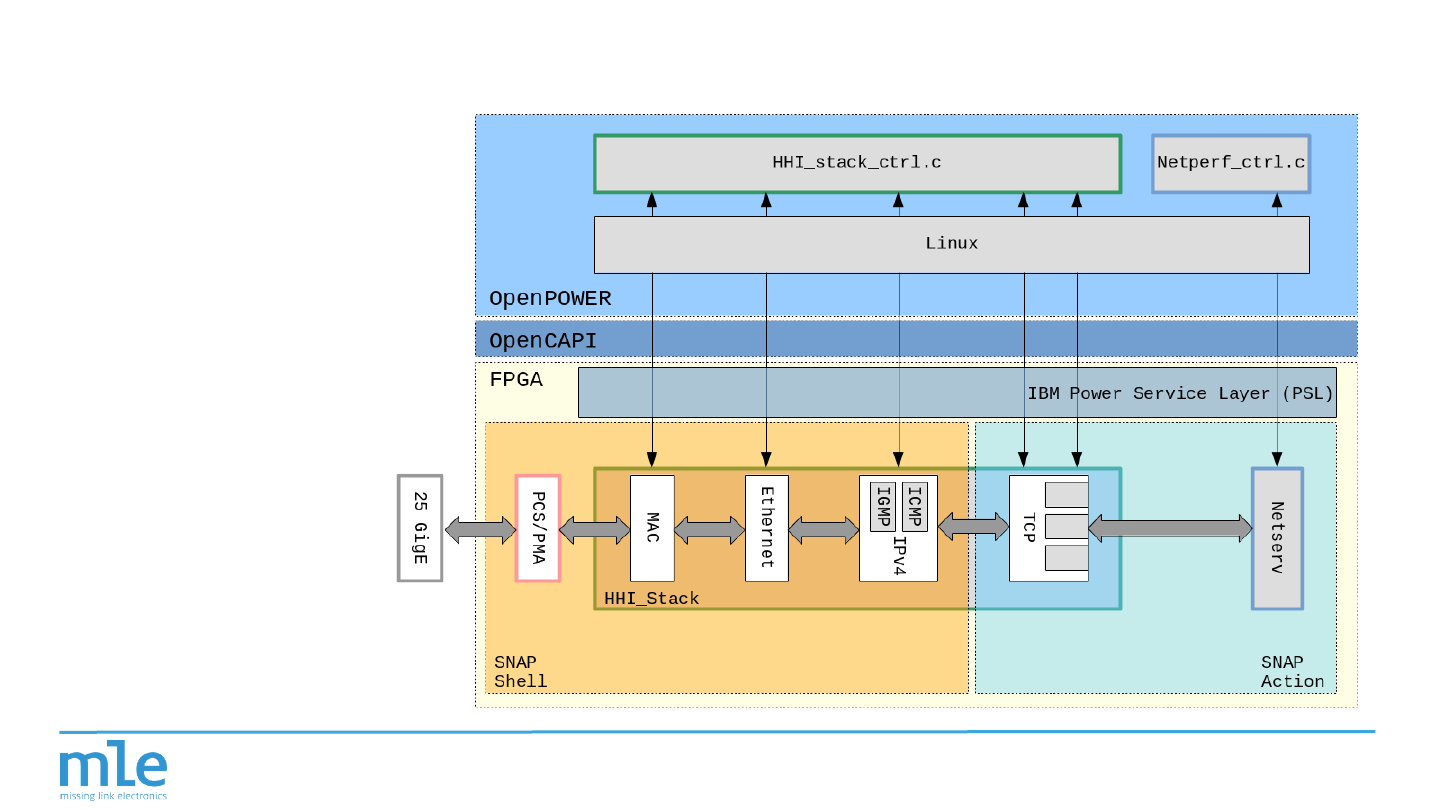

Split between SNAP Action and SNAP Shell
10
● Explore Use-case
● Adjust to License Reqs
● PCS/PMA
● MAC
● Internet Protocol (IP)
● TCP/UDP Offload/FA
Company Confidential2018-10-03
Deliver as SNAP Action – Ethernet
11
● SNAP Shell supports
10/25/40/50/100G MAC
● Fraunhofer HHI
NPAP as SNAP Action
Company Confidential2018-10-03
Deliver as SNAP Action – IP
12
● SNAP Shell supports
Internet Protocol (IP)
10/25/40/50/100G MAC
● Fraunhofer HHI
NPAP as SNAP Action
Company Confidential2018-10-03

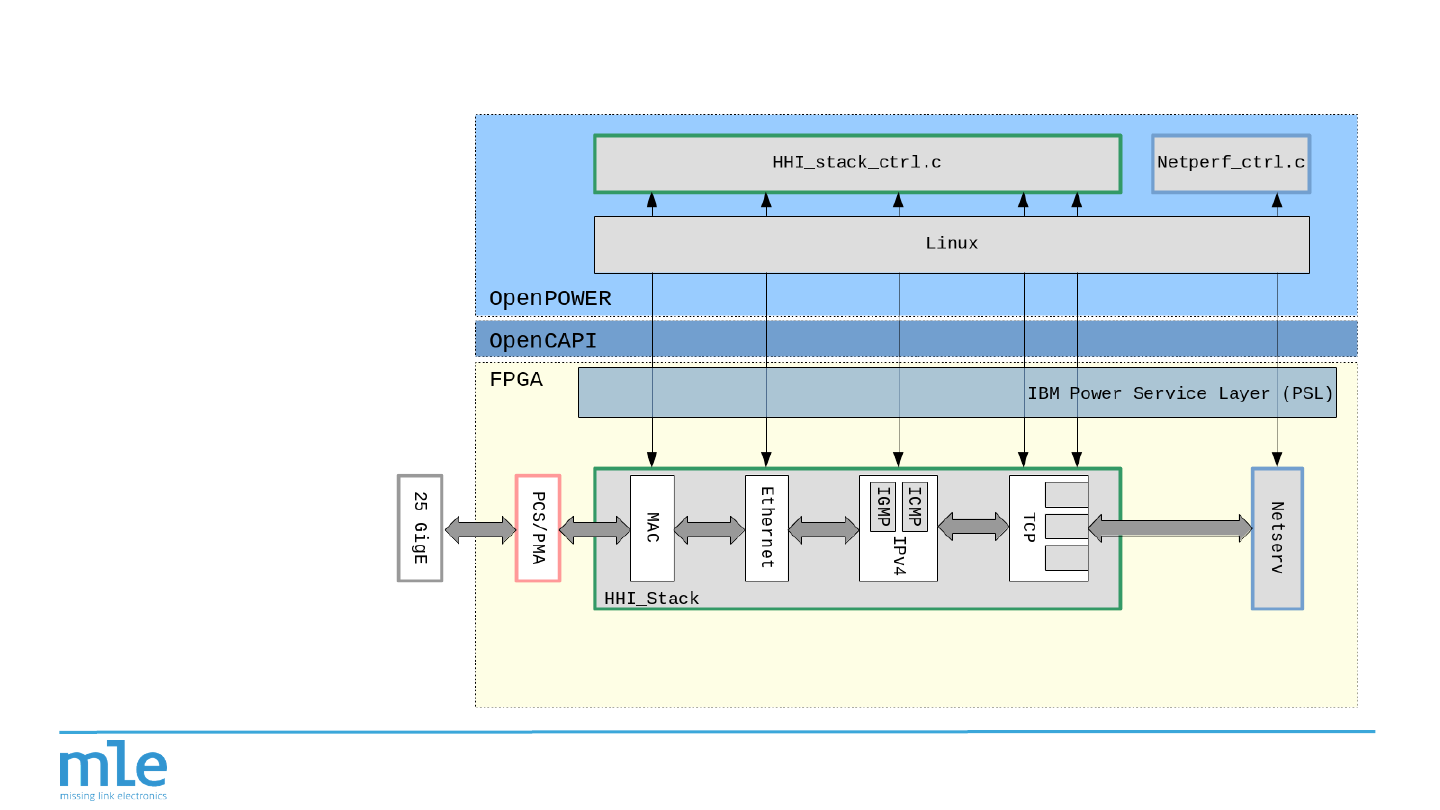

Deliver as SNAP Action – TCP/UDP
13
● SNAP Shell supports
Fraunhofer HHI NPAP
as Full Accelerator for
10/25/40/50/100G MAC
● SNAP Action runs
Netperf 2.6.0
for testing
Company Confidential2018-10-03
Current PoC Implementation
● AlphaData KU3 ⇒ 9V3
● Power8 ⇒ Power9
● CAPI 1.0 ⇒ CAPI 2.0
● MLE NPAP-10G ⇒ 25G
● Testbench w/
Netperf and
Loopbacks
14
Company Confidential2018-10-03
Network Proto Acceleration with CAPI SNAP
15
Welcome to Ubuntu 16.04.5 LTS (GNU/Linux 4.15.0-33-generic ppc64le)
user@power8:~$
user@power8:~$ cd snap.git/software/tools/
Company Confidential2018-10-03
Network Proto Acceleration with CAPI SNAP
16
Welcome to Ubuntu 16.04.5 LTS (GNU/Linux 4.15.0-33-generic ppc64le)
user@power8:~$
user@power8:~$ cd snap.git/software/tools/
user@power8:~/snap.git/software/tools$
user@power8:~/snap.git/software/tools$ sudo ./snap_maint -v
SNAP Card Id: 0 Name: ADKU3. NVME disabled, ETH 10G PCS/PMA enabled, 0 MB DRAM available.
(Align: 64 Min_DMA: 1)
SNAP FPGA Release: v1.5.0 Distance: 83 GIT: 0x36e85e51
SNAP FPGA Build (Y/M/D): 2018/08/18 Time (H:M): 16:34
SNAP FPGA CIR Master: 1 My ID: 0
SNAP FPGA Up Time: 172 sec
0 Max AT: 1 Found AT: 0x22db0001 --> Assign Short AT: 0
0 0x22db0001 0x00000000 MLE HDL 10G Ethernet TCP/UDP/IP Accelerator Demo
Company Confidential2018-10-03
Network Proto Acceleration with CAPI SNAP
17
Welcome to Ubuntu 16.04.5 LTS (GNU/Linux 4.15.0-33-generic ppc64le)
user@power8:~$
user@power8:~$ cd snap.git/software/tools/
user@power8:~/snap.git/software/tools$
user@power8:~/snap.git/software/tools$ sudo ./snap_maint -v
SNAP Card Id: 0 Name: ADKU3. NVME disabled, ETH 10G PCS/PMA enabled, 0 MB DRAM available.
(Align: 64 Min_DMA: 1)
SNAP FPGA Release: v1.5.0 Distance: 83 GIT: 0x36e85e51
SNAP FPGA Build (Y/M/D): 2018/08/18 Time (H:M): 16:34
SNAP FPGA CIR Master: 1 My ID: 0
SNAP FPGA Up Time: 172 sec
0 Max AT: 1 Found AT: 0x22db0001 --> Assign Short AT: 0
0 0x22db0001 0x00000000 MLE HDL 10G Ethernet TCP/UDP/IP Accelerator Demo
user@power8:~/snap.git/software/tools$ cd ../../actions/hdl_eth_npap_demo/sw/
user@power8:~/snap.git/actions/hdl_eth_npap_demo/sw$ sudo ./ifconfig
npap0: Link encap: npap HW addr: 02:00:00:00:00:11
inet address: 192.168.1.101 Bcast: 192.168.1.255 Mask: 255.255.255.0
Company Confidential2018-10-03
Netperf 2.6.0 Performance Analysis
18
Intel X520 in Power 8 8247-21L Ubuntu 16.04
NPAP-10G on AlphaData KU3
$ timeout 15 netperf -H 192.168.1.101 -t TCP_STREAM
MIGRATED TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 192.168.1.101 () port 0 AF_INET
: demo
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.00 9491.13
$ timeout 15 netperf -H 192.168.1.101 -t TCP_RR
MIGRATED TCP REQUEST/RESPONSE TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 192.168.1.101 () port
0 AF_INET : demo : first burst 0
Local /Remote
Socket Size Request Resp. Elapsed Trans.
Send Recv Size Size Time Rate
bytes Bytes bytes bytes secs. per sec
16384 87380 1 1 10.00 43345.98
Company Confidential2018-10-03
19

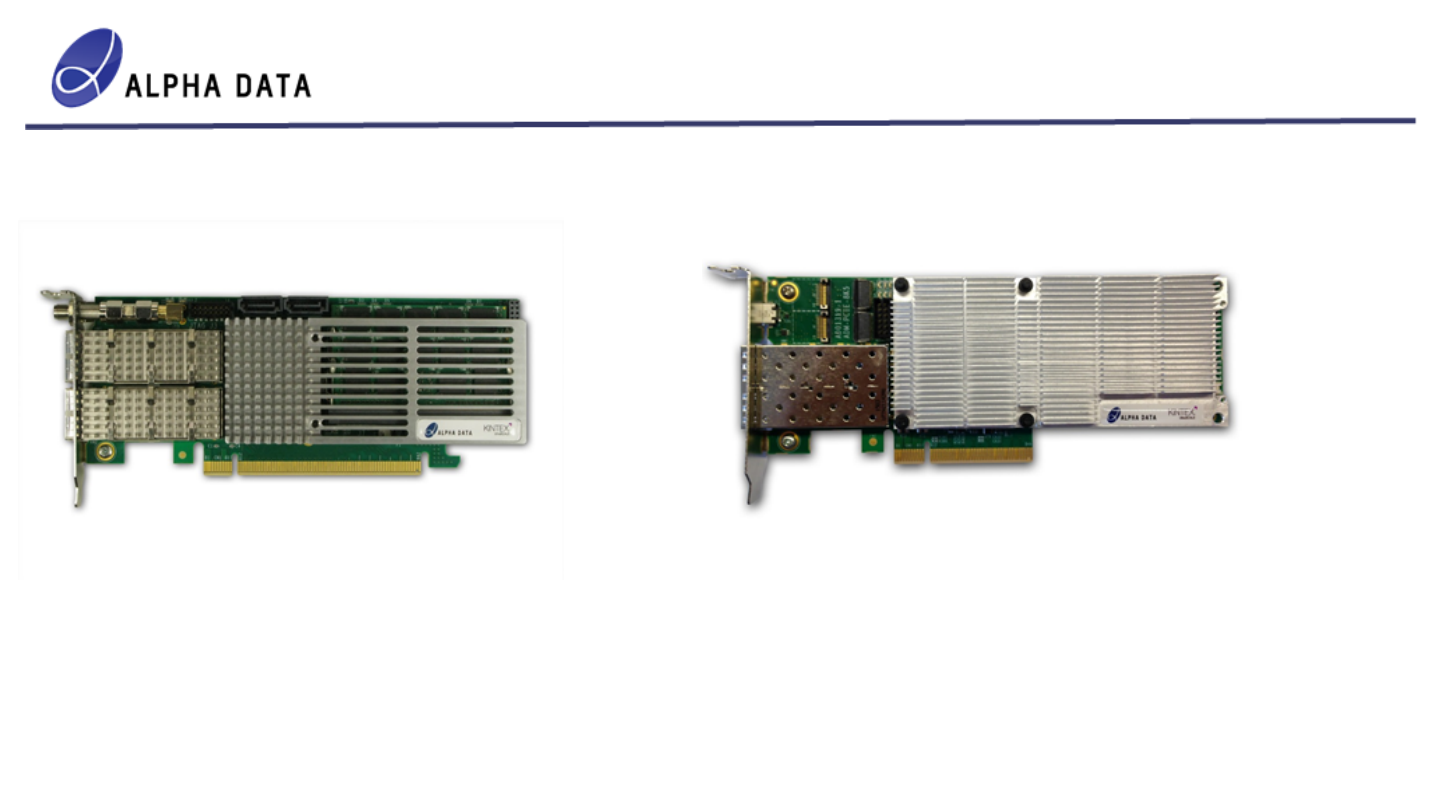

CAPI SNAP Networking and Acceleration Boards for Power8

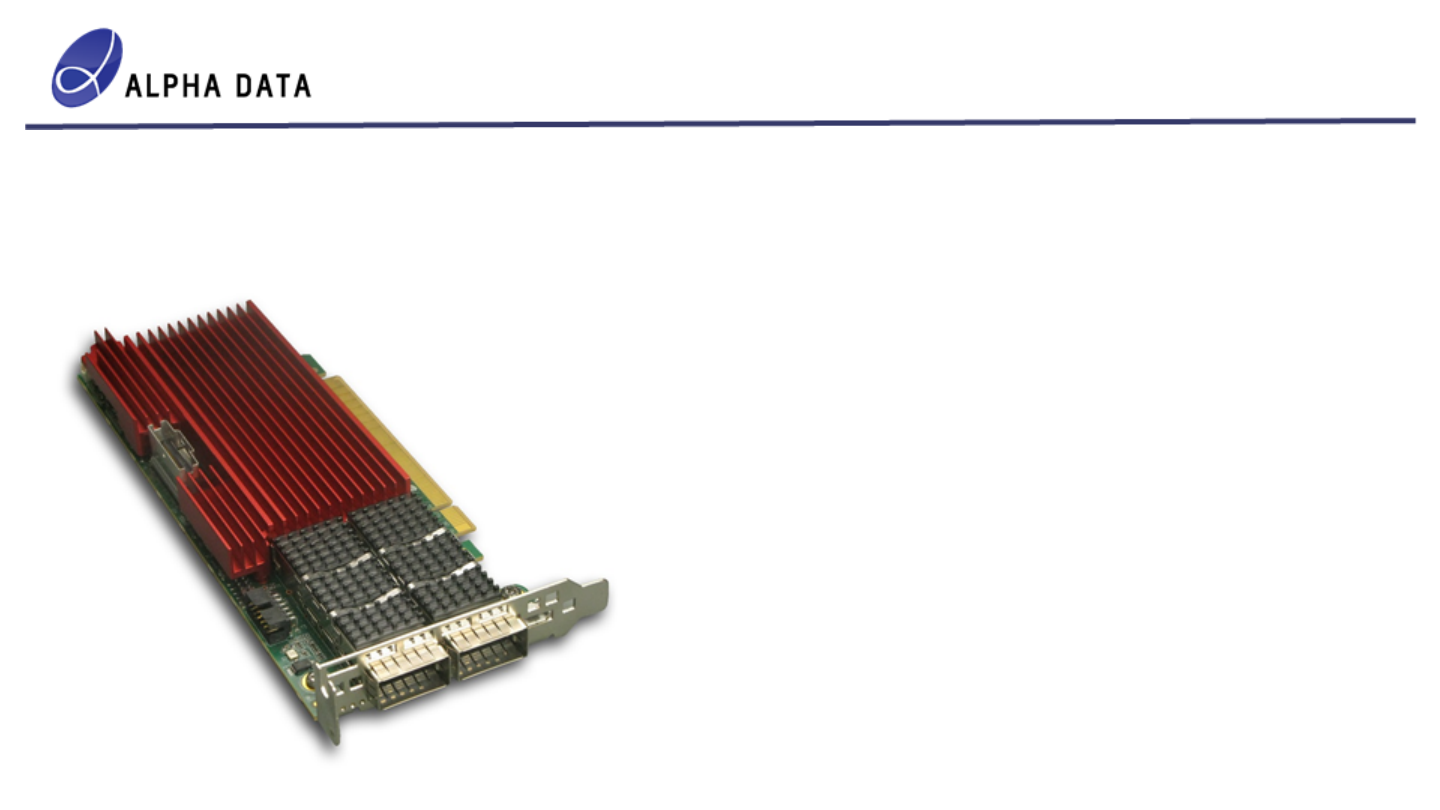

ADM-PCIE-KU3
Entry level CAPI SNAP card
Xilinx KU060 FPGA
Dual QSFP+ Interfaces
Up to 8x10 GE or 2x40 GE ports
16/32GB DDR3 DIMMS
ADM-PCIE-8K5
High Performance CAPI SNAP card
Xilinx KU115 FPGA
Maximum DSP(ML) performance in 20ns
Silicon/Low Profile Form Factor
Dual SFP+ Interfaces : 2x10 GE
16/32GB DDR4
Company Confidential2018-10-03
20
CAPI/OpenCAPI FPGA Networking and Acceleration Board for Power9
Low Profile PCIe Form Factor
Xilinx VU3P FPGA
CAPI 2.0/PCIe Gen4x8/Gen3x16
OpenCAPI 25Gb/s x8 Link
Dual QSFP28
Up to 8x10G/25G or 2x40G/100G
16/32GB DDR4
ADM-PCIE-9V3
Company Confidential2018-10-03
21

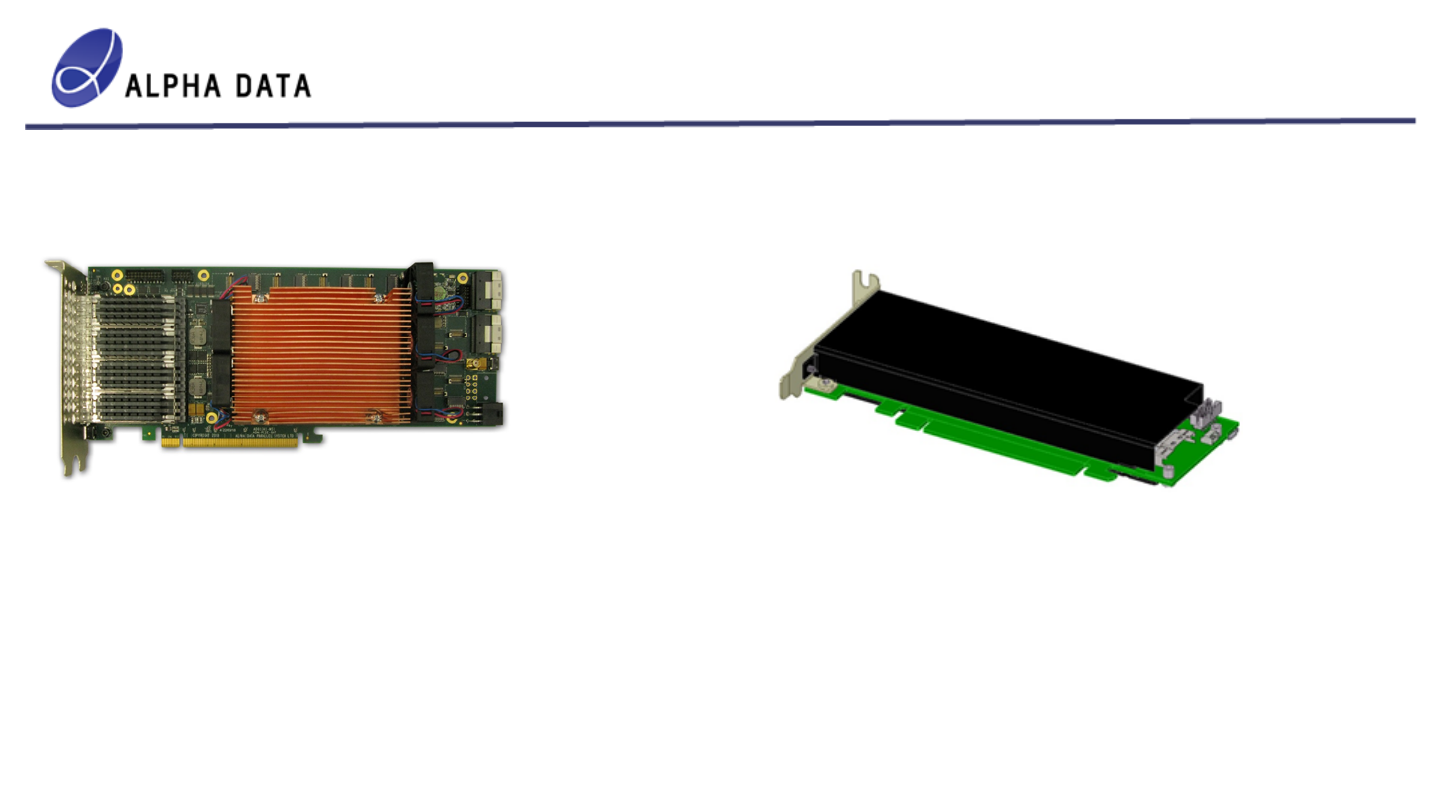

CAPI/OpenCAPI HBM Boards for Power9
ADM-PCIE-9H7
Full Height ¾ Length PCIe form factor
GPU Size, 150/225W power budget
Xilinx VU37P HBM FPGA
4xQSFP28 (4x100GE)
8xFirefly (32x28Gbps)
2xOpenCAPI links
PCIe Gen3x16/Dual Gen4x8/CAPI 2.0
8GB of 460GB/s HBM
ADM-PCIE-9H3
Low Profile PCIe form factor
Xilinx VU33P HBM FPGA
QSFP-DD (2x100GE)
OpenCAPI link
PCIe Gen3x16/Dual Gen4x8/CAPI 2.0
8GB of 460GB/s HBM
Company Confidential2018-10-03
Call for Participation
● CAPI is a significant technology advancement for FPGA accelertion!
● SNAP is a fantastic acceleration design framework…
now supports networking functionality!
● AlphaData, IBM, MLE are looking forward to participation from the
OpenPOWER ecosystem to guide further development!
Alpha Data www.alpha-data.com
Missing Link Electronics www.MissingLinkElectronics.com
22
Company Confidential2018-10-03
BACKUP
23
Company Confidential2018-10-03
Network Protocol Acceleration
All software FPGA Acceleration
24
Company Confidential2018-10-03

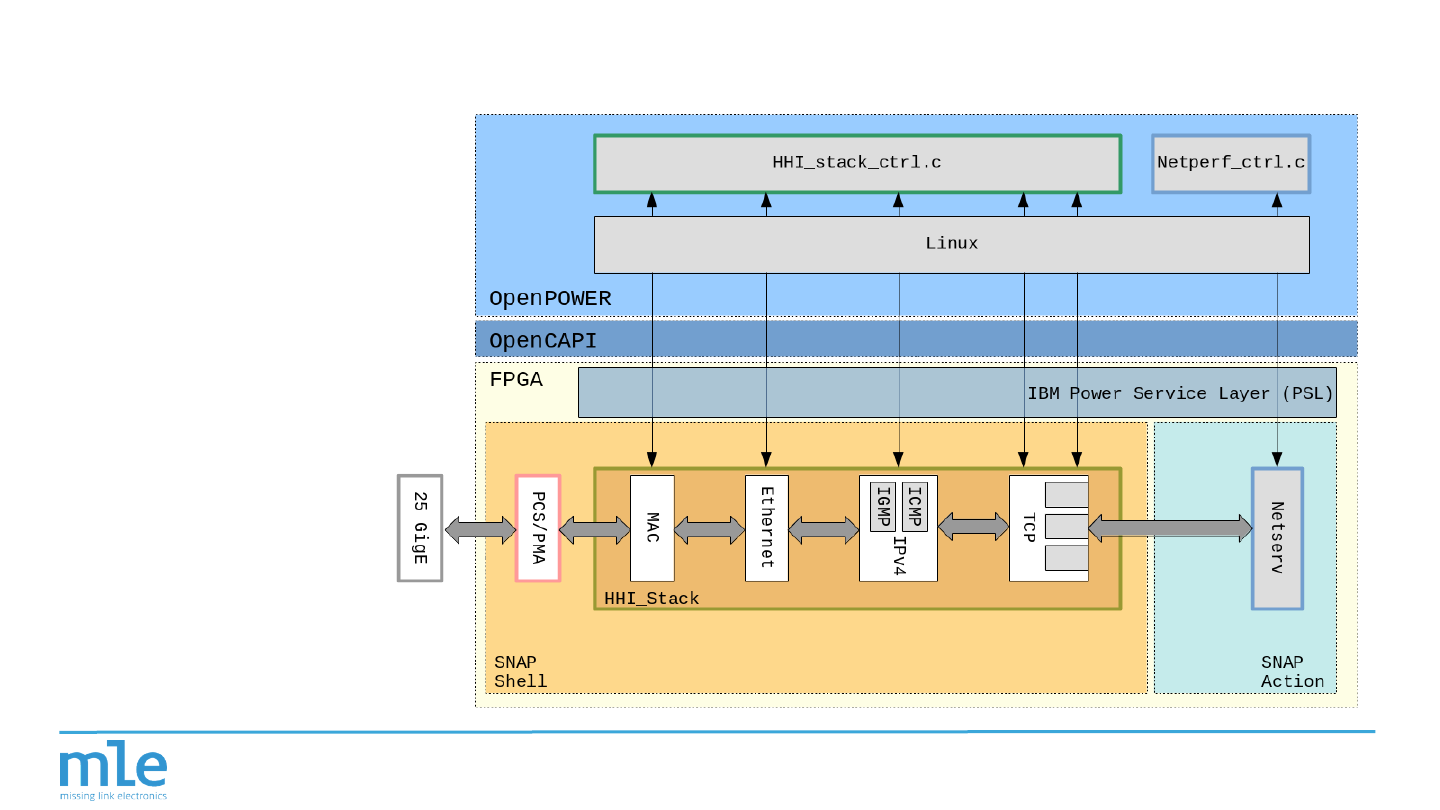

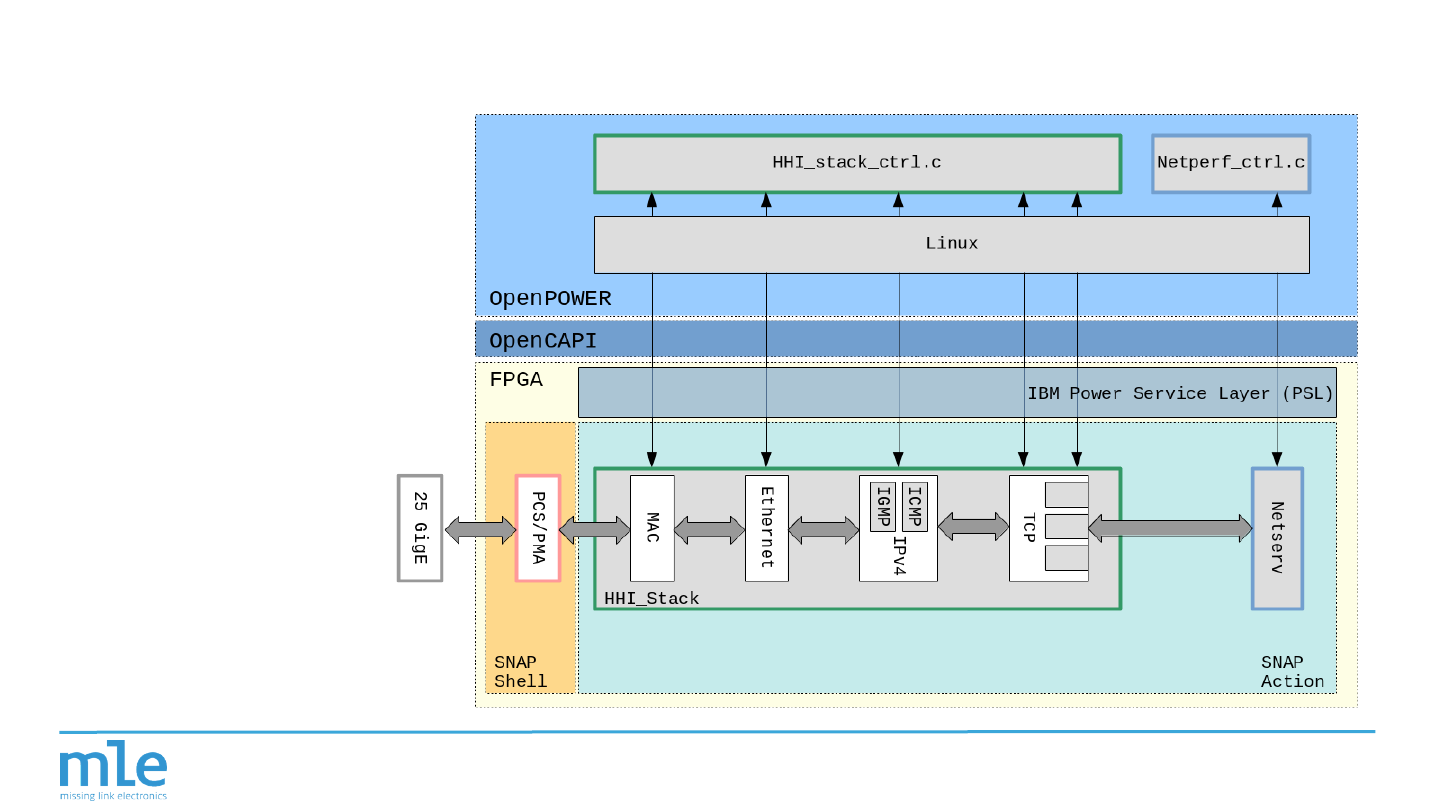

Network Options for CAPI SNAP
25
CAPI SNAP Shell
CAPI SNAP Action
(Q)SFP+
Xilinx PCS/PMA
HHI MAC
(netlist only)
UDP and TCP/IP
(netlist only)
Netperf
TCP Loopback
(netlist only)
MII
Company Confidential2018-10-03

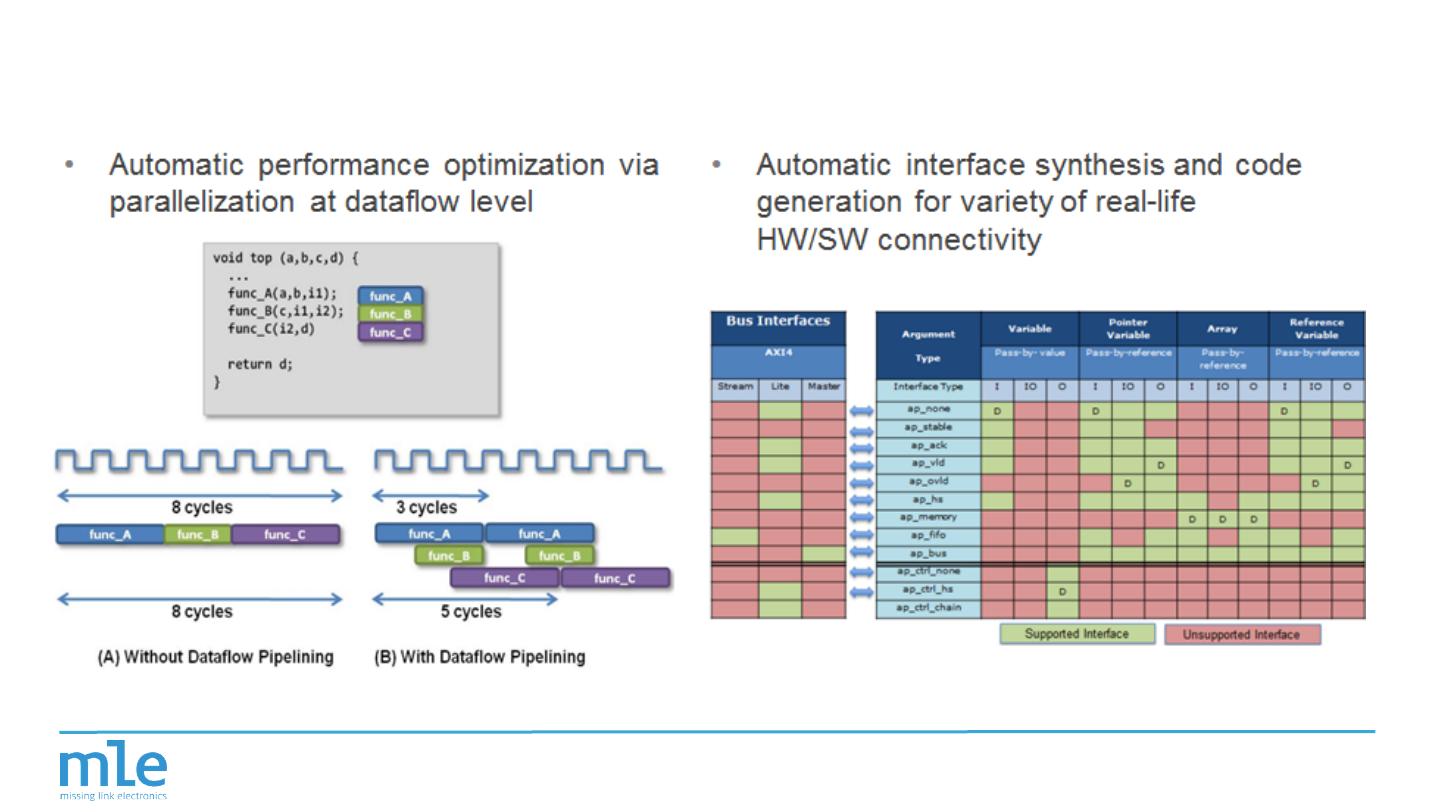

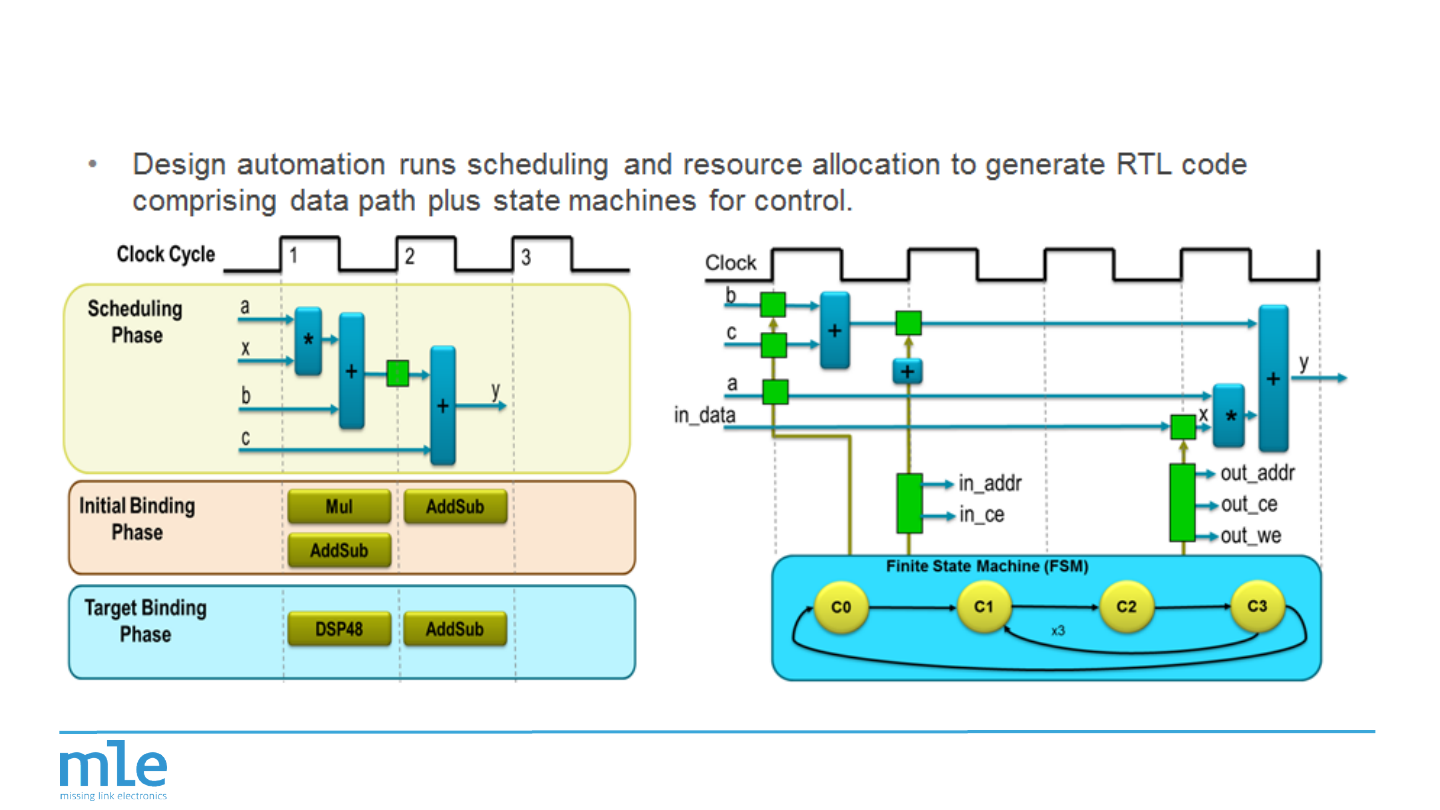

HOW? High-Level Synthesis Works
26
Company Confidential2018-10-03
HOW? Offloading Software Functions to FPGA
27
