Cost-Optimizing High-
Accuracy Precision Time
Protocol
Ulrich Langenbach
Missing Link Electronics
2026-03-26 - Automotive Ethernet Congress
3
MLE – Experts for Domain-Specific Compute Architectures
Our Mission: From Software to Silicon!
● Deliver HW and SW for High-Performance
(Embedded) Compute Systems & Solutions
● Offering pre-validated subsystems with
FPGA IP blocks and open-source software
● Support customer projects with deep
expertise and hands-on design services
Head-quartered in Silicon Valley with Design
Offices in Germany
● Founded 2010
● 20+ Certified FPGA Designers
● Customers include technology leaders,
US and European government agencies,
Fortune 500 companies
● Partners to:
2026-03-26 - Automotive Ethernet Congress
4
TSN: From Determinism to Time Synchronisation
Determinism
Real-Time
Time Synchronisation
Time Sensitive Networking
Predictable,
Repeatable Behavior
Timely Response,
Bounded Latency
Synchronized Clocks,
Precise Timing
Enabling Coherent Systems and Applications
2026-03-26 - Automotive Ethernet Congress
5

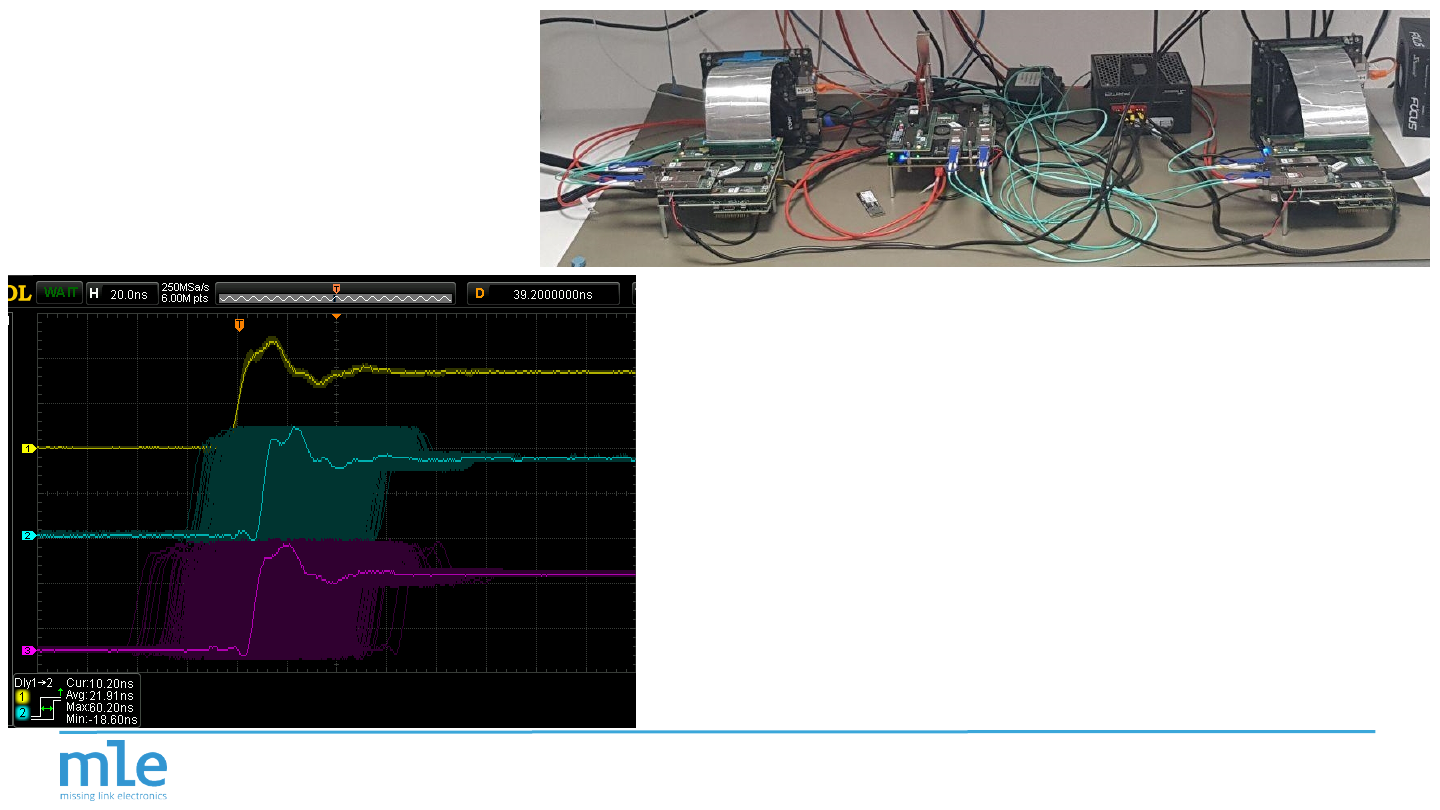

1 GbE TSN gPTP
PPS stddev ?
PPS Range < 110 ns
PPS Avg < 30 ns
Measurements ?
Not optimized Labcar (2020)
2026-03-26 - Automotive Ethernet Congress
6
Research Projects
2026-03-26 - Automotive Ethernet Congress
7

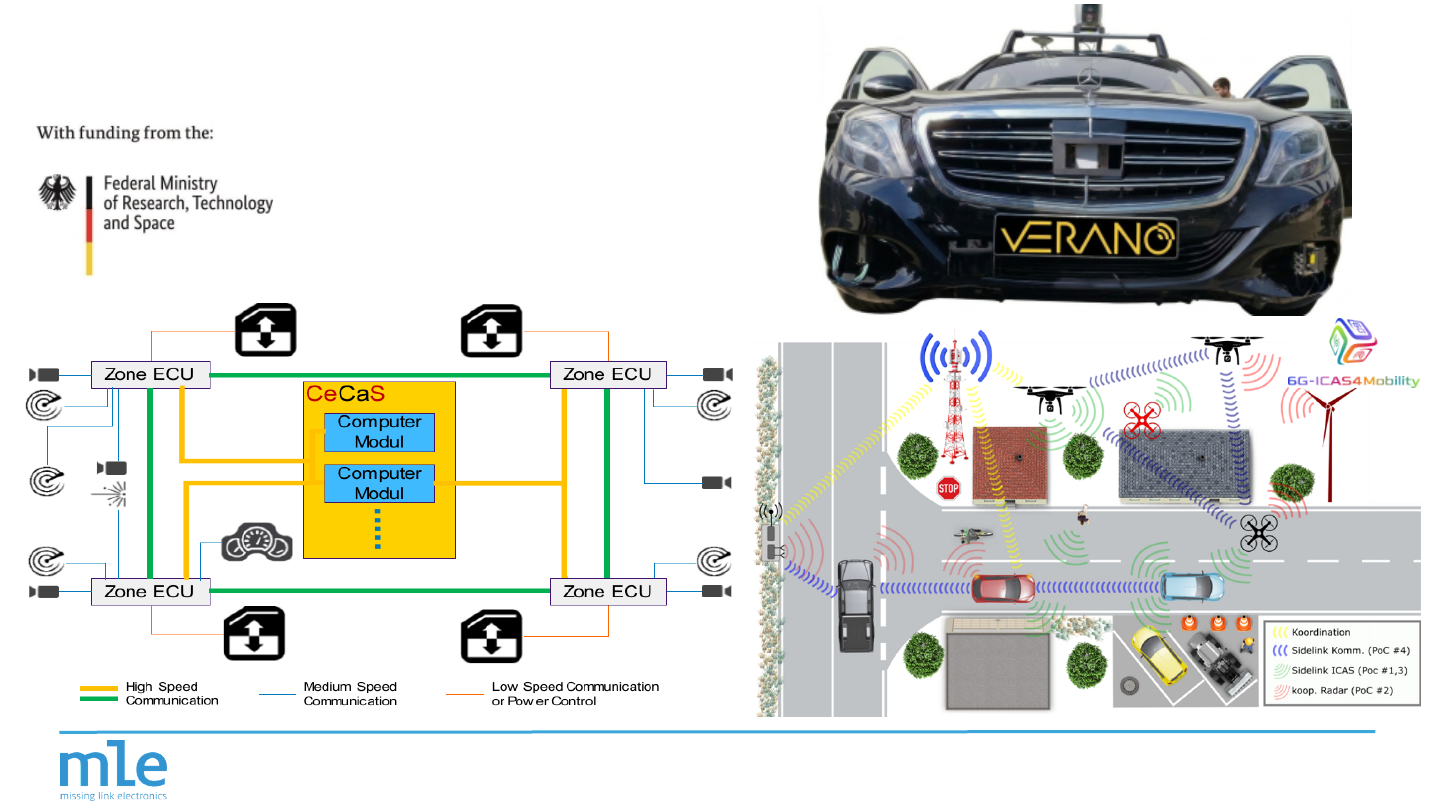

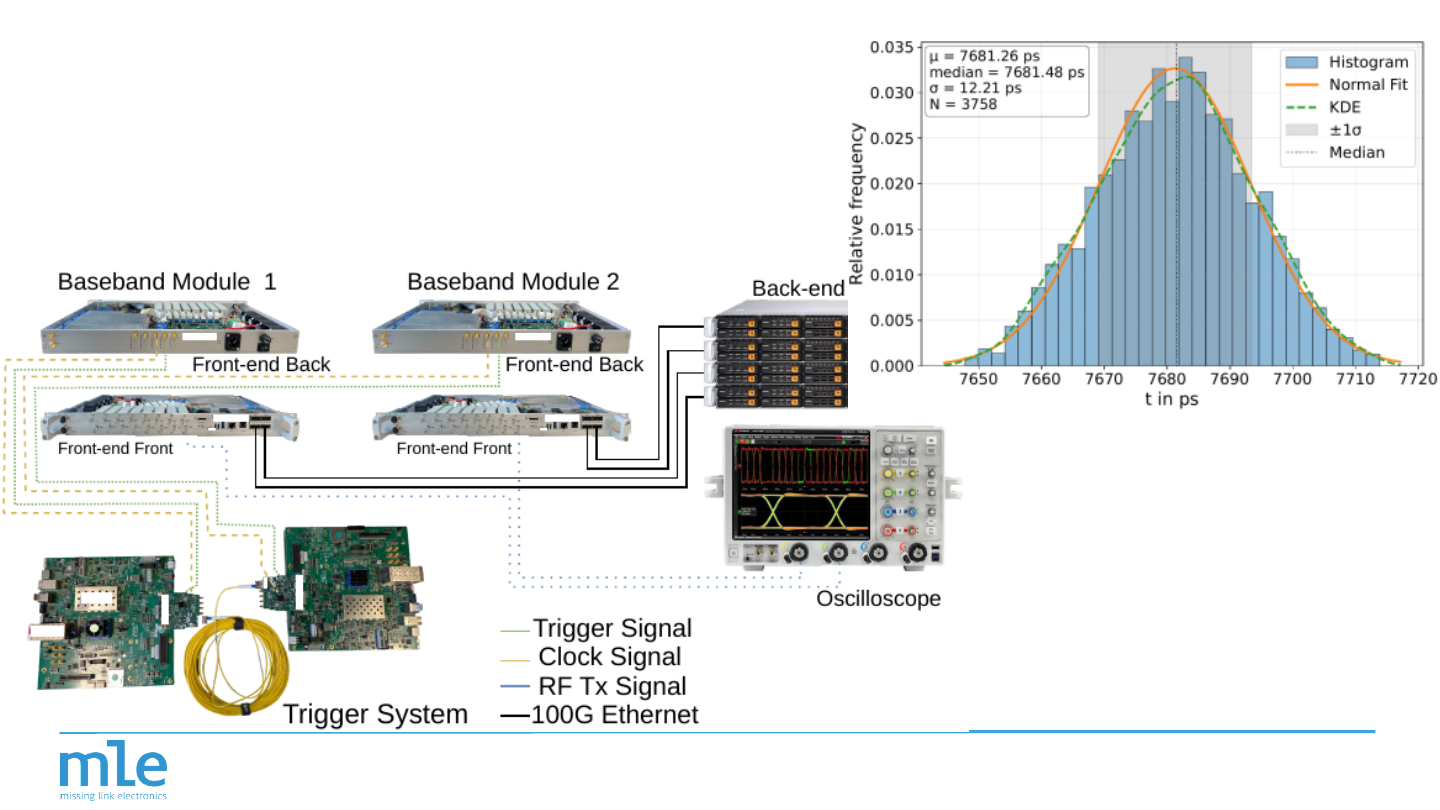

VERANO OFDM MIMO Demo
KIT Demonstrator & Measurement
2026-03-26 - Automotive Ethernet Congress
8

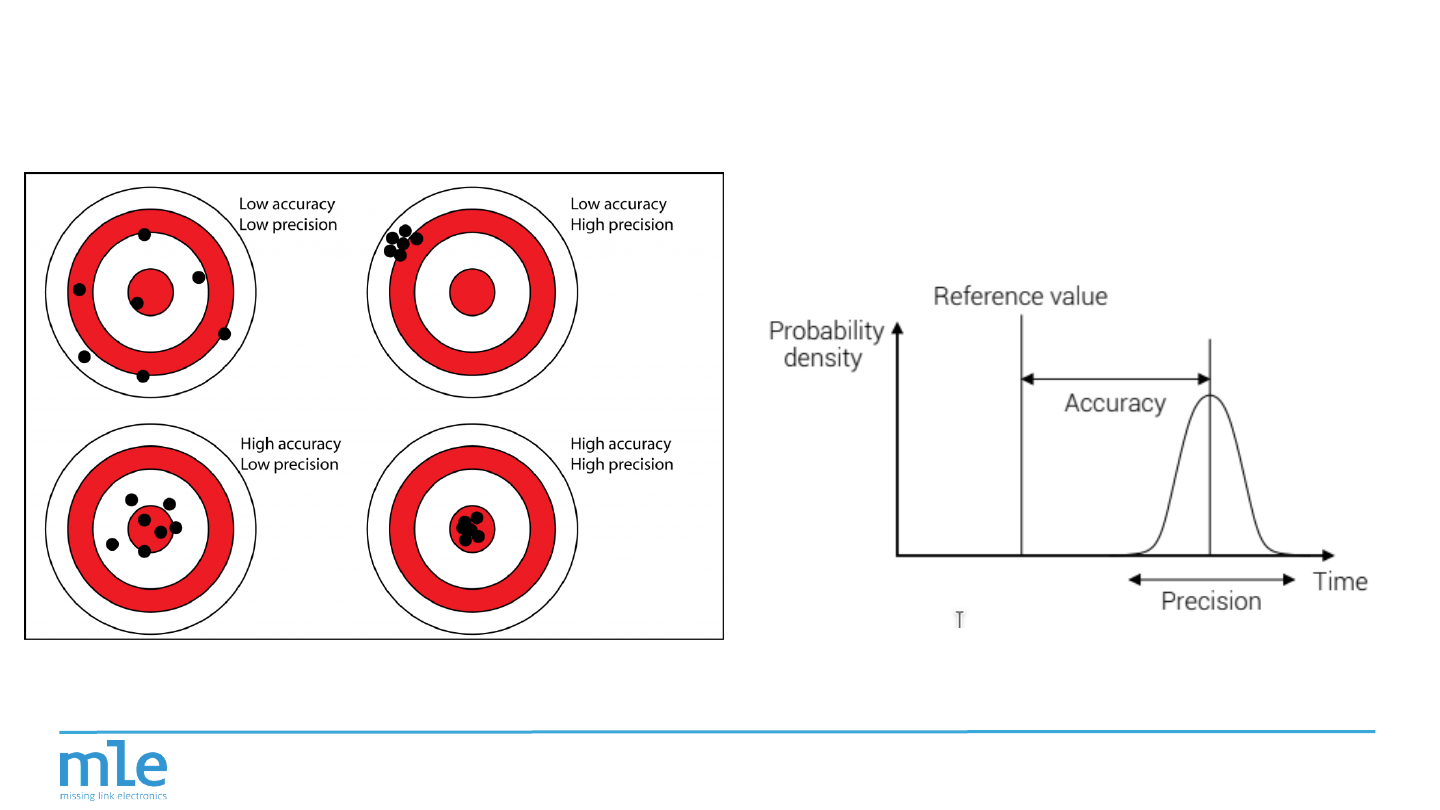

Refresher: Accuracy vs. Precision
https://www.portaspecs.com/precision-and-accuracy/
2026-03-26 - Automotive Ethernet Congress
9

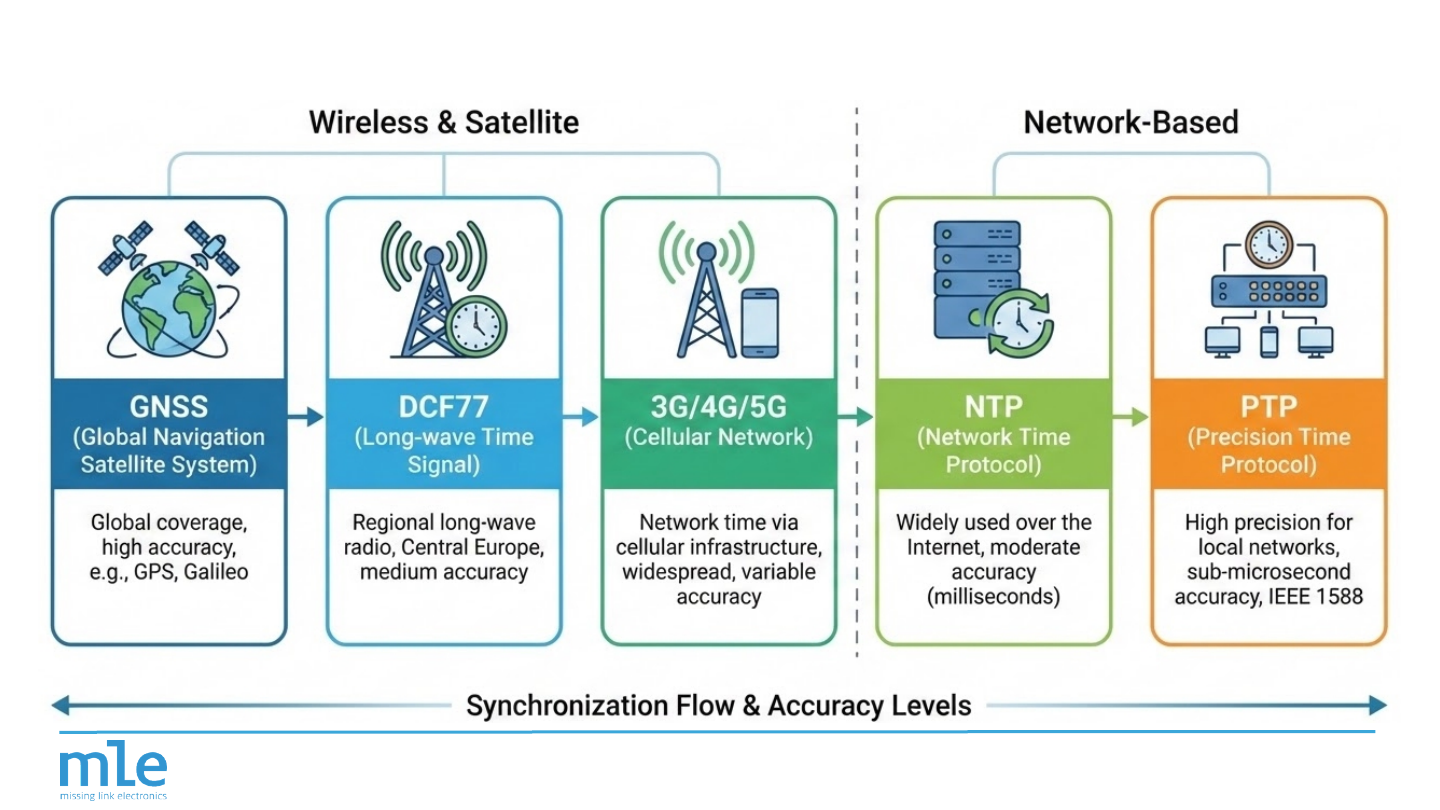

Time Synchronization Options
2026-03-26 - Automotive Ethernet Congress
10
Traditional PTP vs SyncE vs White Rabbit
● Traditional PTP
○ All nodes have free-running oscillators
○ Rate of slave clock is adjusted with timestamped packets => high low frequency jitter
○ Timestamping precision is limited to a one clock cycle (typ. 8 ns for Gigabit Ethernet)
○ No method for compensating link asymmetry => likely not relevant in Automotive (?)
● Synchronous Ethernet
○ All network nodes use the same physical layer clock: Clock is encoded in the Ethernet
carrier and recovered by the PLL in the PHY
○ PTP is used only for compensating clock offset
○ We can use phase measurements instead of direct timestamping
● PTP-HA (White Rabbit, WR)
○ Monitor phase of bounced-back clock continuously
○ PLL in the slave follows the phase changes measured by the master
○ Performance is equivalent to PTP with messages exchanged every 8 ns
2026-03-26 - Automotive Ethernet Congress
11

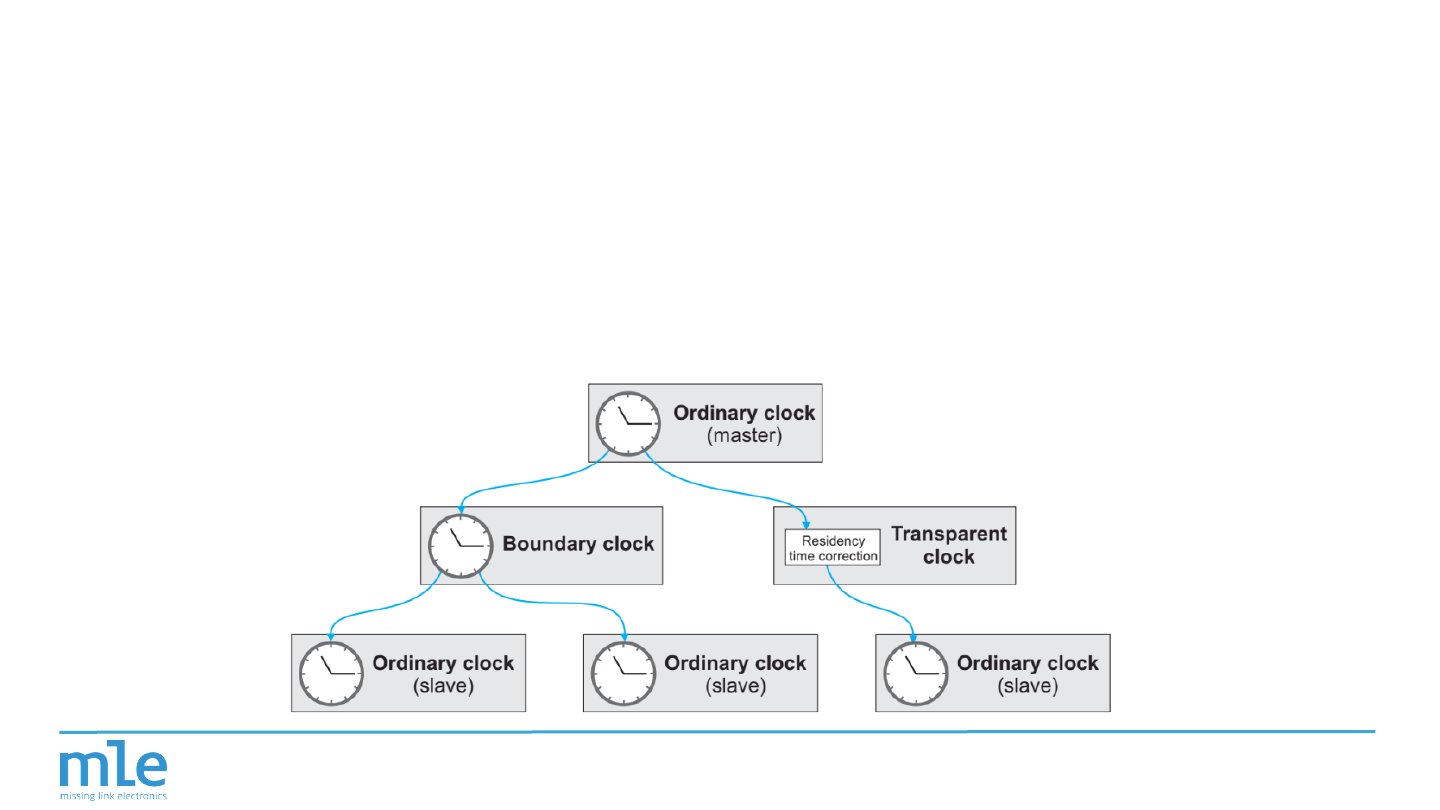

Introduction to PTP
● Ordinary Clocks (OC) are single port devices in master or slave mode
● Boundary Clocks (BC) are multiport devices with a single synchronized
local oscillator
● Transparent Clocks (TC) are multiport devices without a local oscillator,
but forward packets with adjusted timestamps. Not available for PTP-HA.
2026-03-26 - Automotive Ethernet Congress
12

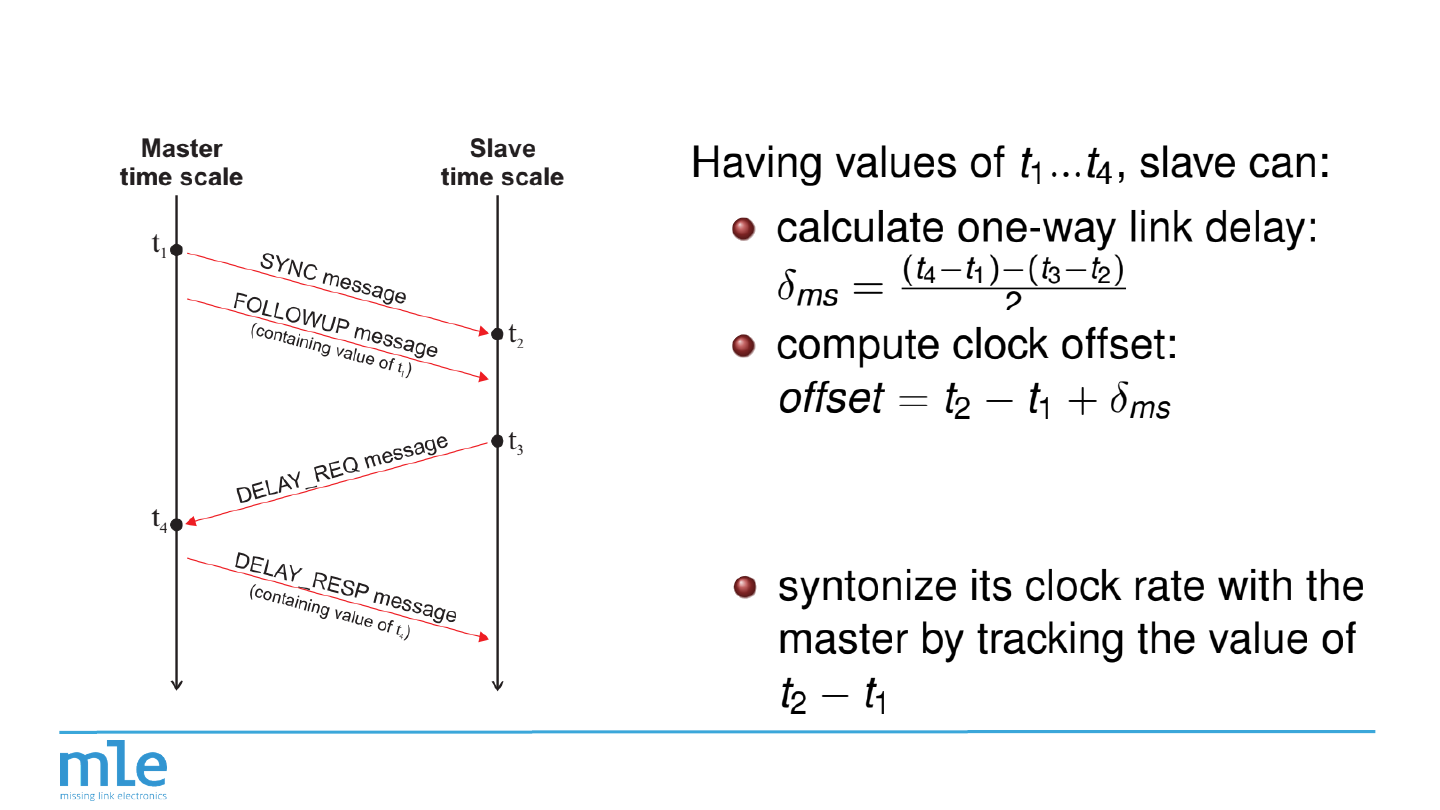

Traditional PTP and PTP-HA Two Step Handshake
2026-03-26 - Automotive Ethernet Congress
13

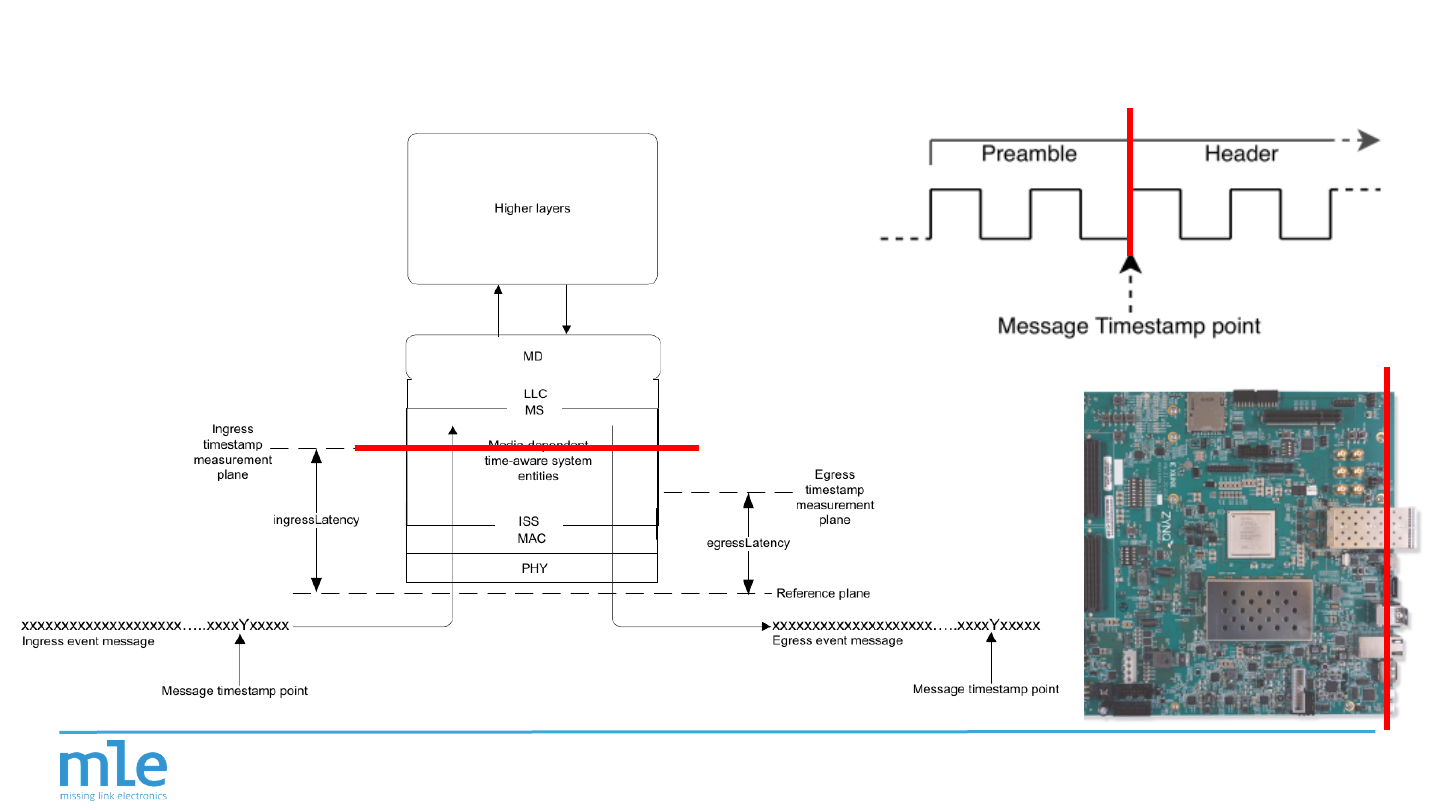

Where does Timestamping happen? The Layers
References [15] & [16]
2026-03-26 - Automotive Ethernet Congress
14

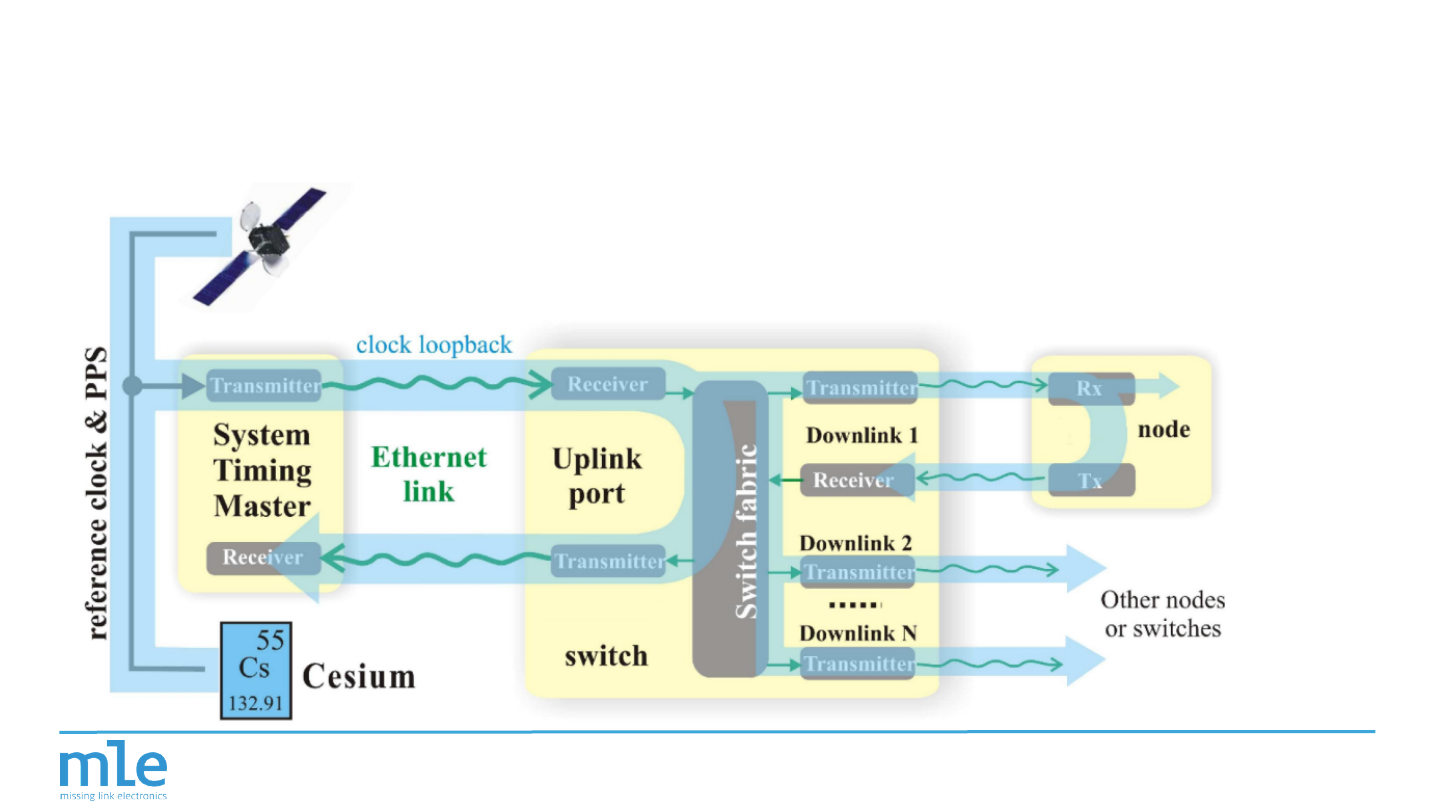

White Rabbit
Layer 1 syntonisation
● All network devices use the same physical layer clock
● Clock is encoded in the Ethernet carrier and recovered by the
receiver
● Phase detection allows sub-ns delay measurement
2026-03-26 - Automotive Ethernet Congress
15

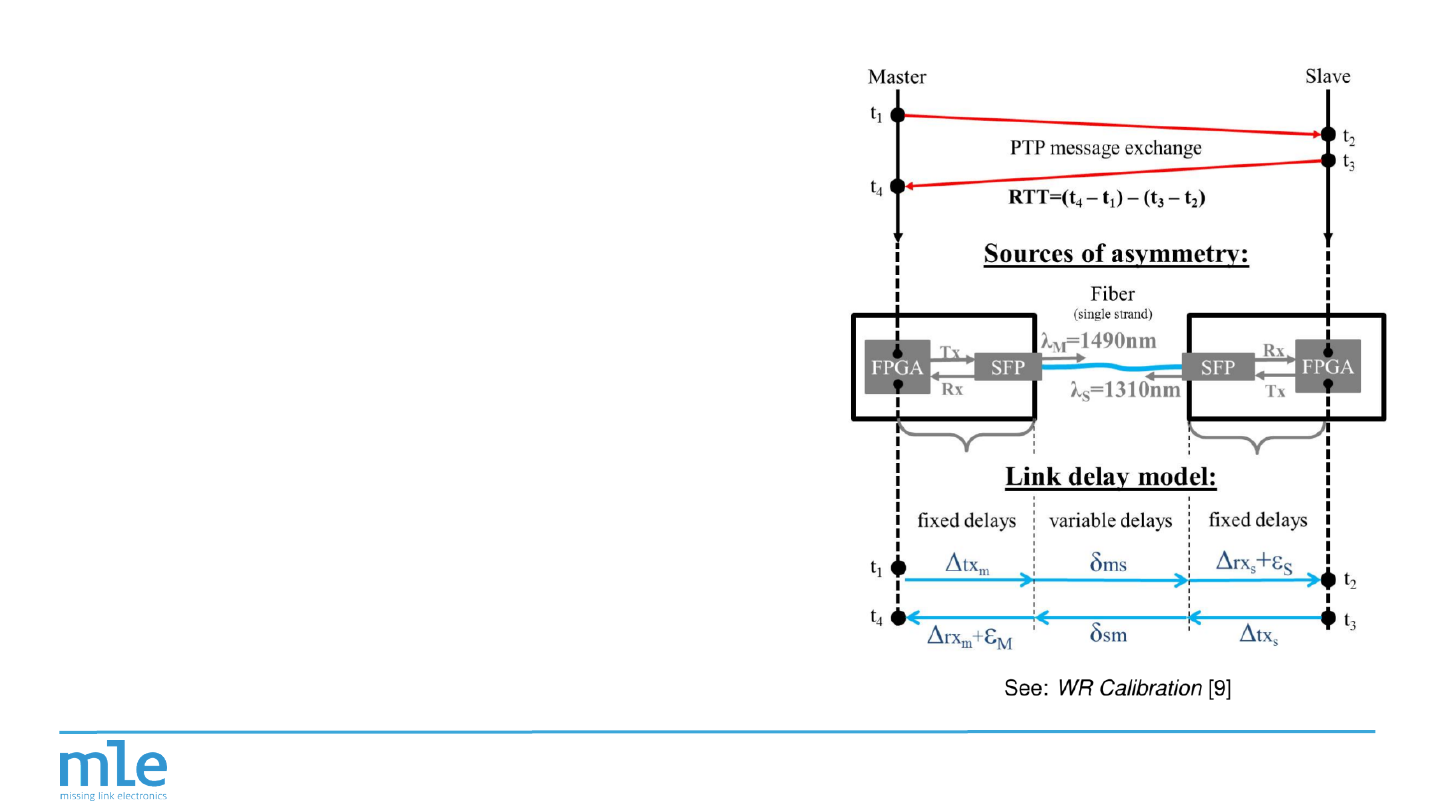

White Rabbit
Link Delay Model
● Implements PTP protocol for delay
measurement
● Allows for compensation of known fixed delay
components (Absolute Calibration)
● Allows for asymmetric link delay modeling
○ Helps to gain the required accuracy
○ Asymmetry sources: FPGA, PCBs,
Dispersion (depending on optics), etc.
2026-03-26 - Automotive Ethernet Congress
16

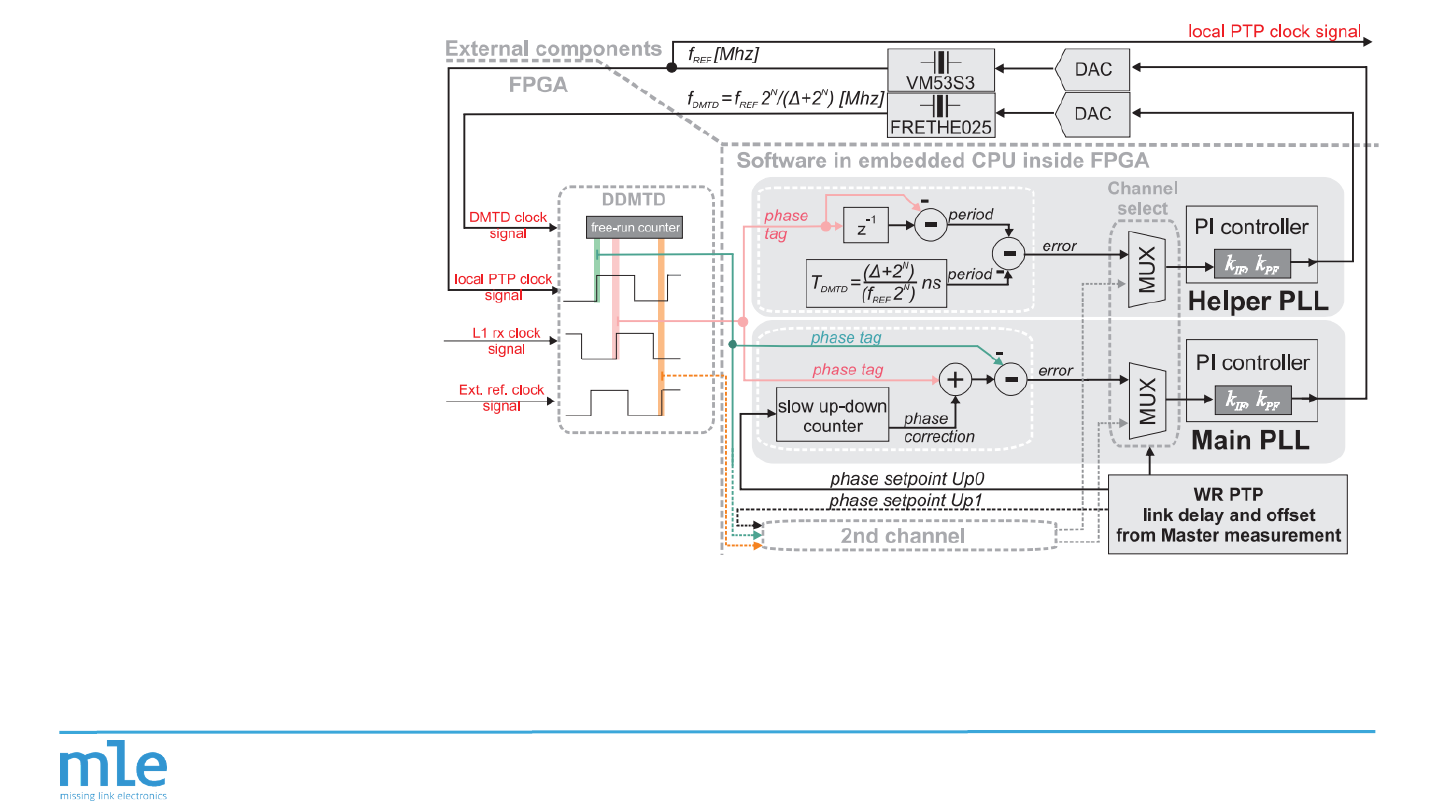

Clock Control Loop
● A helper clock is the local reference
● Reference (TX) and RX (recovered) clocks
are compared to local reference
● Phase is measured overall from one device
to another and also compensated for
White Rabbit
2026-03-26 - Automotive Ethernet Congress
17

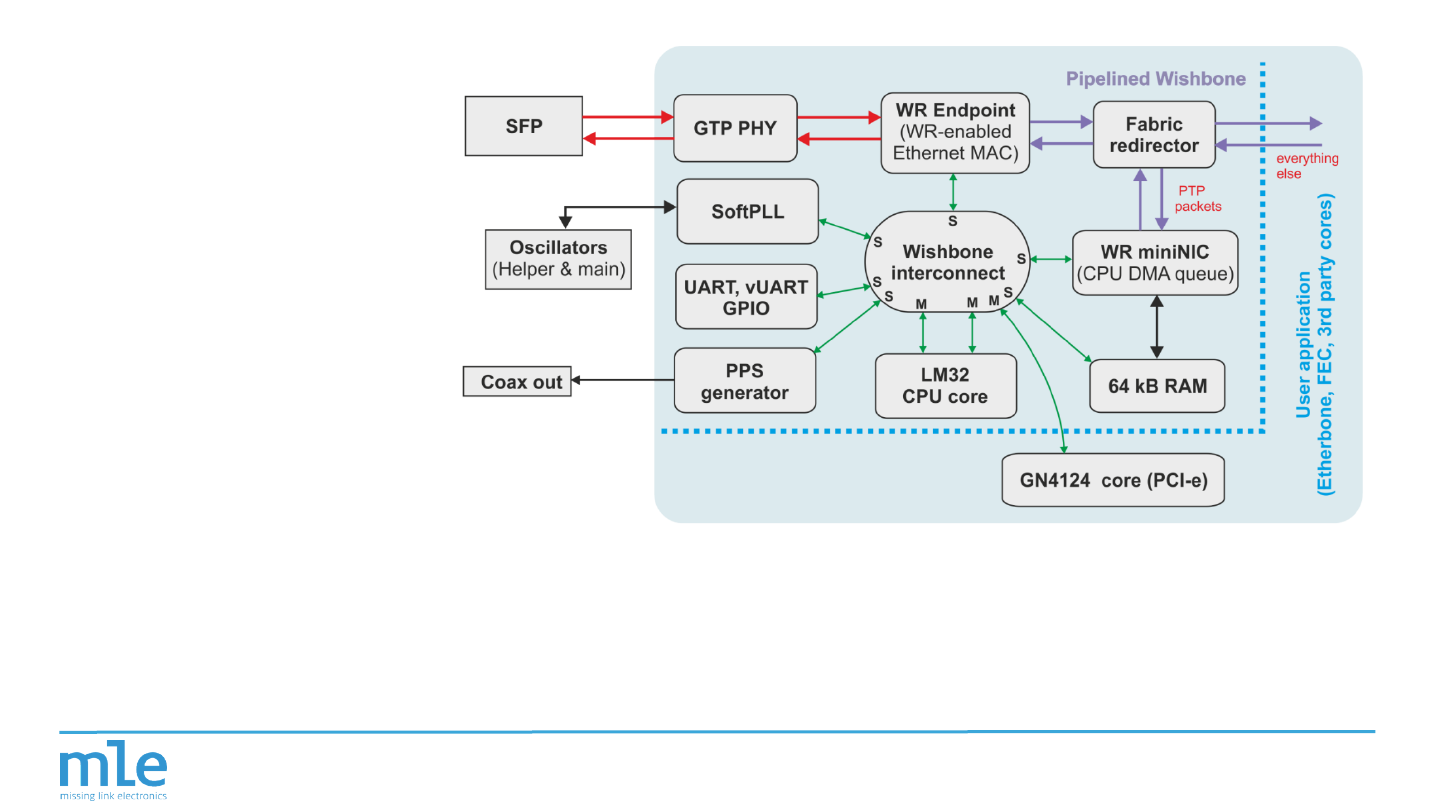

Gateware Block Diagram
● A RISC-V soft core implements the high-level control loop, CLI and monitoring, GNSS support,
etc.
● Peripherals can be used to tag or generate events with with very high precision
● Additional clocks can also be tuned according to the synchronous network clock (AUX clocks)
White Rabbit
2026-03-26 - Automotive Ethernet Congress
18

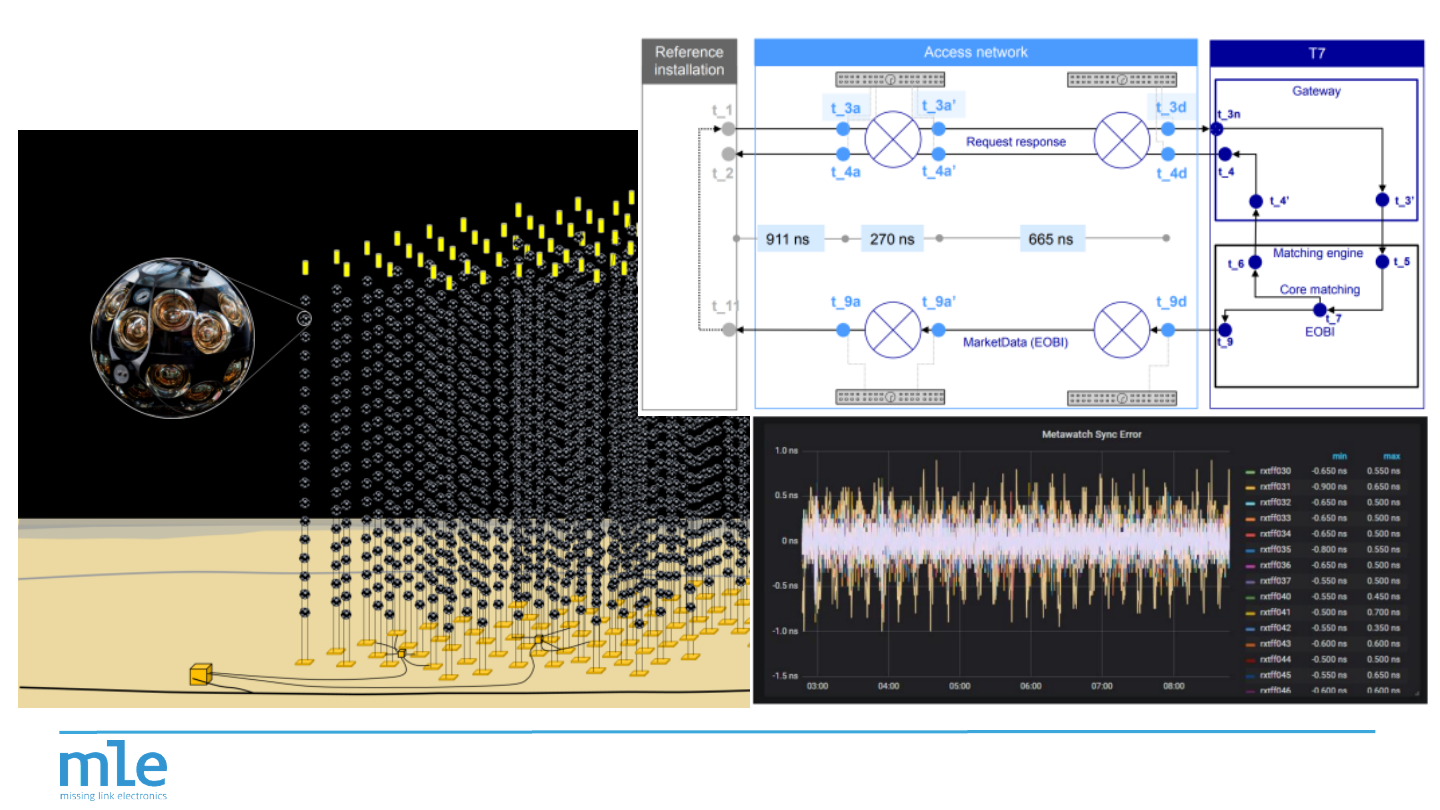

Original Target Users
2026-03-26 - Automotive Ethernet Congress
19
Reference [6]

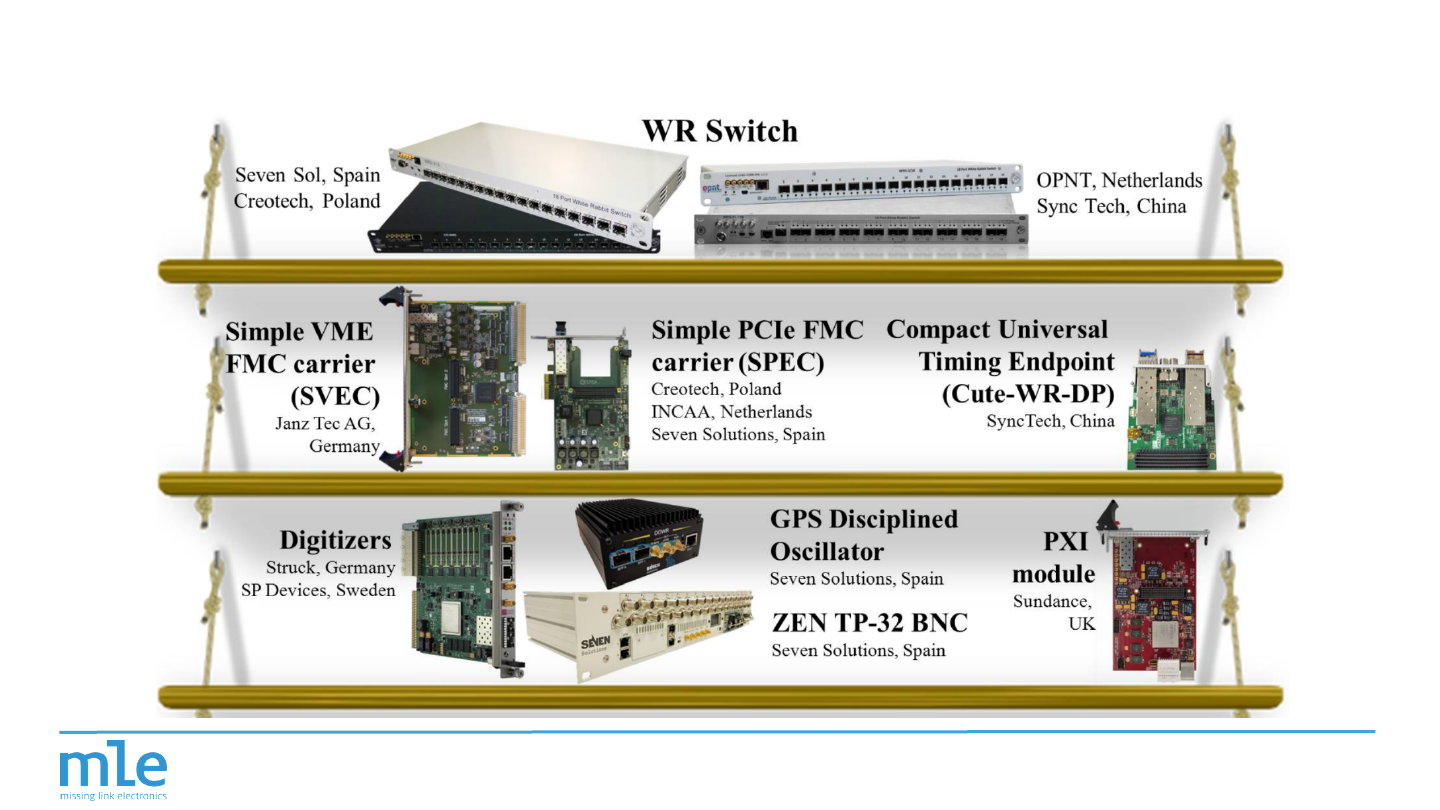

Currently Available Devices (a lot of are OHWR)
2026-03-26 - Automotive Ethernet Congress
20

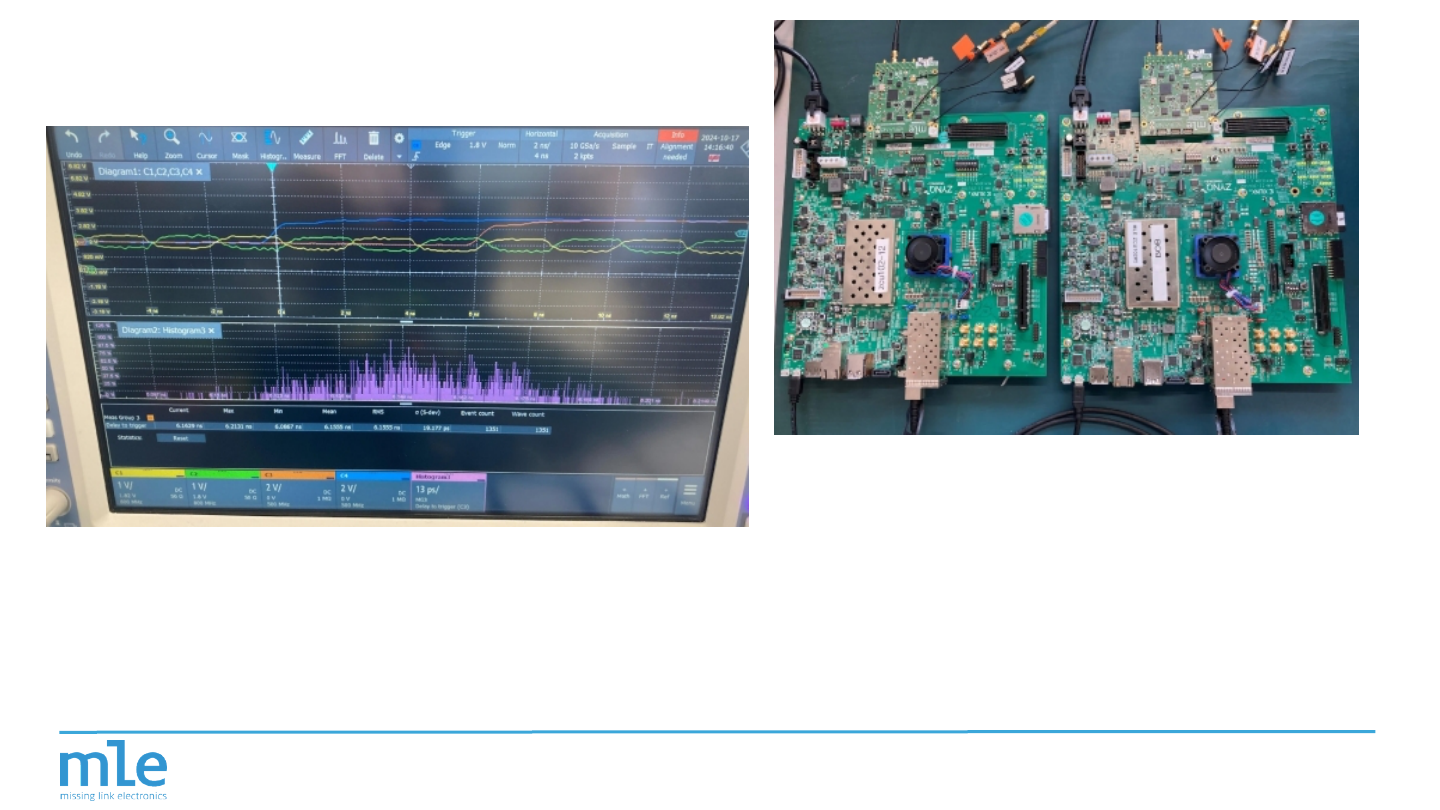

White Rabbit on ZCU102
Uncalibrated Device
PPS stddev < 20 ps
PPS Range < 130 ps
PPS mean < 6.2 ns
Measurements 1351
2026-03-26 - Automotive Ethernet Congress
21

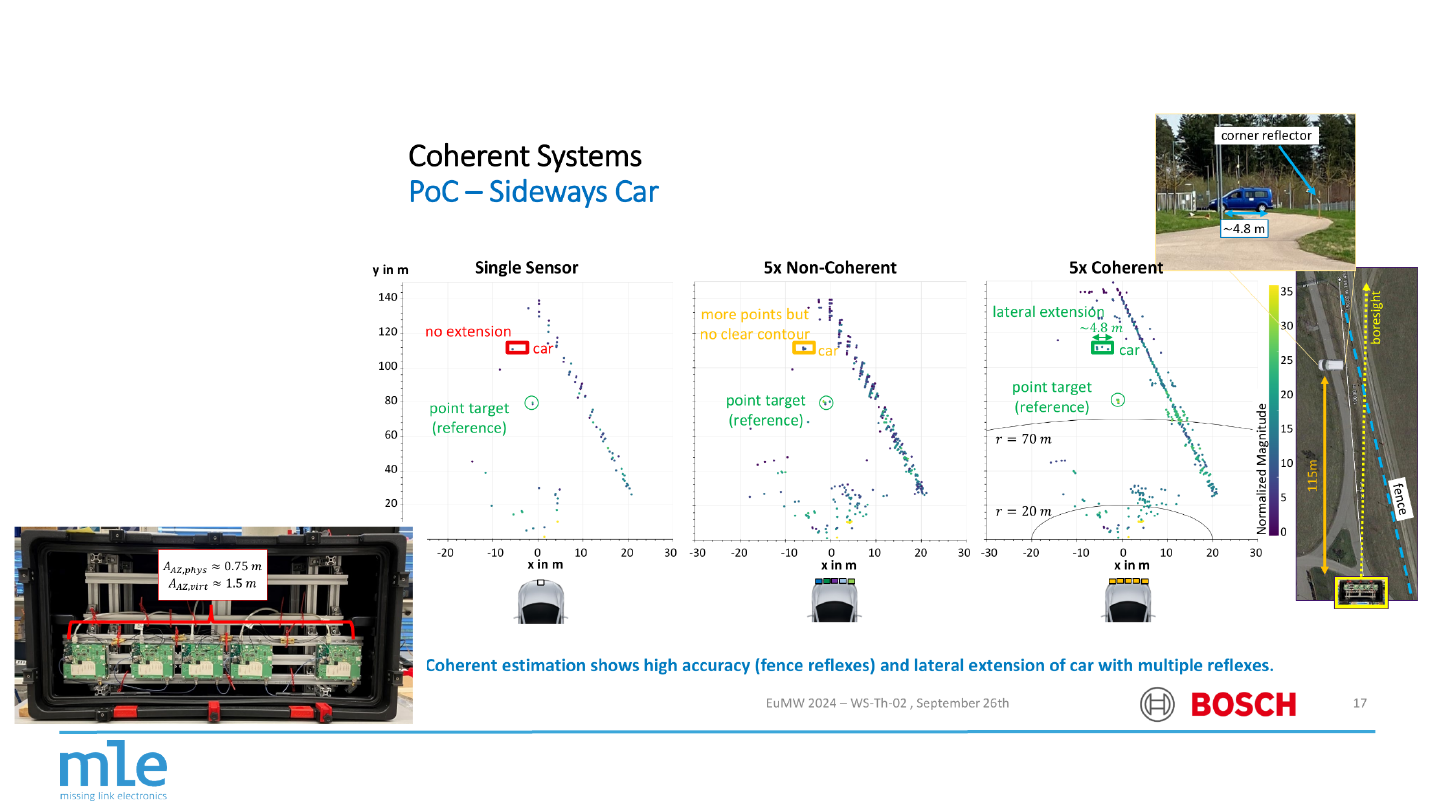

Benefits of coherent RADAR in ADAS
For reference only!
Not sync’ed via WR
2026-03-26 - Automotive Ethernet Congress
22

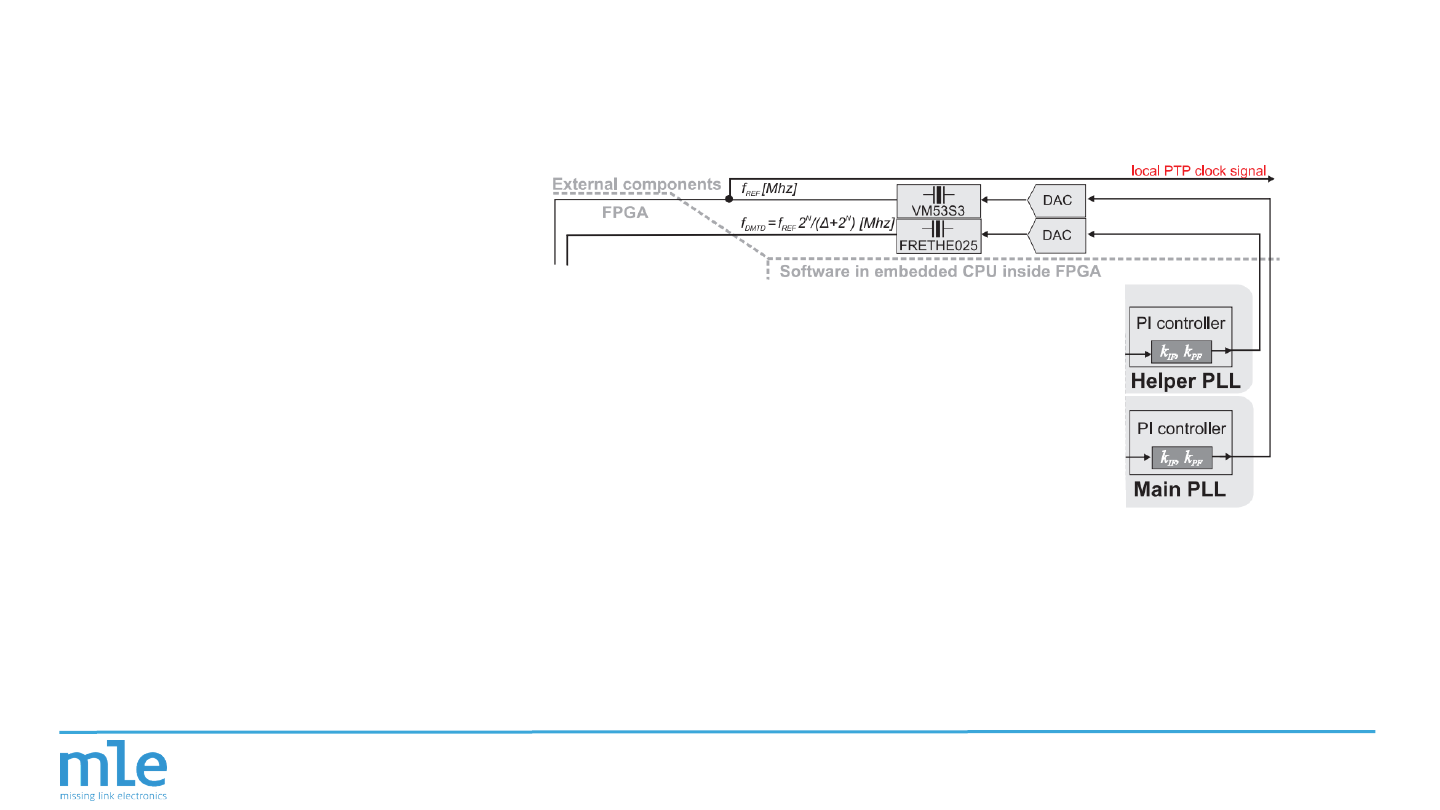

Typical WR Clock Architecture
● Two VCOs outside the FPGA tuned by (SPI
controlled) DACs
● Helper clock connected to FPGA fabric clock pin
● Main clock (aka transceiver reference clock)
connected to FPGA fabric clock pin and transceiver
reference clock pin via clock fanout buffer
Reference [14]
2026-03-26 - Automotive Ethernet Congress
23

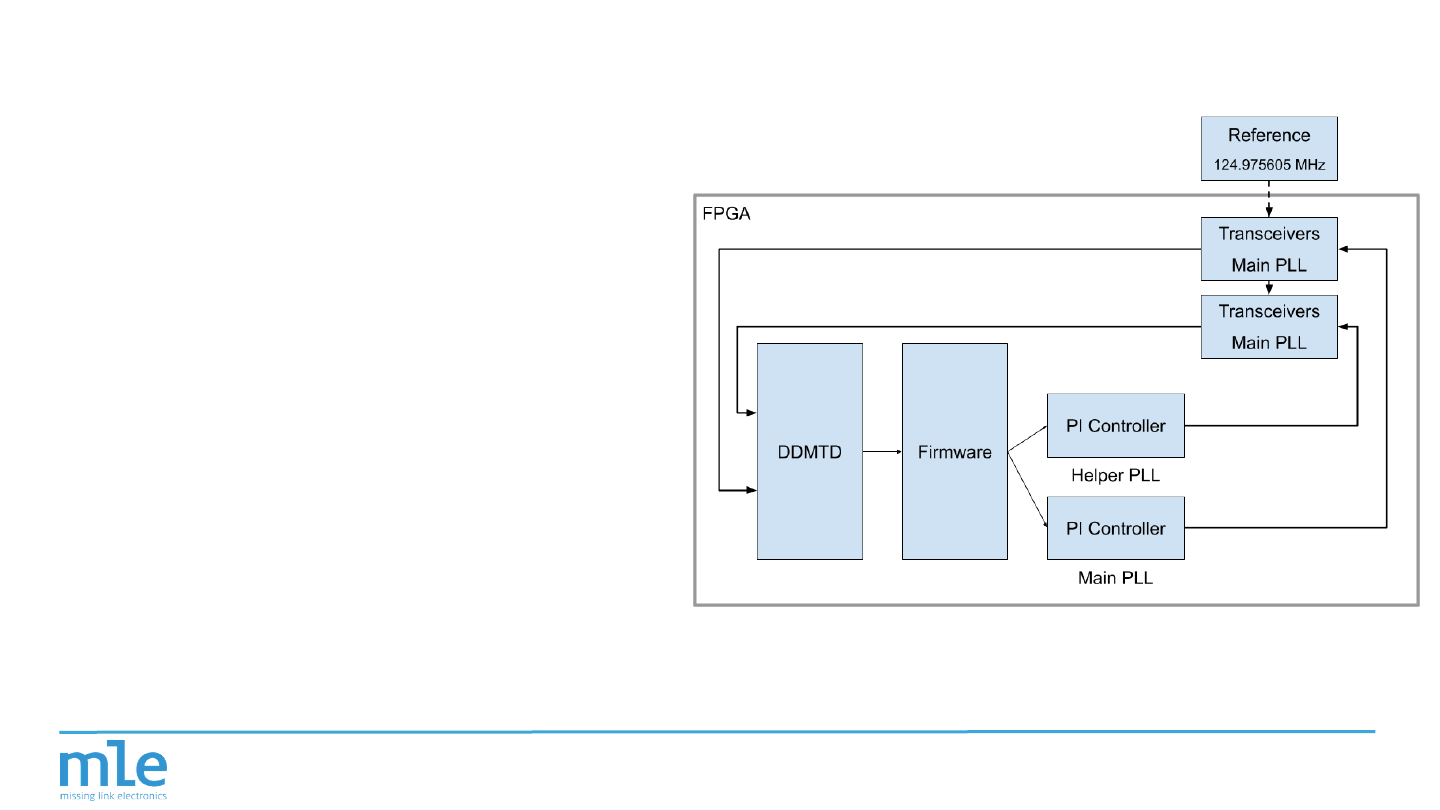

Light Rabbit Clock Architecture (FPGA only)
● Leveraging AMD ZCU102 MPSoC
GTH Transceiver QPLLs
● Requires multiple GTH Quads
● Requires external fixed GTH
reference clock slightly below 125
MHz
● Frequency is adjusted using the
QPLL “SDM” feature
2026-03-26 - Automotive Ethernet Congress
24

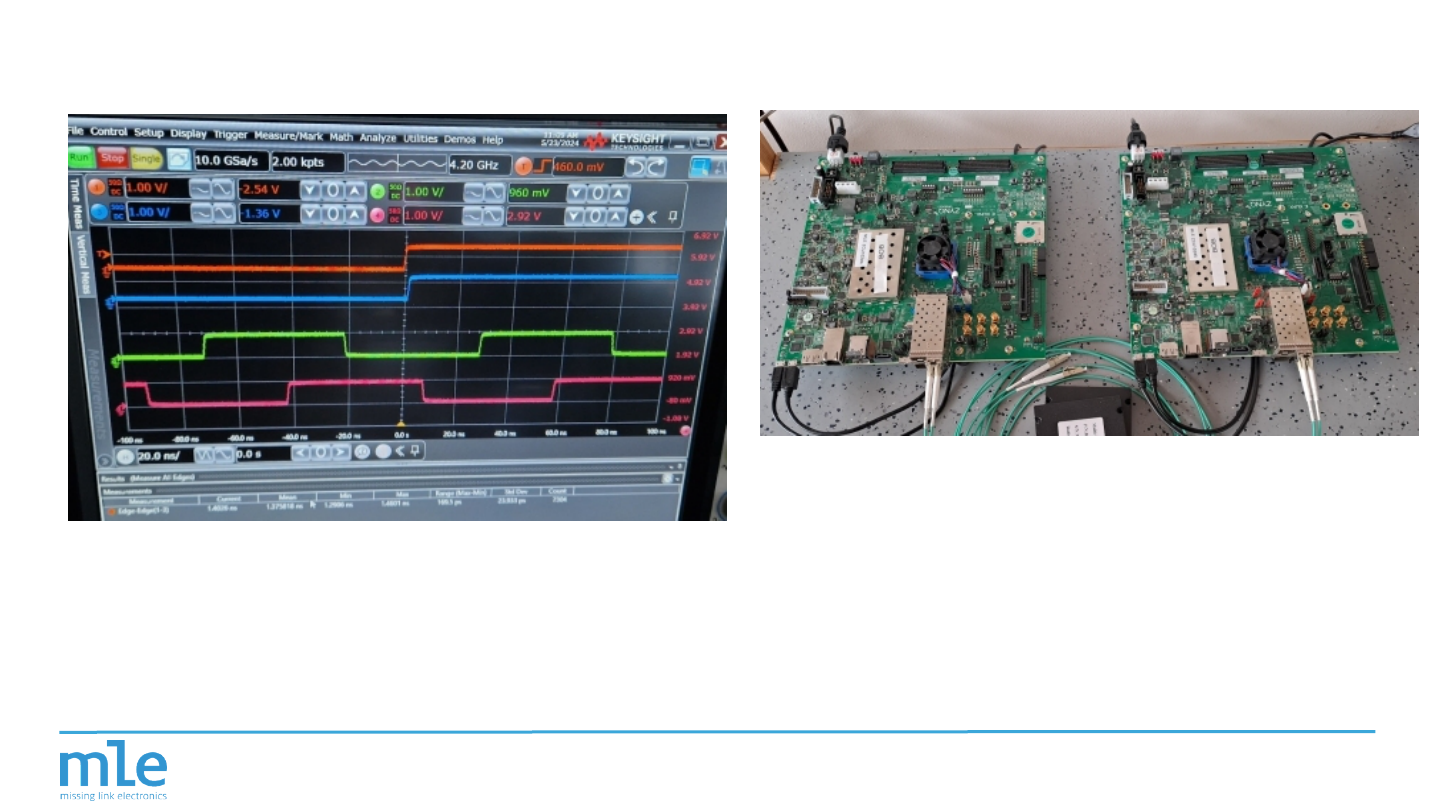

Light Rabbit on AMD ZCU102
PPS stddev < 24 ps
PPS Range < 170 ps
PPS mean < 1.4 ns
Measurements 7304
Uncalibrated Device
2026-03-26 - Automotive Ethernet Congress
25
Overview and Results
Let’s collaborate and further explore the opportunities, raise the TRL and
solve open problems!
Some of the Problems:
Timing loops, Transition between masters, System Integration via PCIe PTM, …
1 GbE gPTP PTPv2 HA (LR) PTPv2 HA (WR)
Communication Asynchronous Synchronous Synchronous
Precision < 110 ns < 170 ps < 130 ps
Calibration N/A Partially Achieved Done
