Programming Reconfigurable Devices
via FPGA Regions & Device Tree Overlays
A User View Benchmark on a Declarative
FPGA Reconfiguration Framework
1
Stefan Wiehler (University of Ulm, Missing Link Electronics)
Ulrich Langenbach (Beuth University of Applied Sciences Berlin, Missing Link Electronics)
Example System
2
Linux FPGA Framework Architecture
3
A Declarative FPGA Reconfiguration Framework
4
Reconfiguration Performance
5
Configuration Latency
Deconfiguration Latency

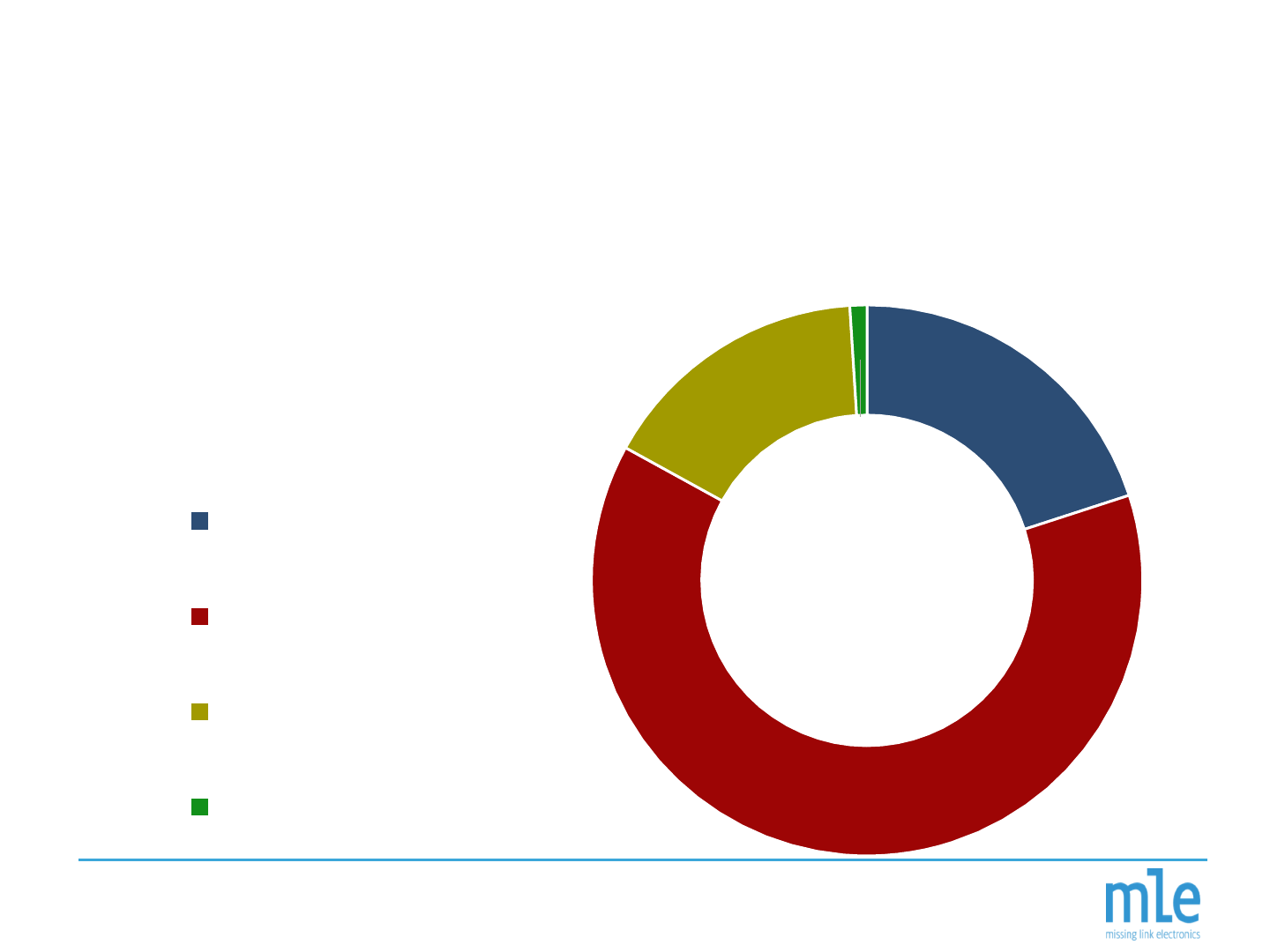

Scheduling Latency - Profiling Results
• Measurement of example system (AES accelerator)
• Measured latencies via ftrace function entry and exit timestamps
• Bitstream Size: 5.9 MiB
• Overall latency: ≈135 ms
6
20
63
16
1
Runtime [%]
Load Bitstream
Partial Reconfiguration
Load Platform Driver
Rest incl. Framework
Deficiencies / Future Work
• Scheduler / Governor
• User space interface for device tree
manipulation
• Shields & modular embedded systems
• Reconfigurable systems (FPGA)
• FPGA vendor tools to support DTO
generation
7
Additional Components Performance Bottlenecks
• Firmware caching
• FPGA reconfiguration interface
(Scope of FPGA vendors)
Simplifies Reconfigurable Computing on Linux Systems
• Linux DTO & FPGA Framework enables efficient operation of
reconfigurable computing systems
• Supports scheduling time slices in fractions of minutes
• > 10 s between reconfigurations ≈2 % overhead in our case
8
• Enables efficient development of heterogeneous systems on MPSoC-FPGAs
• Reboot free debug and test cycles for fast turnaround times
• Both static and runtime reconfigurable systems profit
References
1. Moritz Fischer, “FPGA Manager & Device Tree Overlays”,
FOSDEM 2016, Brussels, 30-Jan-2016.
2. Alan Tull, “Reprogrammable Hardware under Linux”,
Embedded Linux Conference Europe 2015, Dublin, 05-Okt-
2015.
3. Pantelis Antoniou, “Transactional Device Tree & Overlays:
Making Reconfigurable Hardware Work”, Embedded Linux
Conference 2015, San Jose, 23-Mar-2015.
