Alex Forencich
Ulrich Langenbach
Corundum
From a NIC to a Platform for In-Network Compute

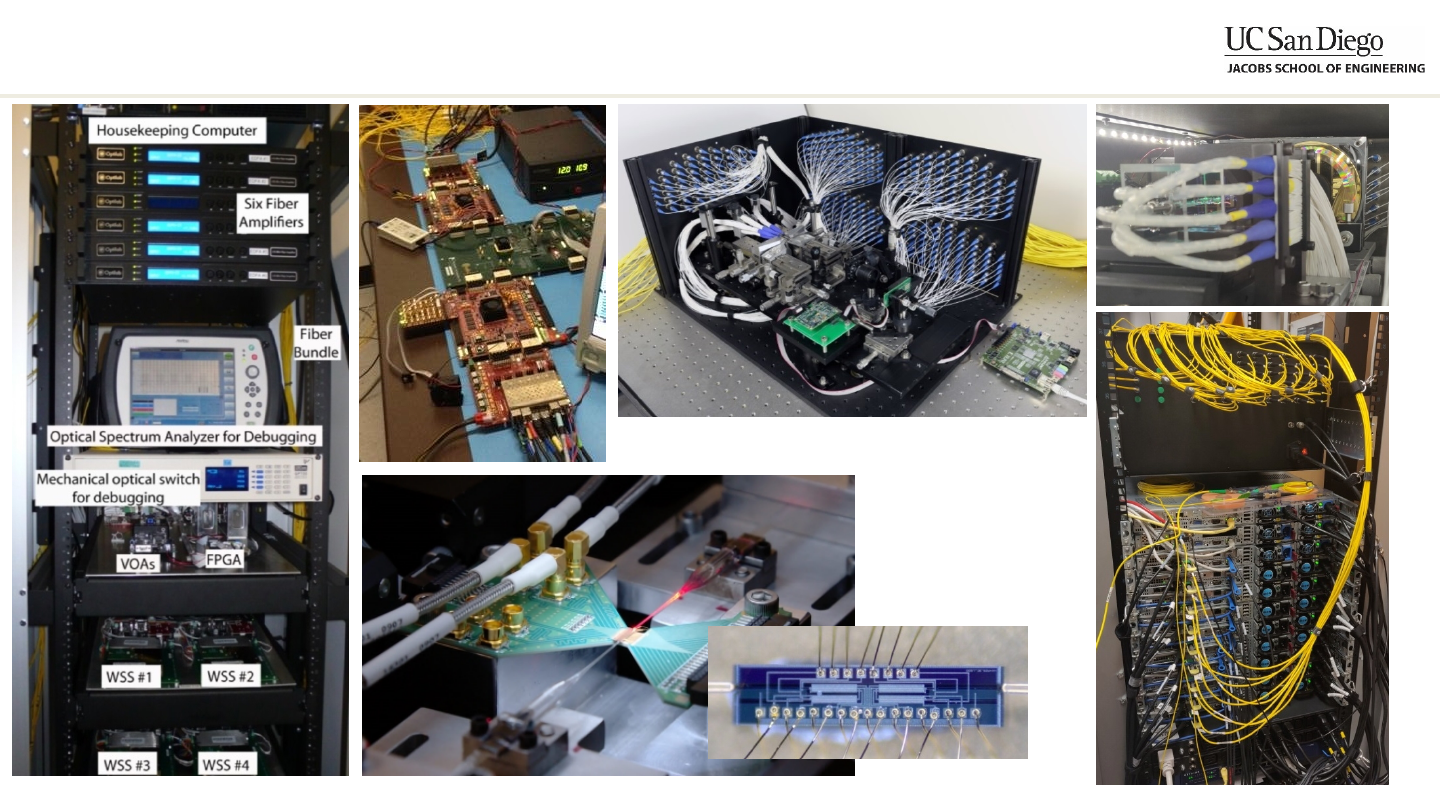

Circuit-Switching Research at UCSD

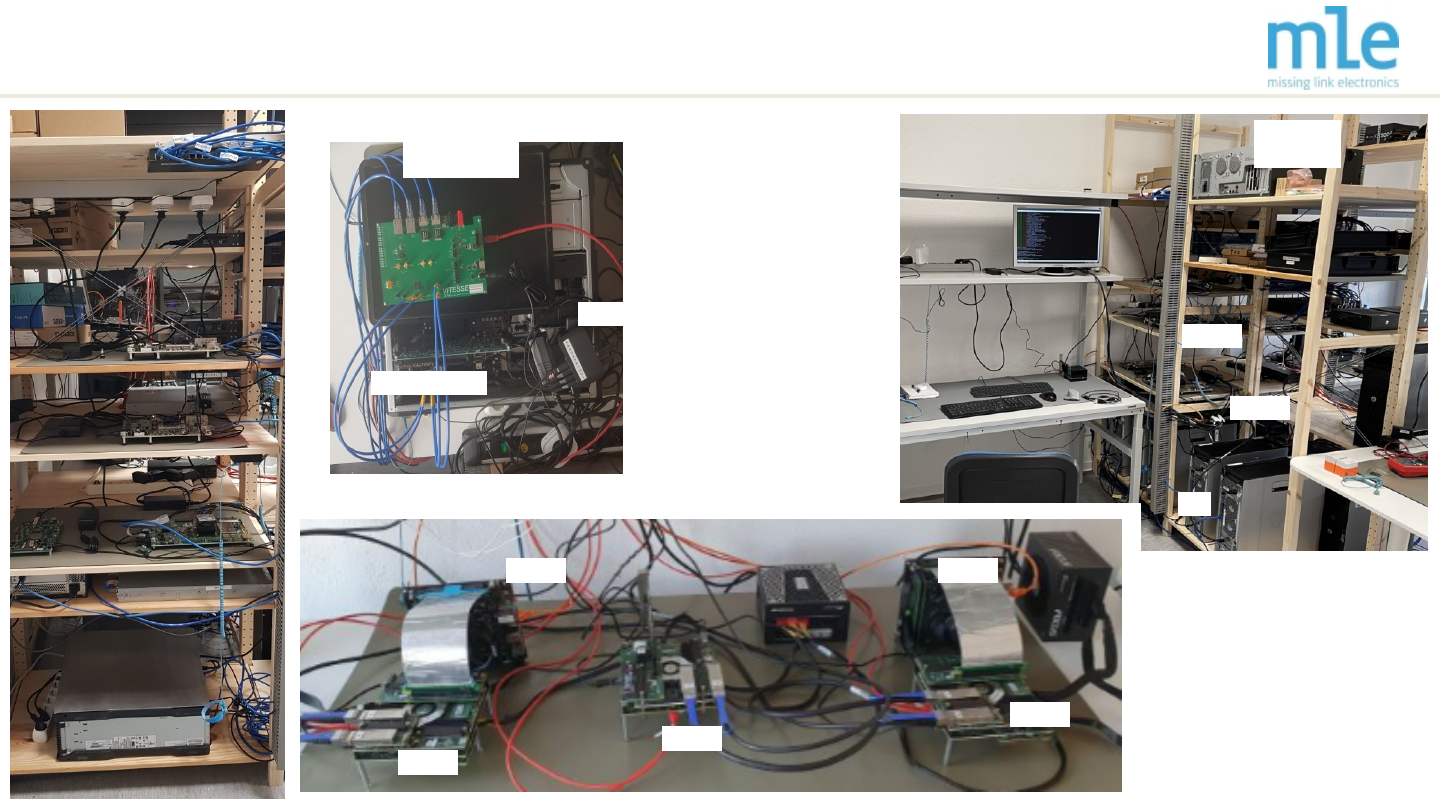

Networked Systems, IPs and Devices at MLE
PCs
Switch
FPGAs
Packet
Capture
PC
ZCU106
QSGMII
PHY
FPGA
FPGA
FPGA
X86 X86
3

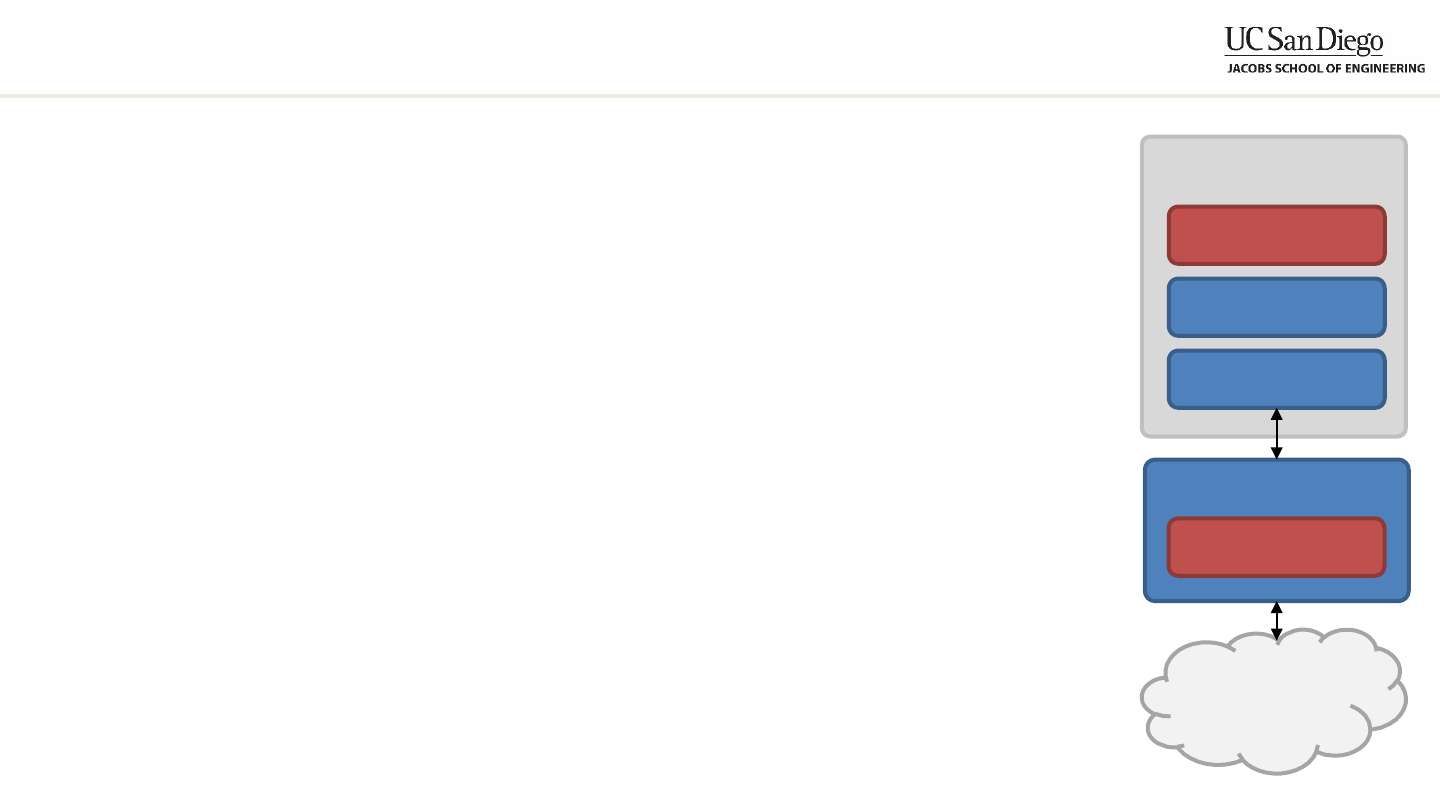

Introduction
• Network Interface Controller (NIC) connects
software to the network
• NIC functionality is evolving
– Line rate increases
– Offload networking functions from CPU to NIC
• More general: in-network compute
– Offload compute to programmable NICs, switches, etc.
– Not limited to network stack
Network
Host
Application
OS
Driver
NIC
Application
4
Corundum

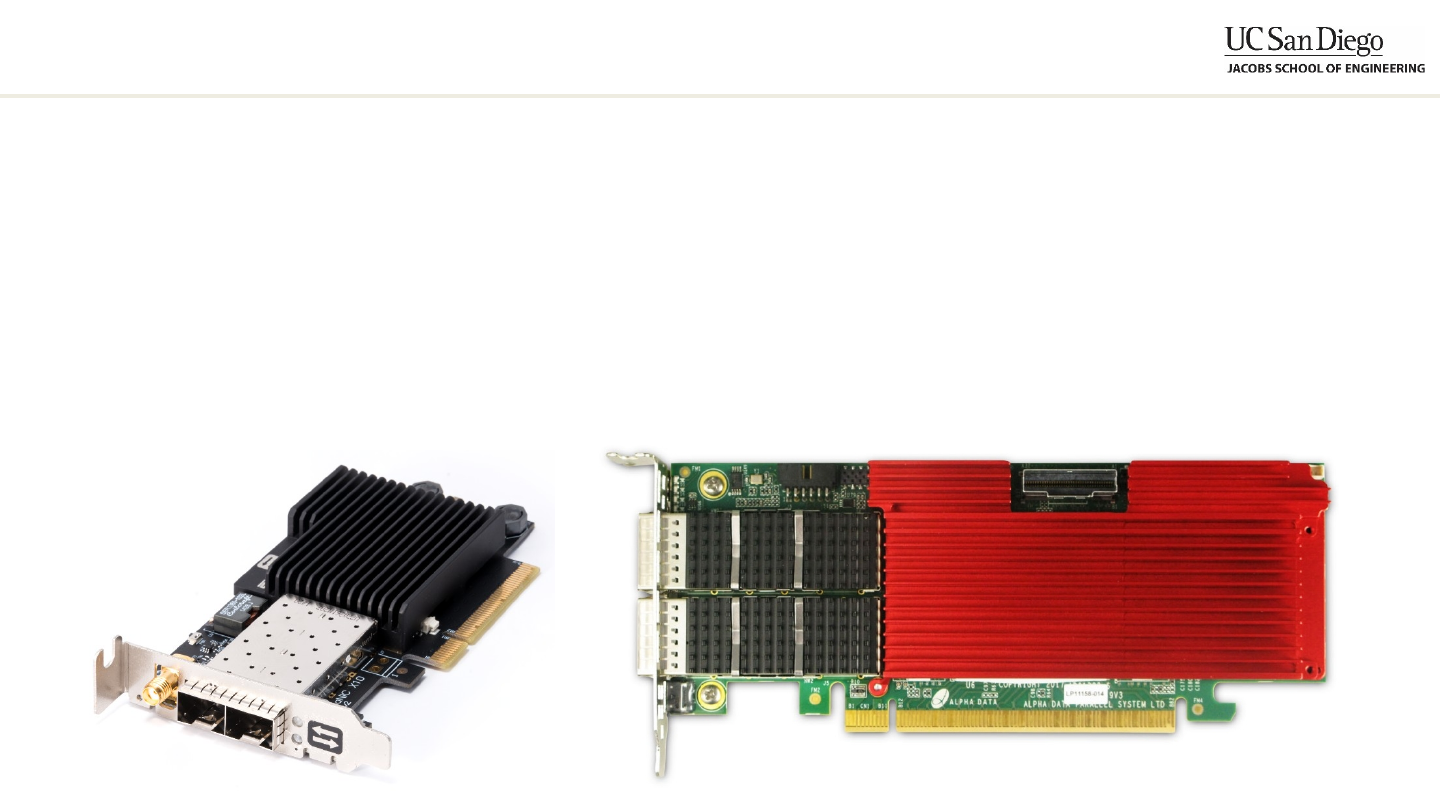

• Open-source, FPGA-based NIC and platform for in-network compute
– A high performance “reference” NIC
– Extensible: application block for implementation of custom features
– Key applications: hardware prototyping of experimental networks/protocols,
custom compute offload
5
High-Level Features of Corundum
• Open-source, high-performance, FPGA-based NIC
– PCIe gen 3 x16, multiple 10G/25G/100G Ethernet ports
– Fully custom, high-performance DMA engine; Linux driver
• Application block for custom logic
– Access to network traffic, DMA engine, on-card RAM, PTP time
• Fine-grained traffic control
– 10,000+ hardware queues, customizable schedulers
• PTP timestamping and time synchronization
• Management features (FW update, etc.)
• Wide device support (Xilinx and Intel)
• Source code: https://github.com/corundum/corundum
6

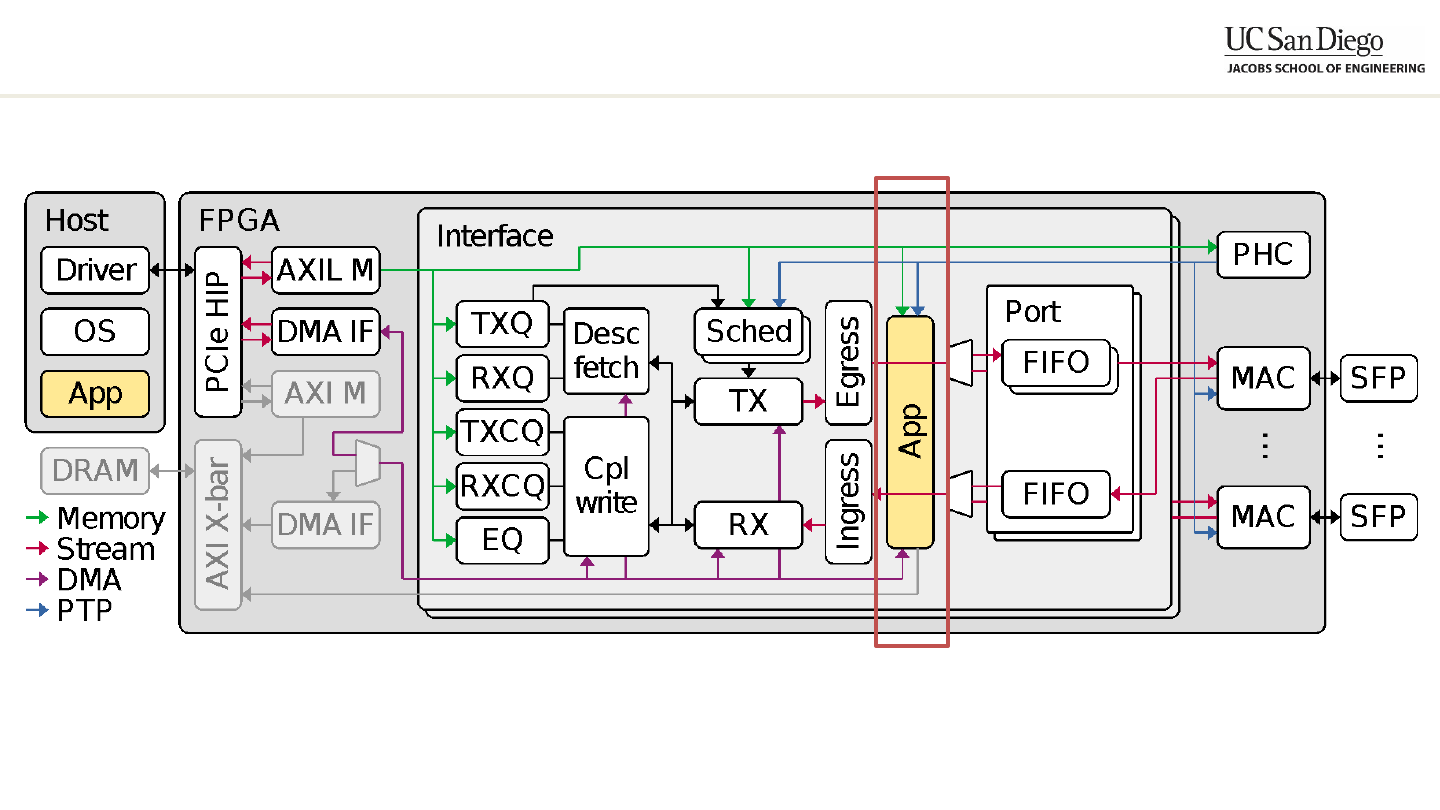

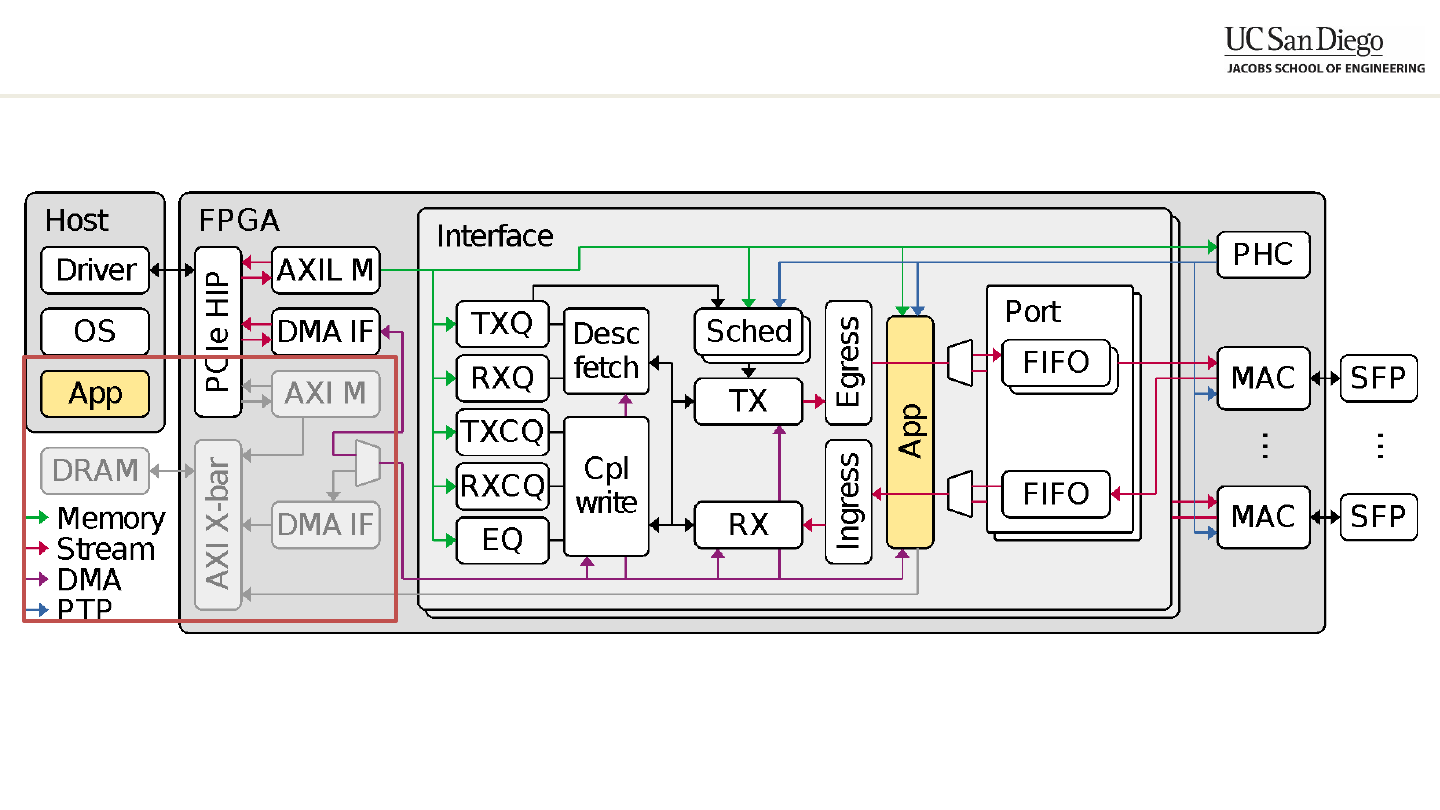

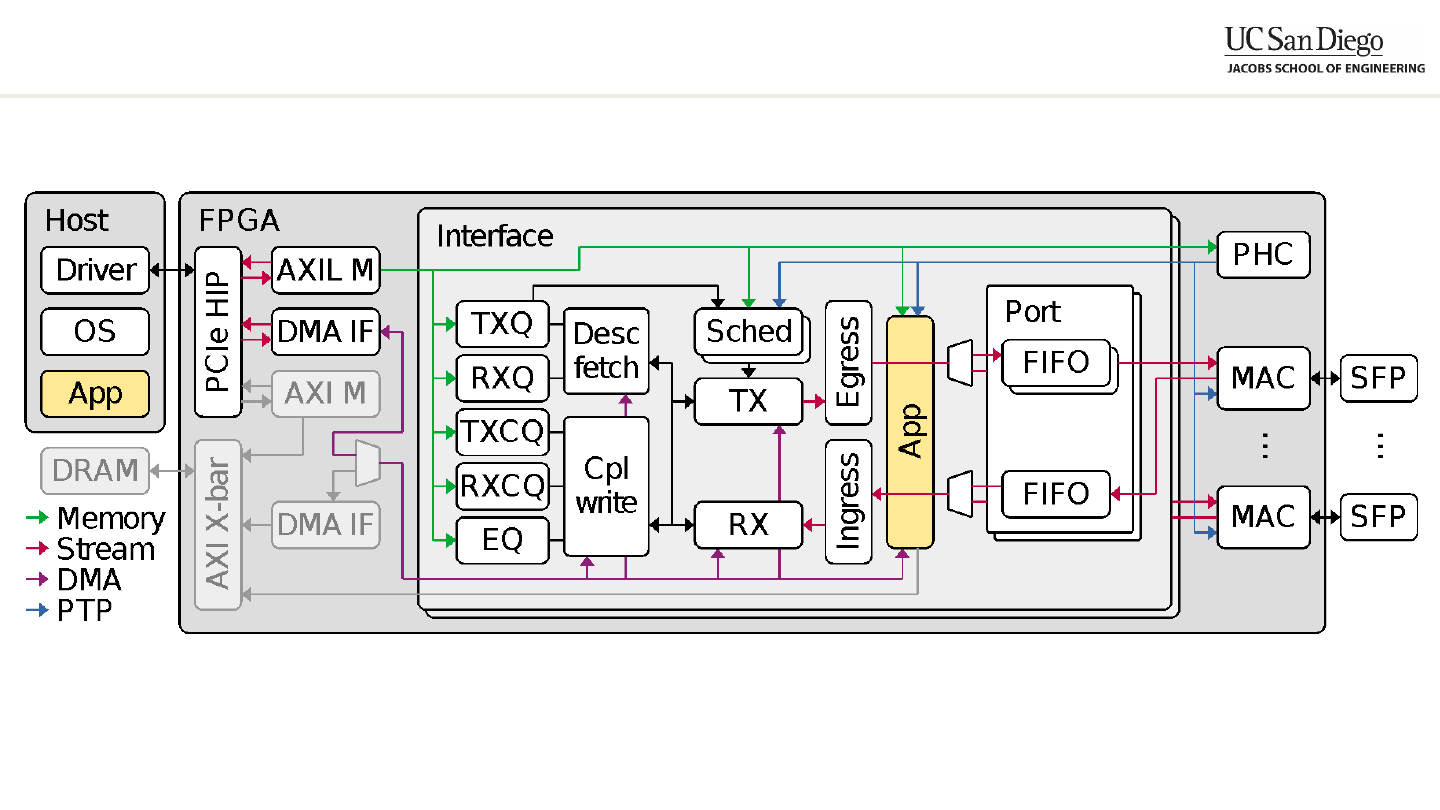

Corundum Block Diagram
7

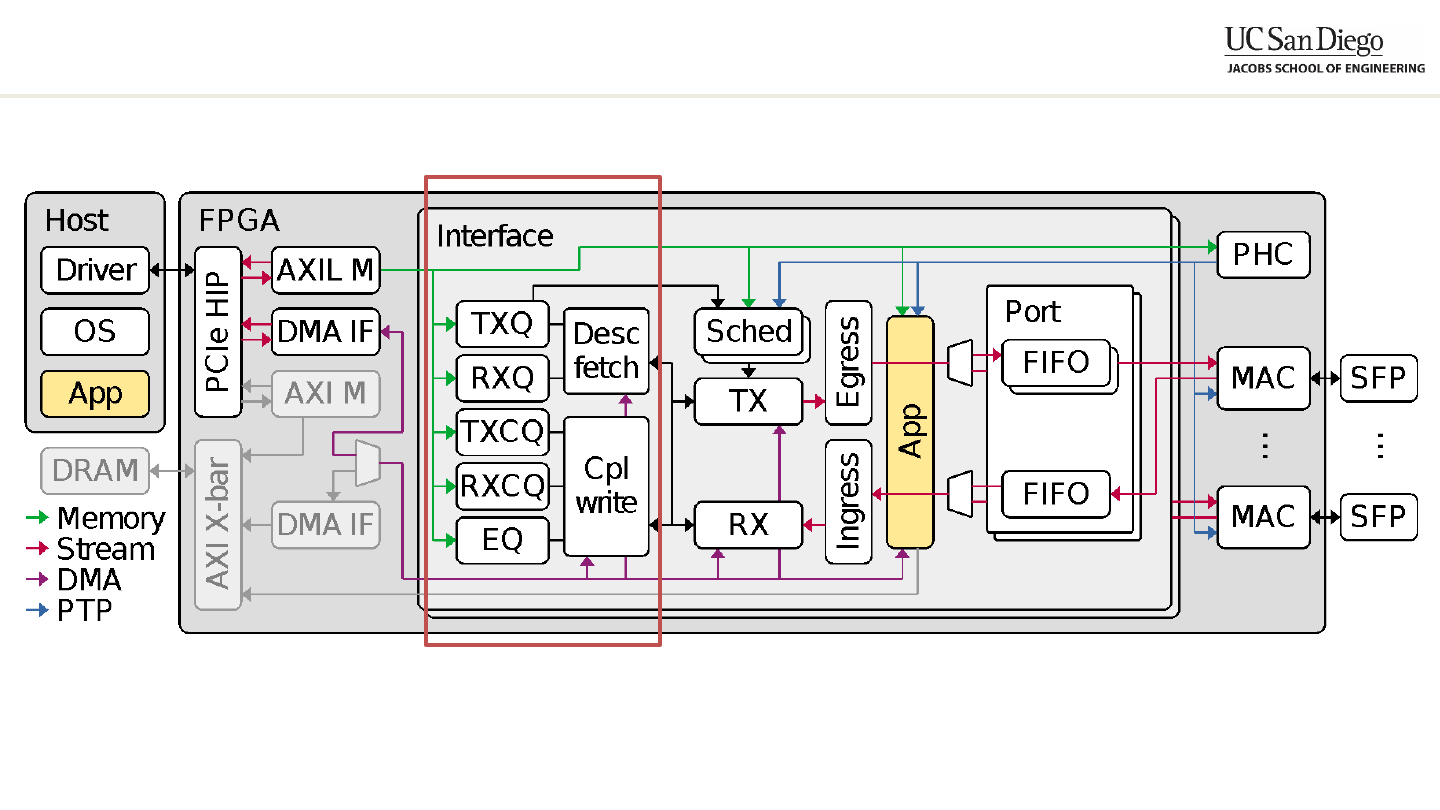

Corundum Block Diagram
8
Corundum Block Diagram
9
Corundum Block Diagram
10
Corundum Block Diagram
11
Corundum Block Diagram
12
Corundum Block Diagram
13
Fine-grained traffic control
• 10,000+ transmit queues
– Each queue is an independent channel between SW and HW
– Classify in SW, control in HW
– Fine-grained, per-flow or per-destination control
– 128 bits/queue -> 4096 queues in 2 URAM on US+
• Transmit scheduler
– Determines which queue to transmit from
– Default scheduler is round robin
– Can be used to implement traffic shaping, rate limiting, etc.
14

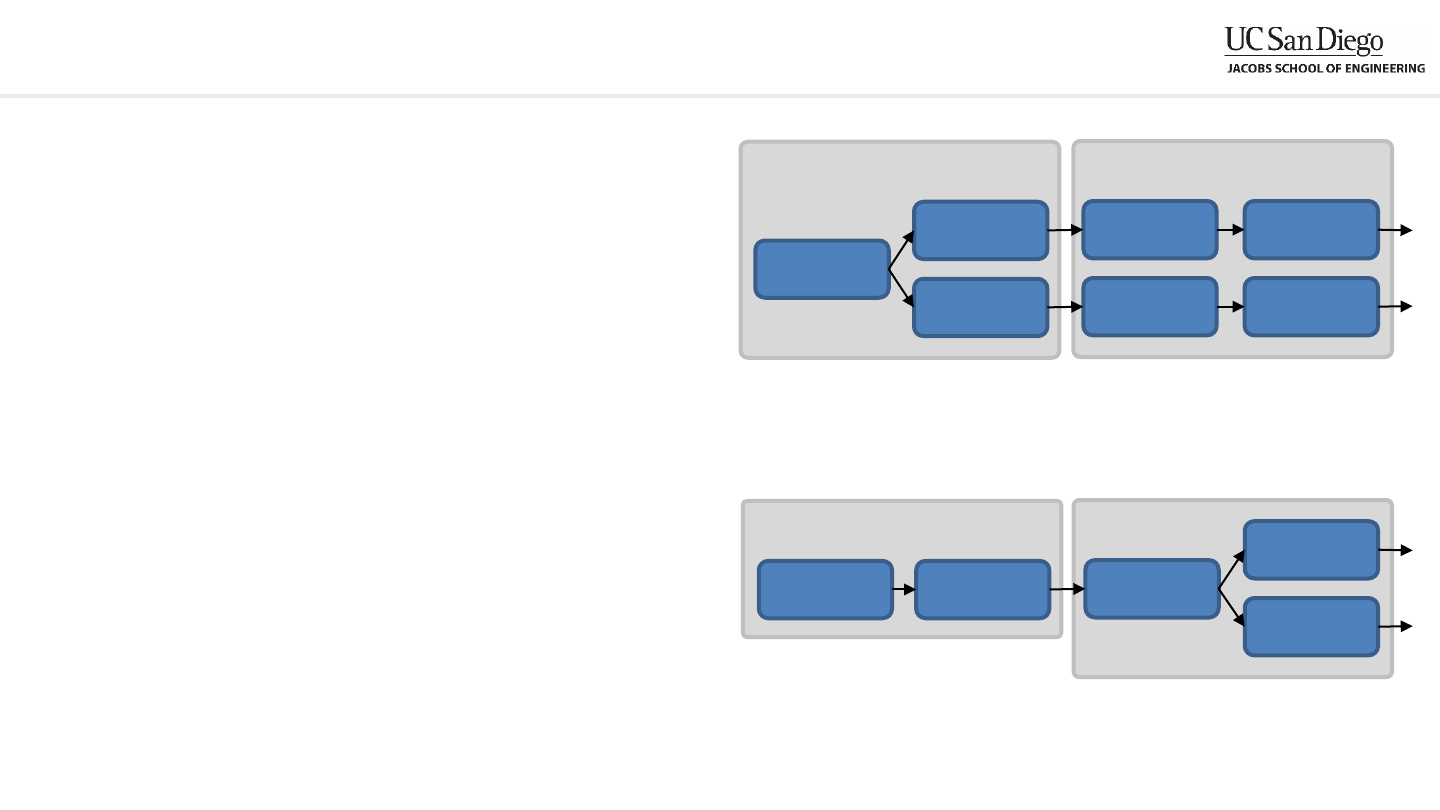

Ports and Interfaces
• Hardware support for
multiple uplinks
• Multiple physical ports
appear as single OS-level
interface
• Ports have separate
schedulers
• Migrate or stripe flows across
ports by changing scheduler
settings
Host
Data
Driver
IF Port
Driver
IF Port
NIC
Host
Data Driver
IF
Port
Port
NIC
Traditional NIC: assignment in software
Corundum NIC: assignment in hardware
15

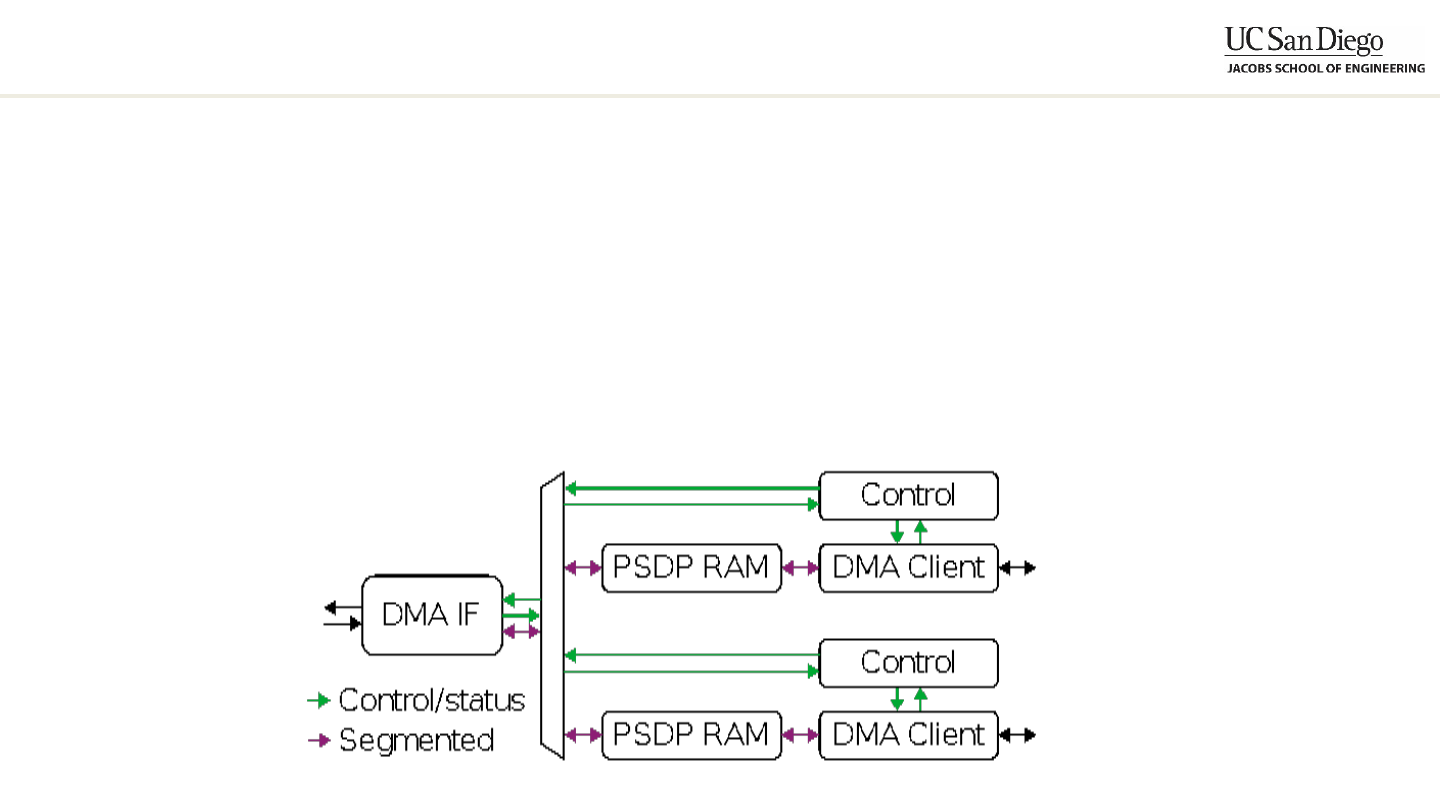

Modular DMA engine
• DMA engine split between interface and client modules
– Interface connects to host – PCIe, AXI, etc.
– Client modules form internal ports – AXI stream, memory-mapped AXI
• Clients connected to interface with dual port RAMs
• Support both servers (PCIe) and SoCs (AXI) with same core logic
16
Applications
• Offload application-specific processing
• Datapath for novel transmit schedulers
• Instrument Corundum for performance measurements
• Direct transceiver access permits physical-layer
measurements and development of new wire protocols
• Use core logic as a packet DMA engine in a larger system
• Discuss two applications:
– TDMA for microsecond circuit switching
– PHY layer BER measurement for link characterization
17

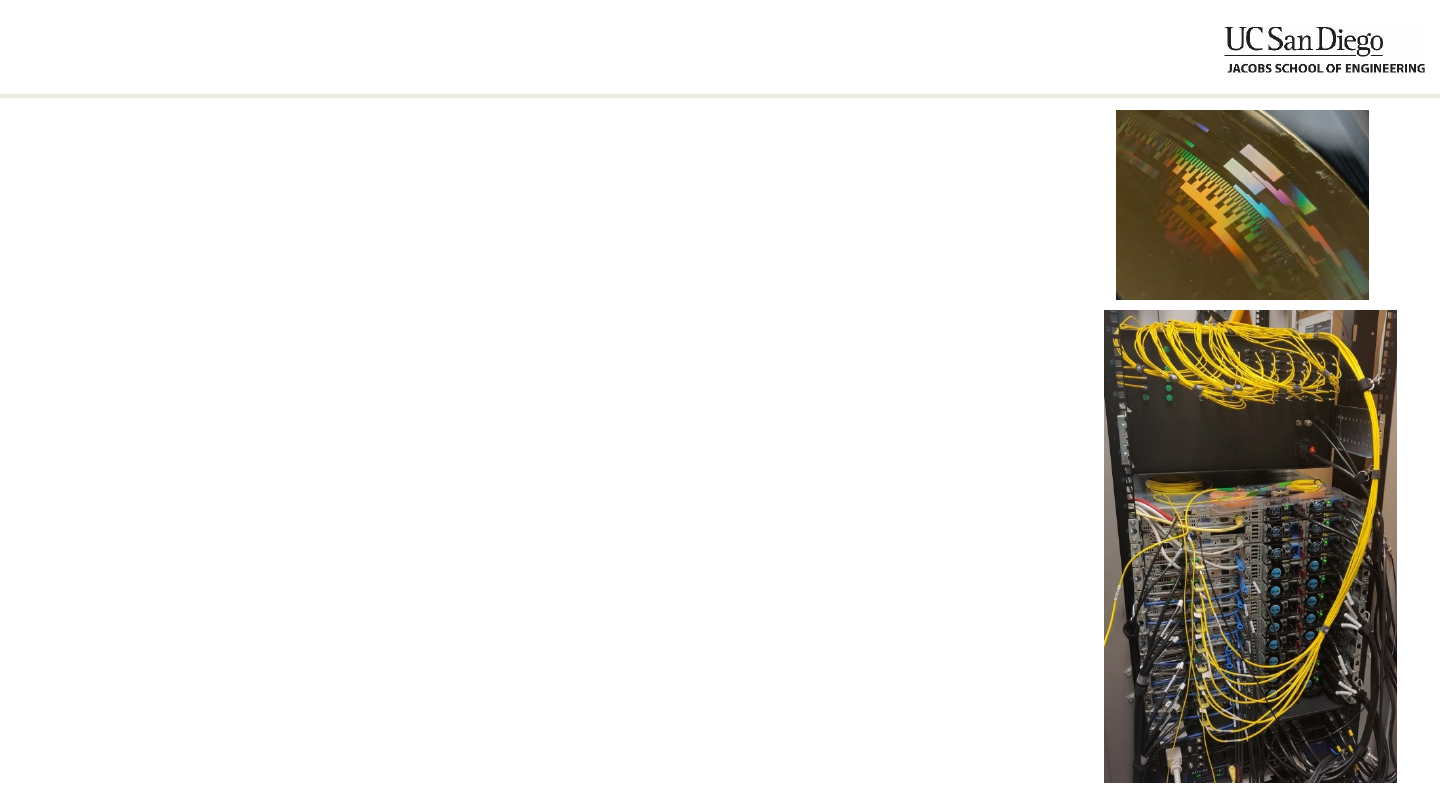

Application: TDMA
• Scheduler can control queues based on PTP time
– Enables sub-microsecond-resolution TDMA
• TDMA off
– 94 Gbps
• 200 us period, 50% duty cycle TDMA schedule
– Guard time 2 us
• Using TDMA schedule, can run iperf through
pinwheel switch
– Initial test with old FW: 3 Gbps on 10 Gbps link with
low packet loss
18
Application: link-level characterization
• In situ link-level measurements
• BER measurement capability integrated
into NIC
• Measure link-level performance from
vantage point of every NIC in datacenter
• Supports time-domain BER
– Synchronized over network via PTP
– Measure every path through switch

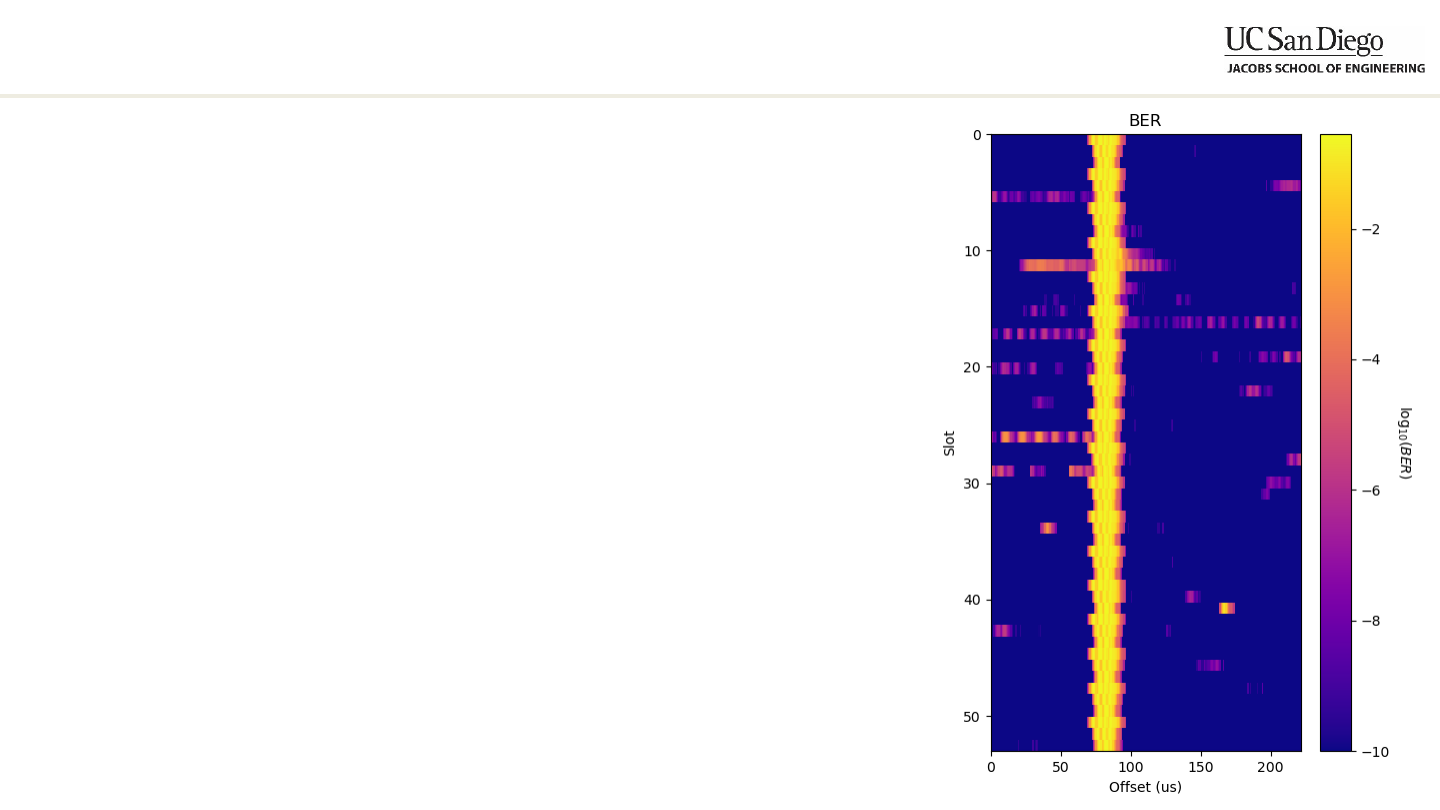

• Heat map represents signal at one
receiver through pinwheel switch
19
Open Source
• Corundum core logic 100% open-source Verilog
– Including 10G/25G MACs, PCIe DMA, AXI, AXI stream, etc.
– Device hard IP used for interfacing – PCIe, 100G MAC, serdes
• Simulation uses open-source tools
– Cocotb + Icarus Verilog
– Eventually will use cocotb + Verilator (blocked on Verilator bugs)
– Wrote cocotb extensions for AXI, Ethernet, and PCI express
• Tox + pytest for CI
• Makefiles for build automation
20

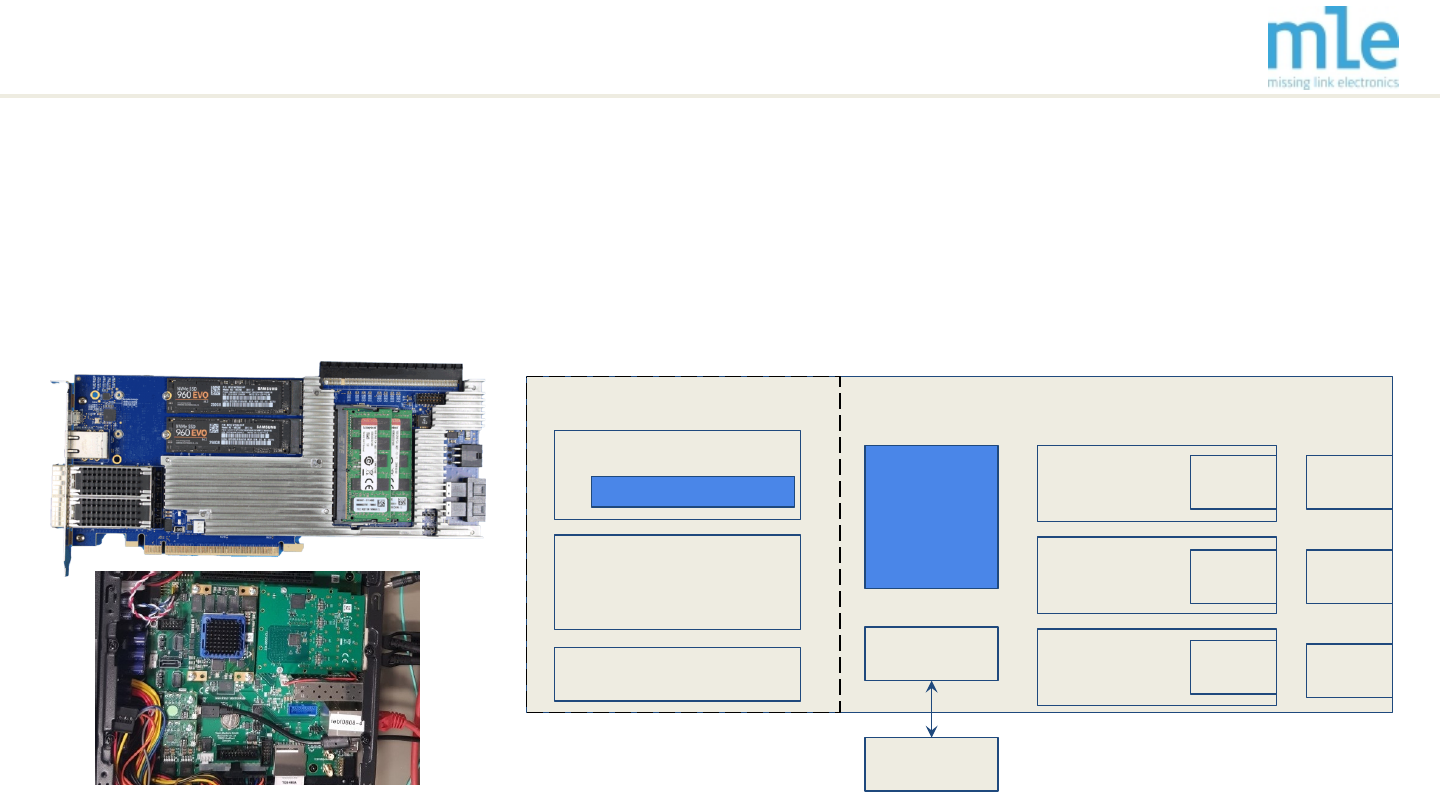

Short term work / contributions by MLE
1. Xilinx Zynq UltraScale+ MPSoC Integration
a. Run Linux on the PS ARM connected to the NIC
b. Support some additional platforms, e.g. Fidus Sidewinder-100 and
Trenz TE0808 based
MPSOCPS PL
4x ARM A53
2x ARM R5
ARM
Interconnect
(~ AXI4-MM)
Interface
AXI
DMA
DRAM IF
DRAM
MAC
MAC
MAC
Port
Interface
Port
Interface
Port
Linux Driver
21
Short term work / contributions by MLE
1. Xilinx Zynq UltraScale+ MPSoC Integration (WIP)
2. Intel Device Support
a. Kicked-off by the initial intel support for Stratix 10 MX
b. Optimize RTL to efficiently infer the intended RAM structures
c. Utilize a price-efficient Stratix 10 GX FPGA
22
Short term work / contributions by MLE
1. Xilinx Zynq UltraScale+ MPSoC Integration (WIP)
2. Intel Device Support (WIP)
3. 1 GbE interface support
a. SGMII reference design for ZCU106 (PR pending rebase)
23
Short term work / contributions by MLE
1. Xilinx Zynq UltraScale+ MPSoC Integration (WIP)
2. Intel Device Support (WIP)
3. 1 GbE interface support (WIP)
4. DPDK Driver
to provide one DPDK device per mqnic interface
24
Short term work / contributions by MLE
1. Xilinx Zynq UltraScale+ MPSoC Integration (WIP)
2. Intel Device Support (WIP)
3. 1 GbE interface support (WIP)
4. DPDK Driver (WIP)
5. Add a Traffic Shaper (customization)
a. Enforce per queue (queue group) bandwidth assignments
b. Based on the bucket shaping algorithm
c. Implements a scheduler controller to complement other available
schedulers, e.g. the current upstream round robin scheduler
25
Long-term goals
• Core features
– RDMA support in core datapath
– Variable-length descriptor support
– Unified DMA address space (on-card DRAM/HBM)
• Device and board support
– Improve Intel device support
– SoC support
– Move board-dependent code from driver to soft core
– Simplify porting process
• Software
– Improved interface to application logic
– DPDK driver
26
