Architecture
1. Best approach for Performance?
2. What is available on the Market?
3. Design decisions which can be a burden later
in the Project
Full System Stacks:
- Architecture and design choices come
from +10 years of Design Service and IP
Development in the fields industrial,
medical, aerospace, automotive, test &
measurement.
- MLE is specialised for High Speed and
High Performance designs
Challenges of new Projects
2. July 2026
7
IP Integration
1. High IP Core costs
2. Understand the Configuration
3. Understand the Registers
4. Understand the Handling
5. Fine Tuning everything around the IP,
like Transceivers
6. IP Vendor may only care about his part
of the solution
Full System Stacks:
1. Single Unit Licensing creates low entry
costs
2. As IP creator we understand all
implications of the IP interfaces and
deliver an optimized configuration
3. We deliver a Full System Stack so we can
help in all aspects of of the design
Challenges of new Projects
2. July 2026
8
Drivers
1. Integrate and compile drivers
2. Integrate the needed packages
Full System Stacks:
1. Drivers and needed packages are
already integrated when delivered
Challenges of new Projects
2. July 2026
9
Applications
1. Write an application which handles the
driver well
Full System Stacks:
1. The package also includes an
Application Example which show the
initialisation, operation*:
read/write/connect/disconnect and
teardown
* Depends on the FPGA Full System Stack
Challenges of new Projects
2. July 2026
10
Hardware
1. Turnaround time of Hardware
development und later ramp up time.
Full System Stacks:
1. Hardware turnaround time reduced due
to SOM based approach: Spinning just
the carrier board is simpler and cheaper
then spinning the full board
2. Software Development can start
immediately with an eval carrier
3. For ramp up: Chip down design together
with SOM vendor can be much faster as
starting with a full PCB design as clock,
power, reset und many interfaces are
already available
Challenges of new Projects
2. July 2026
11

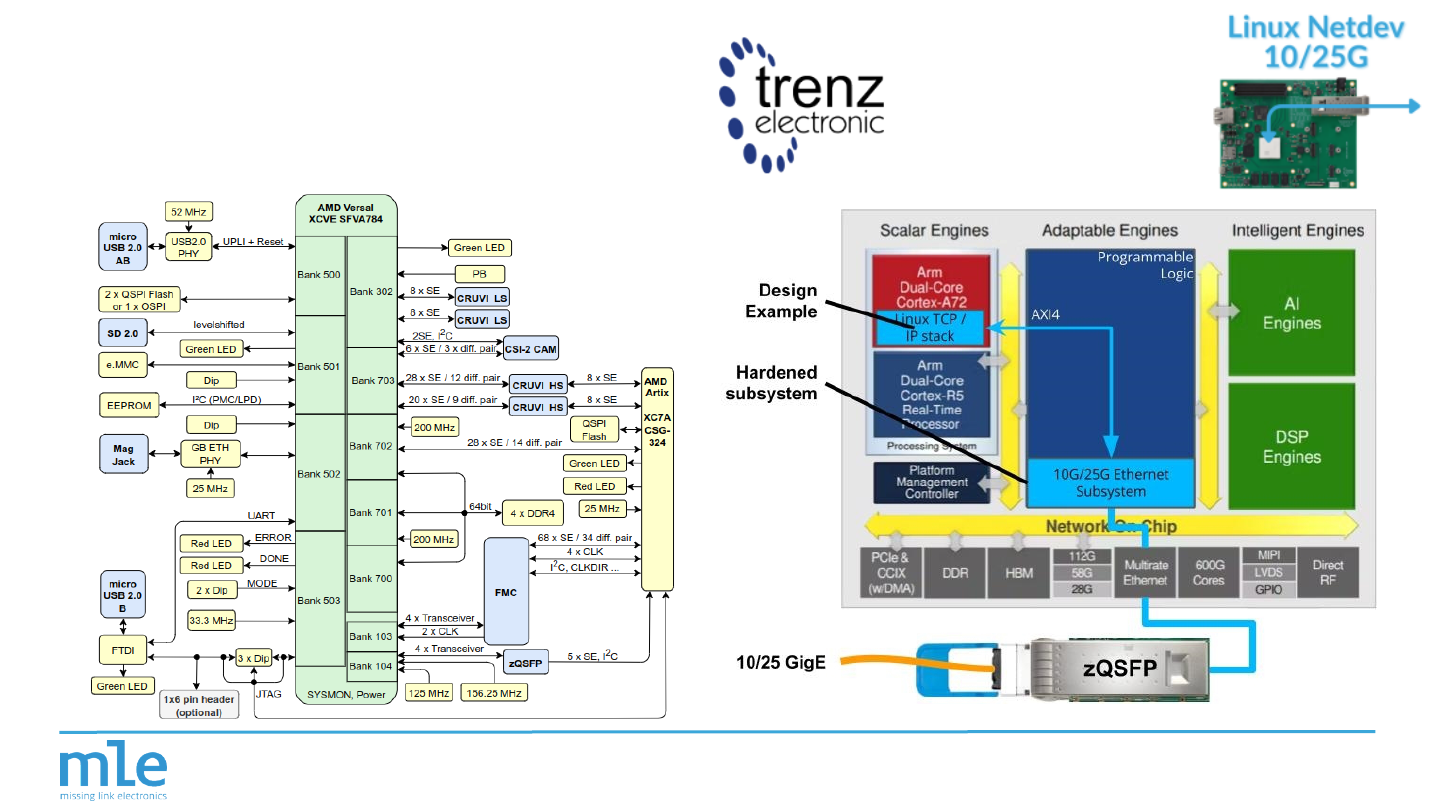

Example for Rapid Prototyping with Trenz Hardware
2. July 2026
18
Solution Category SoM (Carrier) Board IP/Driver Status
FFSS-TE0950-NPAP-10G Network - TE0950 NPAP-10G Launch
FFSS-TE0950-NPAP-25G Network - TE0950 NPAP-25G Launch
FFSS-TE0950-Netdev-10G Network - TE0950 Linux Netdev 10G Launch
FFSS-TE0950-Netdev-25G Network - TE0950 Linux Netdev 25G Launch
FFSS-TE0950-NVMePS Storage - TE0950 Linux nvme.h Available soon
FFSS-TE0950-NVMePL-x4 Storage - TE0950 NVMe Streamer x4 Available soon
FFSS-TE0950-NVMePL-x1 Storage TE0950 NVMe Streamer x1 Available soon
FFSS-TE0955-NPAP-10G Network TE0955 TEB0955 NPAP-10G Available soon
FFSS-TE0955-NPAP-25G Network TE0955 TEB0955 NPAP-25G Available soon
FFSS-TE0955-Netdev-10G Network TE0955 TEB0955 Linux Netdev 10G Available soon
FFSS-TE0955-Netdev-25G Network TE0955 TEB0955 Linux Netdev 25G Available soon
FFSS-TE0955-NVMePS Storage TE0955 TEB0955 Linux nvme.h Available soon
FFSS-TE0955-NVMePL-x4 Storage TE0955 TEB0955 NVMe Streamer x4 Available soon
FFSS-TE0955-NVMePL-x1 Storage TE0955 TEB0955 NVMe Streamer x1 Available soon
FFSS-ADA-VA330-NVMePLx4 Storage ADA-VA330 NVMe Streamer x4 Launch
FFSS-ADA-VA330-NVMePS Storage ADA-VA330 Linux nvme.h Launch
FFSS-ADA-V9202-NVMePLx4 Storage ADA-V9202 NVMe Streamer x4 Launch
FFSS-ADA-V9202-NVMePS Storage ADA-V9202 Linux nvme.h Launch
FFSS-ADA-VA210-NVMePLx4 Storage ADA-VA210 NVMe Streamer x4 Available soon
FFSS-ADA-VA210-NVMePS Storage ADA-VA210 Linux nvme.h Available soon
2. July 2026
19
