1

In-Vehicle Network - Automotive

Zone Based Architecture with

Time Sensitive Network

Maximilian Sokol

(Andreas Braun / Andreas Schuler)

2

● Friedrich Maximilian Sokol, M. Eng.

○ "Full-Stack" Digital Hardware Engineer, Missing Link Electronics

○ Driving high-performance solutions from initial system

architecture through to final hardware deployment.

● Core Expertise: Protocols on Silicon

○ Specialist in high-performance network stacks (TCP/IP) for

FPGAs.

○ Expertise spans system architecture, PCB design, and low-level

software.

About the Speaker

3

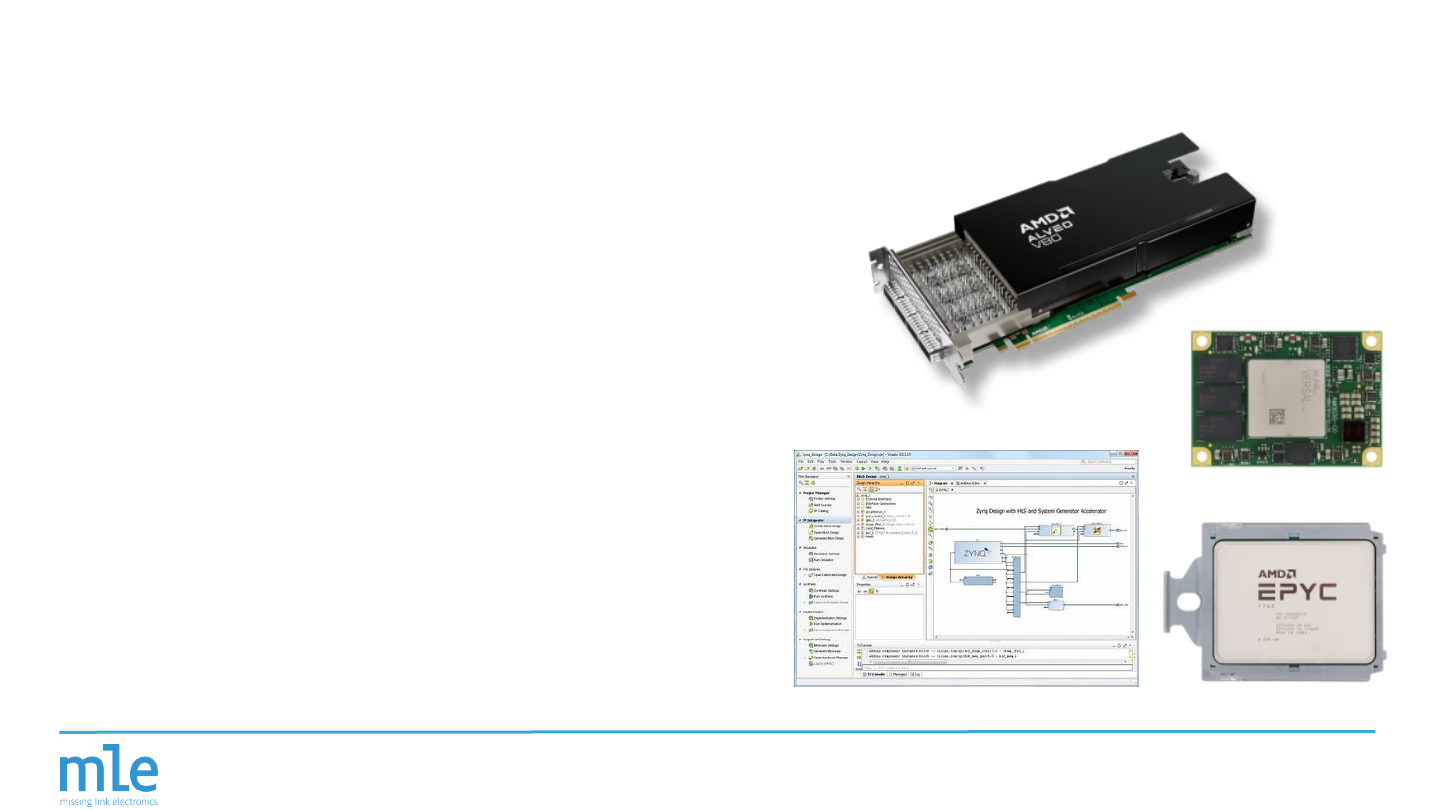

MLE – Experts for Domain-Specific Compute Architectures

Our Mission: From Software to Silicon!

● Deliver HW and SW for High-Performance

(Embedded) Compute Systems & Solutions

● Offering pre-validated subsystems with

FPGA IP blocks and open-source software

● Support customer projects with deep

expertise and hands-on design services

Head-quartered in Silicon Valley with Design

Offices in Germany

● Founded 2010, employee owned

● 20+ Certified FPGA Designers

● Customers include technology leaders,

US and European government agencies,

Fortune 500 companies

● Partners to:

4

MLE Design Services Expertise – FPGA as a Computer

● RTL and High-Level Synthesis using FPGA design flows

● AMD Zynq-7000 SoC in designs since Q1/2012

● AMD Zynq Ultrascale+ MPSoC in designs since Q4/2015

● AMD Zynq UltraScale+ RFSoC in designs since Q2/2018

● AMD Versal since Q1/2019

● PetaLinux / Vanilla Linux and Yocto-based SW development

● Multigigabit transceiver configurations

○ PCIe Gen2/3/4/5, SATA 3/6G, SAS 6/12G, NVMe, CXL

○ SDI-3/6/12G, JESD204B, DP/HDMI 4k, MIPI CSI-2 D-PHY

○ 10/25/40/50/100G Ethernet, Low Latency Ethernet

● Radar & Lidar for civil, mil/aero, automotive, industrial

● Image processing for HDMI, Displayport, SDI

● Time Sensitive Networking, Detnet, Layer-2/3 Switching

● Functional Safety Design Flows ISO 26262 (ASIL), IEC 61508 (SIL)

● Security & Trust (PUF, Crypto Accelerators , eFuses)

5

Our Technology Achievements

● Patented technology in the fields of acceleration, mixed-signal, functional safety

○ US Patent 9,209,828 – Configurable Mixed-Signal Systems

○ US Patent 10,140,049 – Partitioning Systems Operation in Multiple Domains

○ US Patent 10,509,880 – Automation for Configurable Mixed-Signal Systems

○ US Patent 10,708,199 – Heterogeneous Packet-Based Transport

○ US Patent 10,848,442 – Secure Heterogeneous Packet-Based Transport

○ US Patent 11,356,388 – Real-Time Multi-Protocol Heterogeneous Packet-Based Transport

● 60+ Presentations at Technology Conferences and in Technology Journals

○ Embedded World Conferences

○ PCI-SIG Developers Conferences

○ Flash Memory Summits, SmartNICs Summit

○ FPGA Conferences

○ IBM Open Power Summit

○ Automotive Ethernet Congress

○ XILINX Developer Forum and Security Workshops

○ SNIA Storage Developers Conferences

6

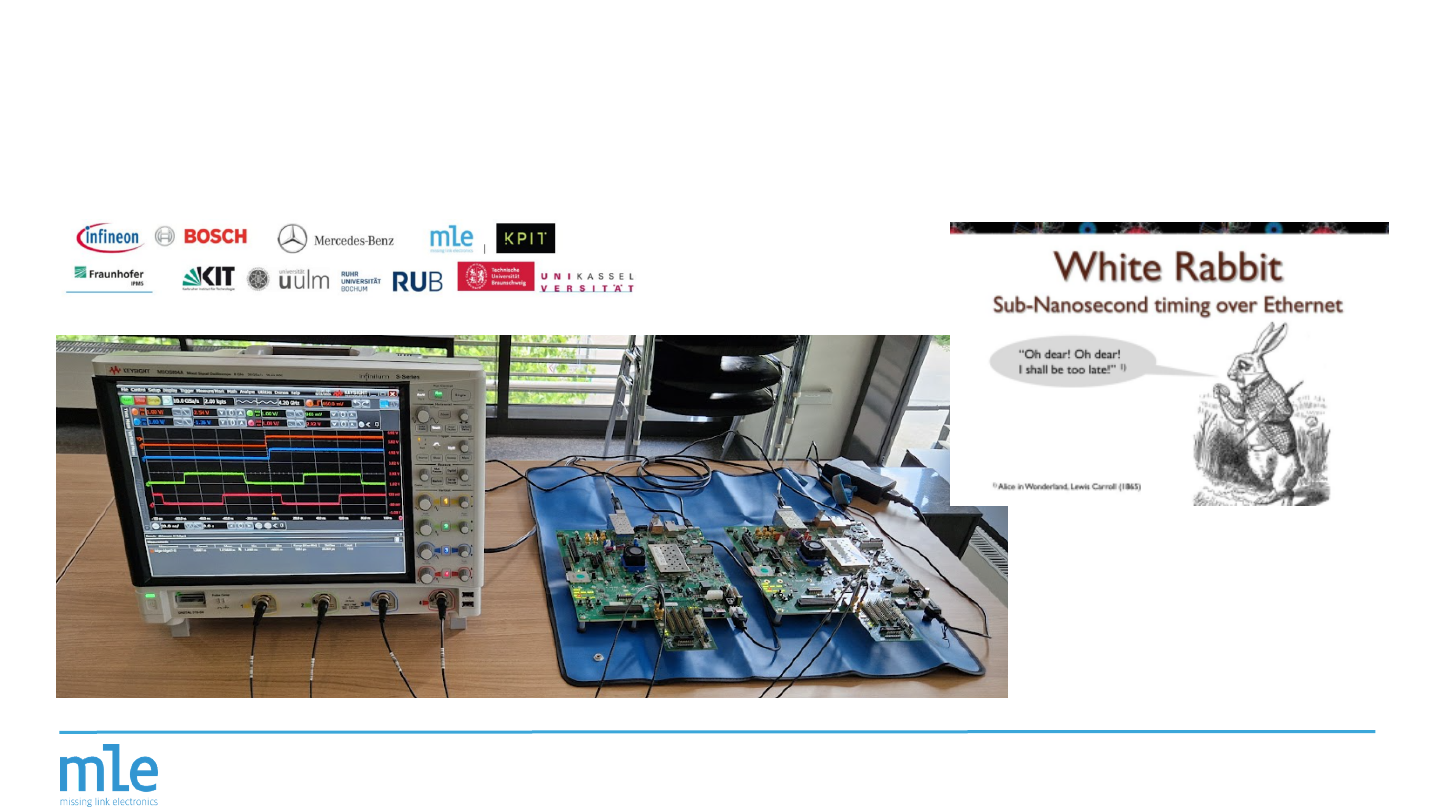

MLE Technology - Proudly Sourced Elsewhere

Example BMBF VERANO: Koherent digital Radar MLE optimizes CERN OHL White Rabbit to

AMD/Xilinx FPGAs

7

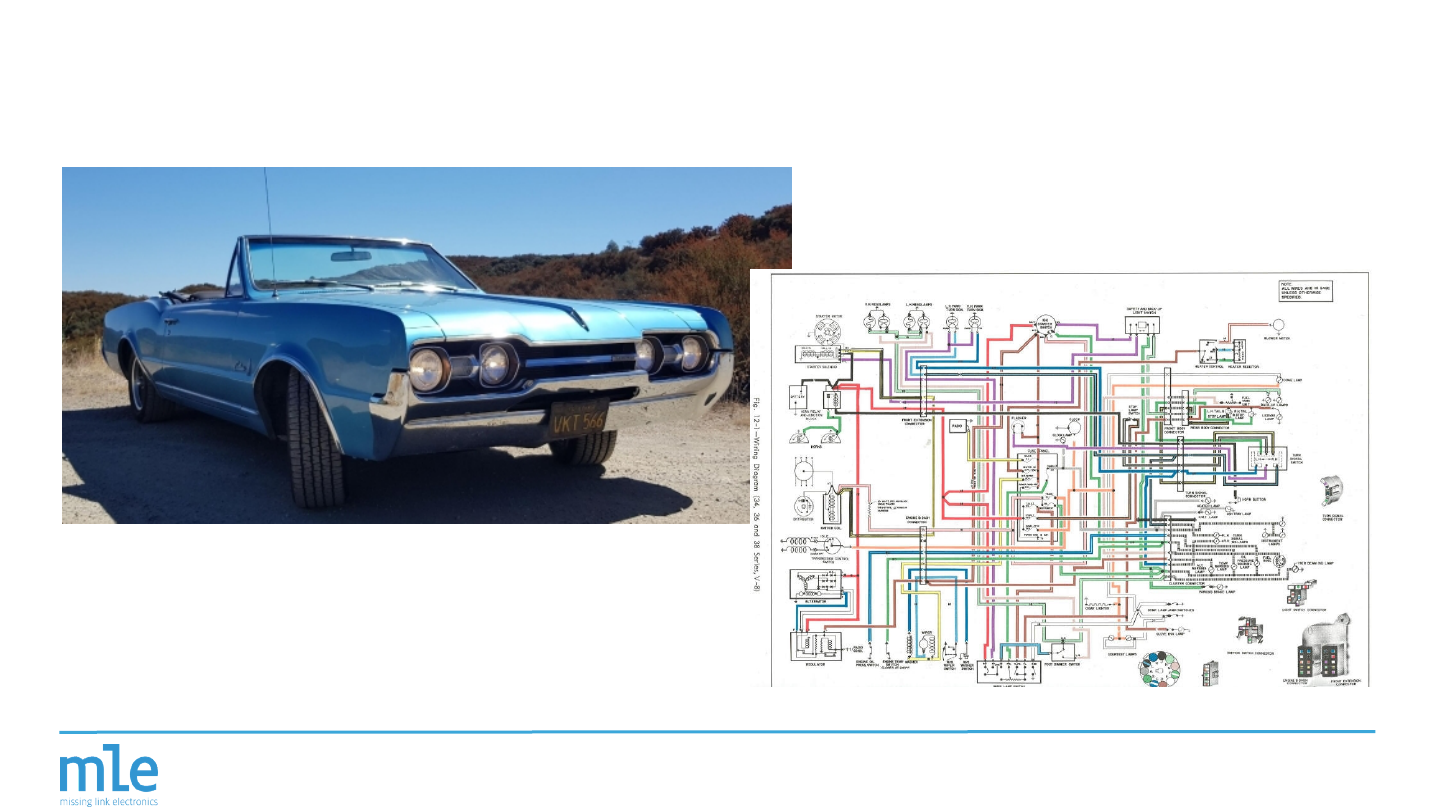

Automotive Network History (1967)

1966 Oldsmobile Cutlass Convertible

8

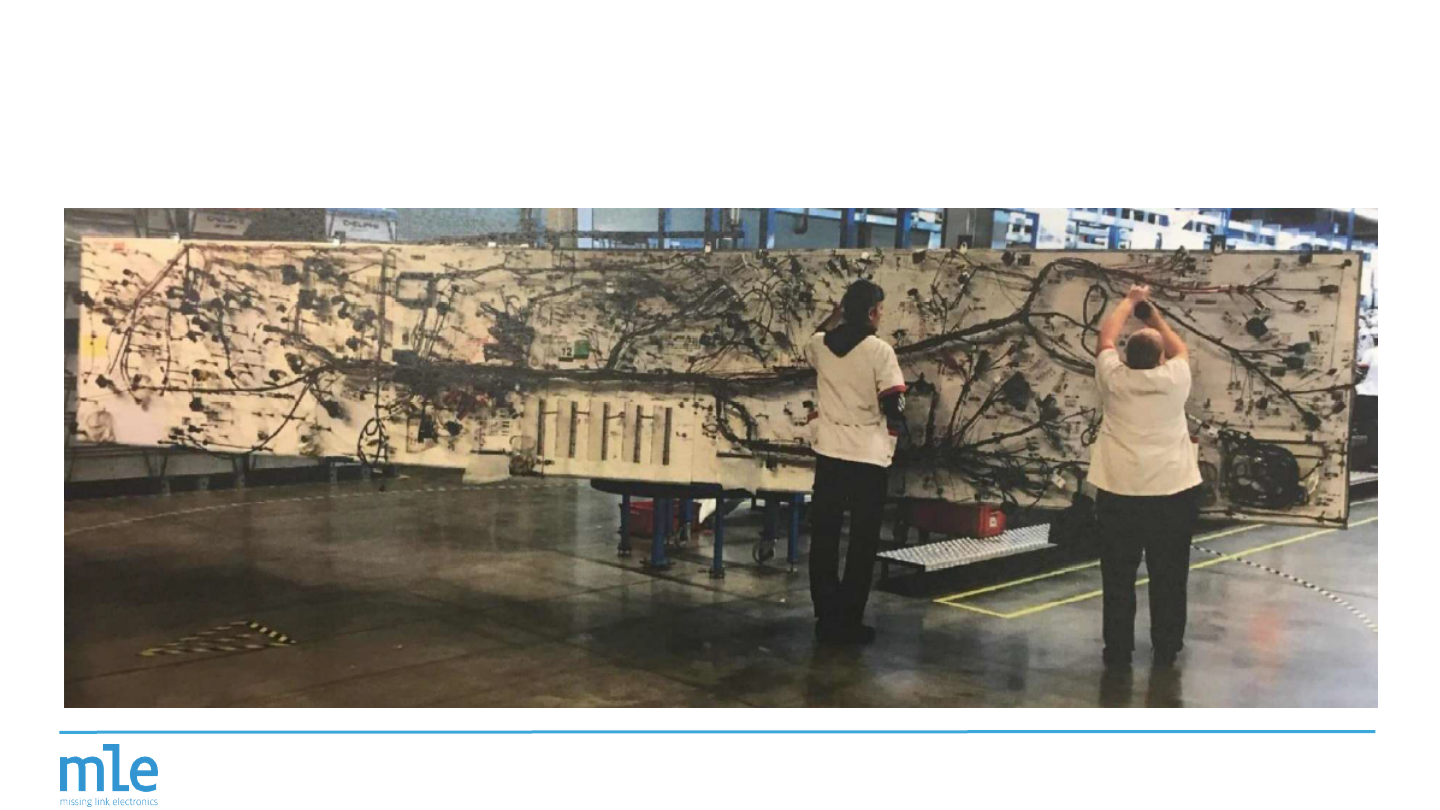

Today’s Expensive Wiring Nightmare

9

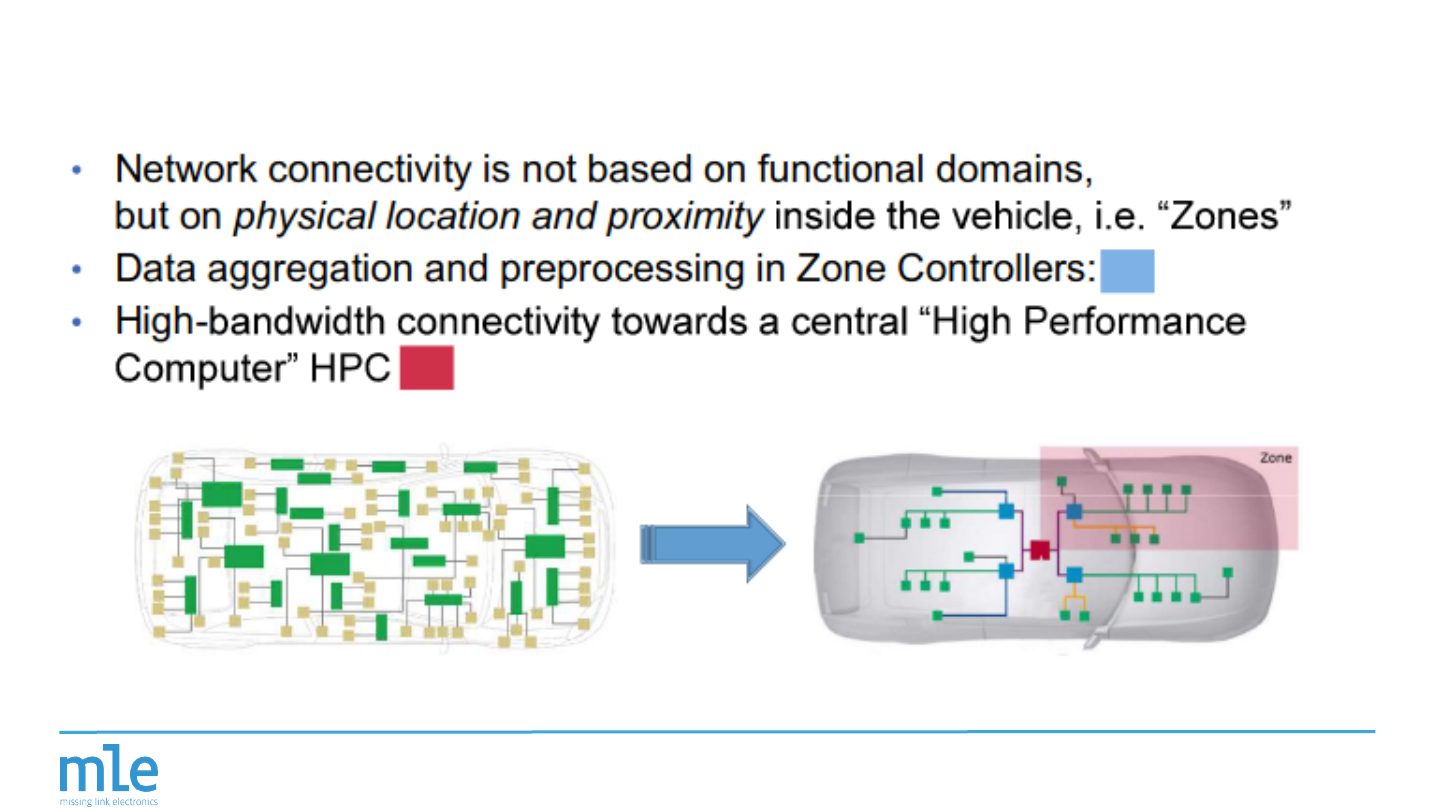

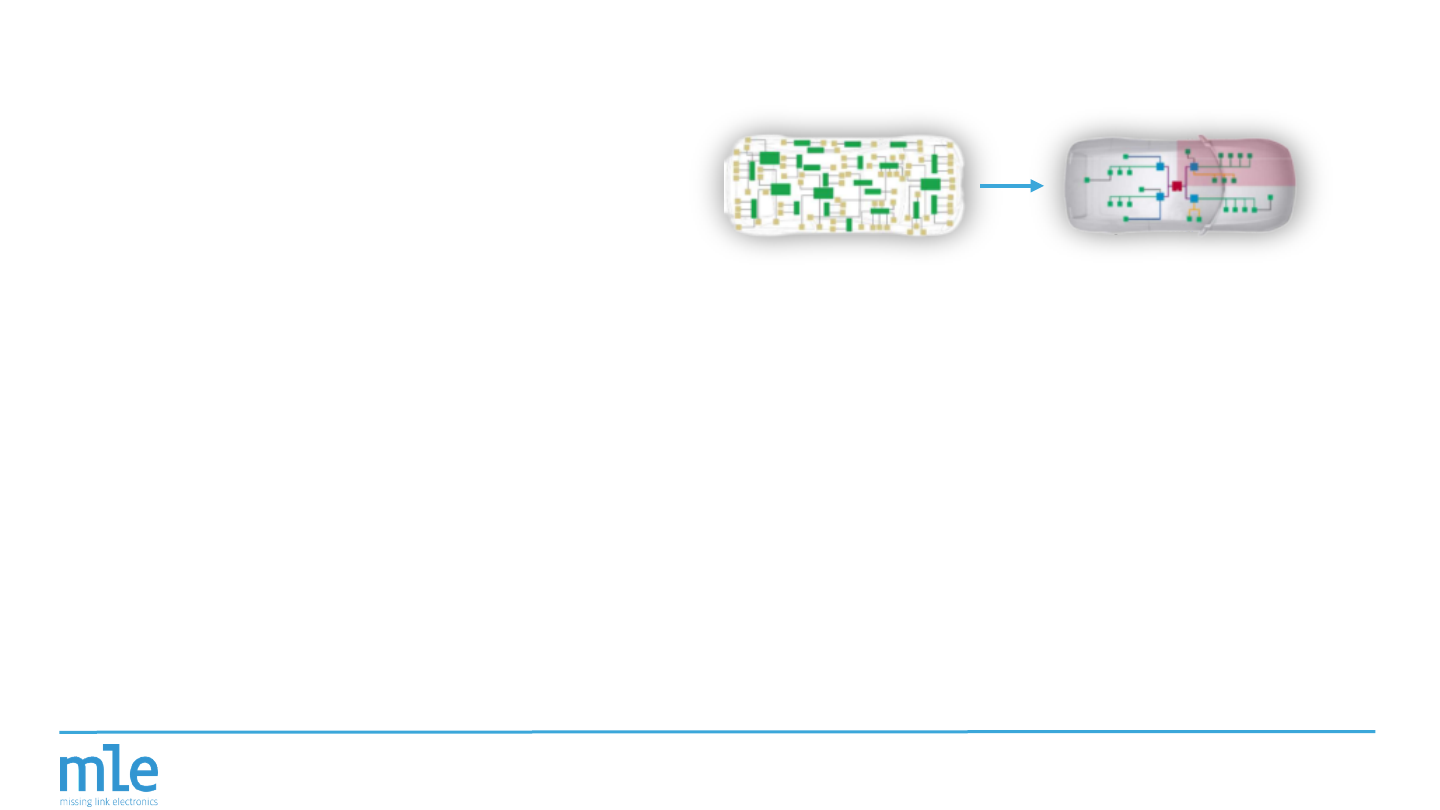

Next: Zone-Based Architectures

10

Next: Zone-Based Architectures

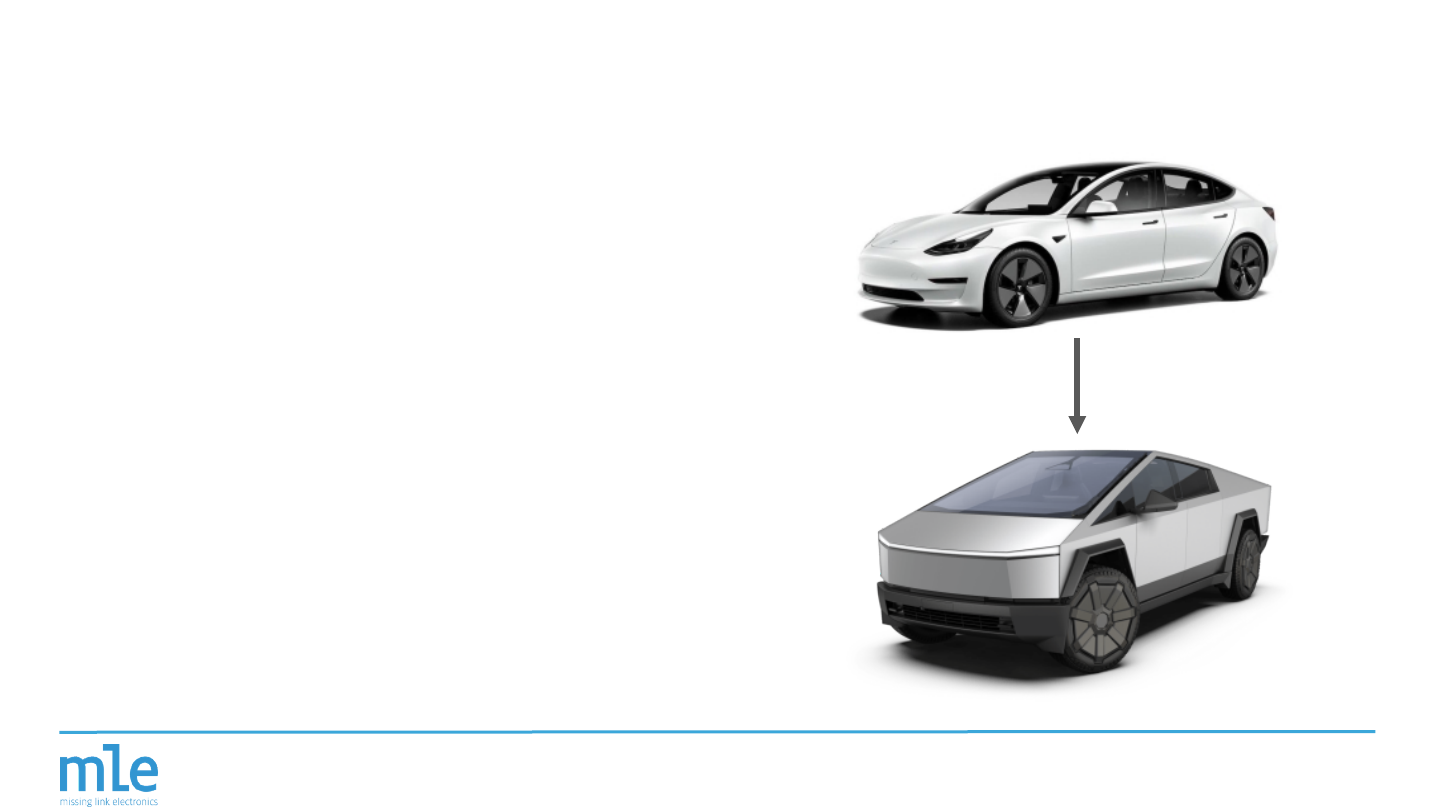

Example: Tesla's “Etherloop”¹

Model 3:

● Number of endpoints: 273

● Number of cables: 490

Cybertruck:

● Number of endpoints: 368

● Number of cables: 155

¹ https://insidetesla.de/tesla-cybertruck-innovatives-etherloop-system/

11

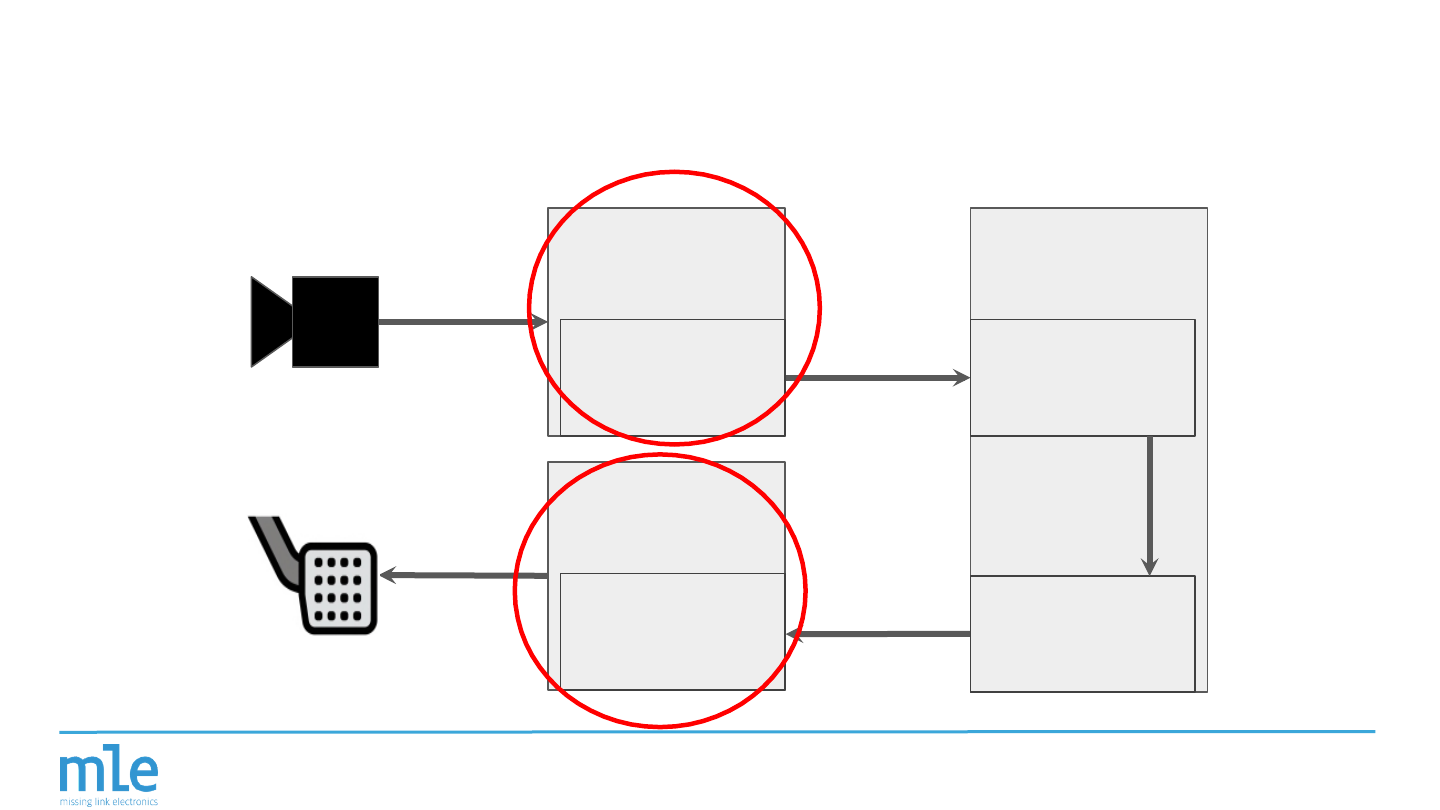

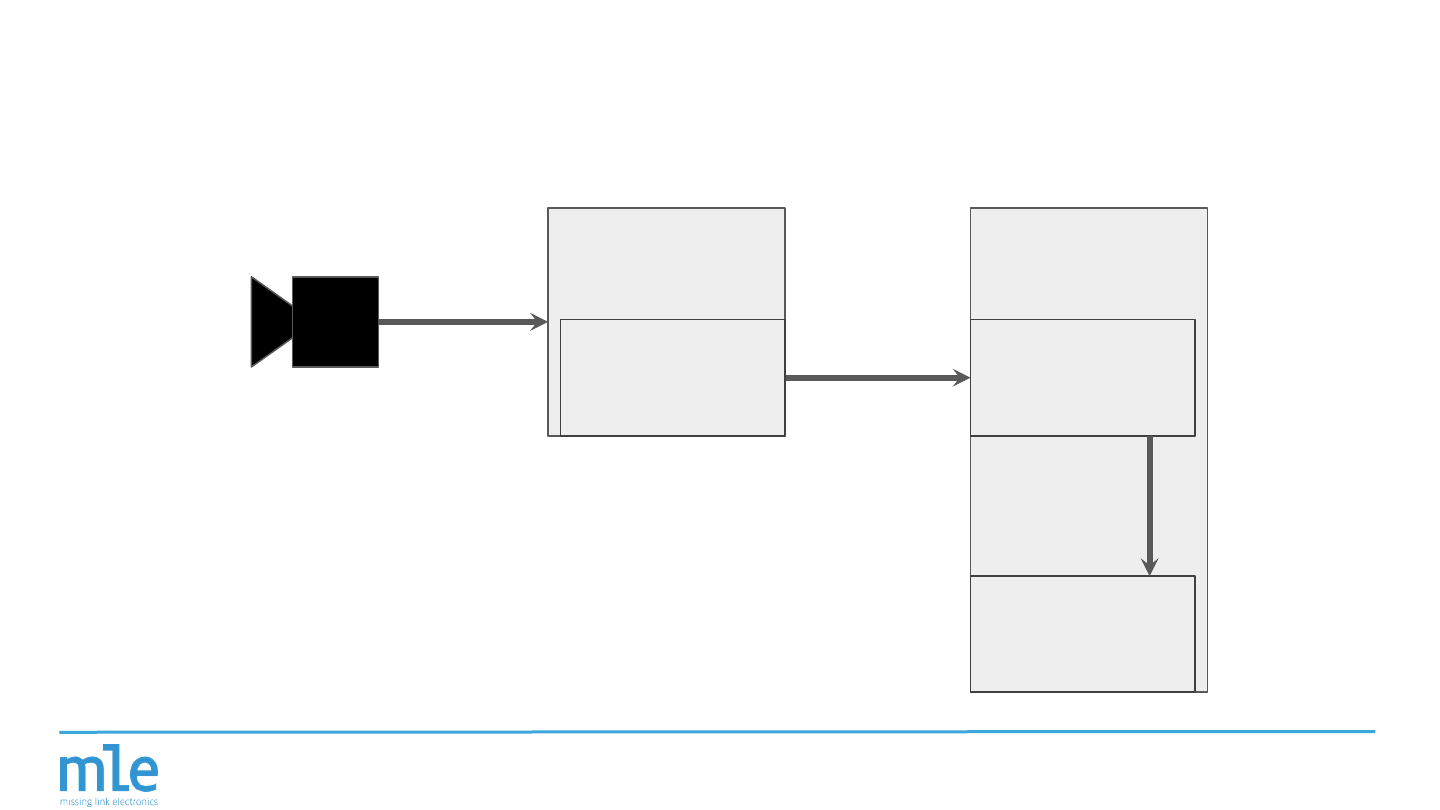

Why Zone Based Architecture? Signal 2 Data

Example: Camera

Camera

Zone

Controller

GSML/MIPI

Car Server


Frame/Lane

12

Why Zone Based Architecture? Signal 2 Data

Example: Camera

Camera

Zone

Controller

GSML/MIPI

Car Server


Frame/Lane

Zone can provide preprocessed

data:

- Rescaled

- ROI

- etc.

13

Why Zone Based Architecture? Signal 2 Data

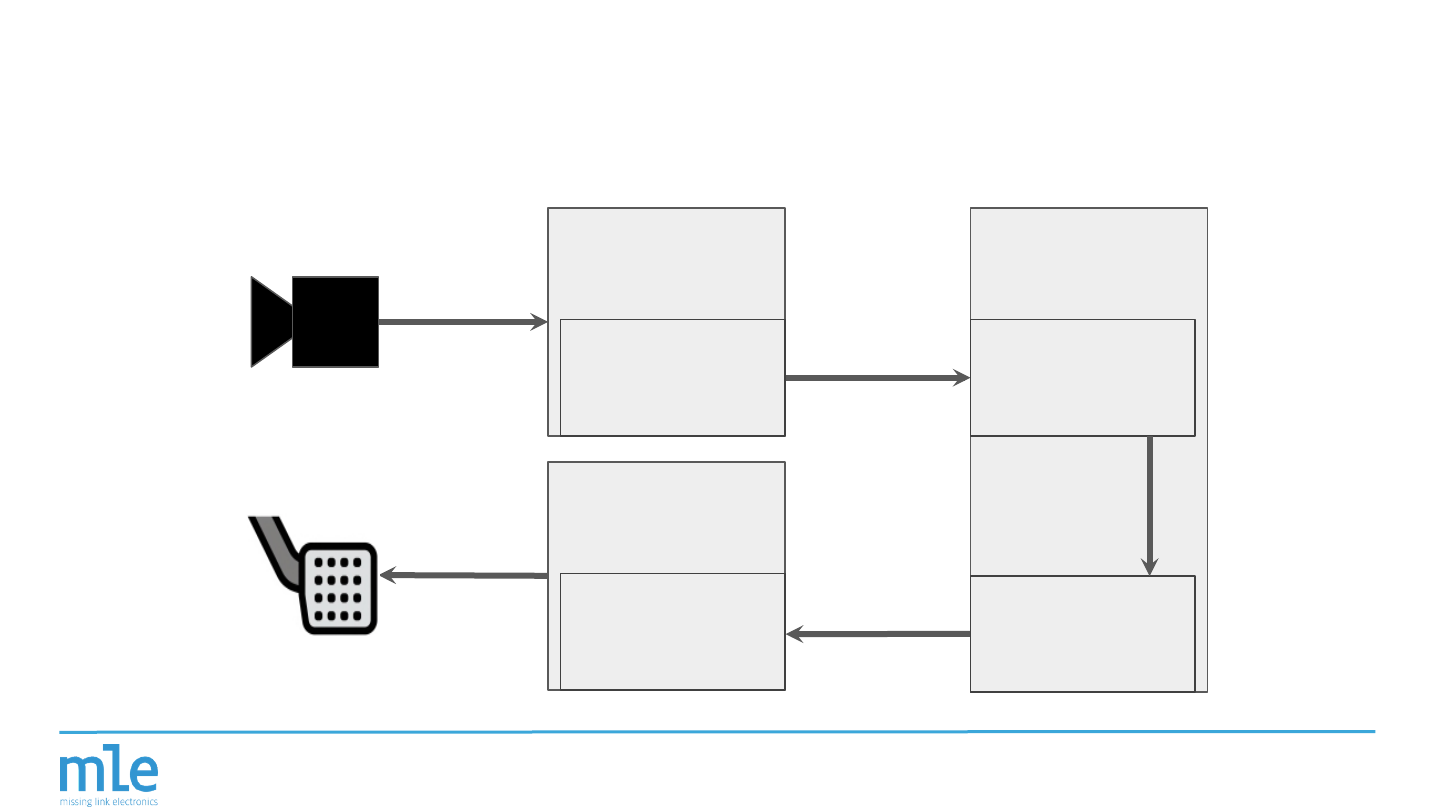

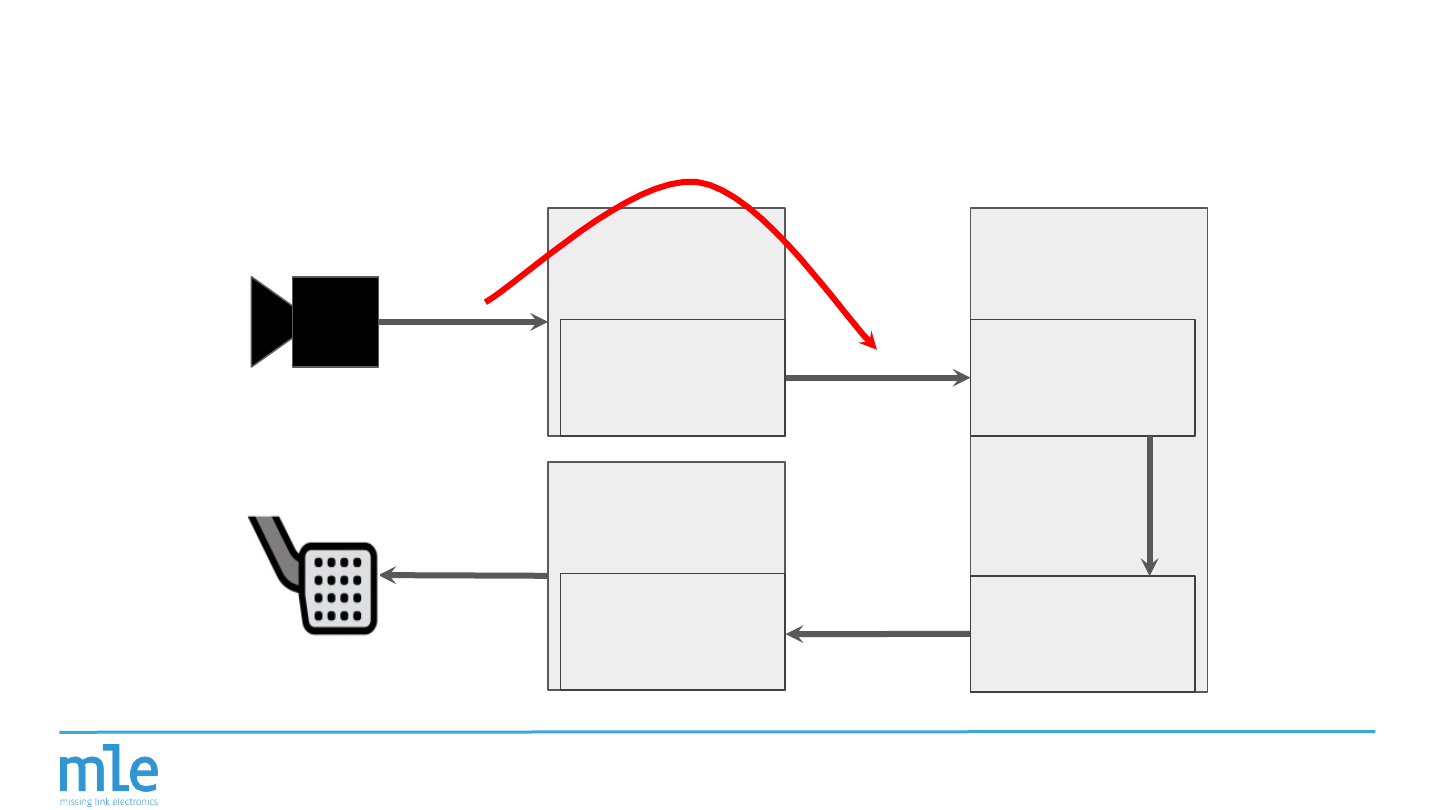

Middleware: pub / sub architecture

Camera

Zone

Controller

GSML

/MIPI

Publish:

Camera Data

14

Why Zone Based Architecture? Signal 2 Data

Middleware: pub / sub architecture

Camera

Zone

Controller

GSML

/MIPI

Camera

Stream

Publish:

Camera Data

Car Server

Subscribe:

Camera Data

15

Why Zone Based Architecture? Signal 2 Data

Middleware: pub / sub architecture

Camera

Zone

Controller

GSML

/MIPI

Camera

Stream

Publish:

Camera Data

Car Server

Subscribe:

Camera Data

Publish:

Req. Speed

Process

16

Why Zone Based Architecture? Signal 2 Data

Middleware: pub / sub architecture

Camera

Zone

Controller

GSML

/MIPI

Camera

Stream

Publish:

Camera Data

Zone

Controller

Subscribe:

Req. Speed

Throttle

Control

Car Server

Subscribe:

Camera Data

Publish:

Req. Speed

Process

Req.

Speed

17

Why Zone Based Architecture? Signal 2 Data

Middleware: pub / sub architecture

Camera

Zone

Controller

GSML

/MIPI

Camera

Stream

Publish:

Camera Data

Zone

Controller

Subscribe:

Req. Speed

Throttle

Control

Signal 2 Data

Car Server

Subscribe:

Camera Data

Publish:

Req. Speed

Process

Req.

Speed

18

Why Zone Based Architecture? Signal 2 Data

Middleware: pub / sub architecture

Camera

Zone

Controller

GSML

/MIPI

Camera

Stream

Publish:

Camera Data

Zone

Controller

Subscribe:

Req. Speed

Req.

Speed

Throttle

Control

Provider

Consumer

Car Server

Subscribe:

Camera Data

Publish:

Req. Speed

Process

19

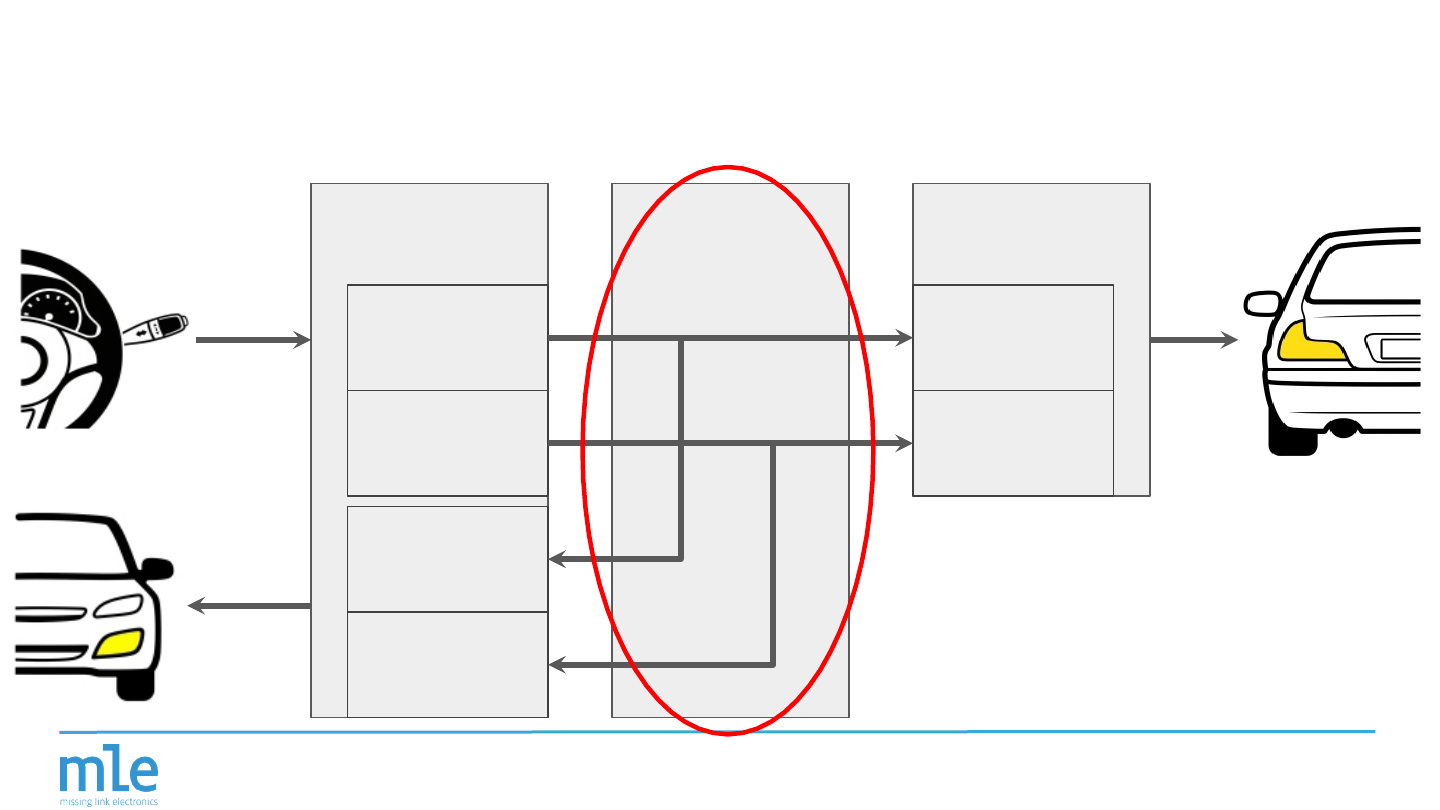

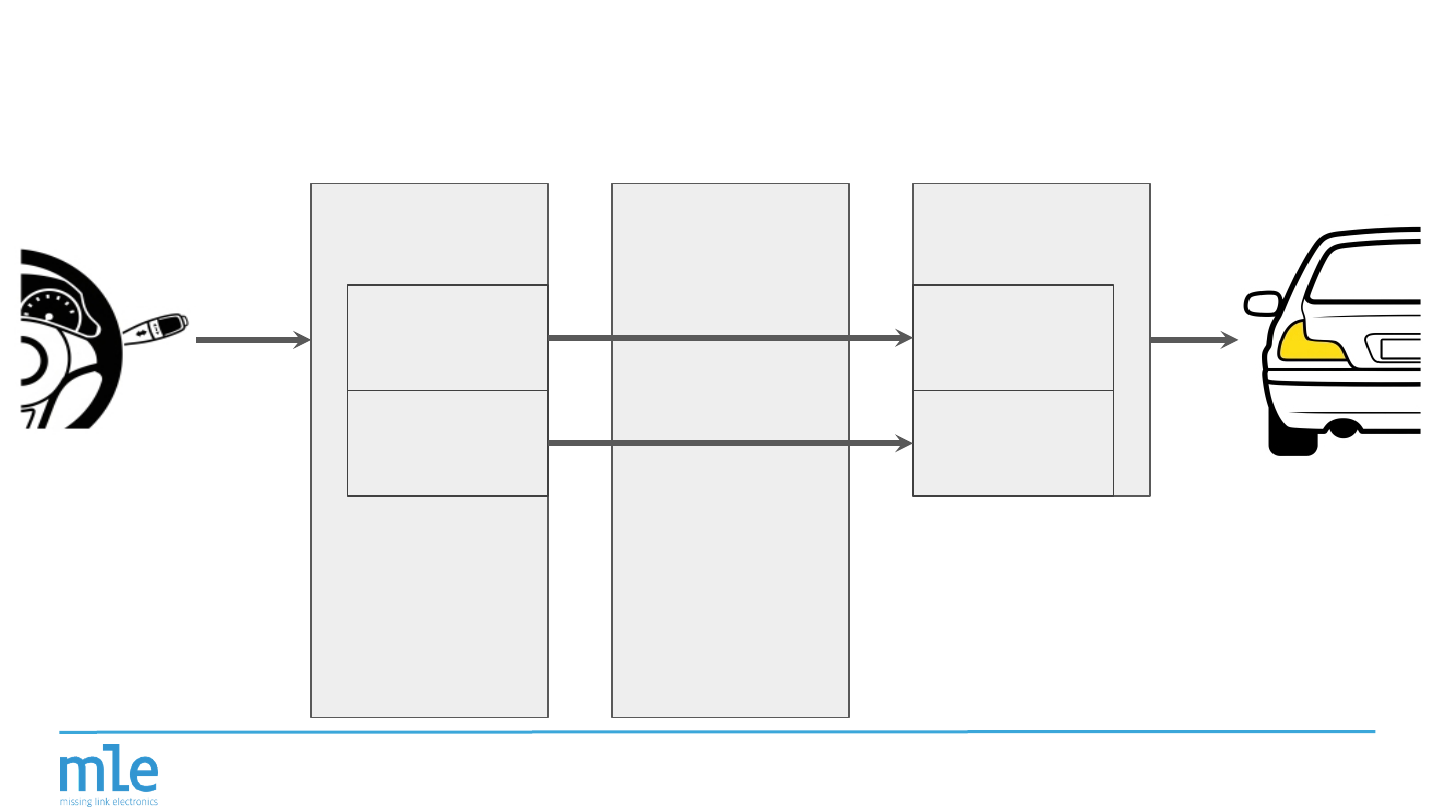

Why Zone Based Architecture? Signal 2 Data

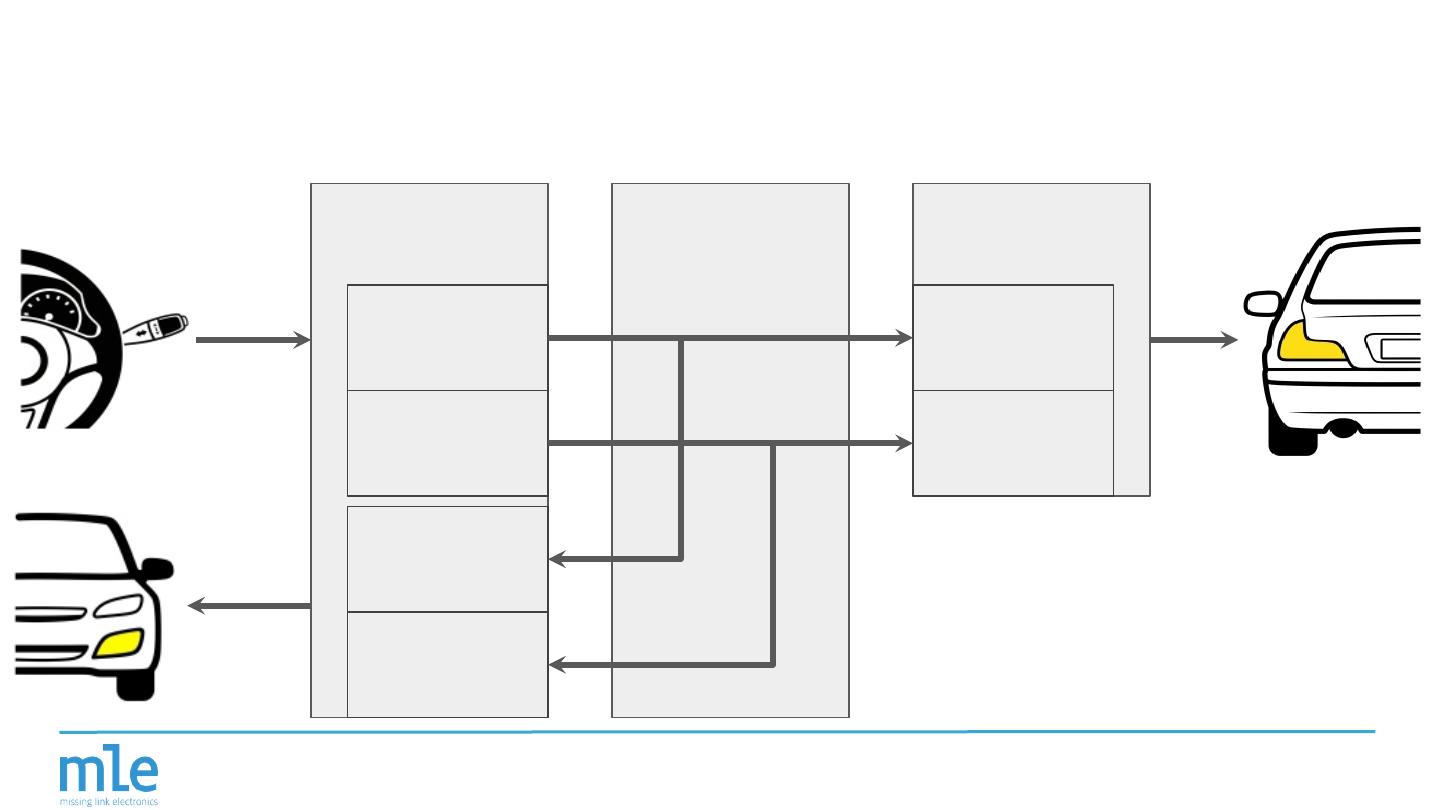

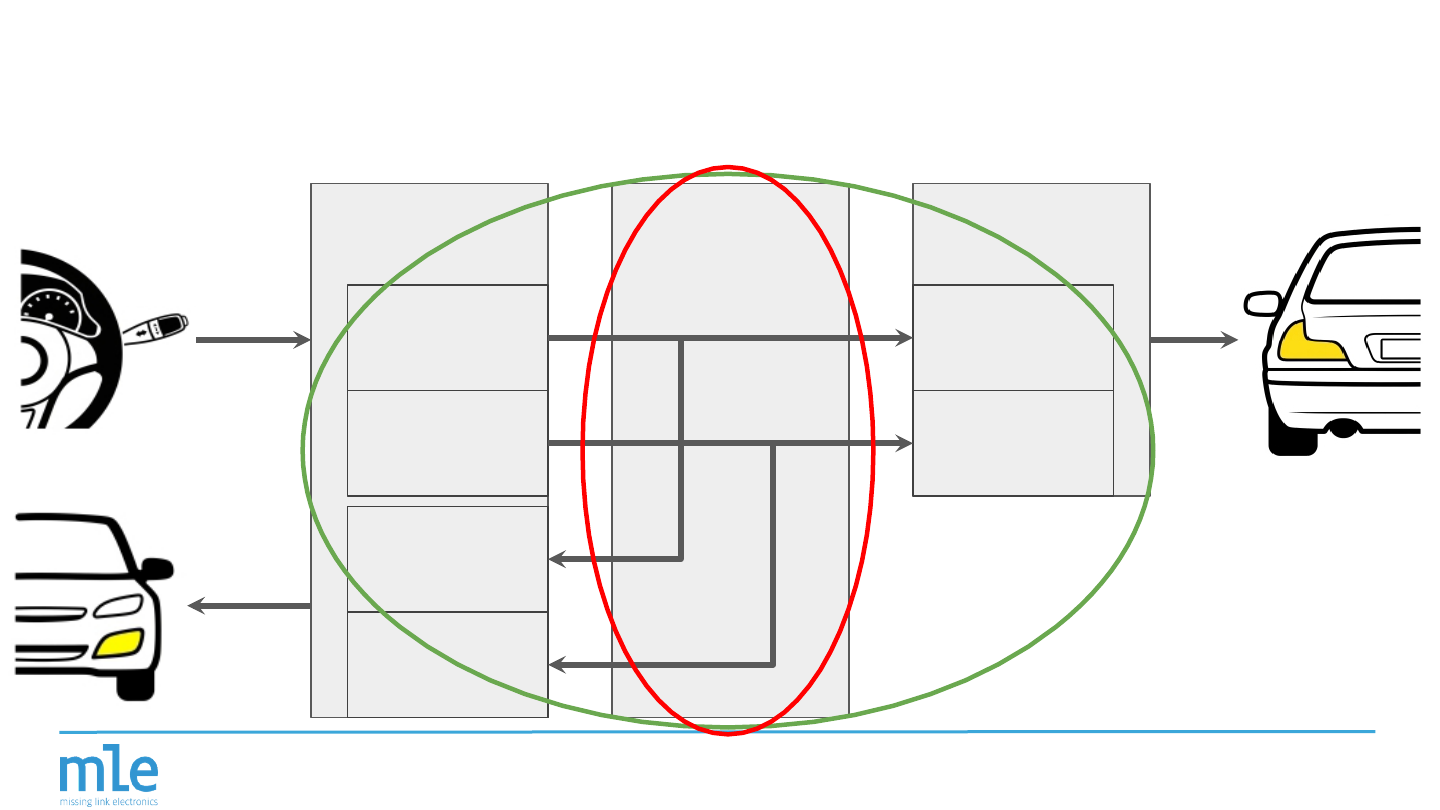

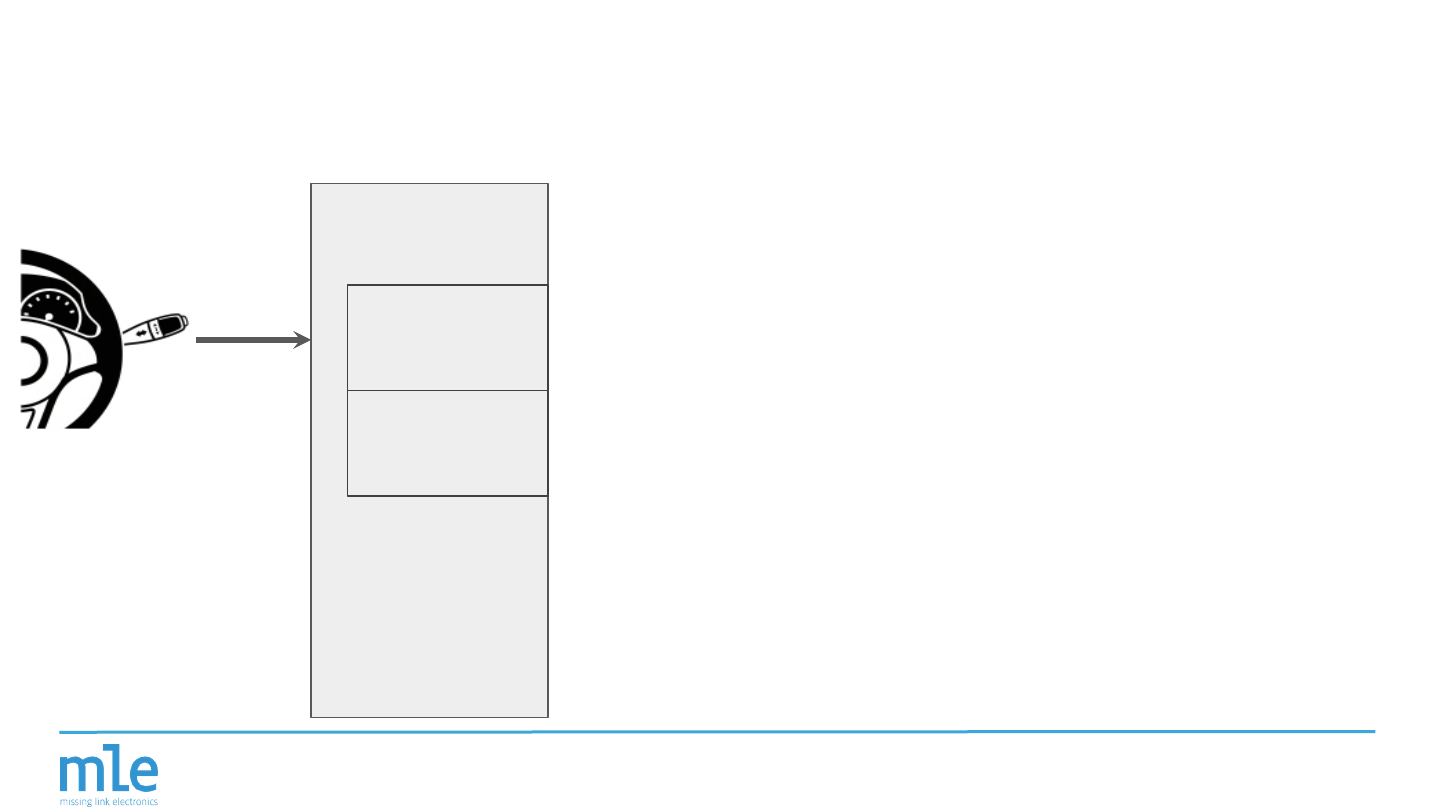

Middleware: pub / sub architecture: Different example

Front Zone

Controller

Pub: Tap

Indicator

Pub: Press

Indicator

Indi-

cator

20

Why Zone Based Architecture? Signal 2 Data

Middleware: pub / sub architecture: Different example

Front Zone

Controller

Car Server

Pub: Tap

Indicator

Pub: Press

Indicator

Back Zone

Controller

Sub: Tap

Indicator

Sub: Press

Indicator

Indi-

cator

Turn

Signal

21

Why Zone Based Architecture? Signal 2 Data

Middleware: pub / sub architecture: Different example

Front Zone

Controller

Car Server

Pub: Tap

Indicator

Pub: Press

Indicator

Back Zone

Controller

Sub: Tap

Indicator

Sub: Press

Indicator

Sub: Tap

Indicator

Sub: Press

Indicator

Indi-

cator

Turn

Signal

Turn

Signal

22

Why Zone Based Architecture? Signal 2 Data

Middleware: pub / sub architecture: Different example

Front Zone

Controller

Car Server

Pub: Tap

Indicator

Pub: Press

Indicator

Back Zone

Controller

Sub: Tap

Indicator

Sub: Press

Indicator

Sub: Tap

Indicator

Sub: Press

Indicator

Indi-

cator

Turn

Signal

Turn

Signal

Coordinator / Broker

23

Why Zone Based Architecture? Signal 2 Data

Middleware: pub / sub architecture: Different example

Front Zone

Controller

Car Server

Pub: Tap

Indicator

Pub: Press

Indicator

Back Zone

Controller

Sub: Tap

Indicator

Sub: Press

Indicator

Sub: Tap

Indicator

Sub: Press

Indicator

Indi-

cator

Turn

Signal

Turn

Signal

Middleware

Coordinator / Broker

24

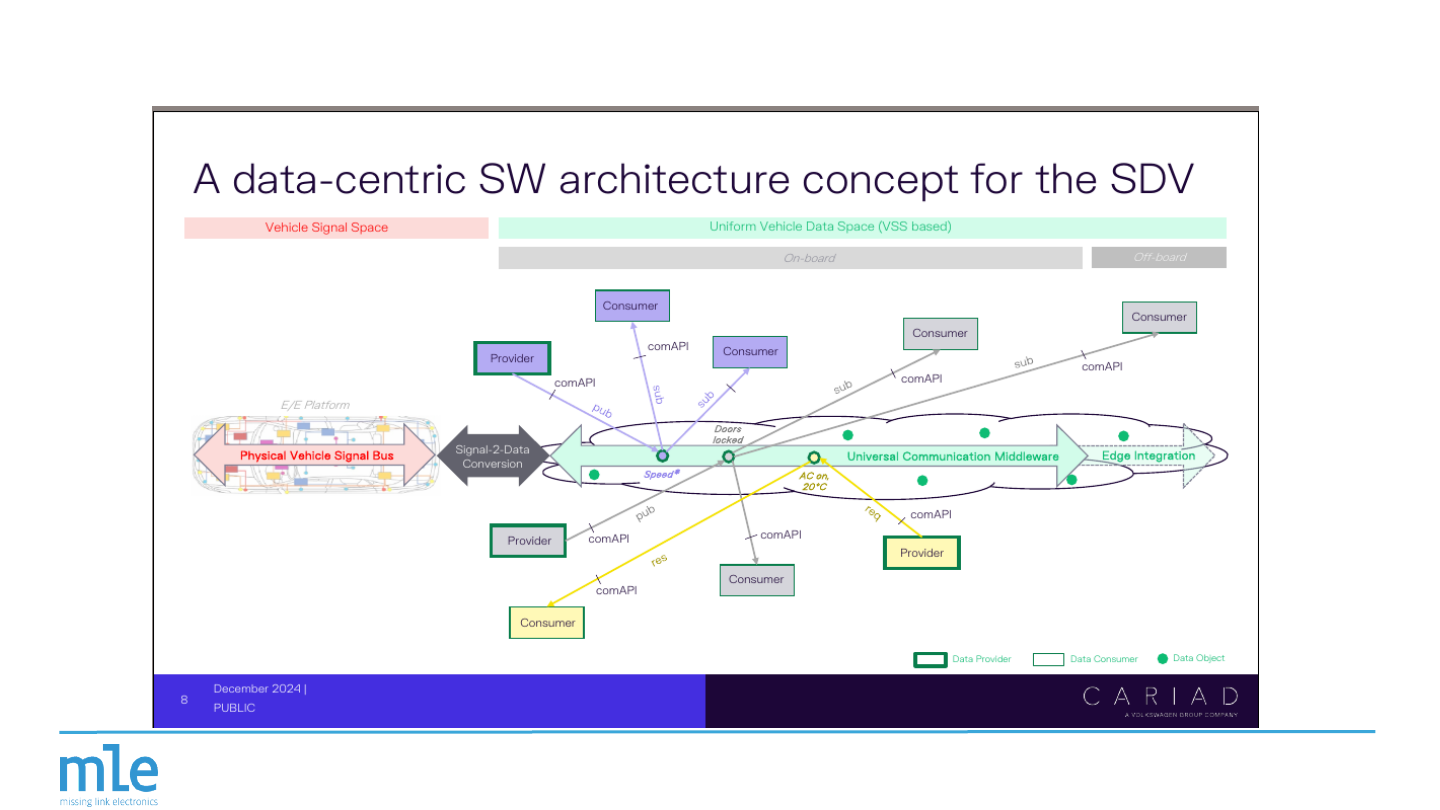

Why Zone Based Architecture? Signal 2 Data

25

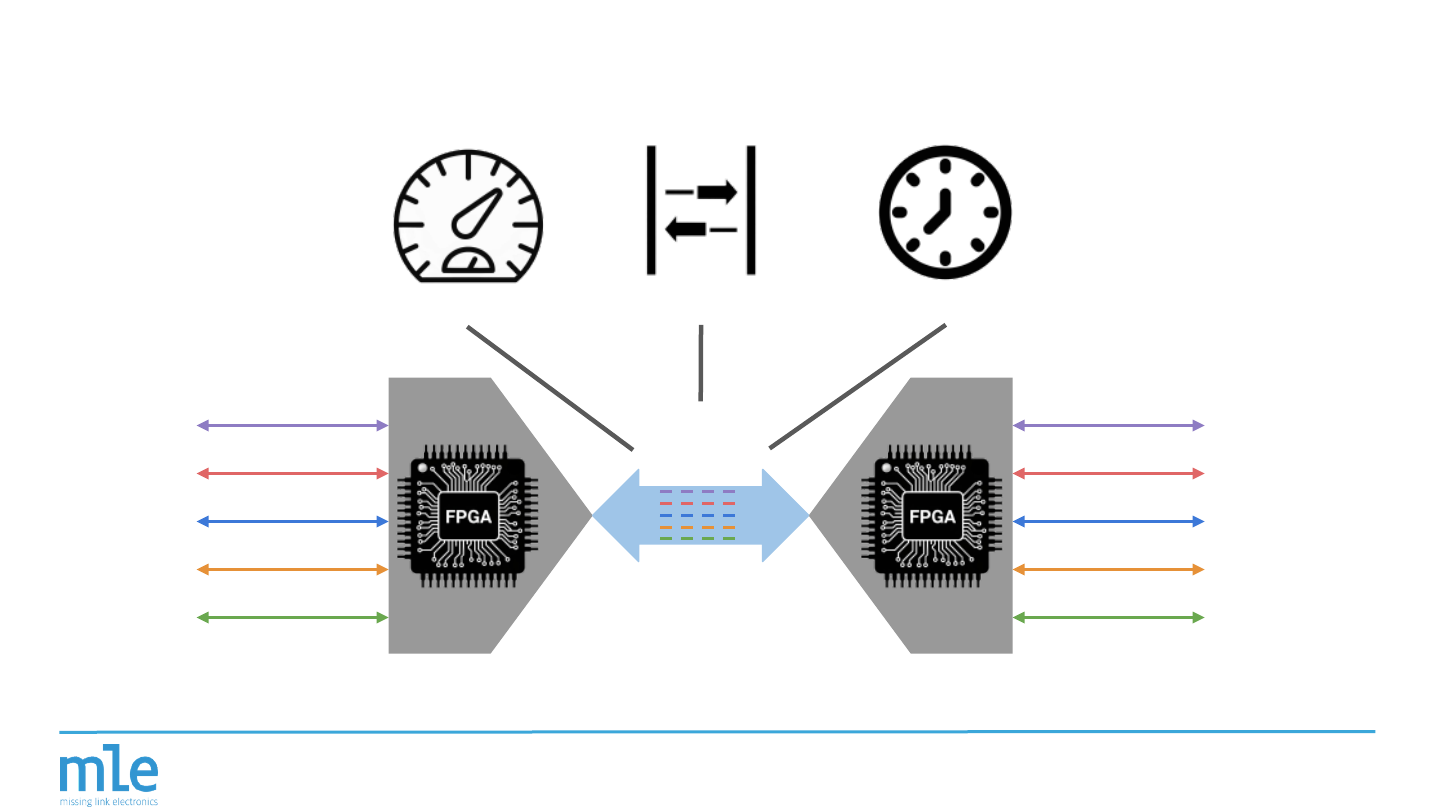

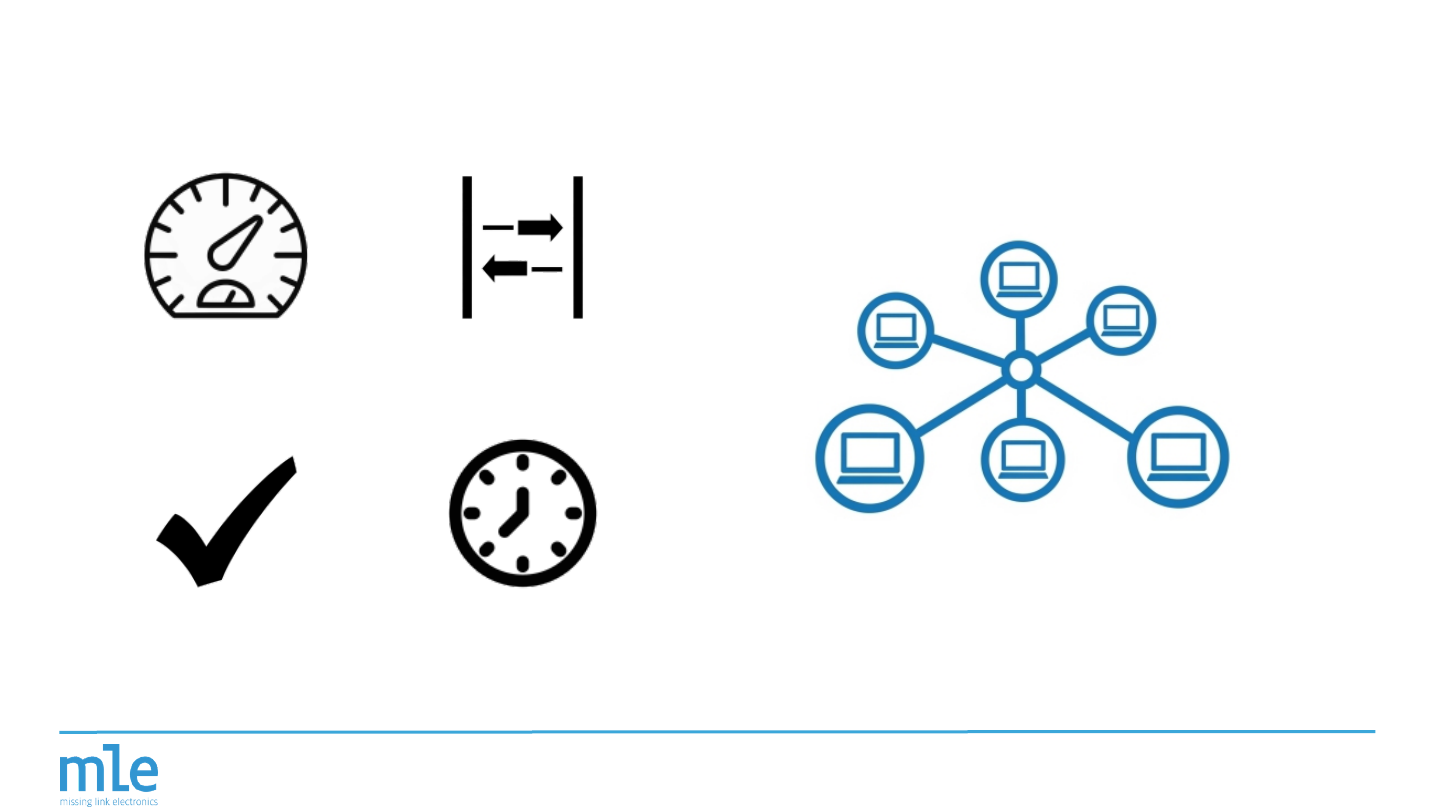

A Big Technological Challenge

High Bandwidth

Reliable

Low-Latency

Time-Deterministic

Networking

26

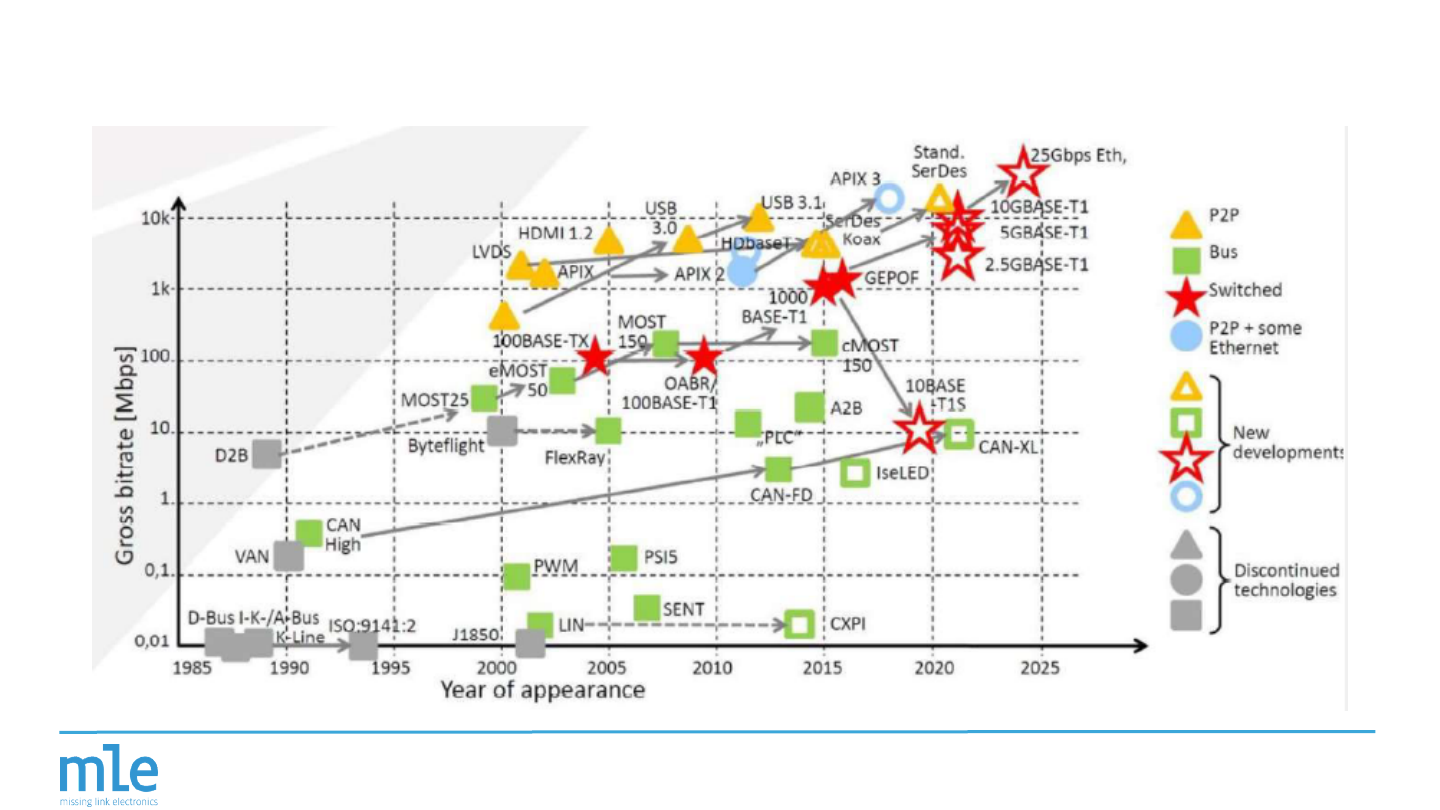

Evolution of Automotive Networks

27

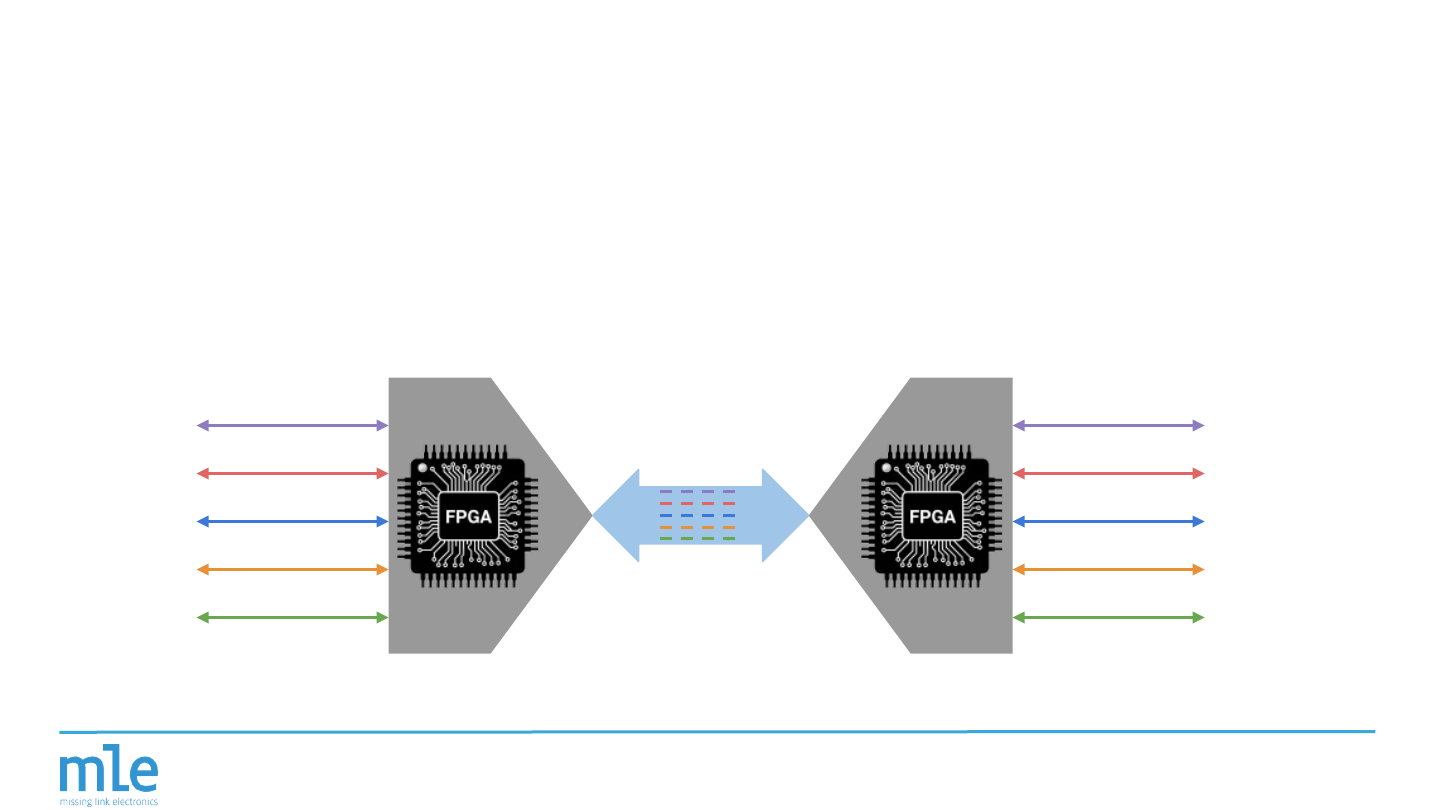

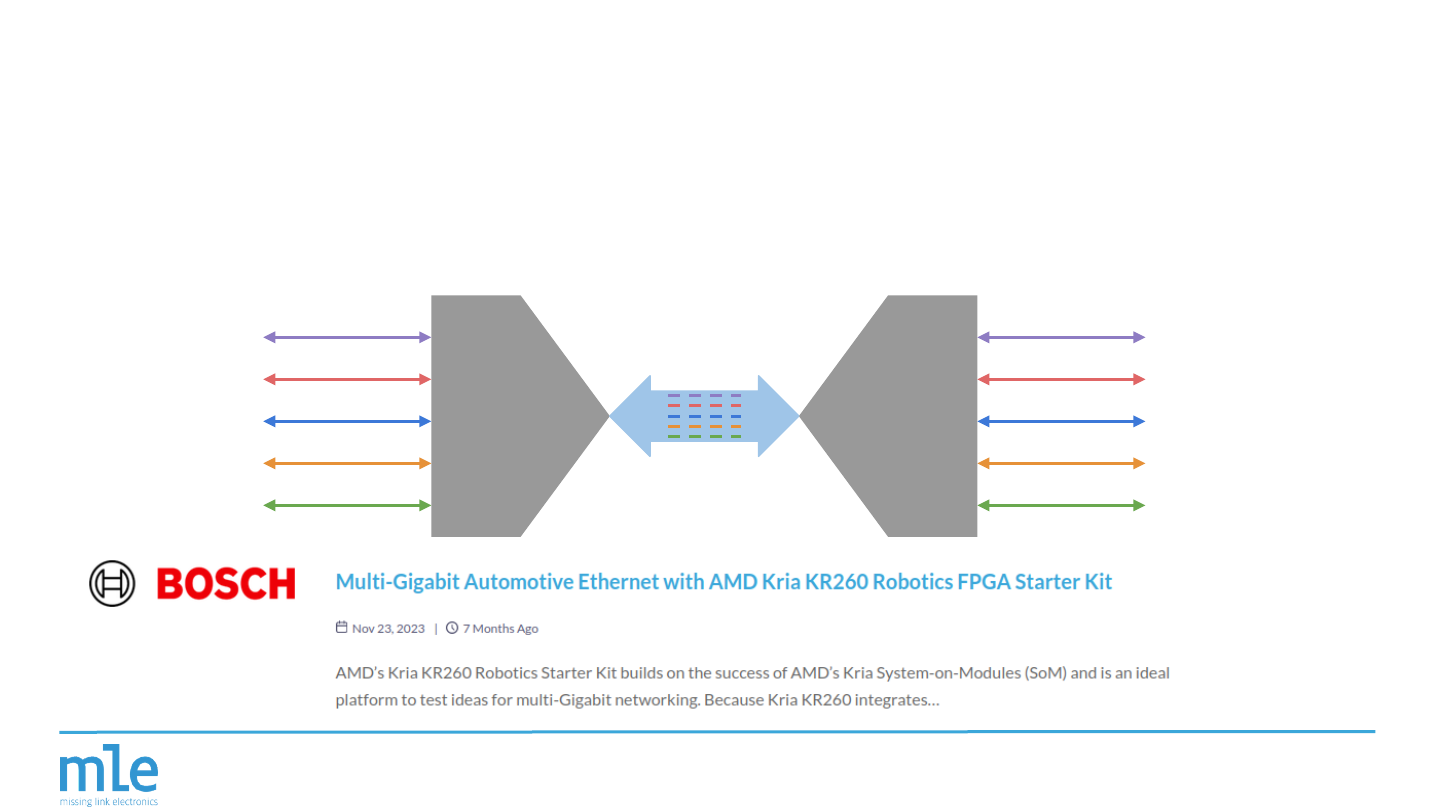

Auto/TSN for Zone Architectures / in-vehicle network

Automotive data over Time-Sensitive Networks, based on open IEEE standards

● Virtualizes in-vehicle network infrastructure

● Full “legacy” connectivity plus enabling “new” high data rate interfaces (PCIe, GMSL, MIPI CSI2)

● Delivers bandwidth, scalability, security, Functional Safety

CAN

LIN

Ethernet

CAN

LIN

Ethernet

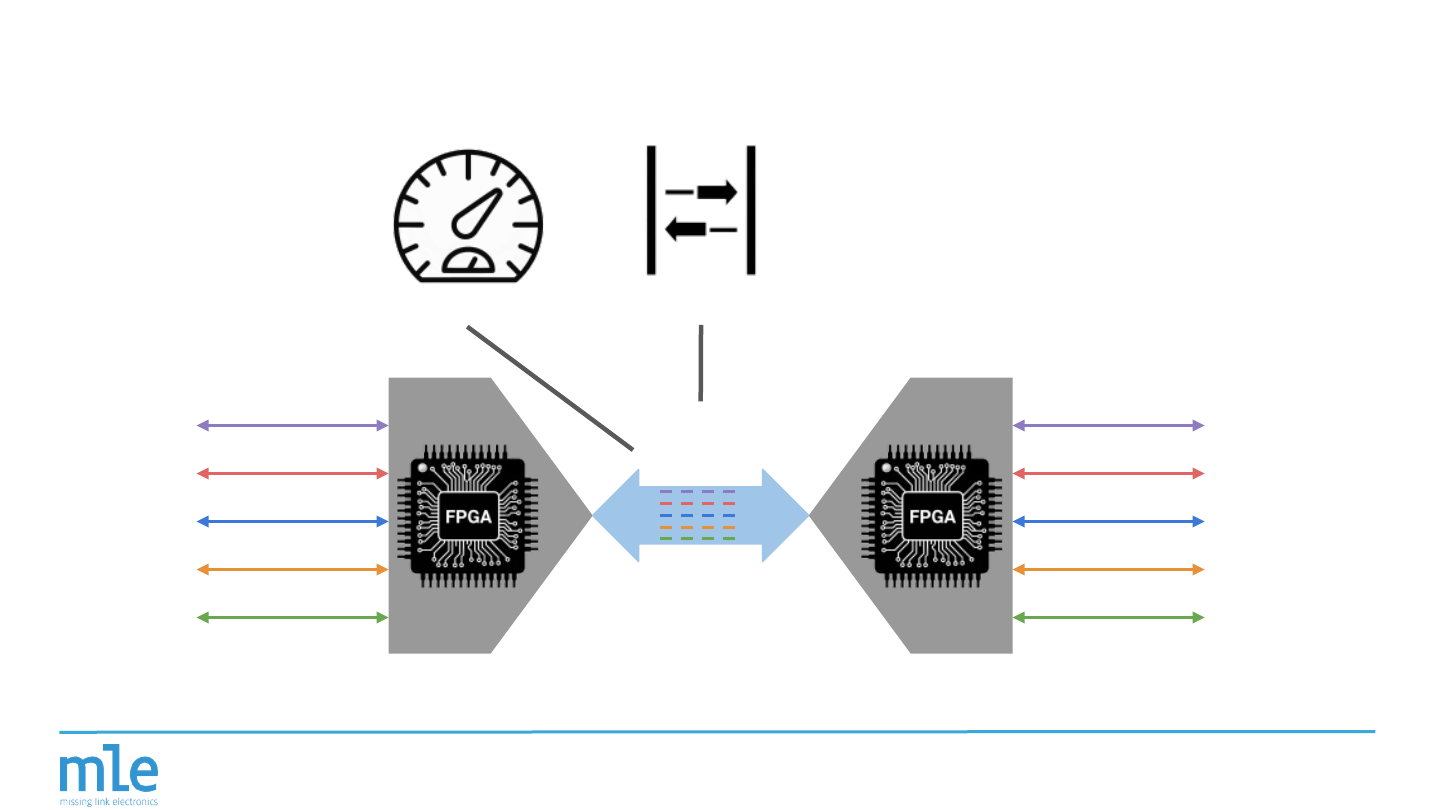

Auto/TSN over

10G/25G/50G

Ethernet

Packetizer

De-Packetizer

PCIe

MIPI CSI-2

PCIe

MIPI CSI-2

28

Auto/TSN for Zone Architectures / in-vehicle network

CAN

LIN

10BASE-T1S

CAN

LIN

10BASE-T1S

Auto/TSN over

10G/25G/50G

Ethernet

Packetizer

De-

Packetizer

PCIe

MIPI CSI-2

PCIe

MIPI CSI-2

29

Auto/TSN for Zone Architectures / in-vehicle network

CAN

LIN

10BASE-T1S

CAN

LIN

10BASE-T1S

Auto/TSN over

10G/25G/50G

Ethernet

Packetizer

De-

Packetizer

PCIe

MIPI CSI-2

PCIe

MIPI CSI-2

High Bandwidth

30

Auto/TSN for Zone Architectures / in-vehicle network

CAN

LIN

10BASE-T1S

CAN

LIN

10BASE-T1S

Auto/TSN over

10G/25G/50G

Ethernet

Packetizer

De-

Packetizer

PCIe

MIPI CSI-2

PCIe

MIPI CSI-2

High Bandwidth

Low-Latency

31

Auto/TSN for Zone Architectures / in-vehicle network

CAN

LIN

10BASE-T1S

CAN

LIN

10BASE-T1S

Auto/TSN over

10G/25G/50G

Ethernet

Packetizer

De-

Packetizer

PCIe

MIPI CSI-2

PCIe

MIPI CSI-2

High Bandwidth

Low-Latency

Time-Deterministic

32

Auto/TSN for Zone Architectures / in-vehicle network

CAN

LIN

10BASE-T1S

CAN

LIN

10BASE-T1S

Auto/TSN over

10G/25G/50G

Ethernet

Packetizer

De-

Packetizer

PCIe

MIPI CSI-2

PCIe

MIPI CSI-2

High Bandwidth

Low-Latency

Time-Deterministic

Reliable

33

Auto/TSN for Zone Architectures / in-vehicle network

CAN

LIN

10BASE-T1S

CAN

LIN

10BASE-T1S

Auto/TSN over

10G/25G/50G

Ethernet

Packetizer

De-

Packetizer

PCIe

MIPI CSI-2

PCIe

MIPI CSI-2

High Bandwidth

Low-Latency

Time-Deterministic

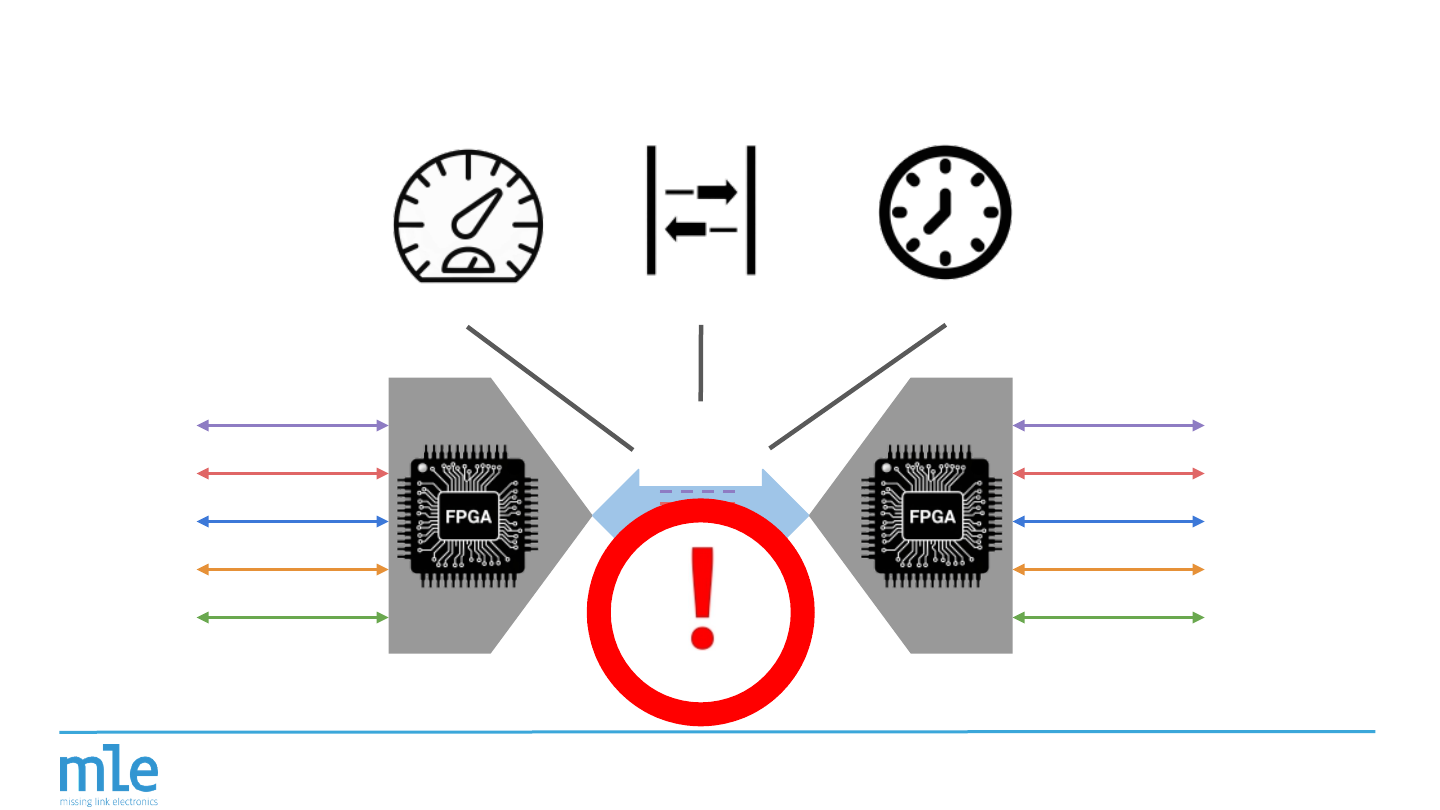

How do we make this reliable?

34

Auto/TSN for Zone Architectures / in-vehicle network

CAN

LIN

10BASE-T1S

CAN

LIN

10BASE-T1S

Auto/TSN over

10G/25G/50G

Ethernet

Packetizer

De-

Packetizer

PCIe

MIPI CSI-2

PCIe

MIPI CSI-2

High Bandwidth

Low-Latency

Time-Deterministic

How do we make this reliable?

35

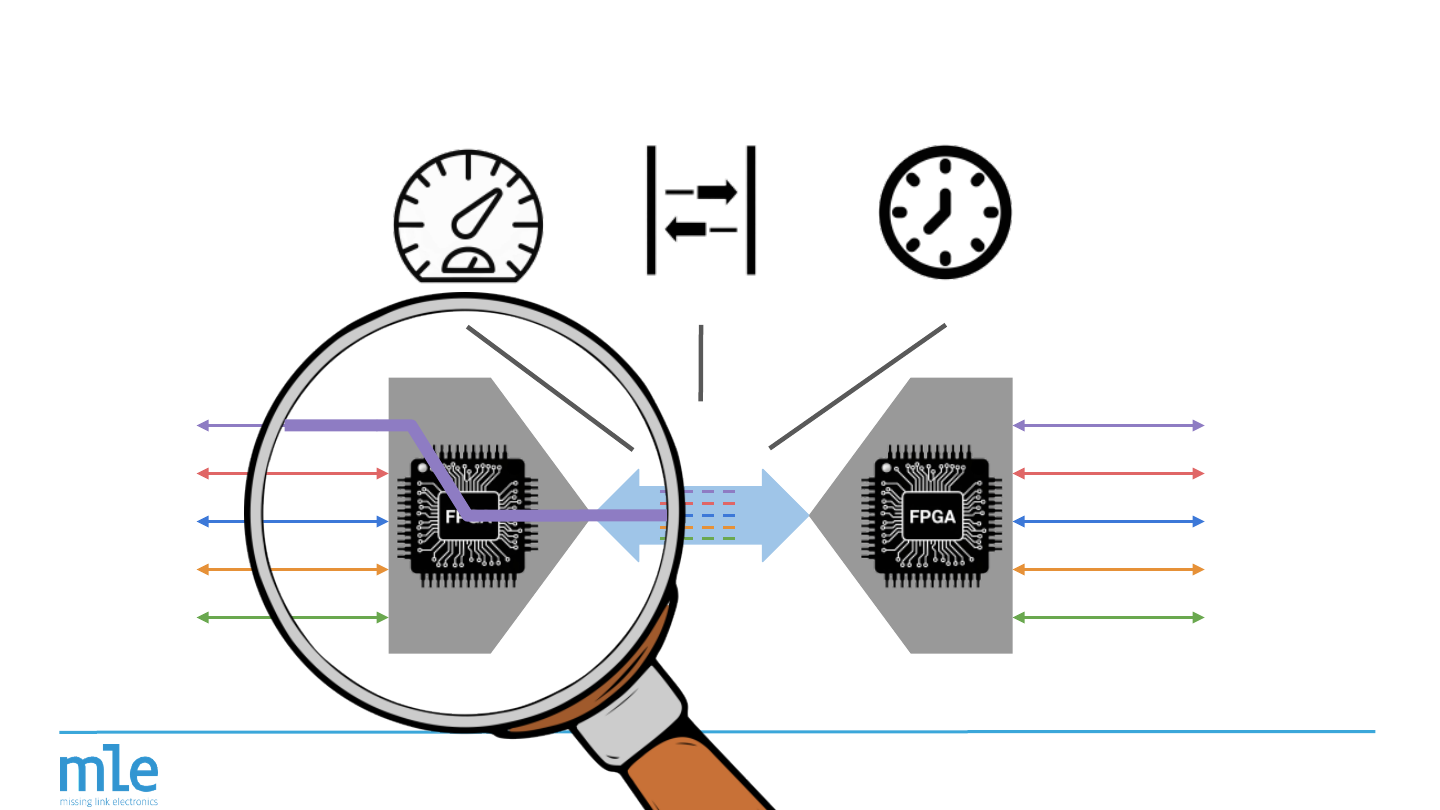

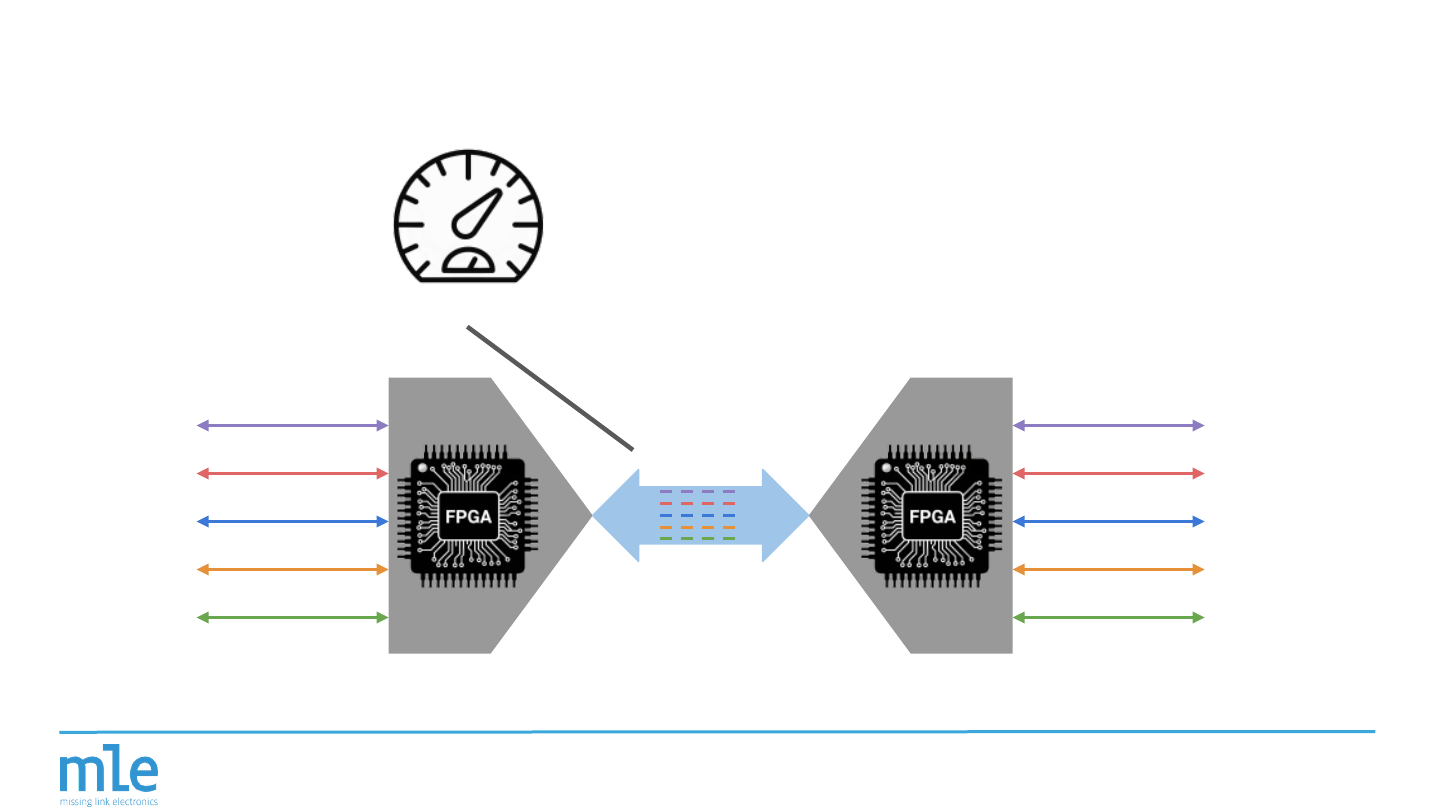

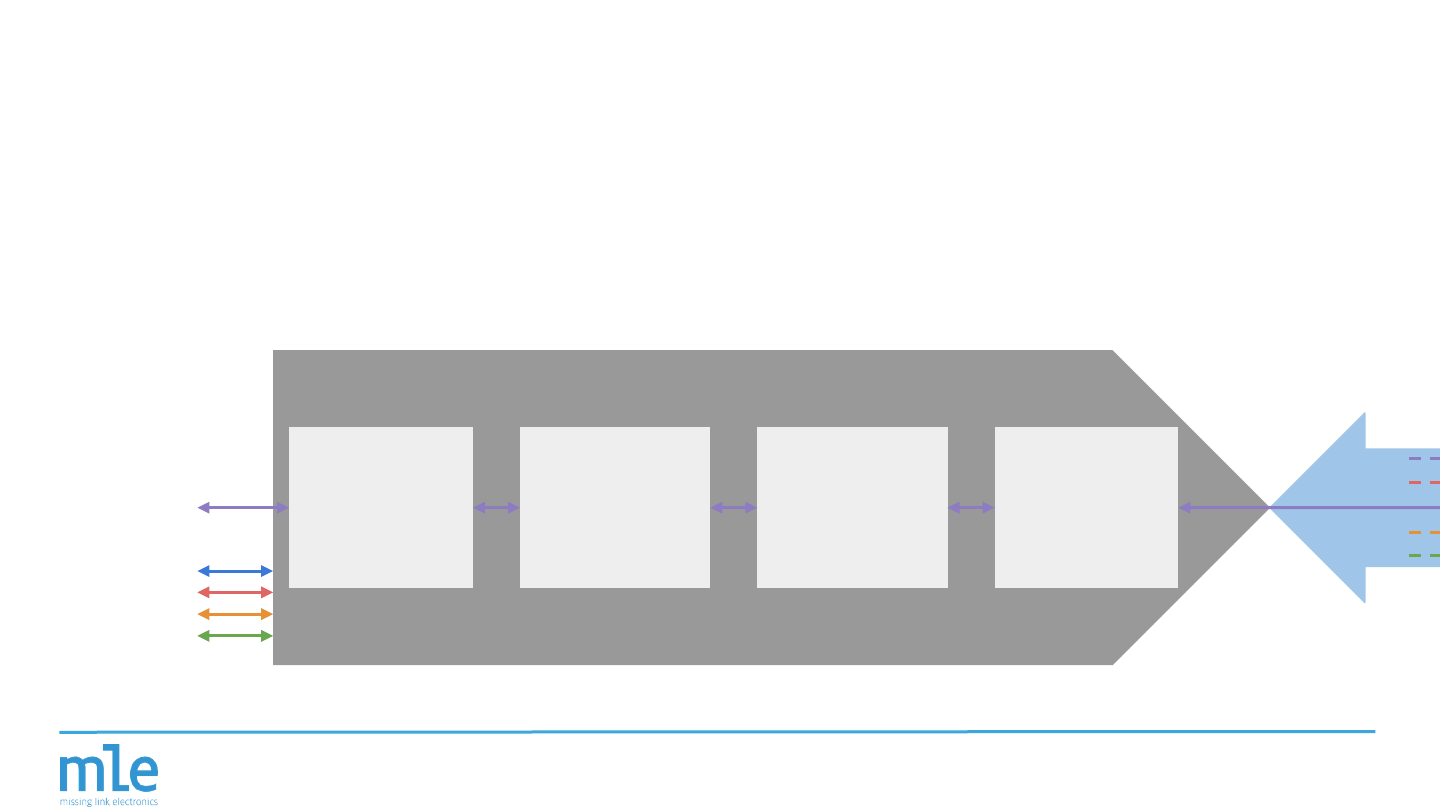

Building a High Bandwidth, Reliable TSN

CAN

LIN

10BASE-T1S

Packetizer, fully in FPGA, no Software involved!

PCIe

MIPI CSI-2

PCI-E to AXI

Bridge

MLE NPAP

(TCP / IP)

Ethernet

Mac

MLE

Auto/TSN

● Tunnel any Protocol reliably over a Network

● Using proven protocols, fully implemented in Hardware

36

NPAP

AXI4-Stream

MAC

● Network Protocol Accelerator Platform

● TCP / UDP / IP Stack Fully in Hardware

+

MLE Network Protocol Accelerator Platform (NPAP)

37

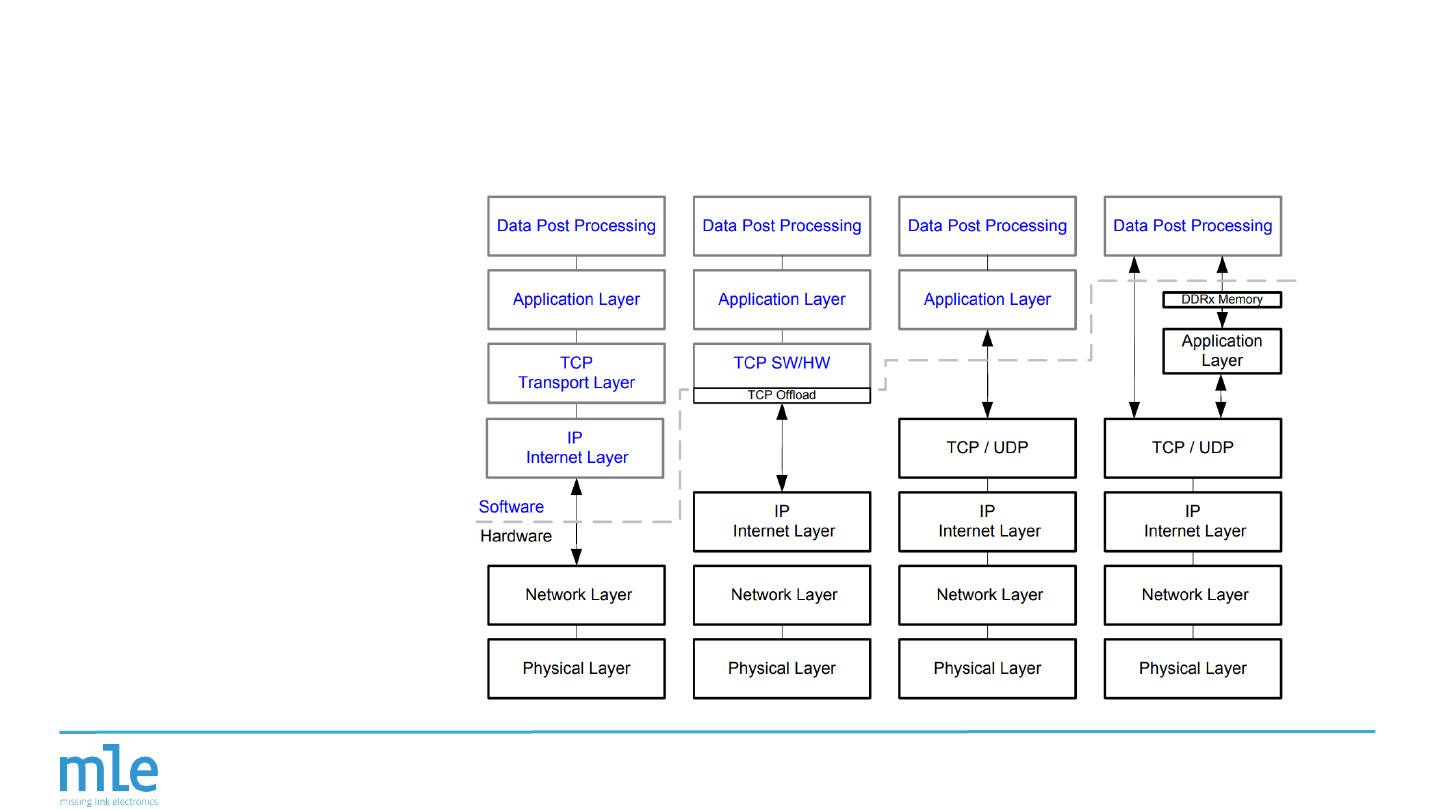

Software TCP/IP

Stack

TCP/IP Offload

Engine (TOE)

MLE NPAP

Hardware-based

TCP/IP Stack

MLE NPAP Hardware-

based Customized

TCP/IP Stack

Comparison of software

and hardware-based

TCP/IP stacks

Why NPAP? No Software Involved!

38

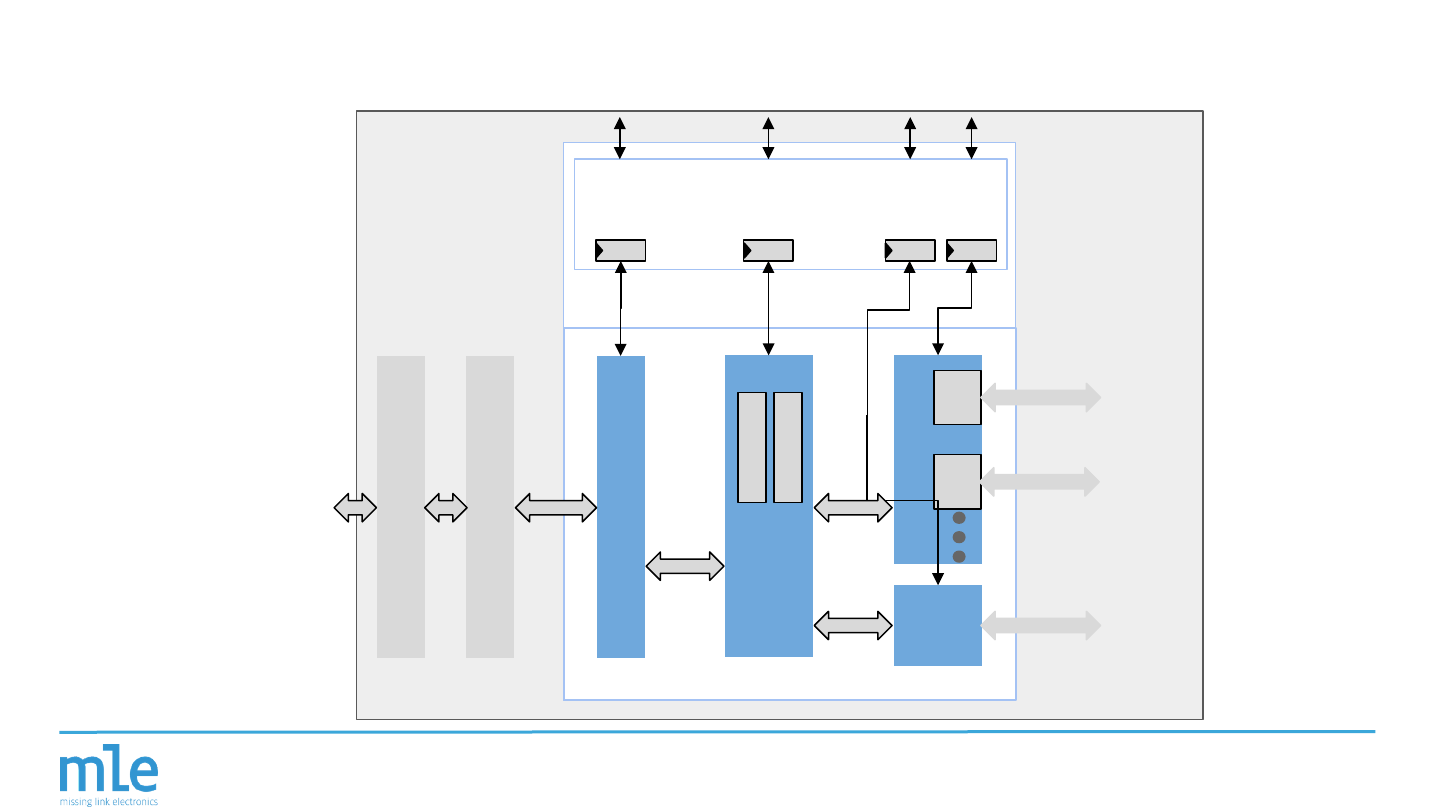

FPGA

Why NPAP? No Software Involved!

ETH

IP

stack_ctrl

UDP

TCP

MLE NPAP

10/25/50 GigE PCS/PMA

Ethernet

IPv4

TCP

UDP

ICMP

IGMP

TCP1 TCP2

10/25/50 GigE MAC

Network Side

User Side

39

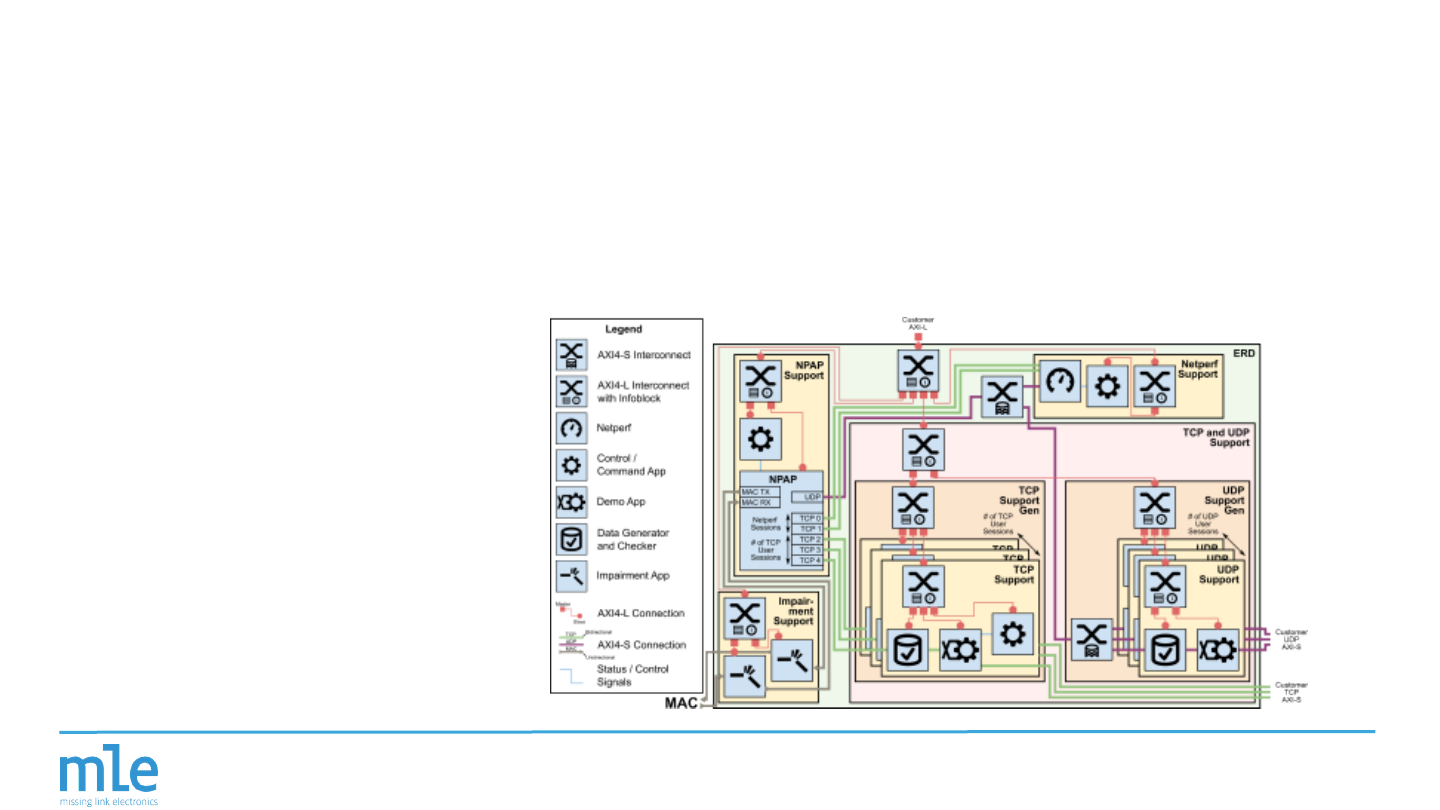

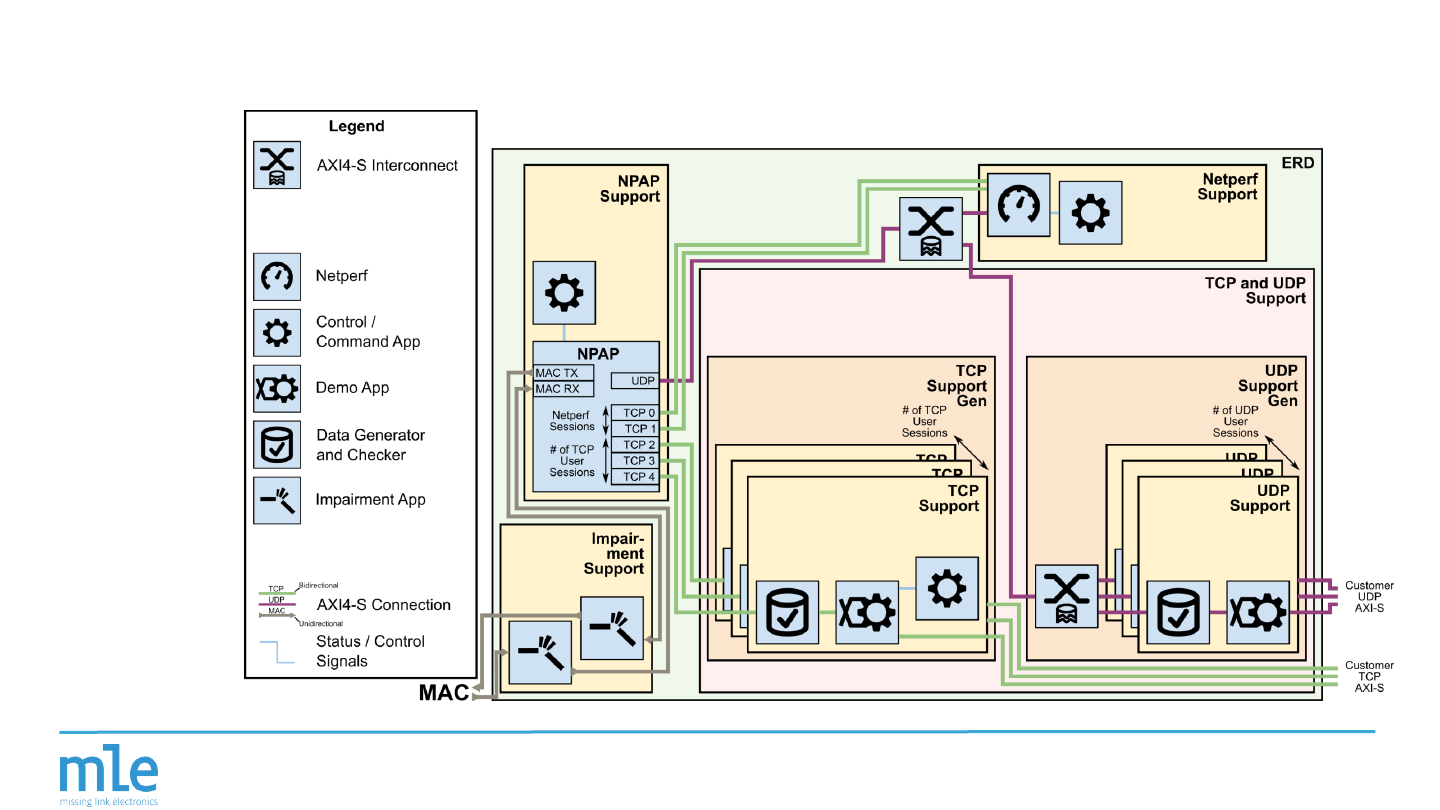

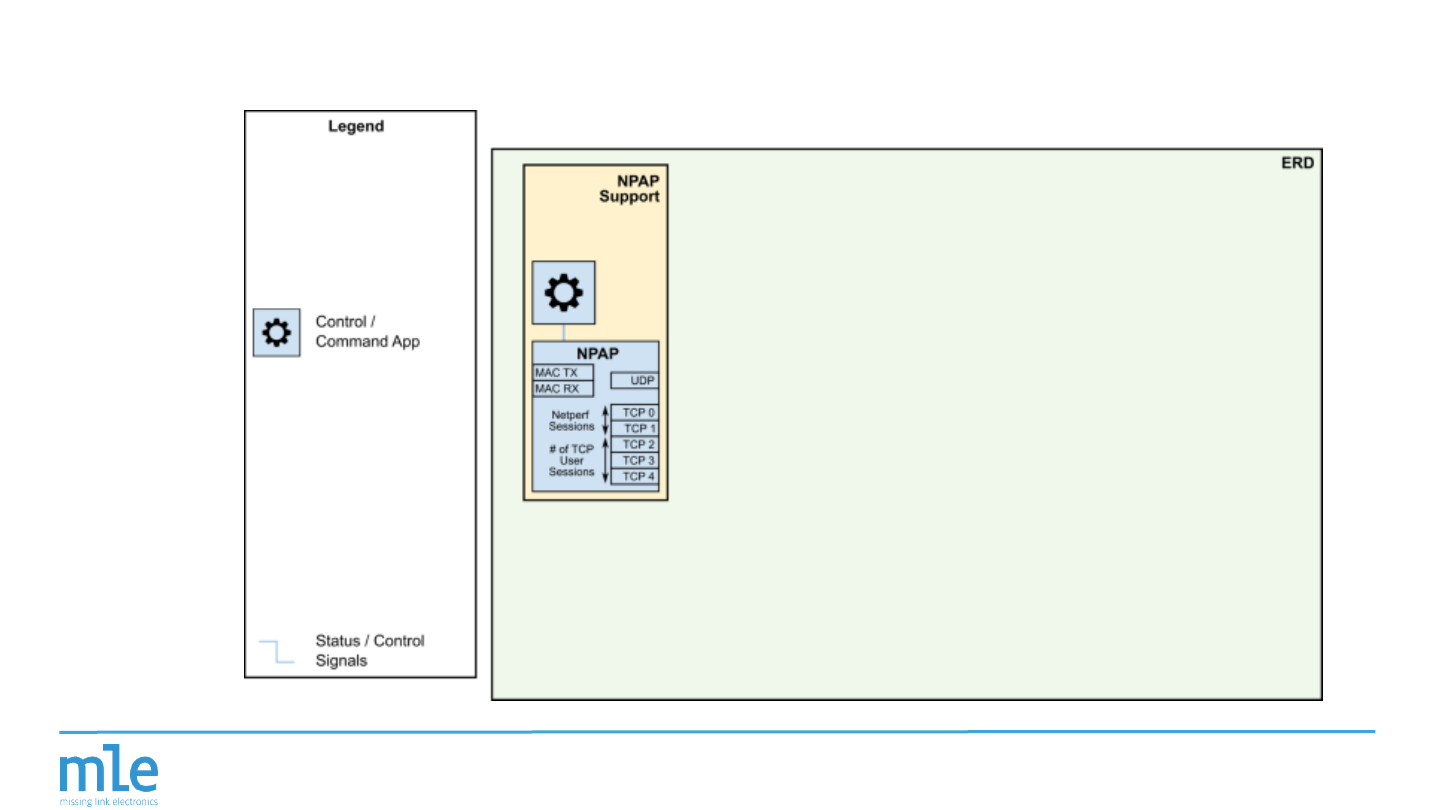

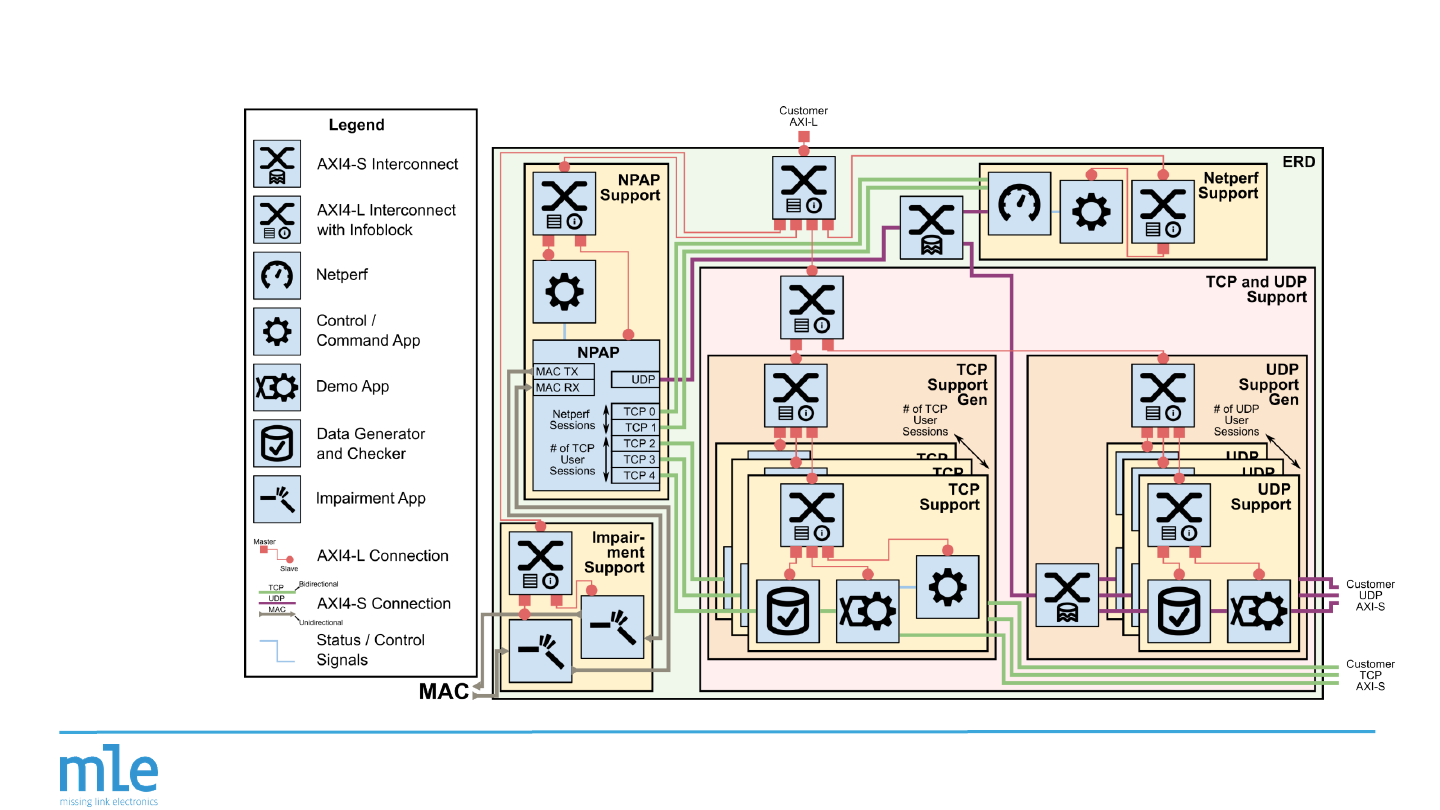

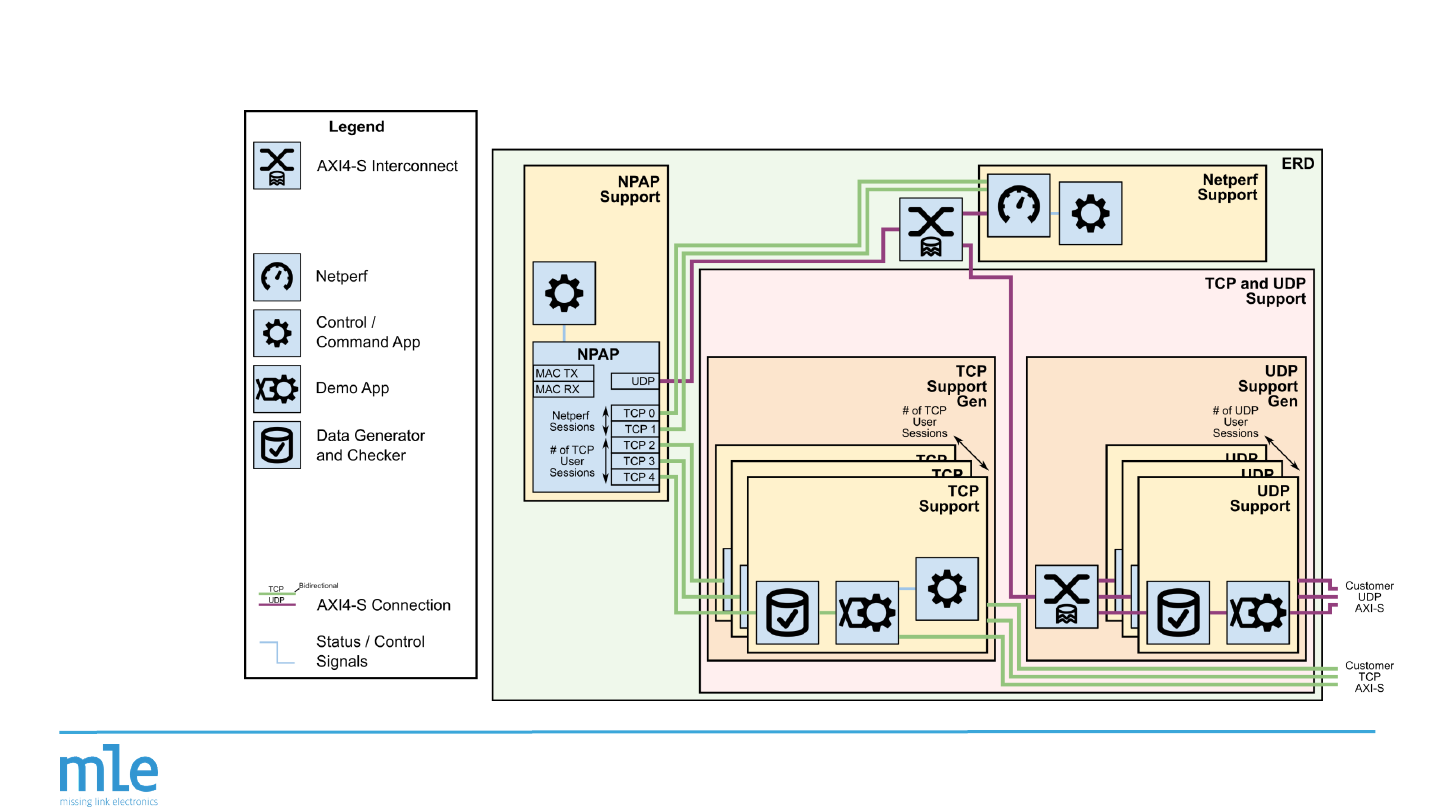

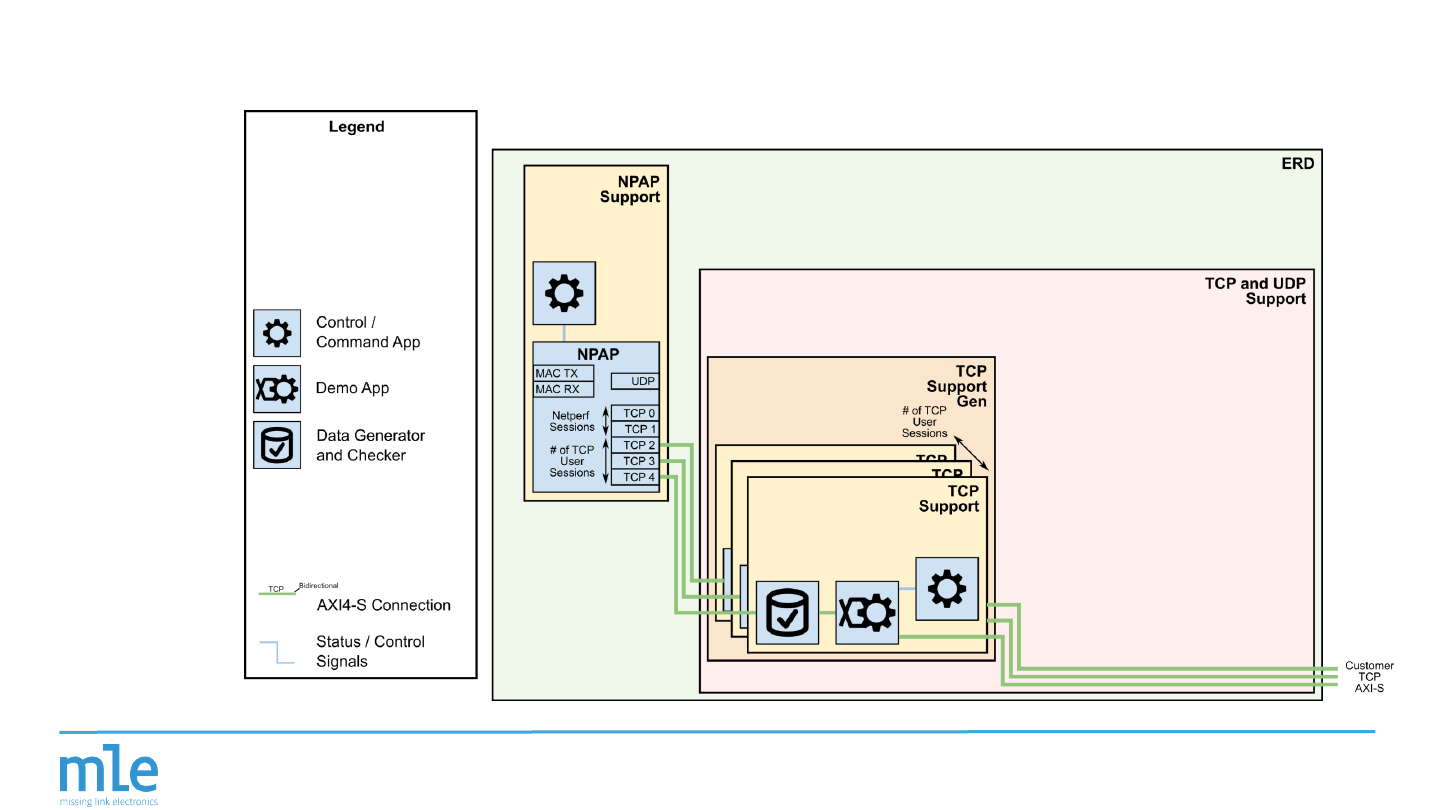

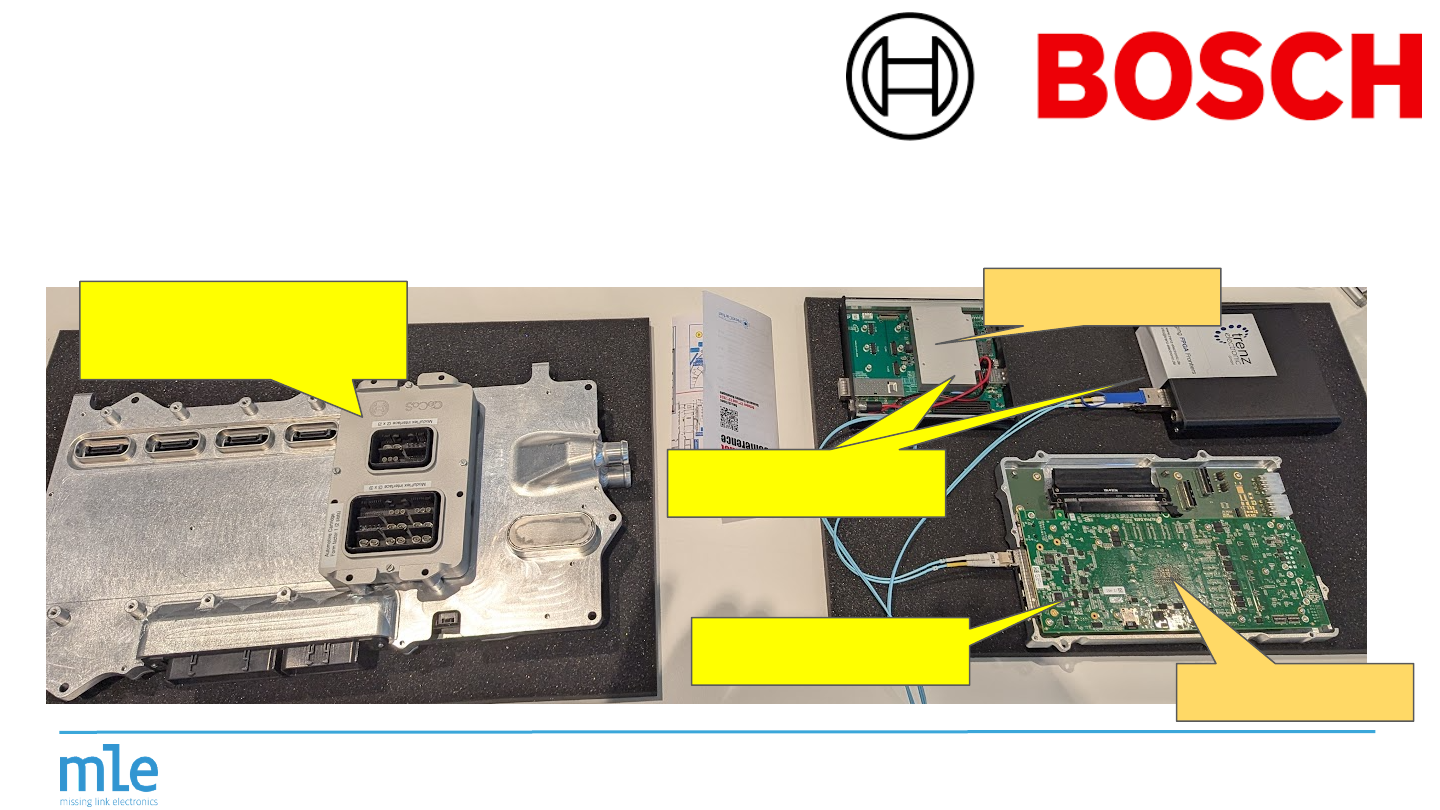

Why NPAP? Well Tested!

Evaluation

Reference

Design

40

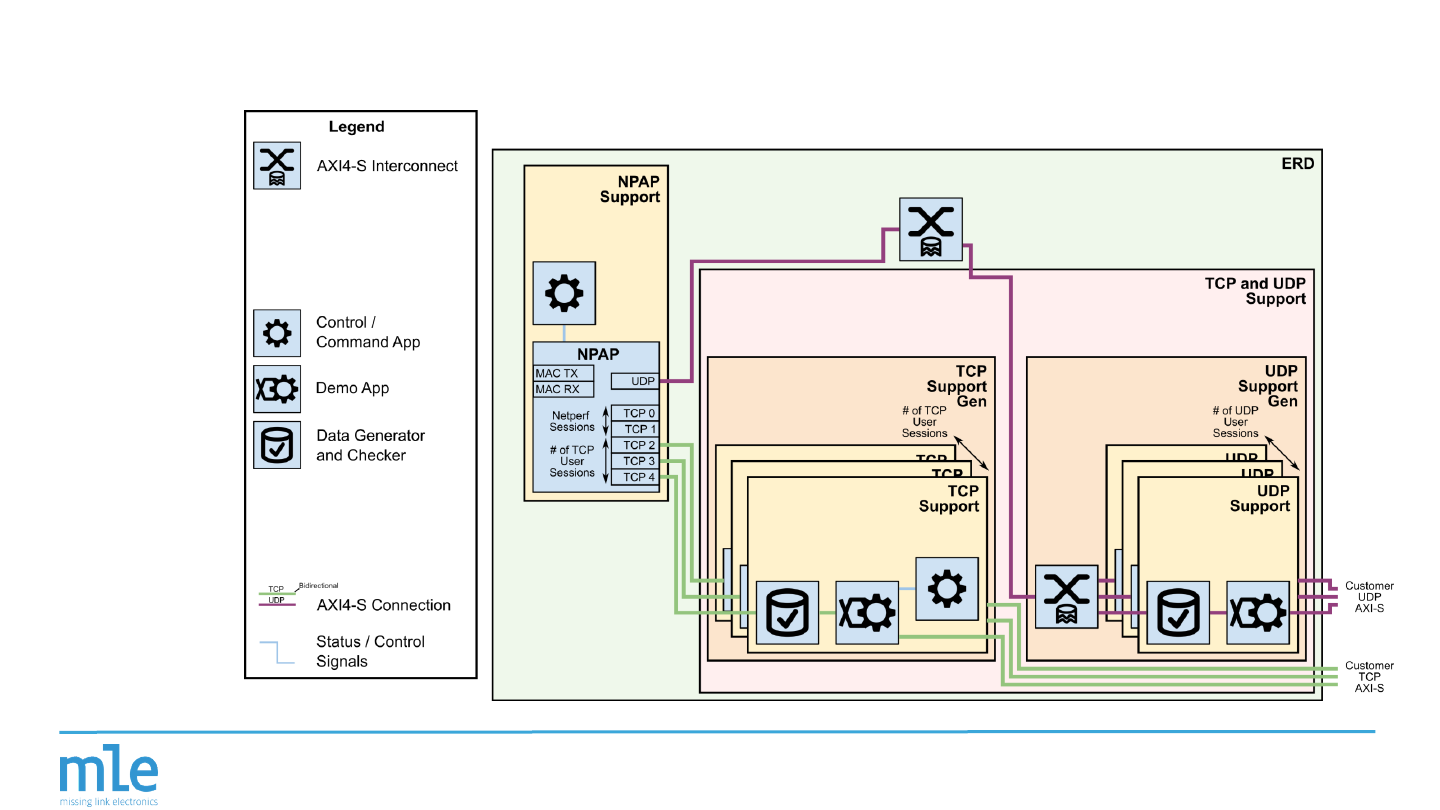

Why NPAP? Well Tested!

Evaluation

Reference

Design

41

Why NPAP? Well Tested!

Evaluation

Reference

Design

42

Why NPAP? Well Tested!

Evaluation

Reference

Design

43

Why NPAP? Well Tested!

Evaluation

Reference

Design

44

Why NPAP? Well Tested!

Evaluation

Reference

Design

45

Generic Source Code running on

● AMD

○ Virtex 4 to Virtex UltraScale+

○ Kintex to Kintex UltraScale+

○ Artix UltraScale+

○ Zynq-7000

○ Zynq UltraScale+ MPSoC

○ Zynq UltraScale+ RFSoC

○ Versal ACAP Series

● Altera

○ Cyclone IV series

○ Cyclone 10 GX series

○ Stratix V

○ Stratix 10 GX series

○ Agilex 5 D, E Series

○ Agilex 7 F, I, M Series

Why NPAP? Well Tested!

● Microchip

○ Polarfire and PolarFire SoC

● Lattice

○ Avant-G

46

Why NPAP? Well Tested!

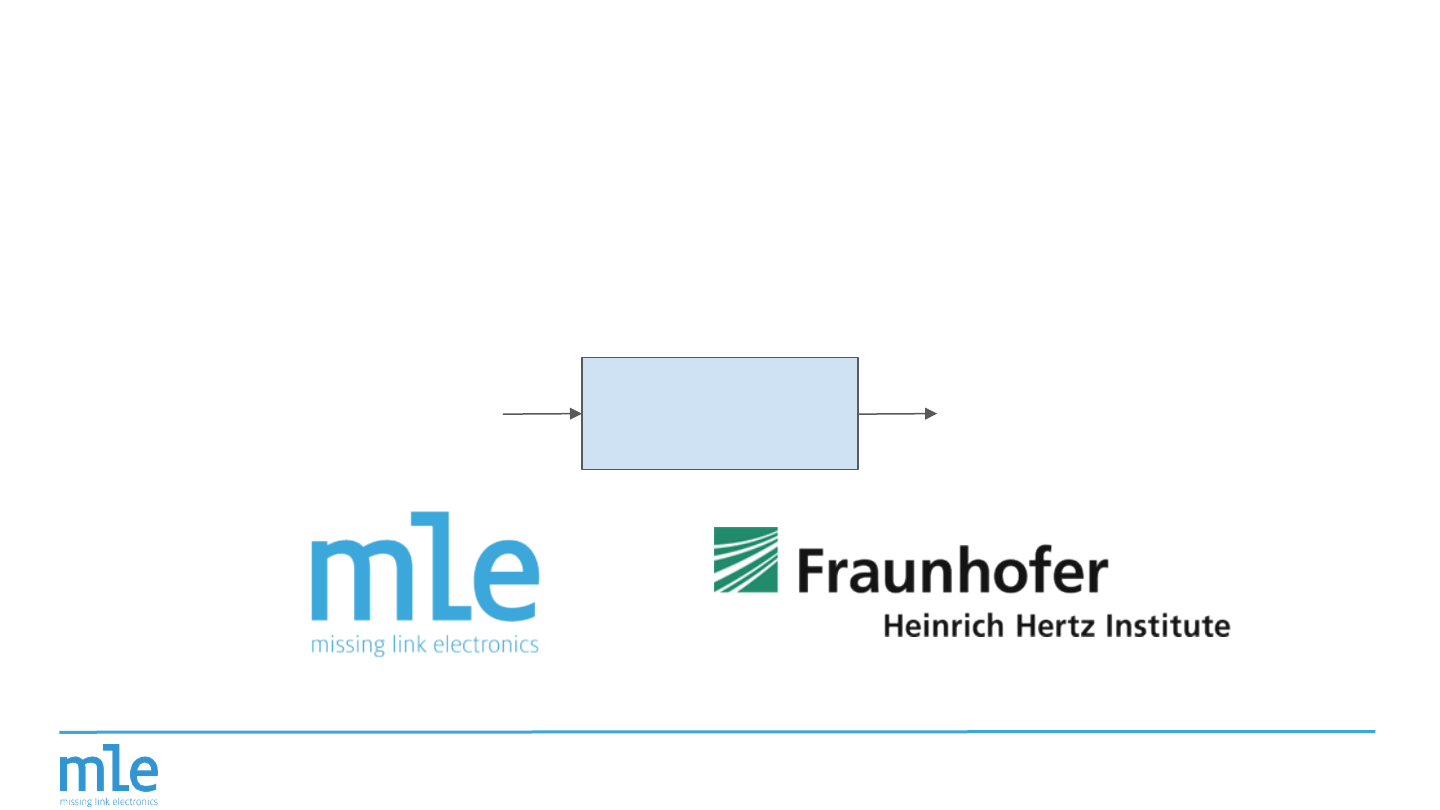

Impairment Generator

● Designed to emulate packet-level

impairments in real-time.

● Injects emulated errors into MAC

AXI4-Stream datapaths

● Ideal for verifying the resilience and

error-handling capabilities of

downstream components

NPAP

MAC / PHY

Impairment

Generator

Impairment

Generator

TX

RX (impaired)

TX (impaired) RX

User side

Network side

47

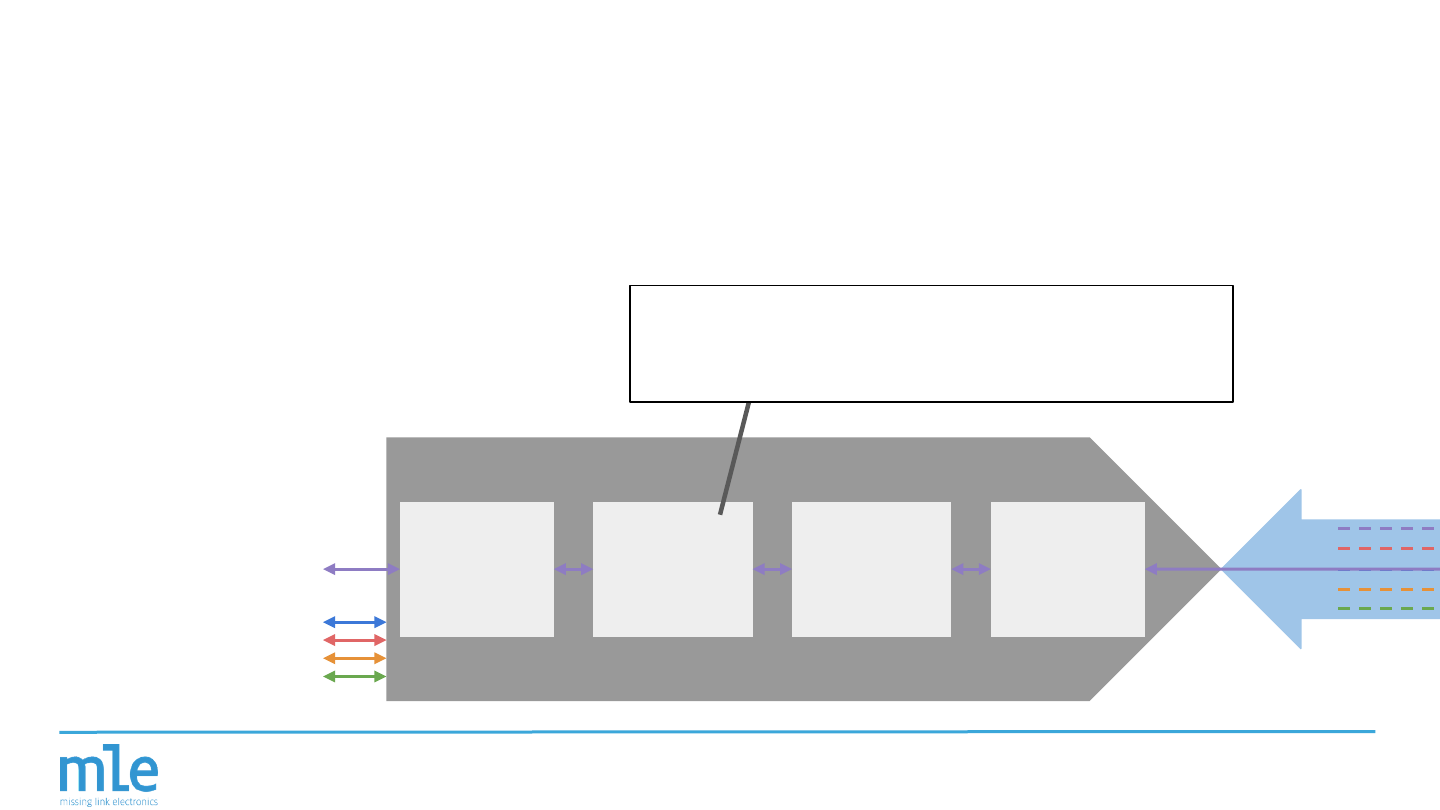

Why NPAP? Well Tested!

Diagnostics

● Lots of counters accessible via register space, e.g.:

○ TX / RX Segments

○ TX Retransmissions

CAN

LIN

10BASE-T1S

PCIe

MIPI CSI-2

PCI-E to

AXI

Bridge

MLE

NPAP

(TCP / IP)

Ethernet

Mac

MLE

Auto/TSN

Diagnose network issues

Optimize parameters for network

48

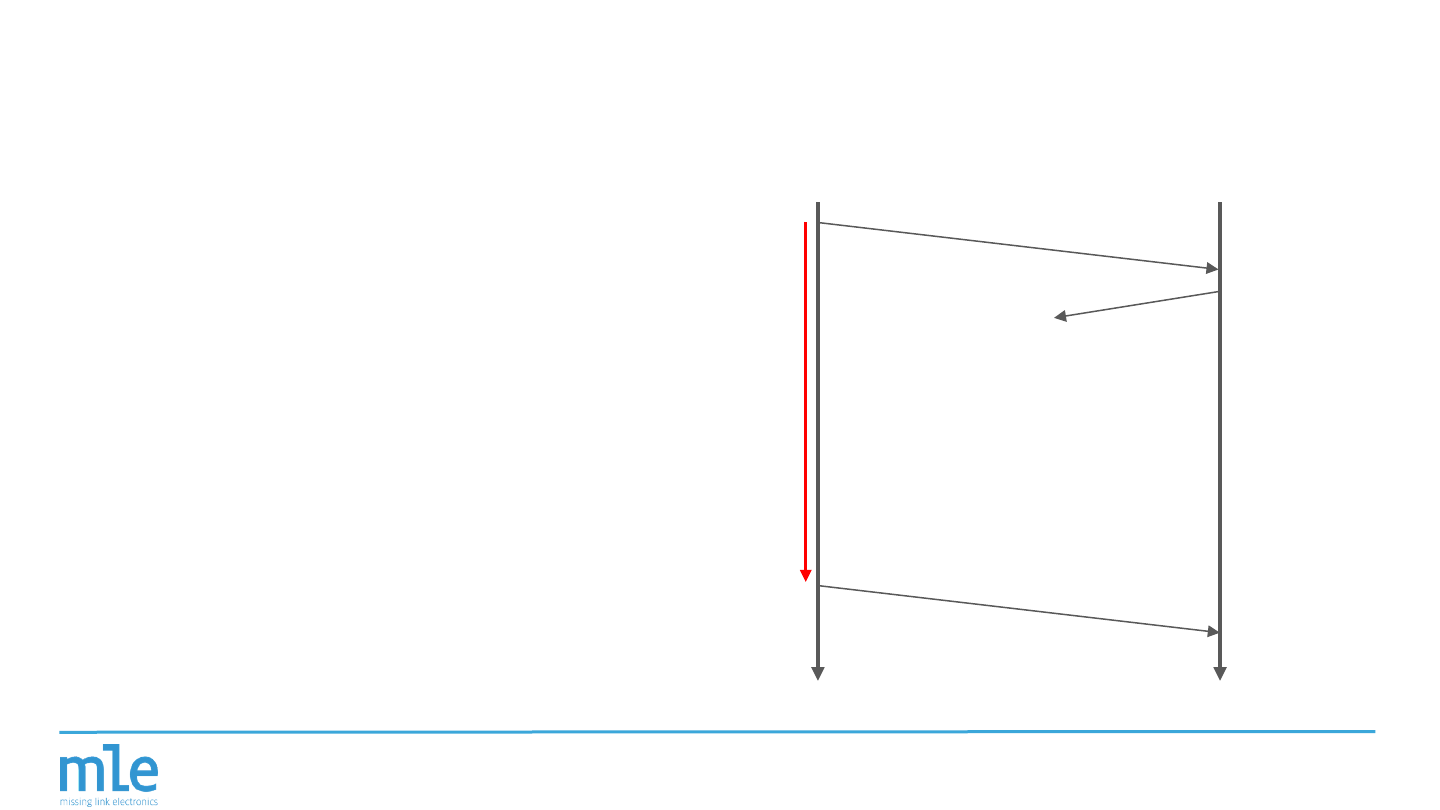

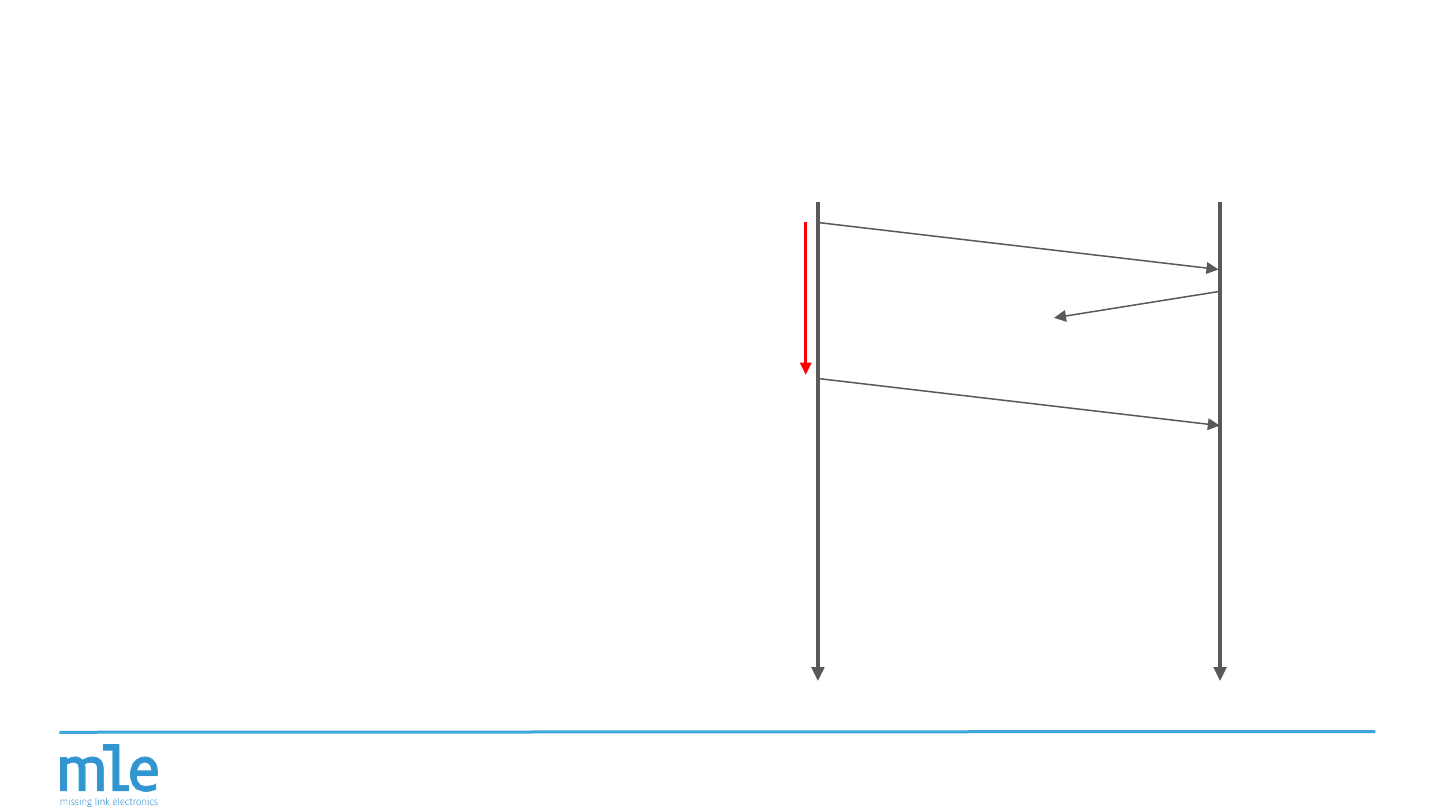

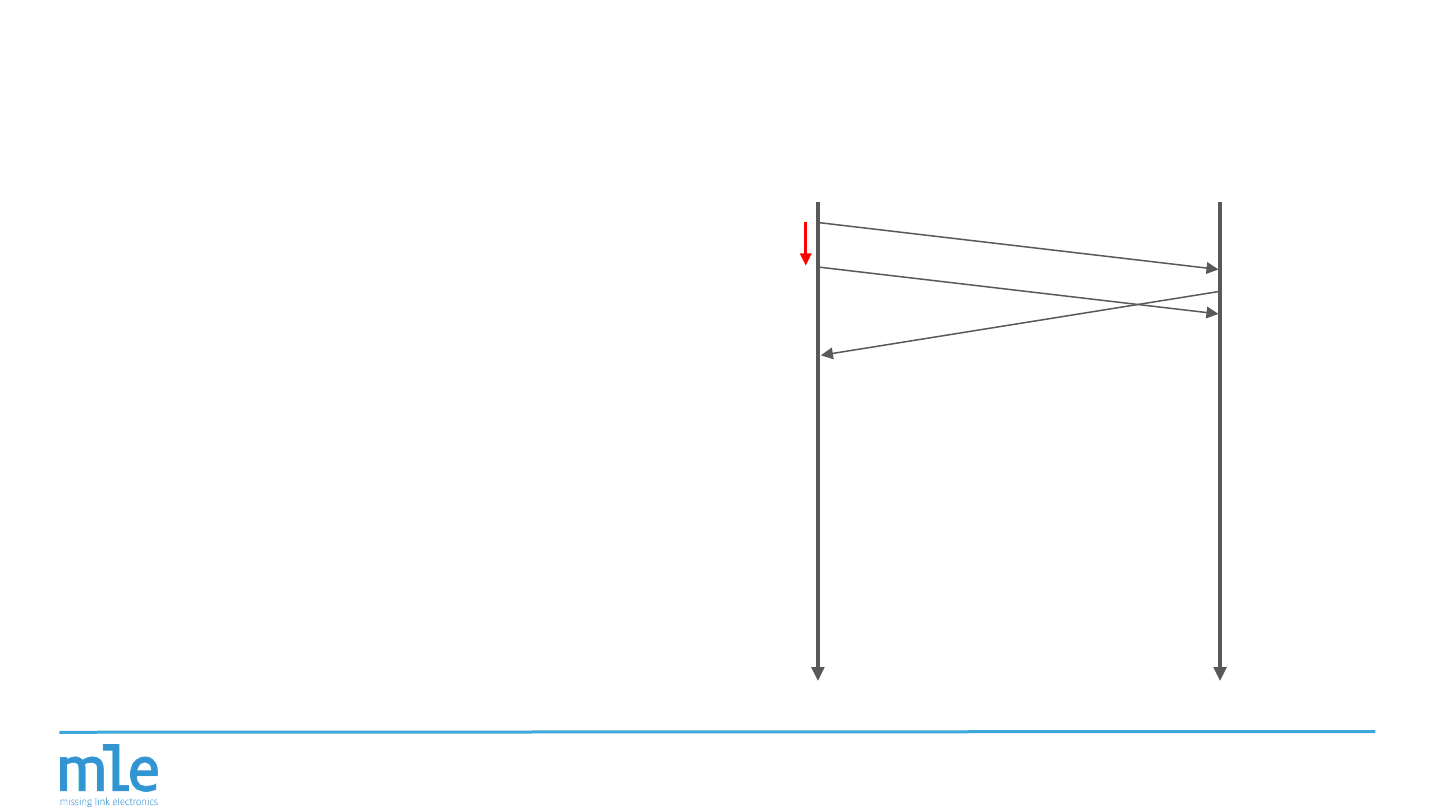

Why NPAP? Optimization!

● Reduce unnecessary Latency:

○ Decrease Retransmission

Timeout (RTO)

○ Check TX Retransmissions

○ Repeat until TX

Retransmissions rise

NPAP TCP Stack

Segment

Ack

X

Retransmission

RTO too long

49

Why NPAP? Optimization!

● Reduce unnecessary Latency:

○ Decrease Retransmission

Timeout (RTO)

○ Check TX Retransmissions

○ Repeat until TX

Retransmissions rise

NPAP TCP Stack

Segment

Ack

Retransmission

RTO too short

50

Why NPAP? Optimization!

● Reduce unnecessary Latency:

○ Decrease Retransmission

Timeout (RTO)

○ Check TX Retransmissions

○ Repeat until TX

Retransmissions rise

NPAP TCP Stack

Segment

Ack

X

Retransmission

RTO just right

51

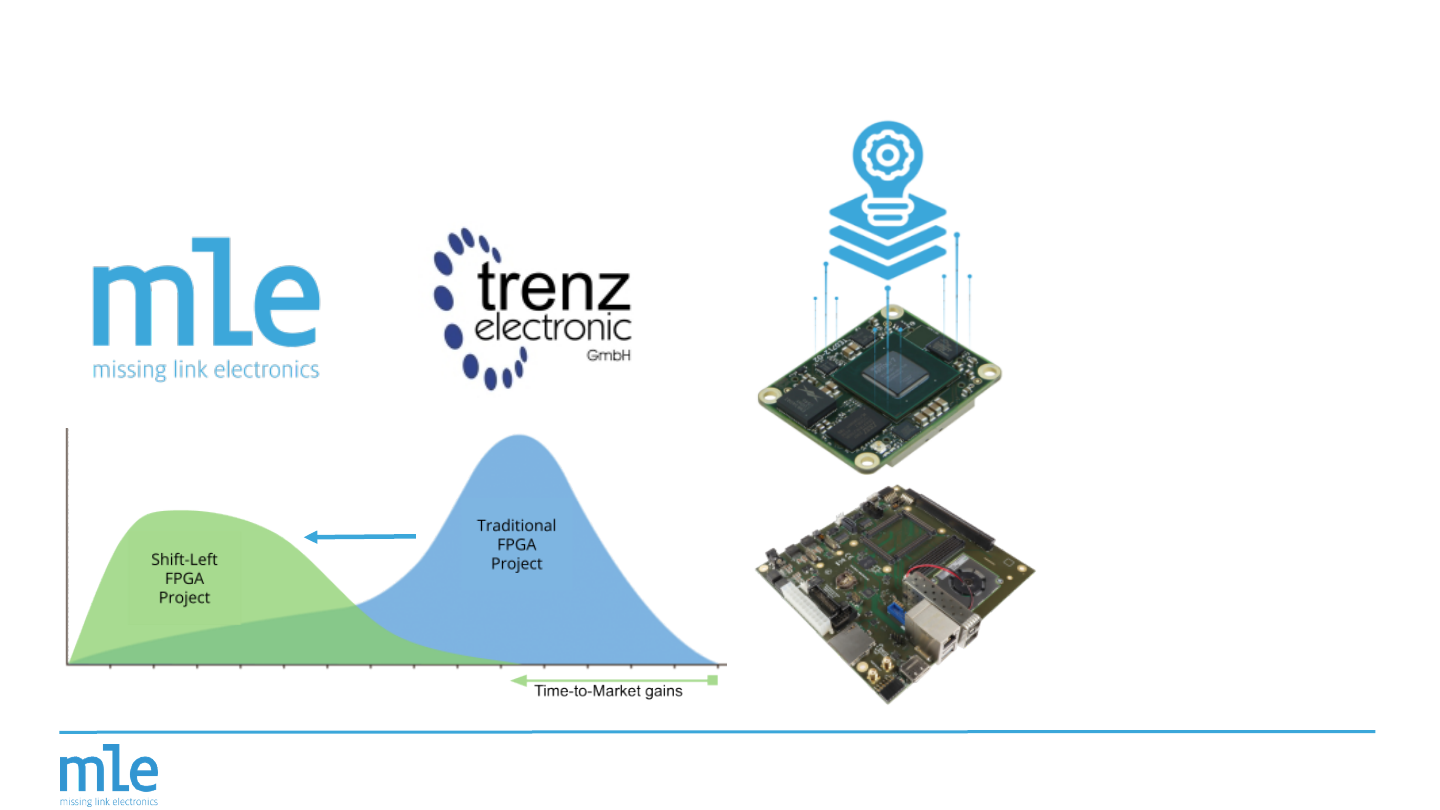

Tackling Technical Challenges: Accelerate FPGA

Design

Shift-Left with Trenz,

Starter-Kit to SoM

Rapid Prototyping in

FPGAs

TE0955

Software

development

Use off-the-shelf

SoM

+

Design

Carrier Board

+

Together with Trenz Electronic we

provide Rapid FPGA Prototyping

52

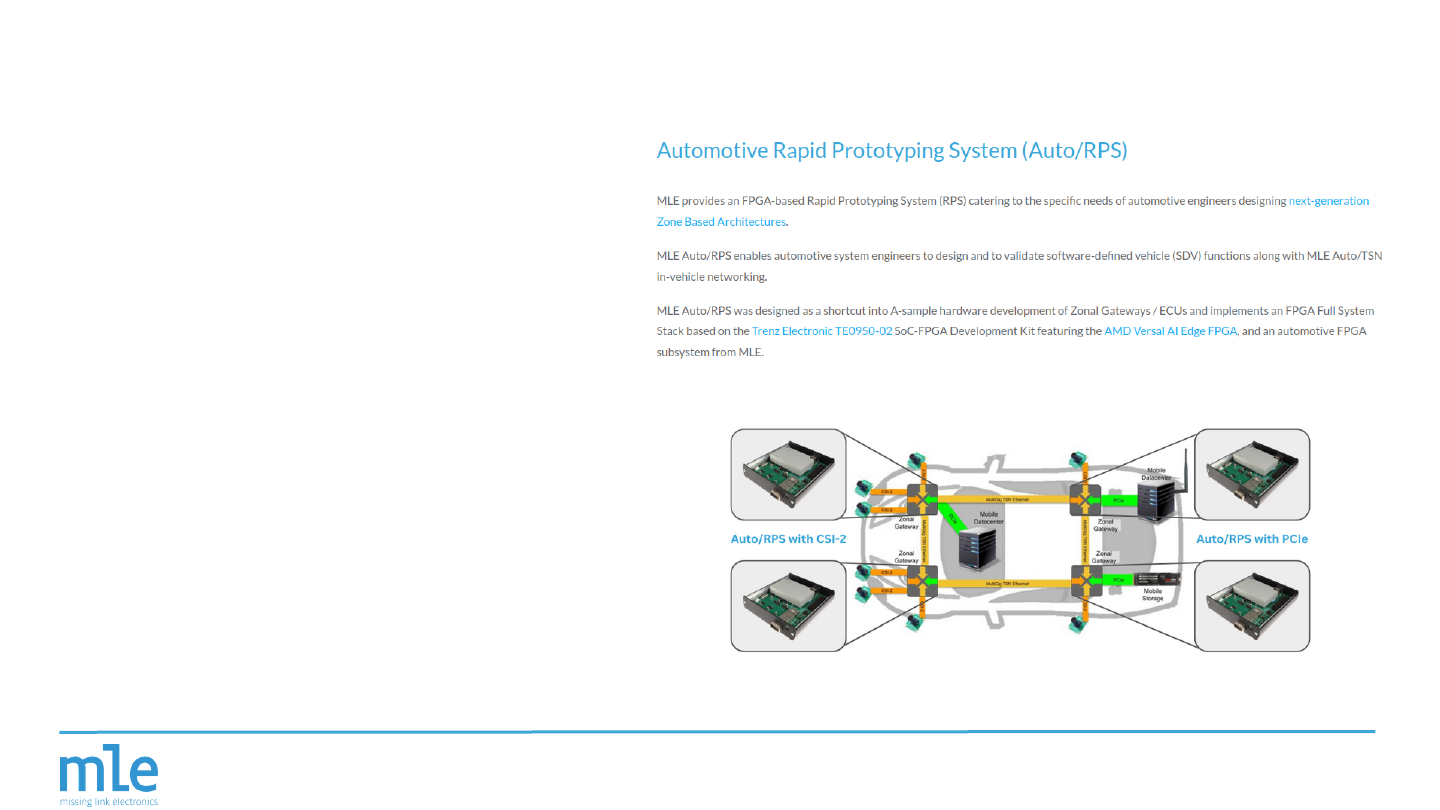

MLE Auto/RPS

Application is for SDV / Zonal Architectures:

● Data-centricity shifts SW development

focus from signal to data

● API-first to de-couple and abstract

based on vehicle data model

● Modularity & autonomy to enable

flexible, scalable SW with high re-use

⇒ Focus on Software Engineers

⇒ Full FPGA System Stack, Ready-to-Run

⇒ FPGA is fully transparent (don’t have to

touch, unless you want to)

53

MLE Auto/RPS

Auto/RPS supports connectivity for (almost) all relevant I/O interfaces:

● 1 Gig Ethernet (for example for remote access and housekeeping)

● USB 2.0 for JTAG and console (supports even keyboard and

mouse)

● 2x ports for 25G Ethernet (up to 4 ports optional)

● MIPI CSI-2 x2 Camera Input (optional)

● Up to 2x CAN-FD (via CRUVI HS) (optional)

● Up to 2x CAN 2.0B (via CRUVI HS) (optional)

● NVMe M.2 SSD (optional via Opsero FMC M.2 adapter)

● PCIe 4.0 x4 via 4x GTYP (optional, for high-speed debugging etc)

54

MLE Auto/RPS

Auto/RPS supports connectivity for (almost) all relevant I/O interfaces:

● 1 Gig Ethernet (for example for remote access and housekeeping)

● USB 2.0 for JTAG and console (supports even keyboard and

mouse)

● 2x ports for 25G Ethernet (up to 4 ports optional)

● MIPI CSI-2 x2 Camera Input (optional)

● Up to 2x CAN-FD (via CRUVI HS) (optional)

● Up to 2x CAN 2.0B (via CRUVI HS) (optional)

● NVMe M.2 SSD (optional via Opsero FMC M.2 adapter)

● PCIe 4.0 x4 via 4x GTYP (optional, for high-speed debugging etc)

Working on a V2 together with

Trenz to support even more I/O

interfaces

55

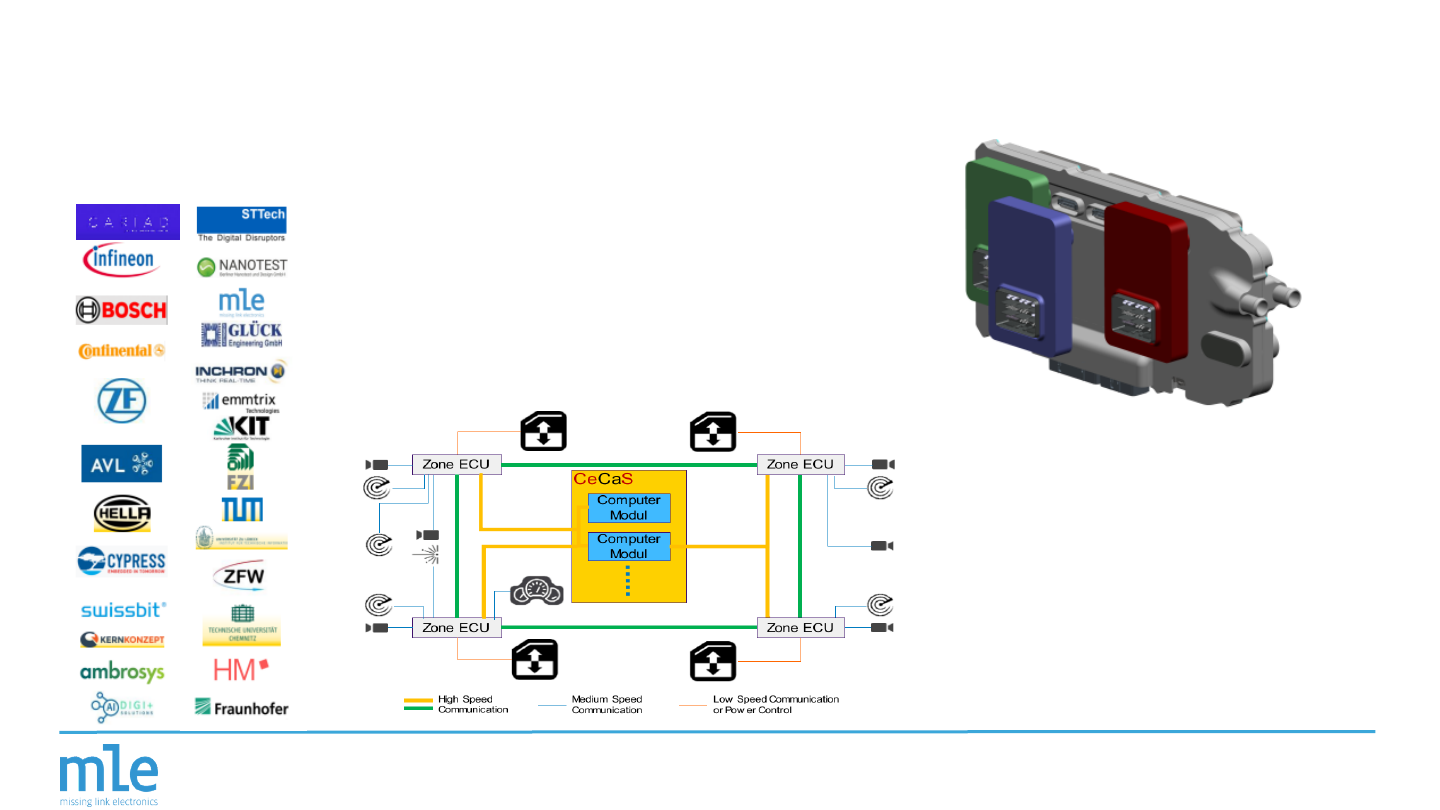

Auto/TSN for Zone Architectures / in-vehicle network

● AMD Versal VM1802 for

“emulating” ADAS compute

and connectivity

● AMD Versal VE2303 for

“emulating” Zone ECUs /

gateways

Budget: 88 Mio EUR

Key Objectives:

● Zone-base architecture

● Auto SoC / Chiplets

● Mechanical / thermal

BMBF CeCaS

56

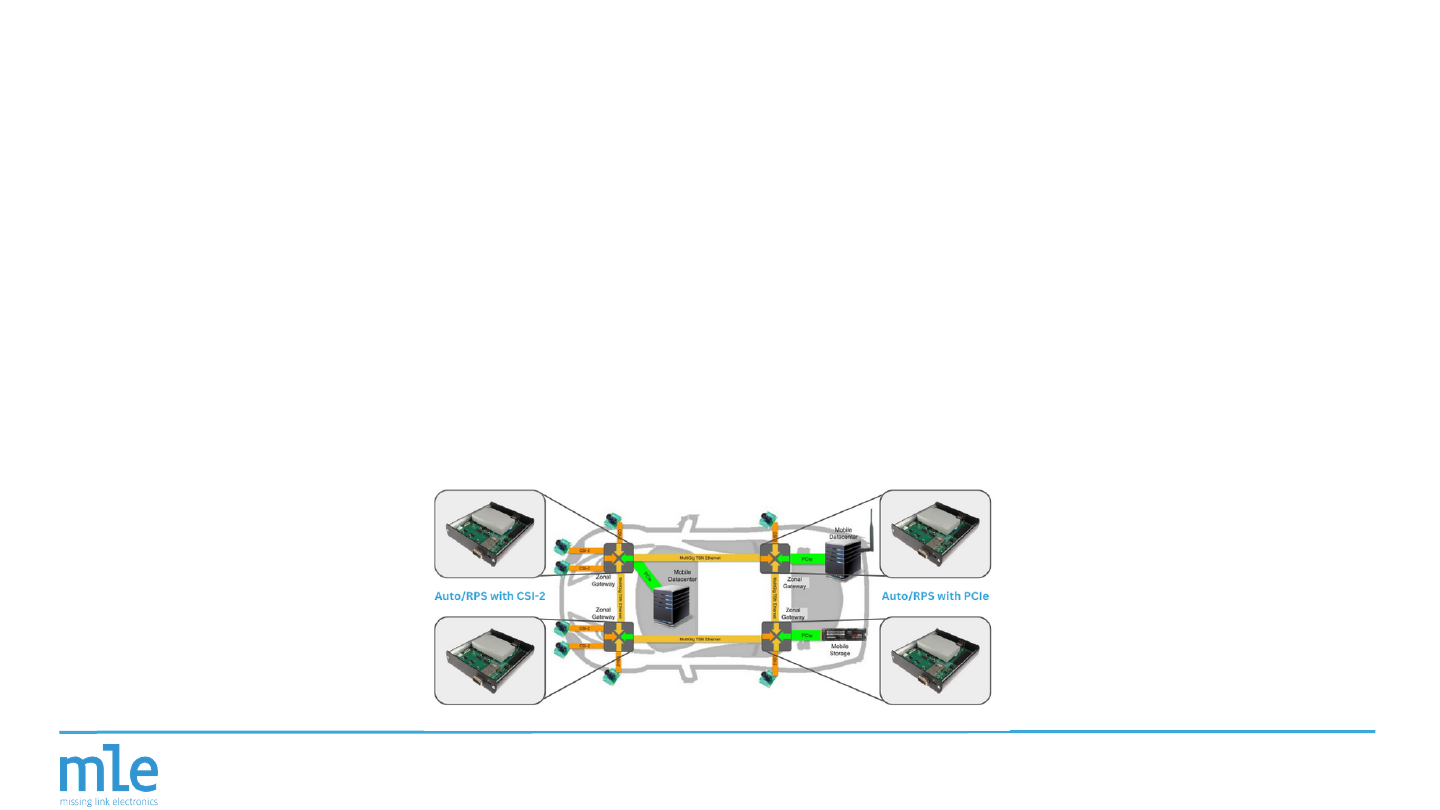

MLE Auto/RPS in Action

as Zone Controller

Auto/RPS

57

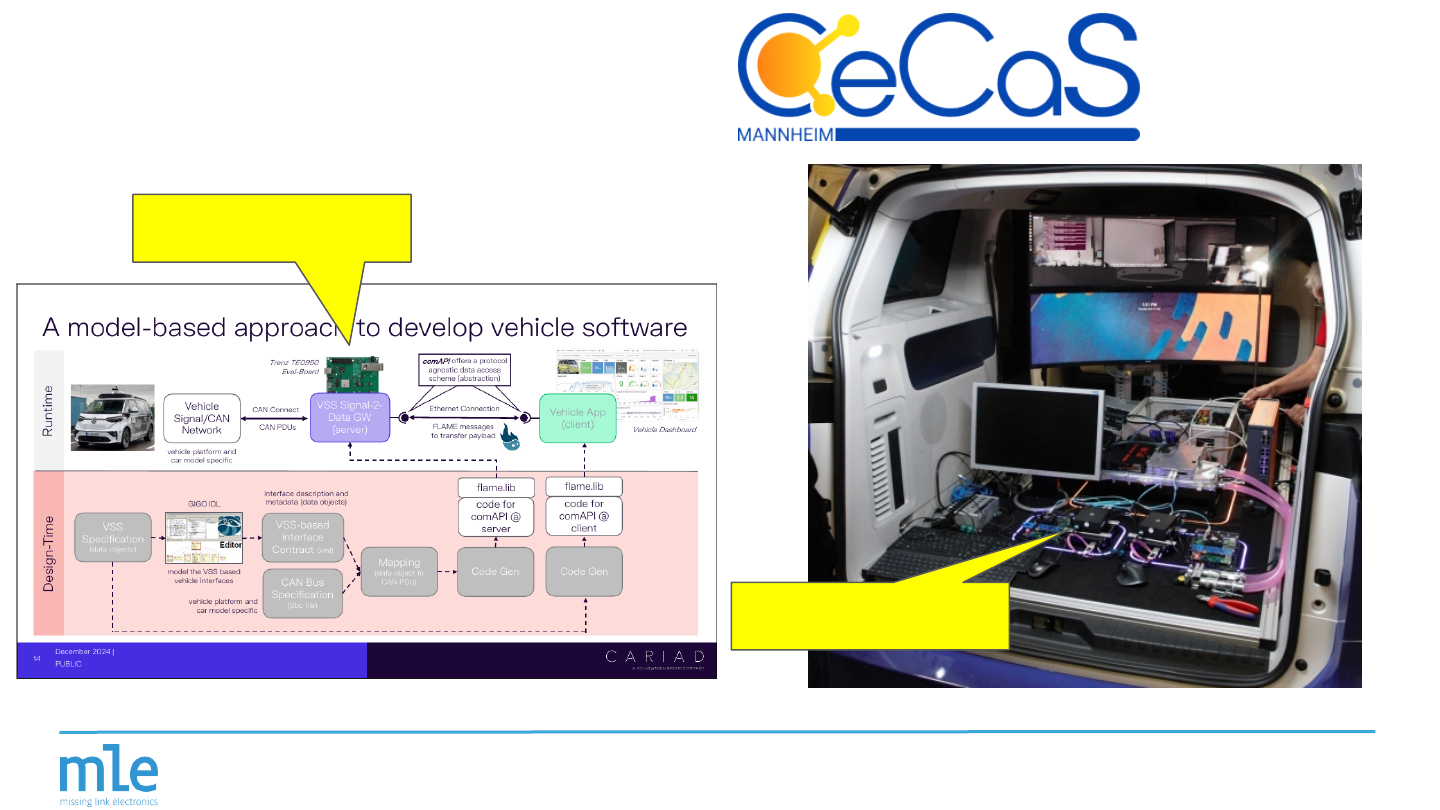

Auto/RPS in Action

Presented at BOSCH Automotive Ethernet Conference, Oct 2024, Renningen

Central Car Server (CeCaS)

CeCaS CCU

Auto/RPSAuto/RPS

AMD VM1802

AMD VE2302

58

Conclusion

However:

1. Zonal architectures require fast networks and rapid development.

2. We provide the technology: Reliable Networking using ultra-fast TSN.

3. We provide the methodology: Auto/RPS for rapid FPGA prototyping.

Turning today's automotive wiring

mess into tomorrow's automotive

architecture is doable by using a

Zone Based Architecture.

59

Thank you

Any

questions?

60

Contact:

Maximilian Sokol

max.sokol@missinglinkelectronics.com

Andreas Schuler

Andreas.schuler@missinglinkelectronics.com

Missing Link Electronics

Industriestraße 10

89231 Neu-Ulm

www.missinglinkelectronics.com
