Zone-Based Automotive

Backbones Tunneling PCIe

Dr. Endric Schubert, Missing Link Electronics

• Ulrich Langenbach

Dir. Eng. Missing Link Electronics GmbH (MLE)

• Marcus Pietzsch

Group Mgr, Fraunhofer Institute for Photonic Microsystems (IPMS), Dresden, Germany

Acknowledgements

2

Apr 19 2021

• Presentation Disclaimer: All opinions, judgments, recommendations, etc.

that are presented herein are the opinions of the presenter of the material

and do not necessarily reflect the opinions of the PCI-SIG

®

.

Disclaimer

3

Apr 19 2021

WHY?

• More safe and eco-friendly vehicles drive automotive connectivity towards so-called

Zone-Based Architectures. Inside those Zone Gateways PCIe connects multiple SoC for

scalable performance. Zone Gateways connect with each other via the emerging IEEE

standards “Time Sensitive Networking” (TSN).

WHAT?

• A solution that fulfills the need for “tunneling” PCIe over TSN, supporting CPU-to-CPU

communication (PCIe NTB) and NVMe storage.

HOW?

• A digital circuit & system stack to encapsulate and to decapsulate PCIe TLPs (along

with other protocols) over real-time automotive TSN 10G/25G Ethernet

Presentation Outline

Apr 19 2021

4

Apr 19 2021

5

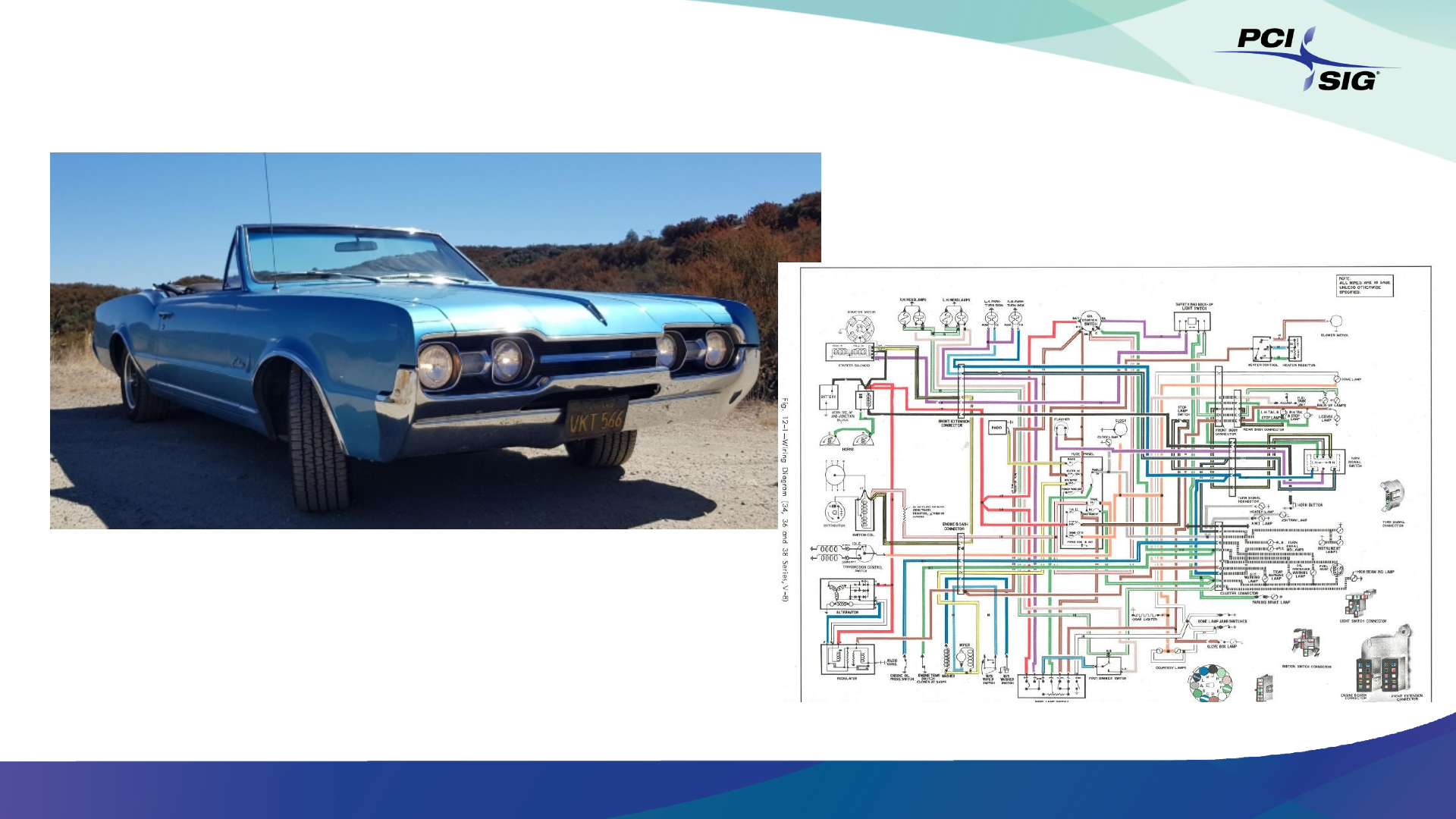

Automotive Network History (1967)

Apr 19 2021

6

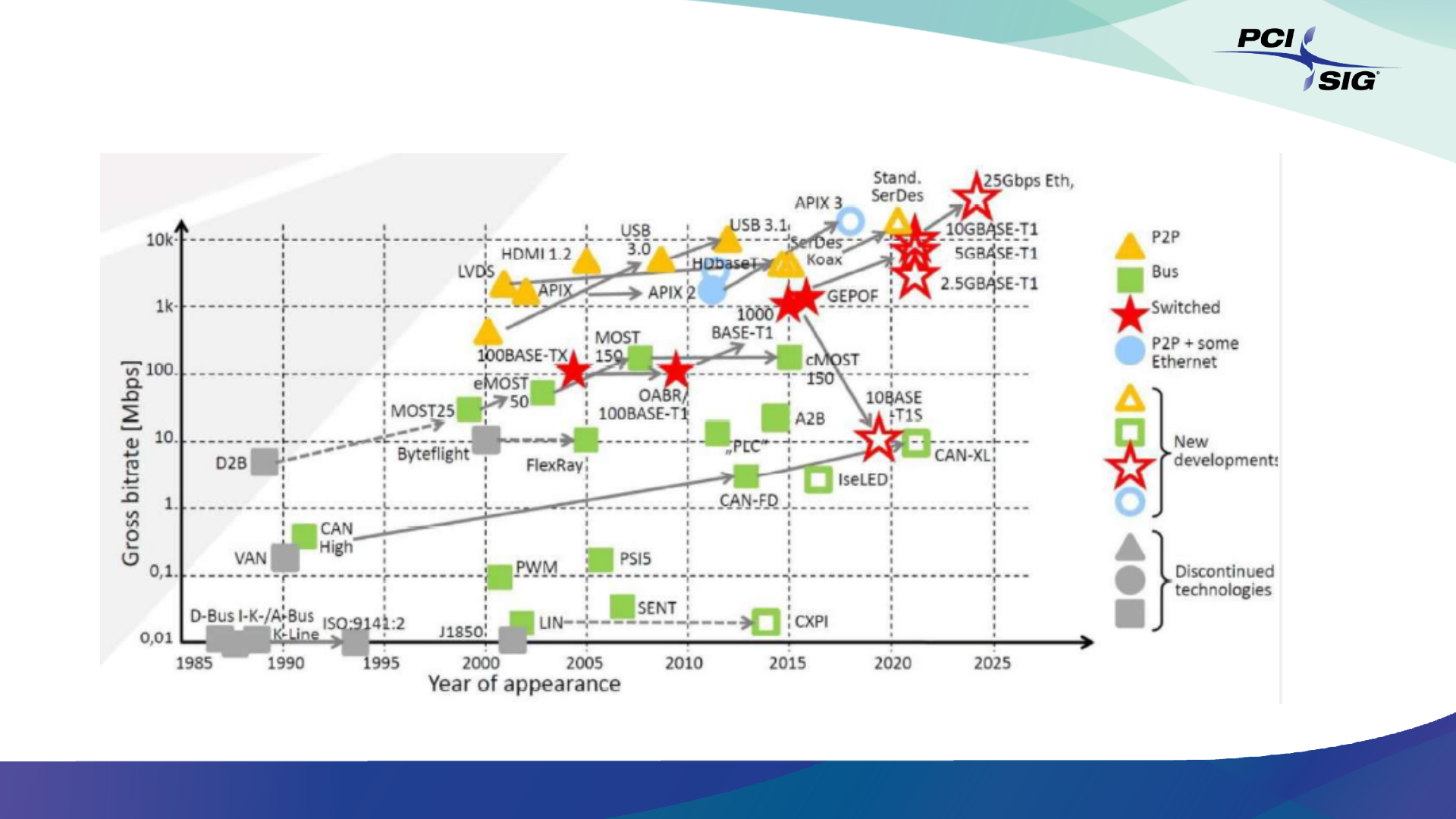

Evolution of Automotive Networks

Courtesy: BMW

Apr 19 2021

7

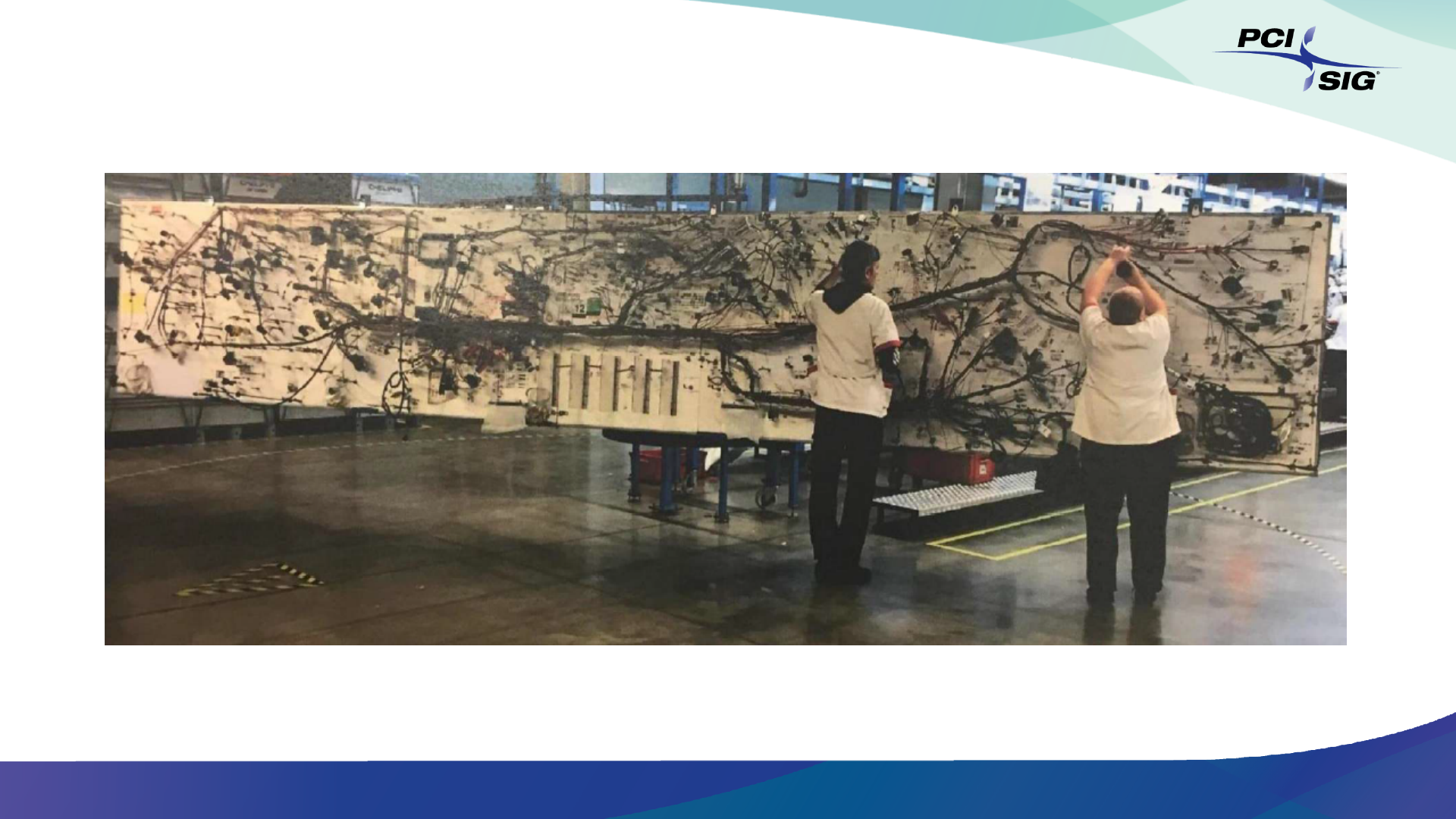

Today’s Expensive Wiring Nightmare

Organized in Functional

Domains

• Powertrain, Body Control,

Comfort, Infotainment, etc

• Bus Gateways for Cross-

Domain Communication

100 ECUs, or more via many

different busses and

protocols

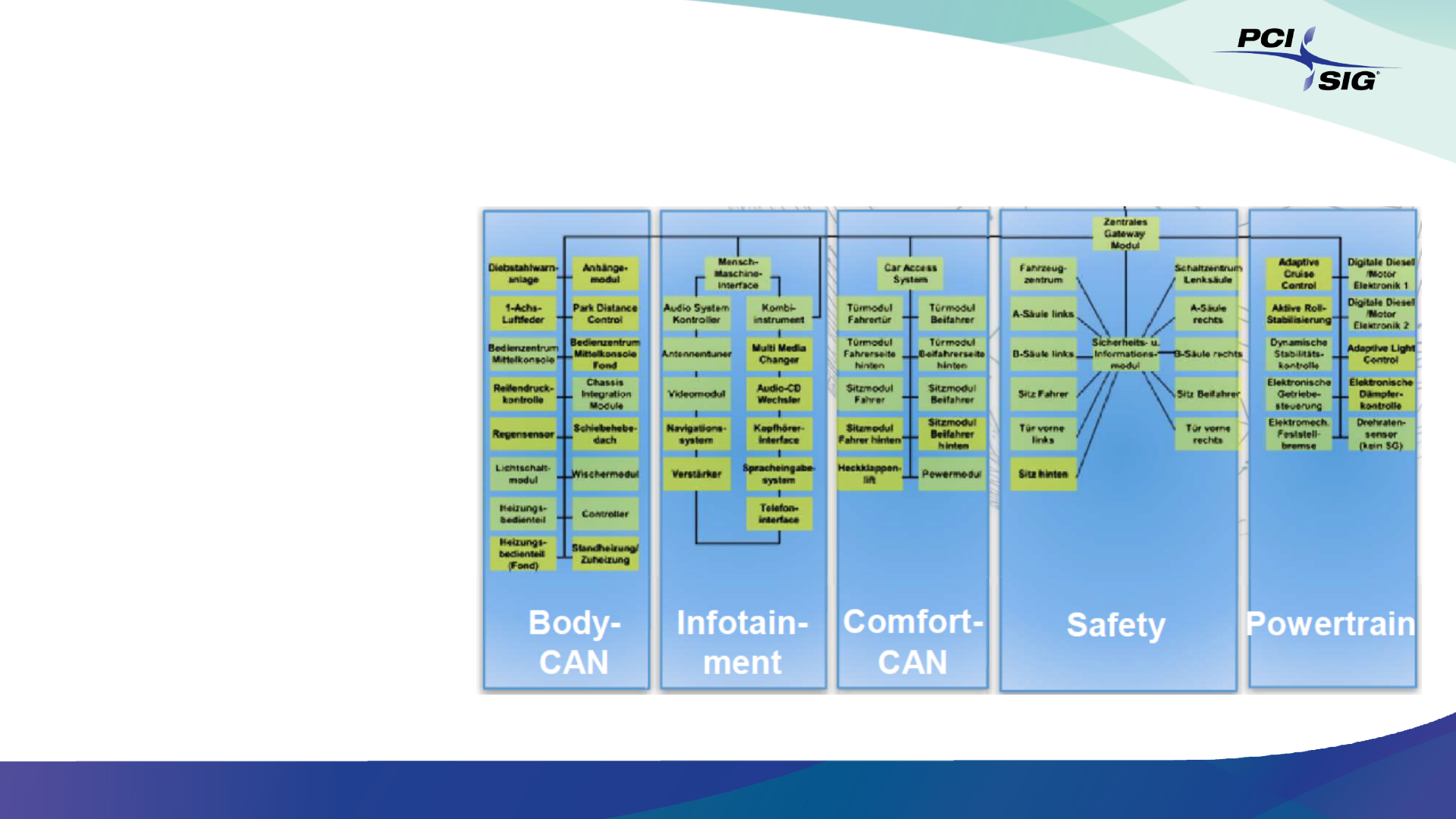

Automotive Networks Today (Domain-Based)

Apr 19 2021

8

More centralized, better to scale, lower cost

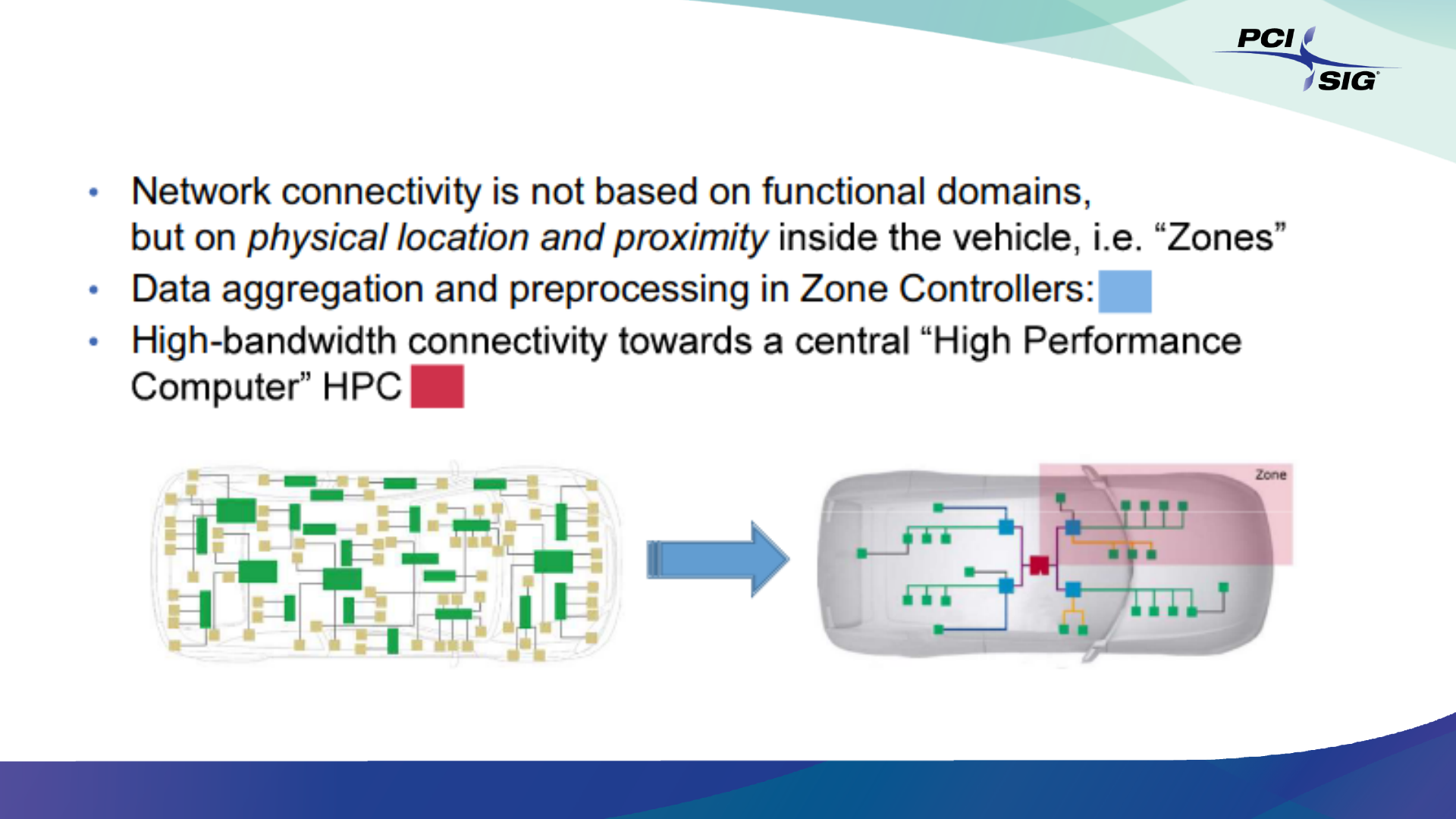

Next: Zone-Based Architectures

9

Apr 19 2021

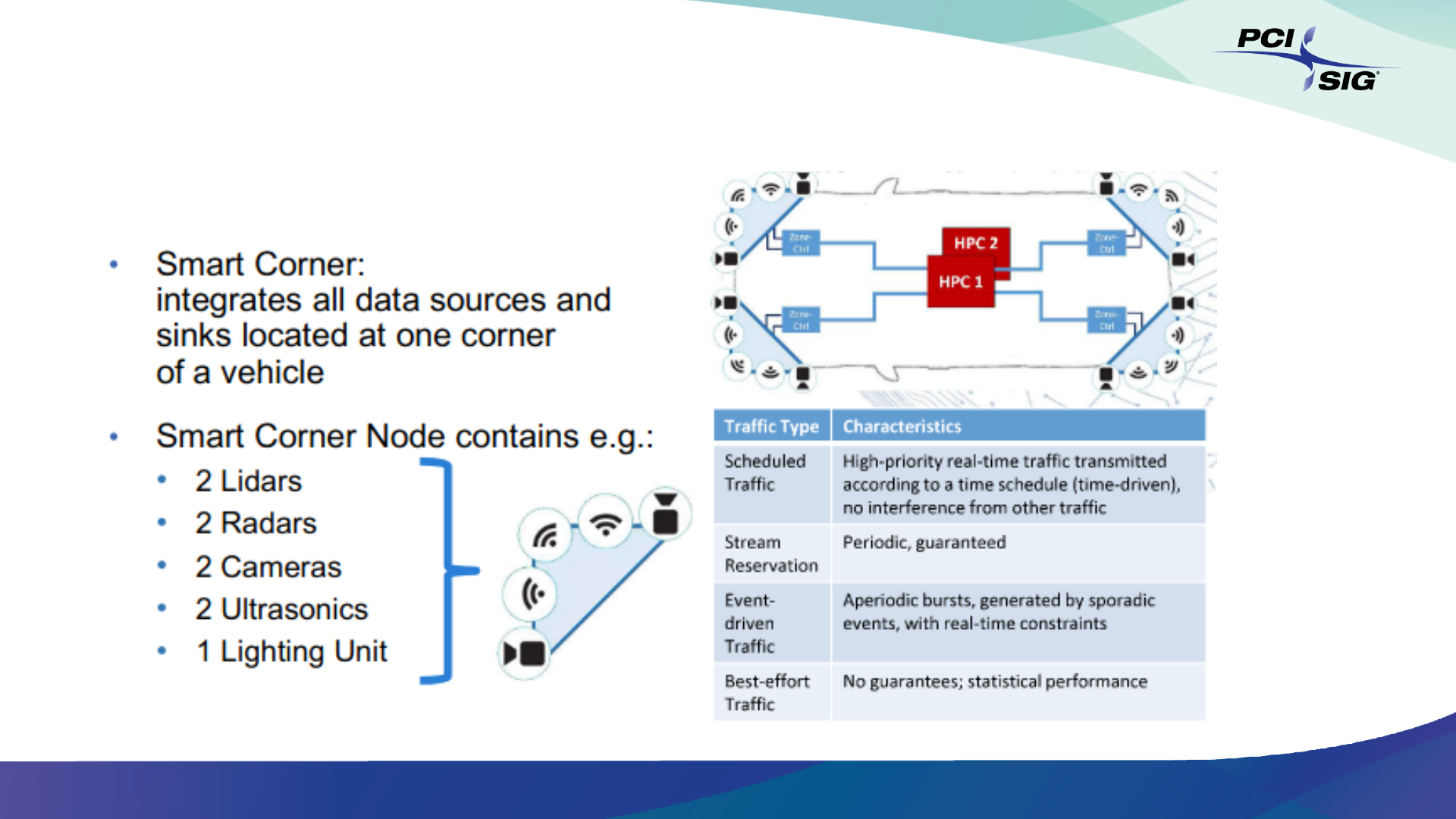

Application Example: “Smart Corner”

10

Apr 19 2021

Driven by Cost/Performance, i.e.

Centralized Compute & Storage:

• PCIe (for Embedded CPUs,

GPUs, FPGAs and SoCs)

• NVMe (for SSDs)

Driven by Compliance

• FuSa ISO 26262

• Security ISO/SAE 21434

• SOTIF ISO 21448

• etc

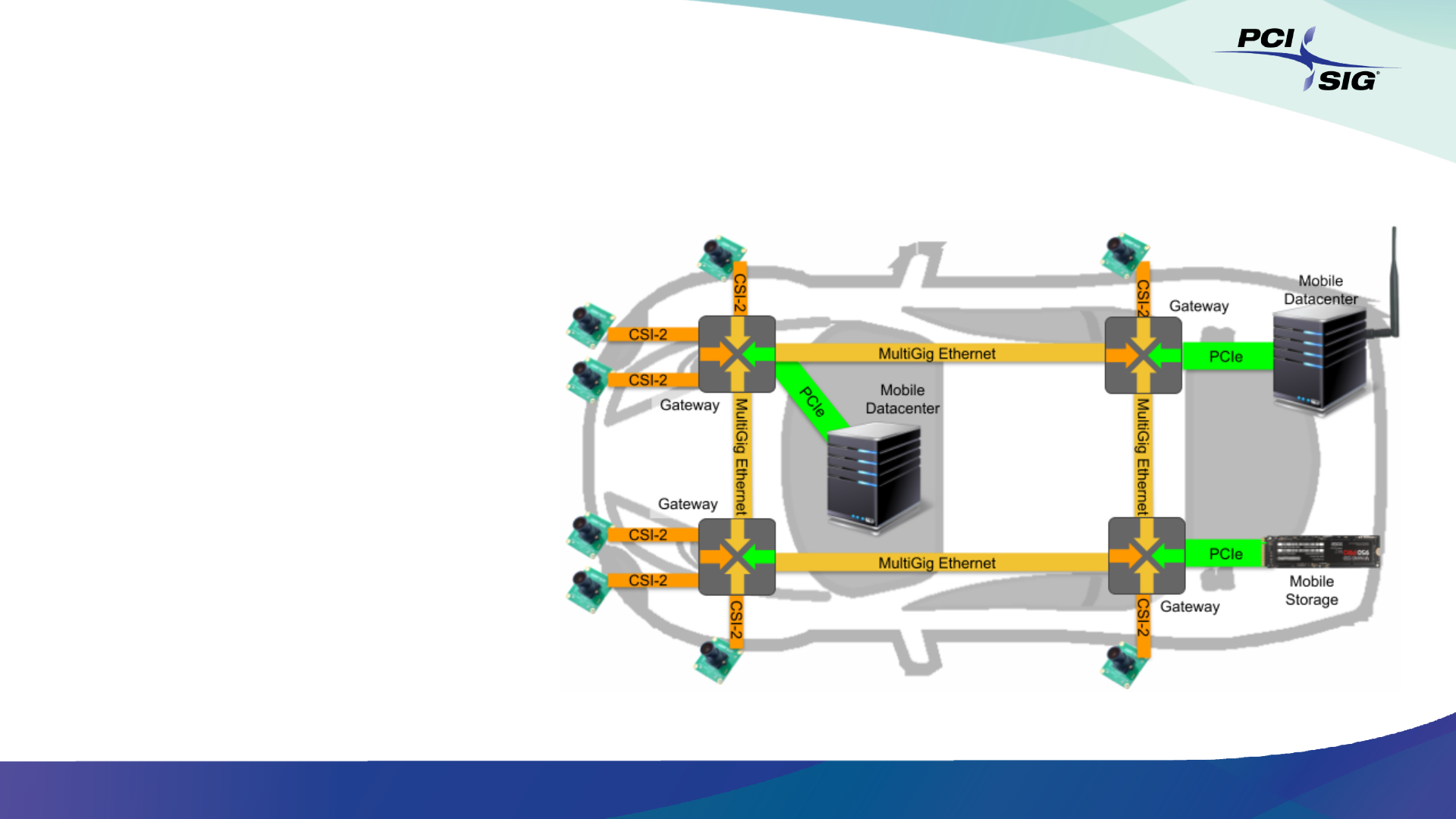

Zone-Based Automotive Network

Needs to Transport PCIe

11

Apr 19 2021

PCIe from PCI-SIG, TSN from IEEE

Symmetric for CPU-to-CPU (e.g. PCIe NTB) or Asymmetric Sensor-to-CPU

PCIe-over-TSN is Based on Open Standards

Apr 19 2021

12

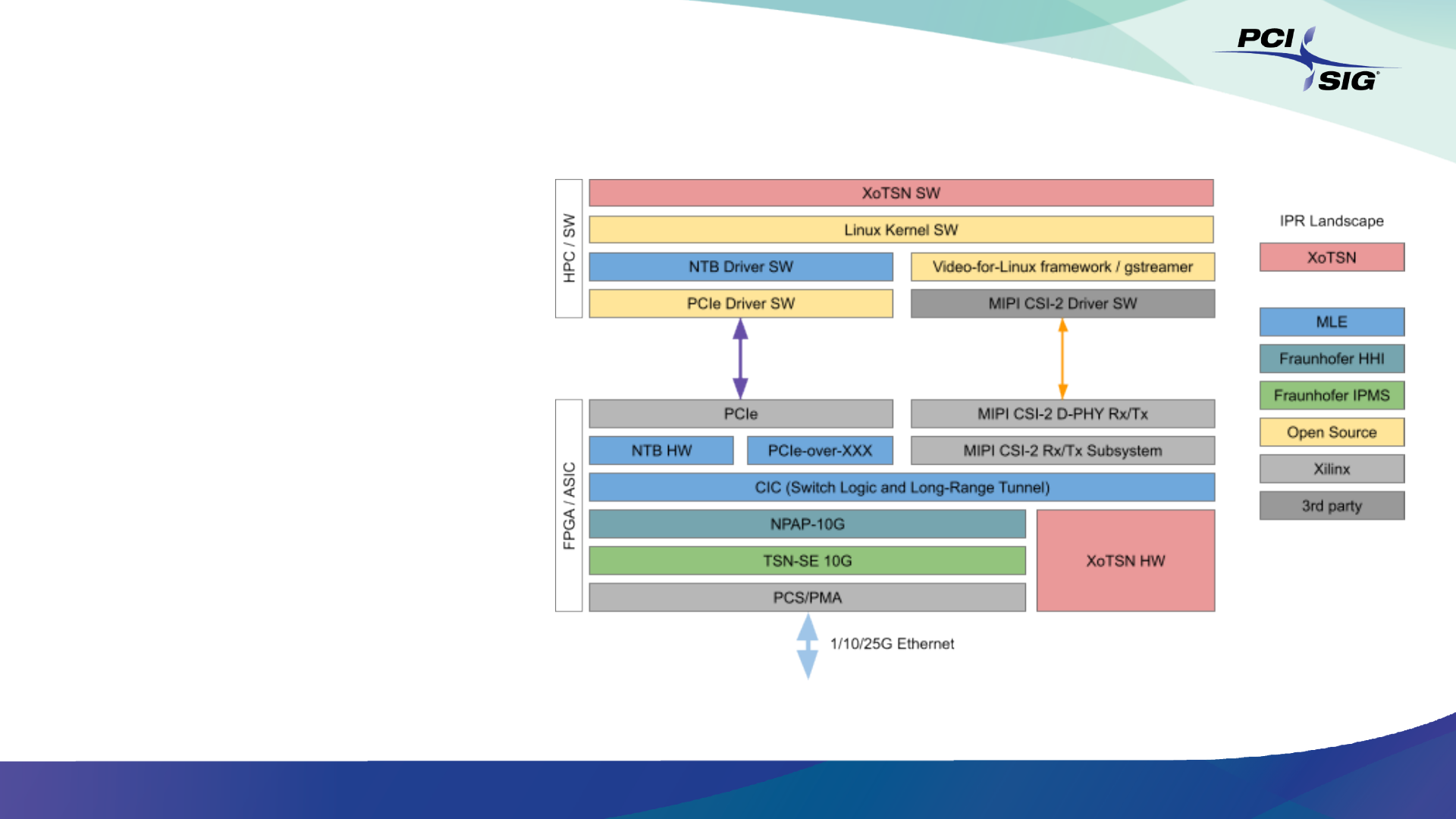

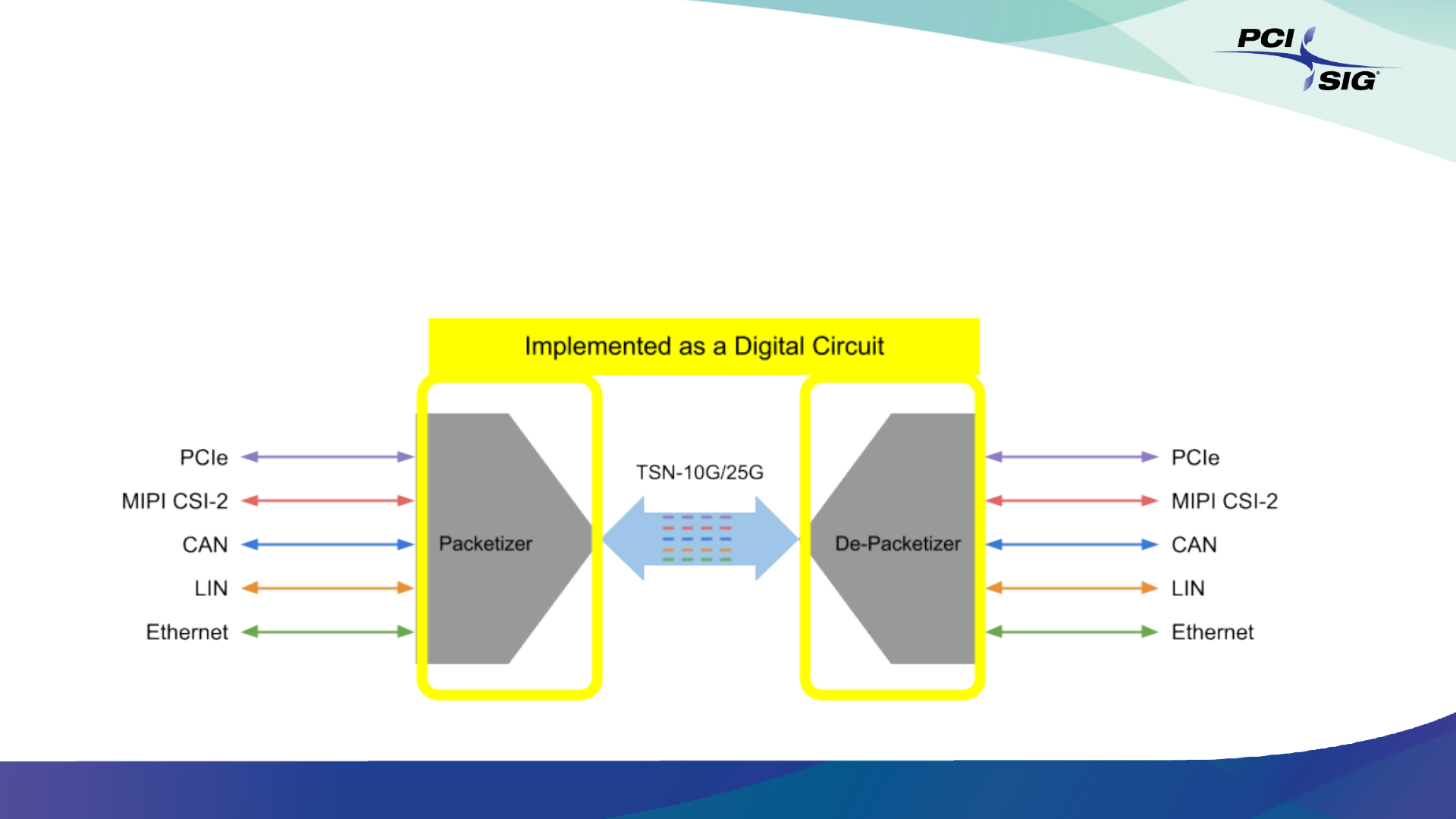

System Stack is

• Hardware (Digital Circuit)

• Software (Drivers)

3

rd

Party (IP Cores)

• Fraunhofer IPMS

• Fraunhofer HHI

• MLE

• Open Source

Apr 19 2021

13

PCIe-over-TSN System Stack Example

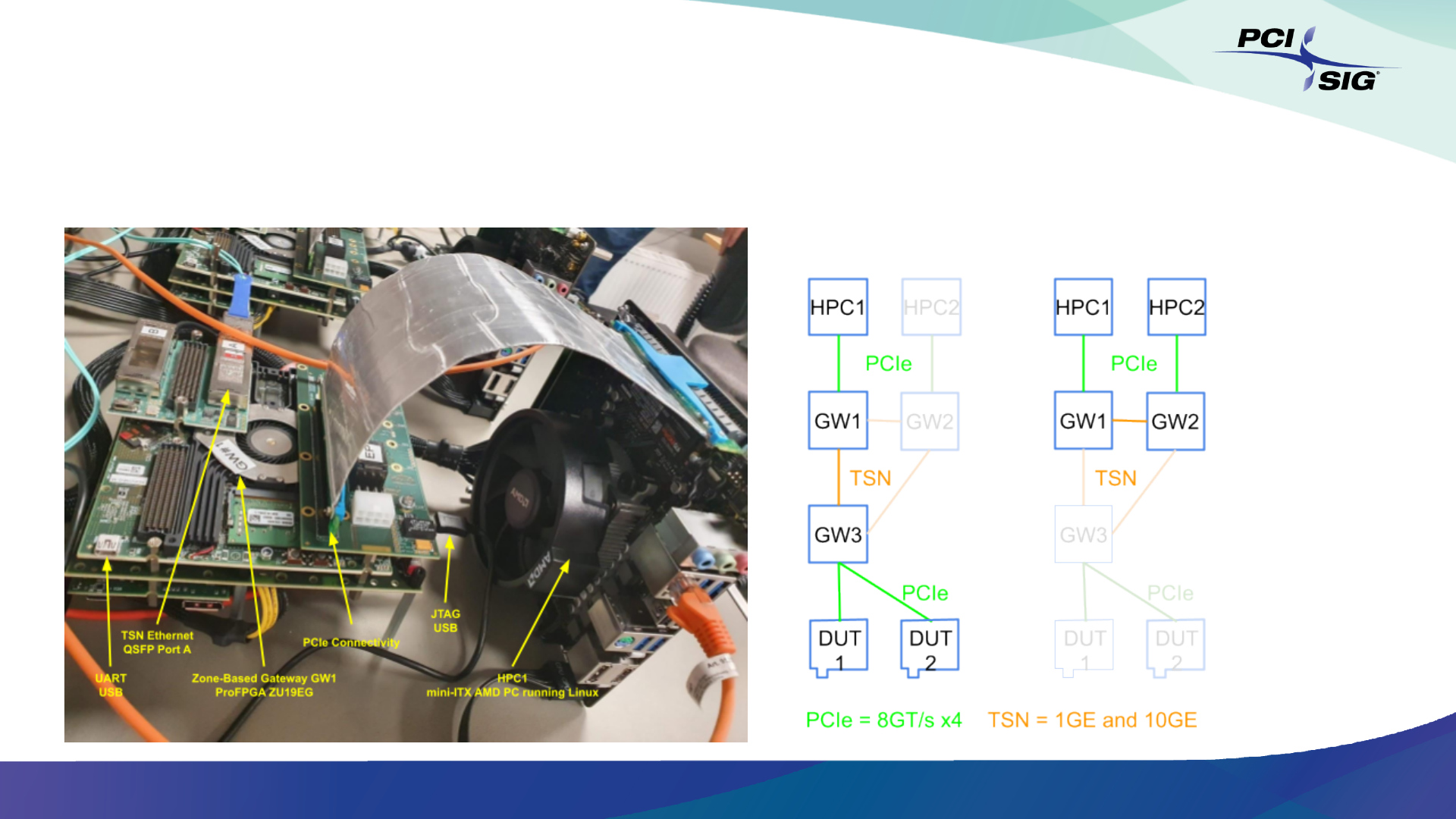

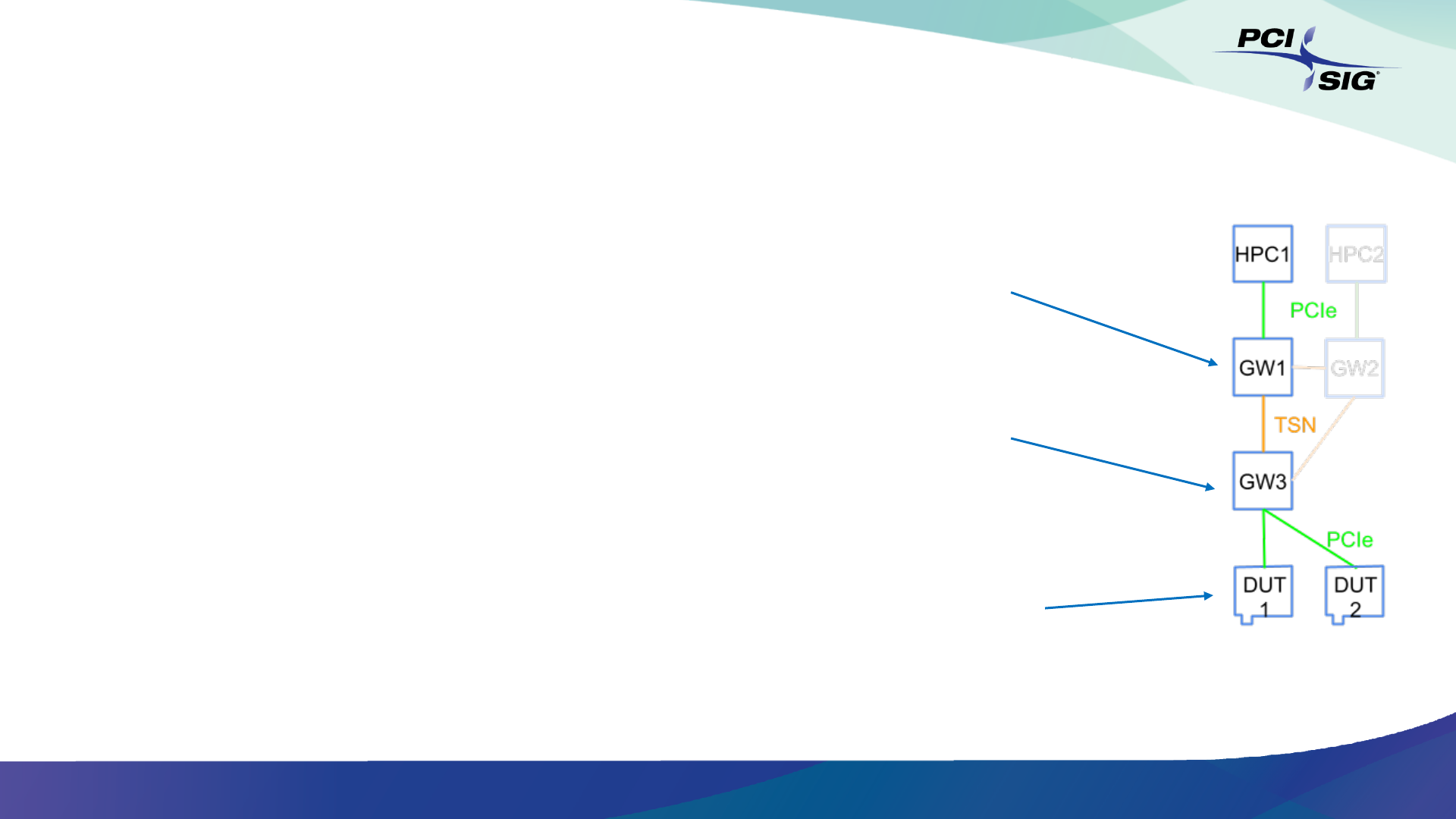

Labcar Setup w/ PCIe Connect to HPC Labcar Setup for Experiments

PCIe/NVMe PCIE NTB

Apr 19 2021

14

PCIe-over-TSN System Stack Implemented

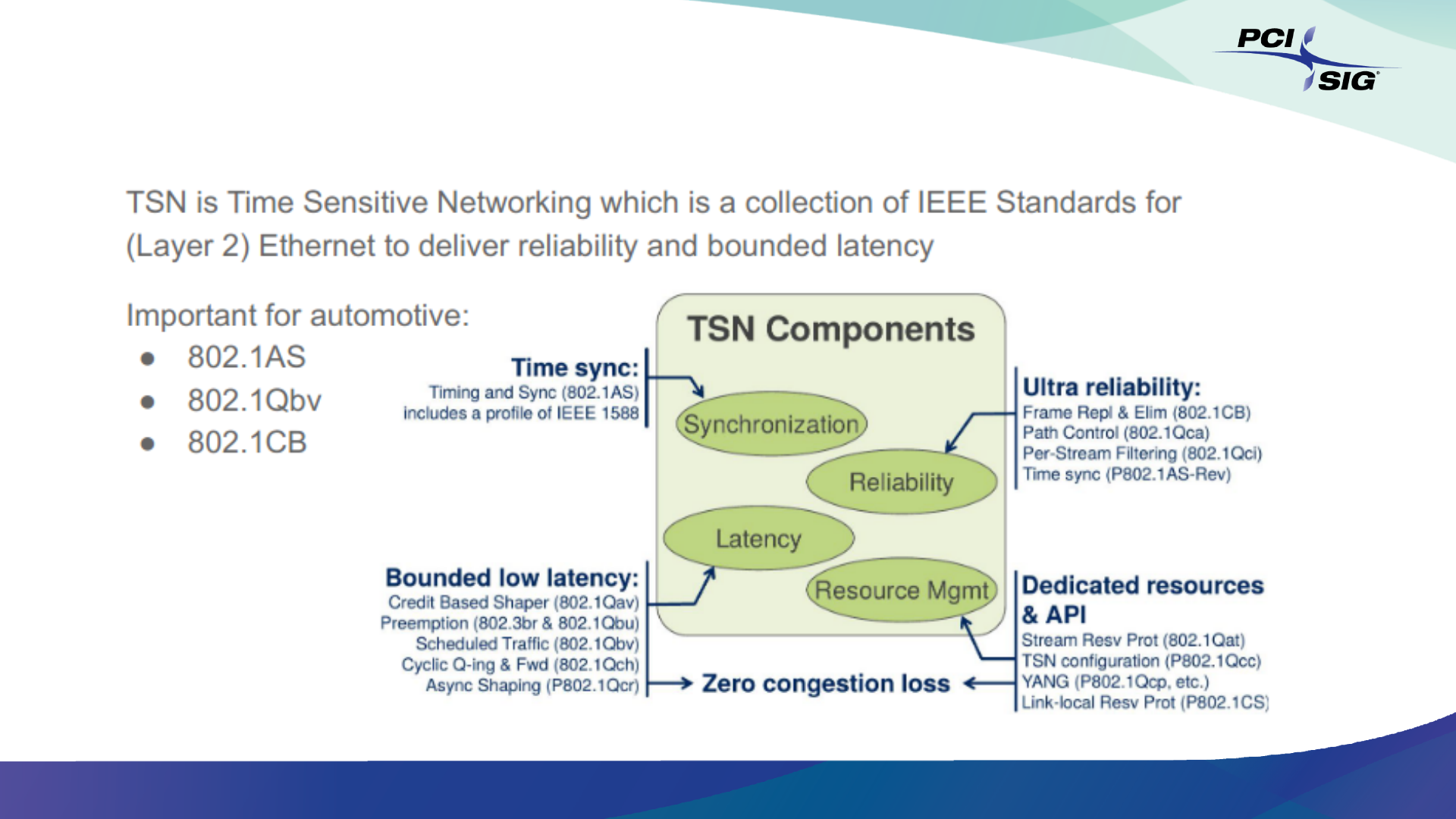

Backgrounder TSN

15

Apr 19 2021

16

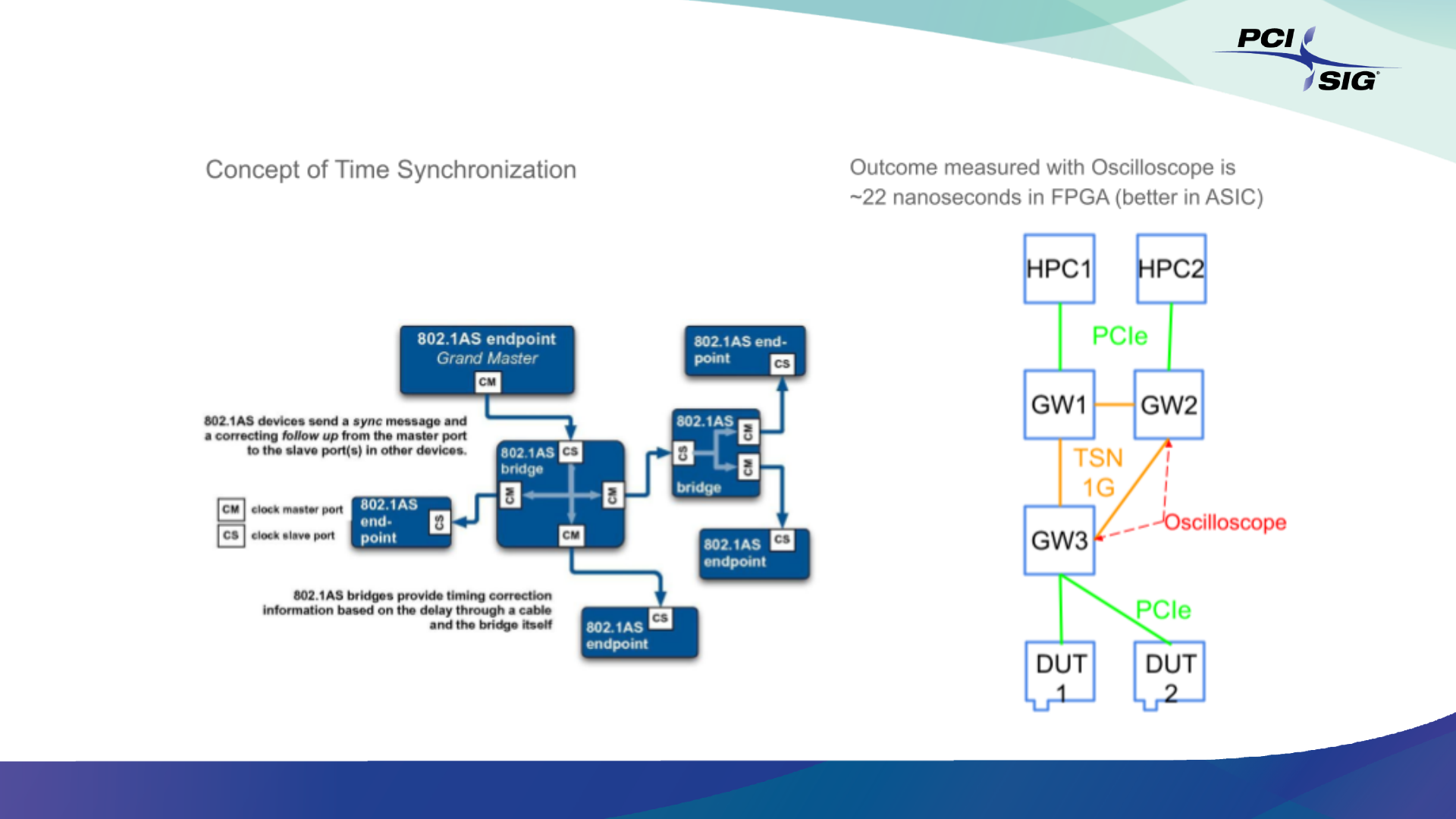

IEEE 802.1AS Precision Timestamping

Apr 19 2021

17

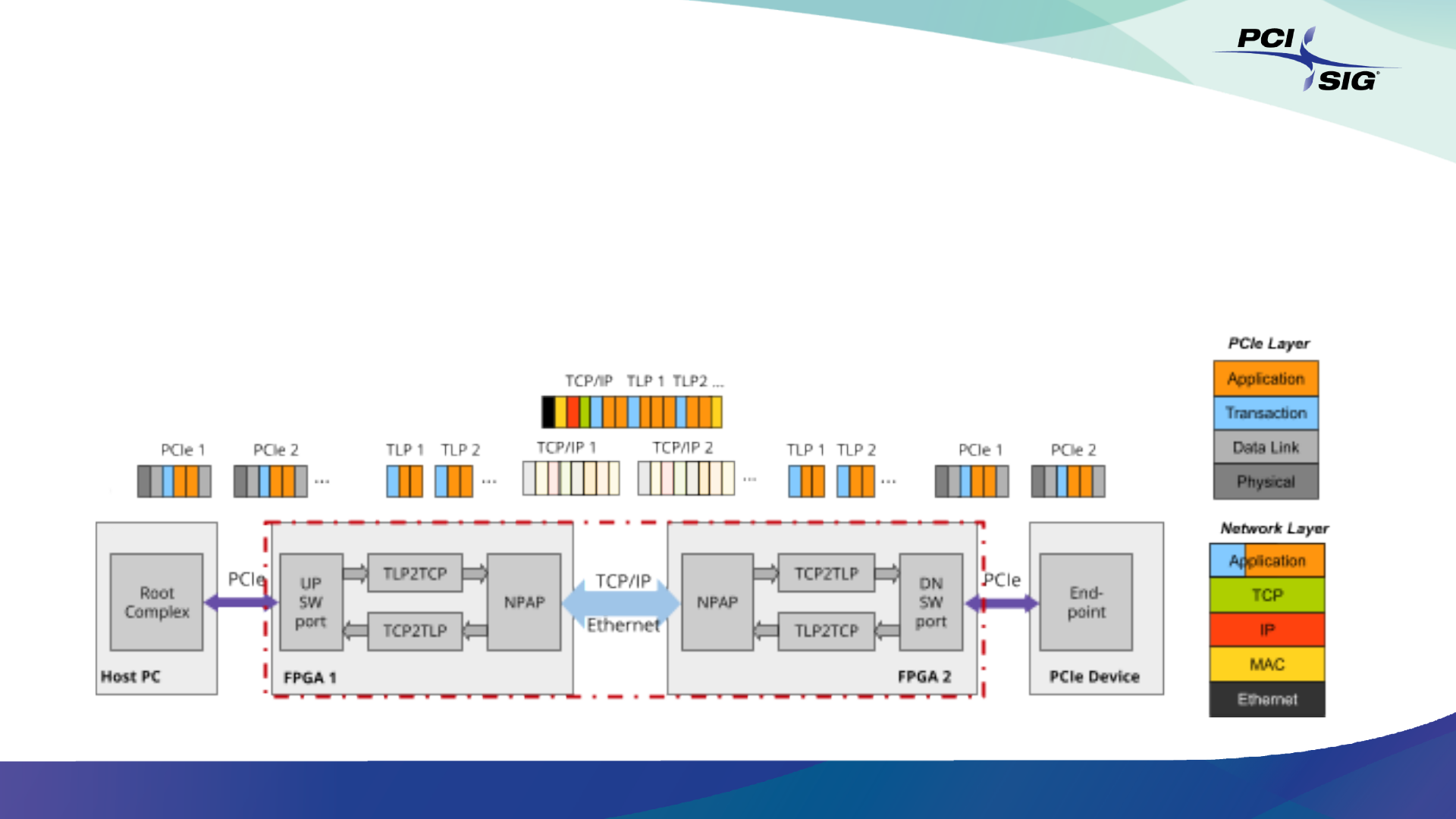

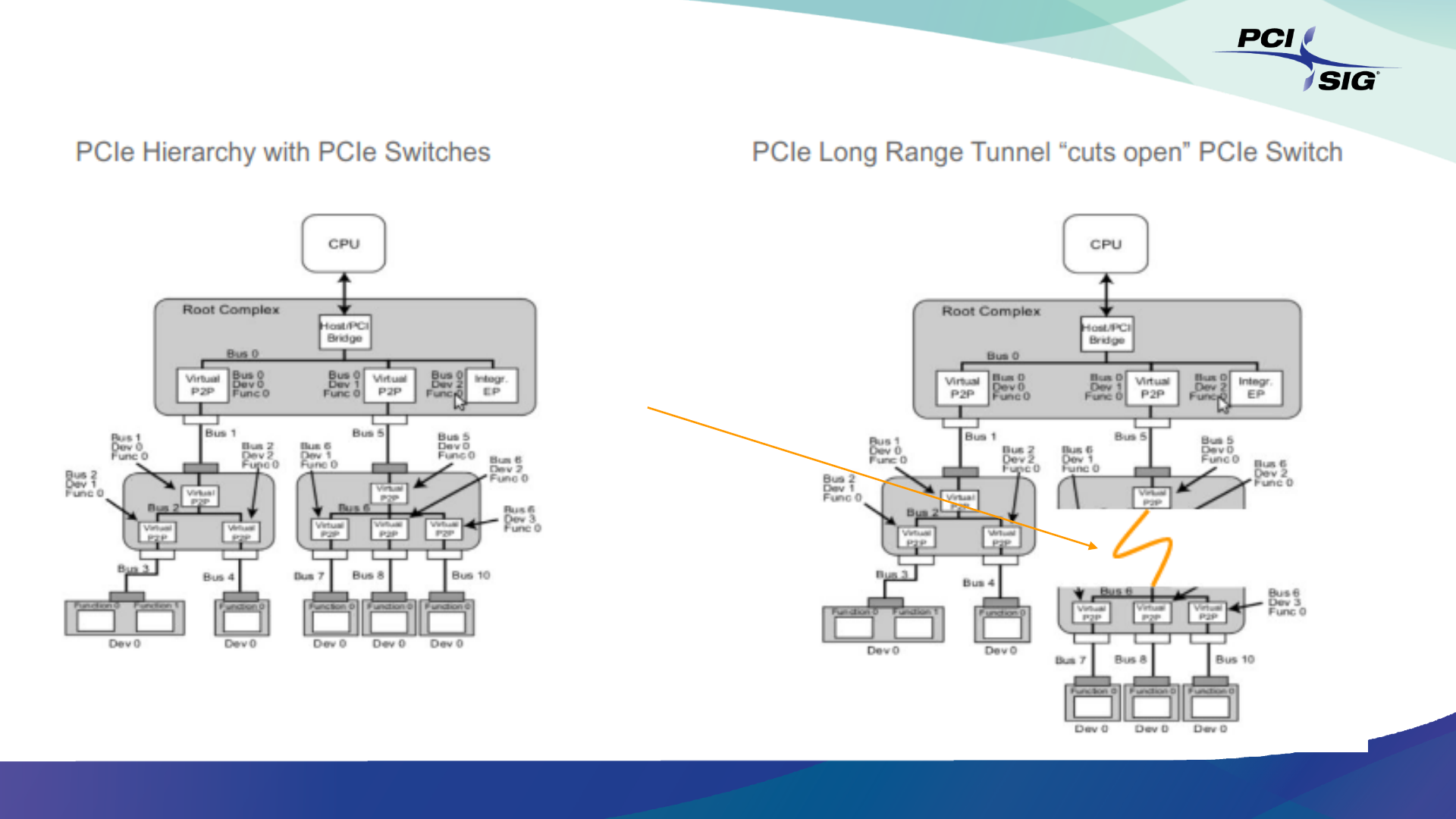

PCIe-over-TSN = “Distributed PCIe Switch”

TSN

Encapsulate and Decapsulate PCIe TLPs. PCIe demands reliability, therefore we transport

TLPs over TCP/IP over TSN over Ethernet.

PCIe-over-TSN Concept

18

Apr 19 2021

Aggregate multiple

TLPs to optimize

bandwidth dominated

communication

Do not aggregate (i.e.

send immediately) for

latency oriented

communication

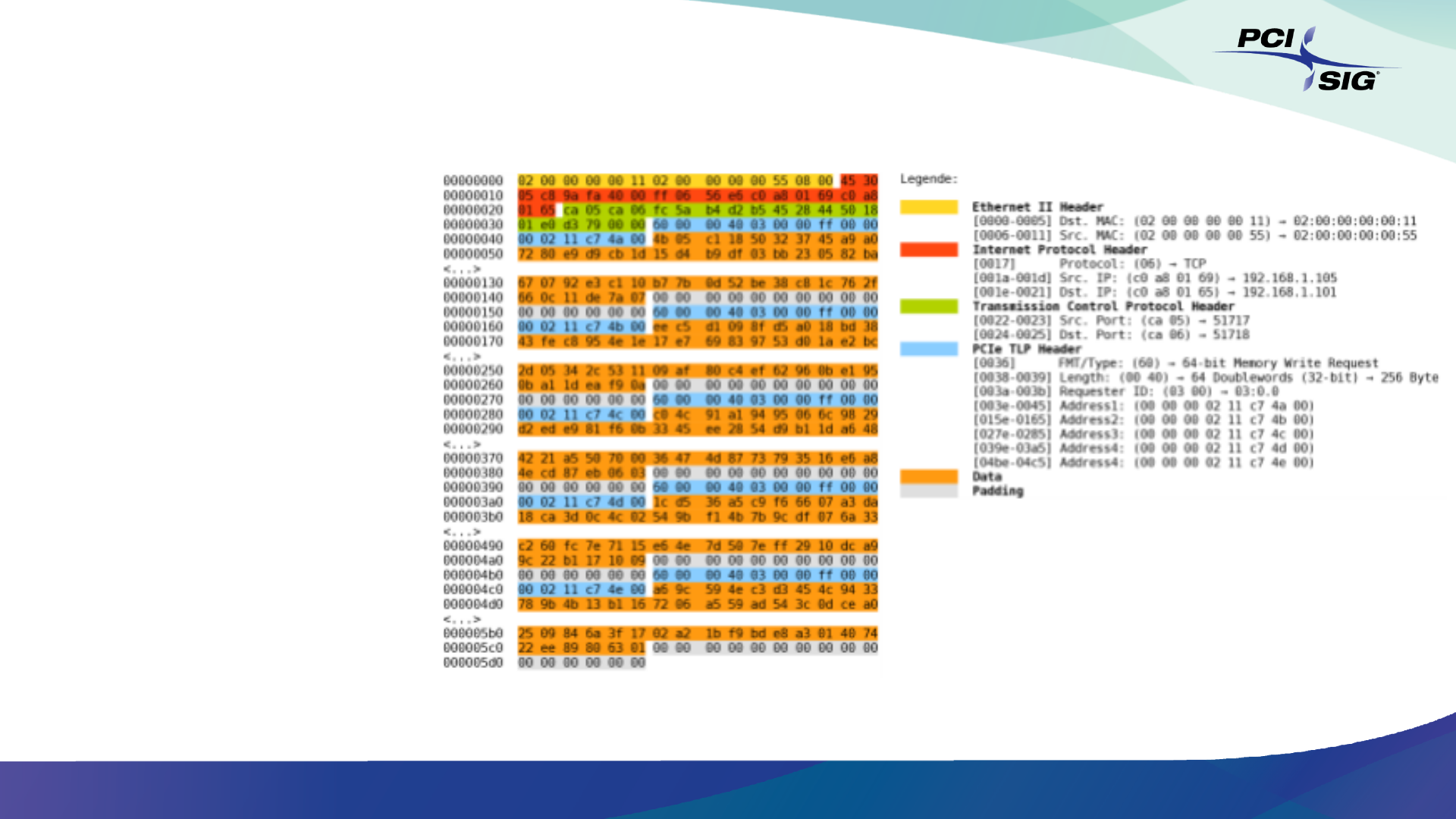

PCIe-over-TSN Smart TLP Aggregation

Apr 19 2021

19

Linux lspci

00:00.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:15d0]

00:01.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452]

01:00.0 PCI bridge [0604]: Xilinx Corporation Device [10ee:9034] (prog-if 00 [Normal decode])

Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-

Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-

Latency: 0, Cache Line Size: 64 bytes

Bus: primary=01, secondary=02, subordinate=03, sec-latency=0

Capabilities: [70] Express (v2) Upstream Port, MSI 00

Capabilities: [1c0 v1] #19

Kernel driver in use: pcieport

Kernel modules: shpchp

02:00.0 PCI bridge [0604]: Xilinx Corporation Device [10ee:9134] (prog-if 00 [Normal decode])

Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-

Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-

Latency: 0, Cache Line Size: 64 bytes

Bus: primary=02, secondary=03, subordinate=03, sec-latency=0

Capabilities: [70] Express (v2) Downstream Port (Slot+), MSI 00

Capabilities: [1c0 v1] #19

Kernel driver in use: pcieport

Kernel modules: shpchp

03:00.0 Non-Volatile memory controller [0108]: Samsung Electronics Co Ltd Device [144d:a808] (prog-if 02 [NVM Express])

Subsystem: Samsung Electronics Co Ltd Device [144d:a801]

Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+

Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-

Latency: 0, Cache Line Size: 64 bytes

Interrupt: pin A routed to IRQ 30

NUMA node: 0

Region 0: Memory at fcf00000 (64-bit, non-prefetchable) [size=16K]

Kernel driver in use: nvme

Kernel modules: nvme

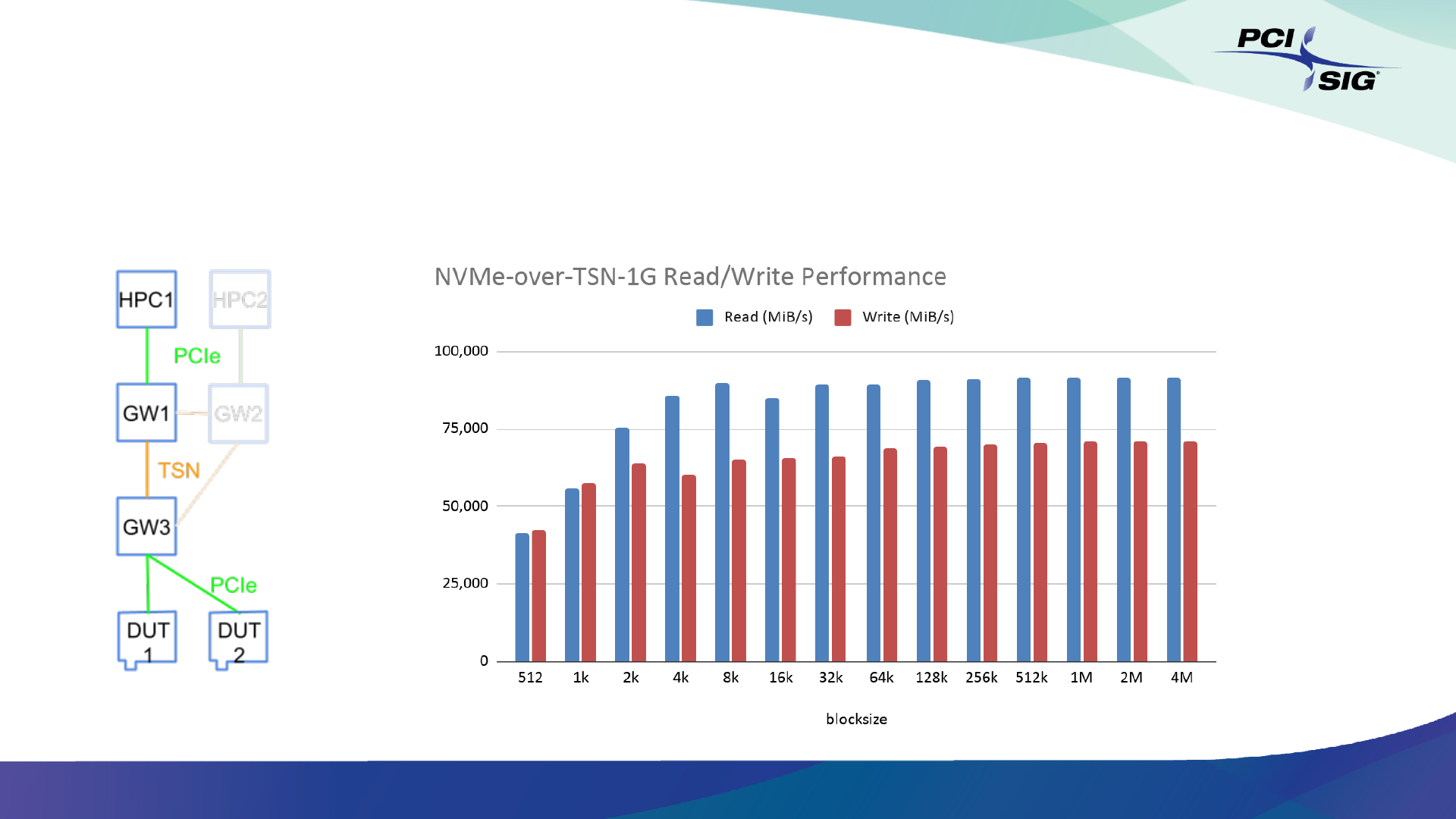

PCIe-over-TSN Results with NVMe SSD

20

Apr 19 2021

Robust transport, even if TSN “throttles” bandwidth – test results for 1GE

PCIe-over-TSN Robustness

21

Apr 19 2021

22

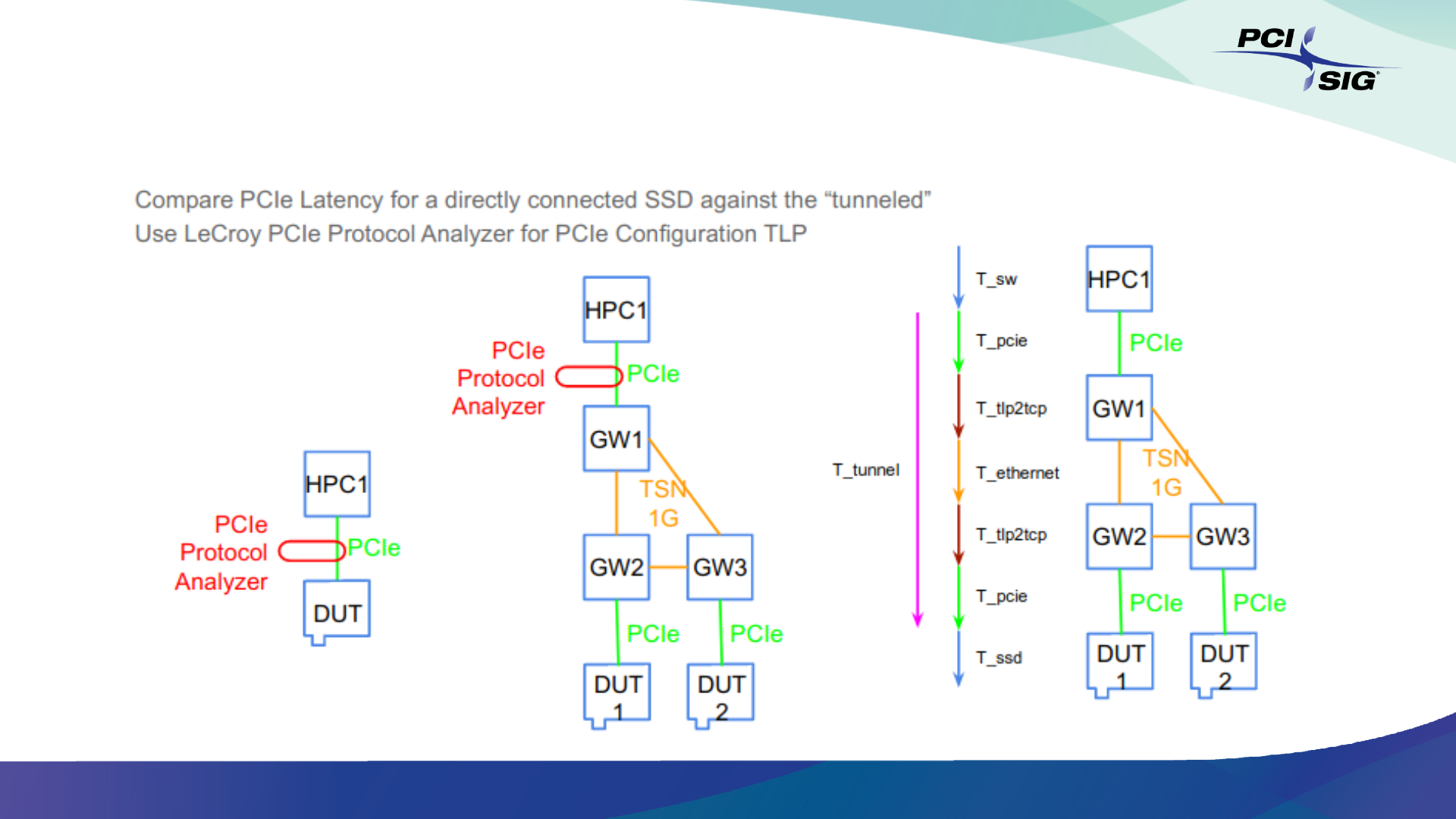

PCIe-over-TSN Latency Analysis

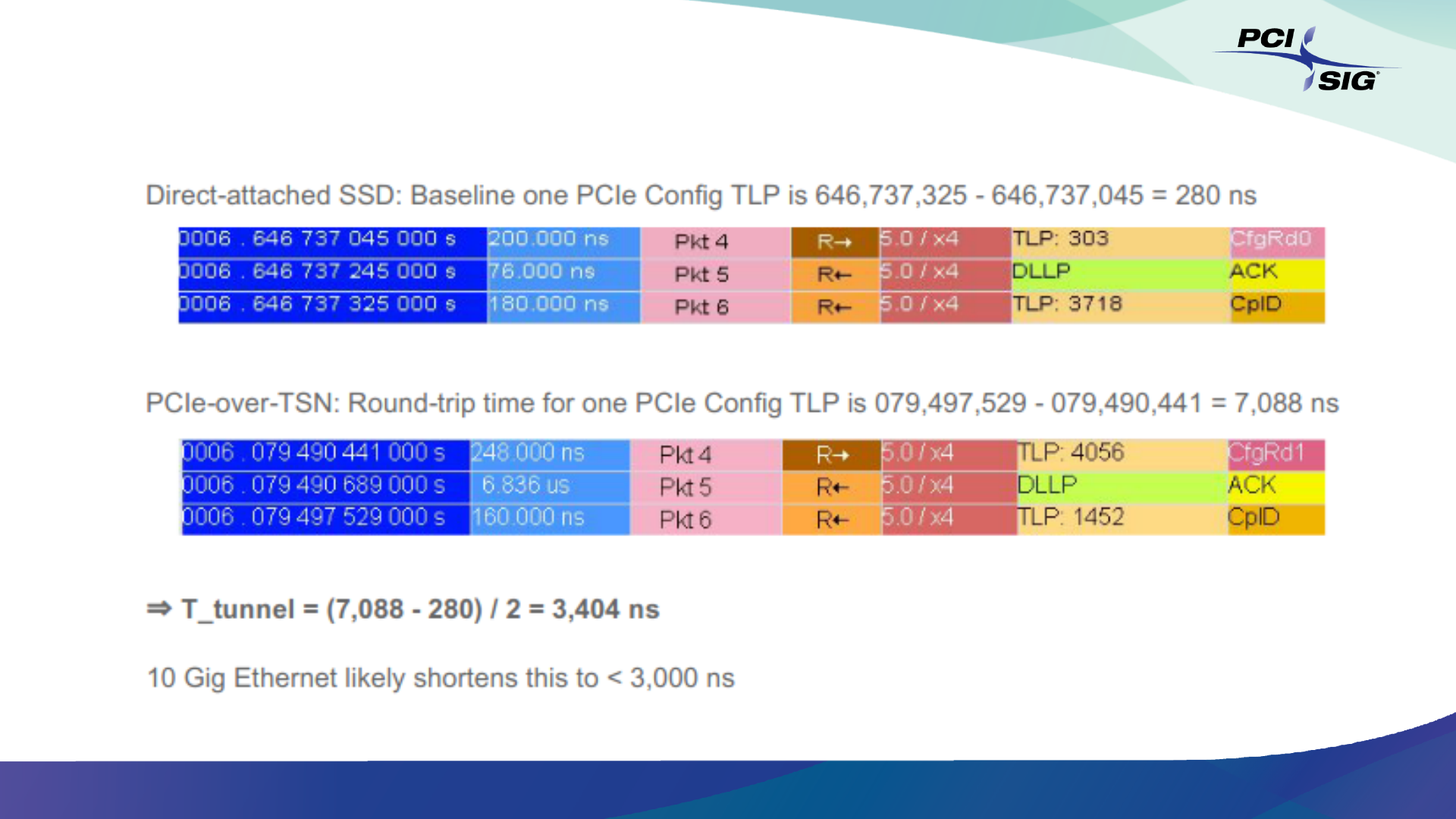

PCIe-over-TSN Latency – Results for 1 GigE

23

Apr 19 2021

> lspci -vt

-[0000:00]-+-00.0AdvancedMicroDevices,Inc.[AMD]Raven/Raven2RootComplex

+-00.2AdvancedMicroDevices,Inc.[AMD]Raven/Raven2IOMMU

+-01.0AdvancedMicroDevices,Inc.[AMD]Family17h(Models00h-1fh)PCIeDummy

Host Bridge

+-01.1-[01]----00.0MissingLinkElectronicsDevice22fb

...

> lspci -vv -s 01:00.0

01:00.0 Memory controller: Missing Link Electronics Device 22fb

Subsystem:XilinxCorporationDevice0007

Control:I/O-Mem+BusMaster+SpecCycle-MemWINV-VGASnoop-ParErr-Stepping-SERR-

FastB2B- DisINTx+

Status:Cap+66MHz-UDF-FastB2B-ParErr-DEVSEL=fast>TAbort-<TAbort-<MAbort->SERR-

<PERR- INTx-

Latency:0,CacheLineSize:64bytes

Region0:Memoryatd0000000(64-bit,prefetchable)[size=256M]

Region2:Memoryatc0000000(64-bit,prefetchable)[size=256M]

Region4:Memoryatfcf10000(32-bit,non-prefetchable)[size=64K]

Region5:Memoryatfcf00000(32-bit,non-prefetchable)[size=64K]

Capabilities:[1c0v1]#19

Kerneldriverinuse:ntb_hw_mle

Kernelmodules:ntb_hw_mle

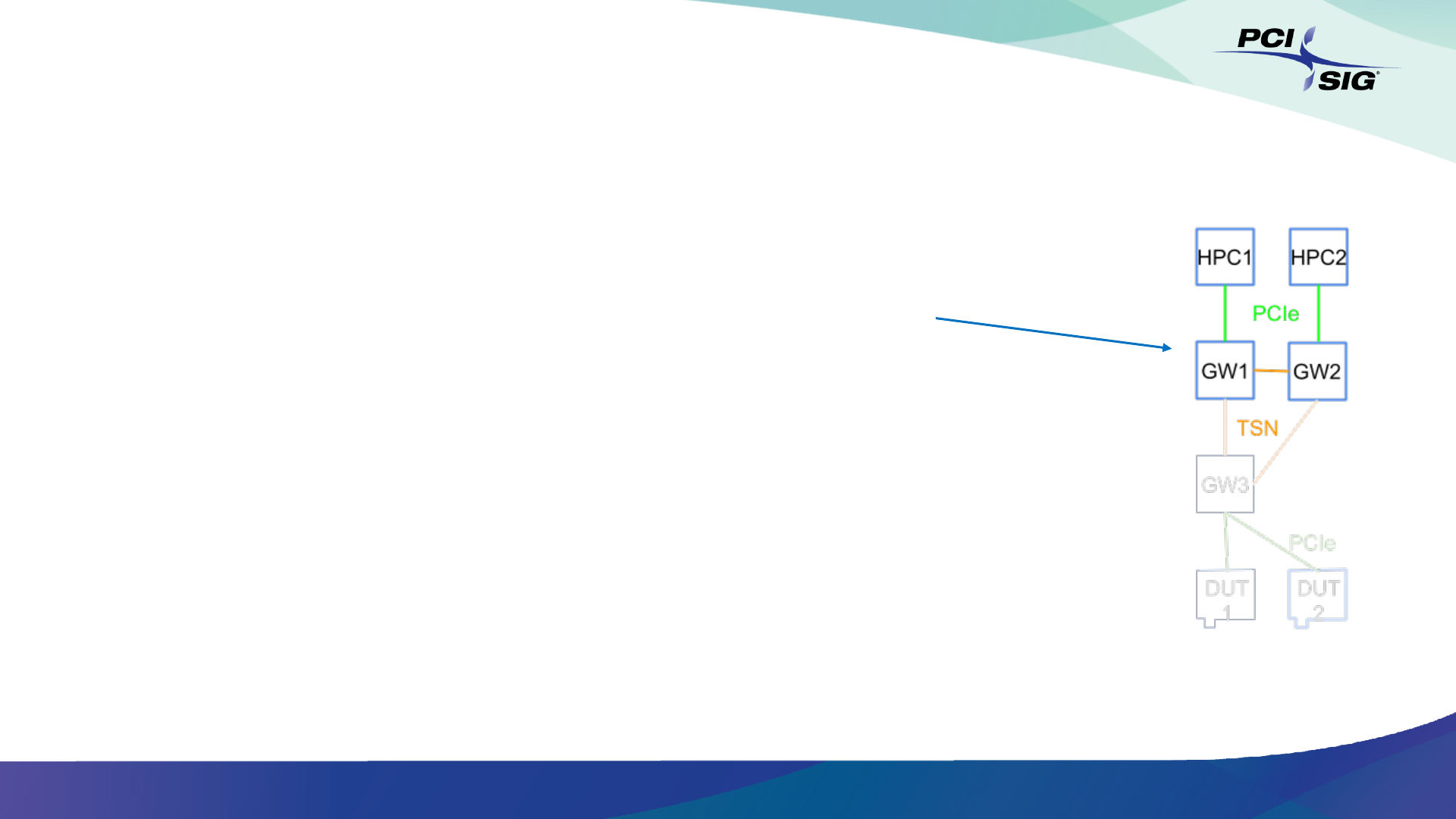

PCIe-over-TSN for Non-Transparent Bridging (NTB)

24

Apr 19 2021

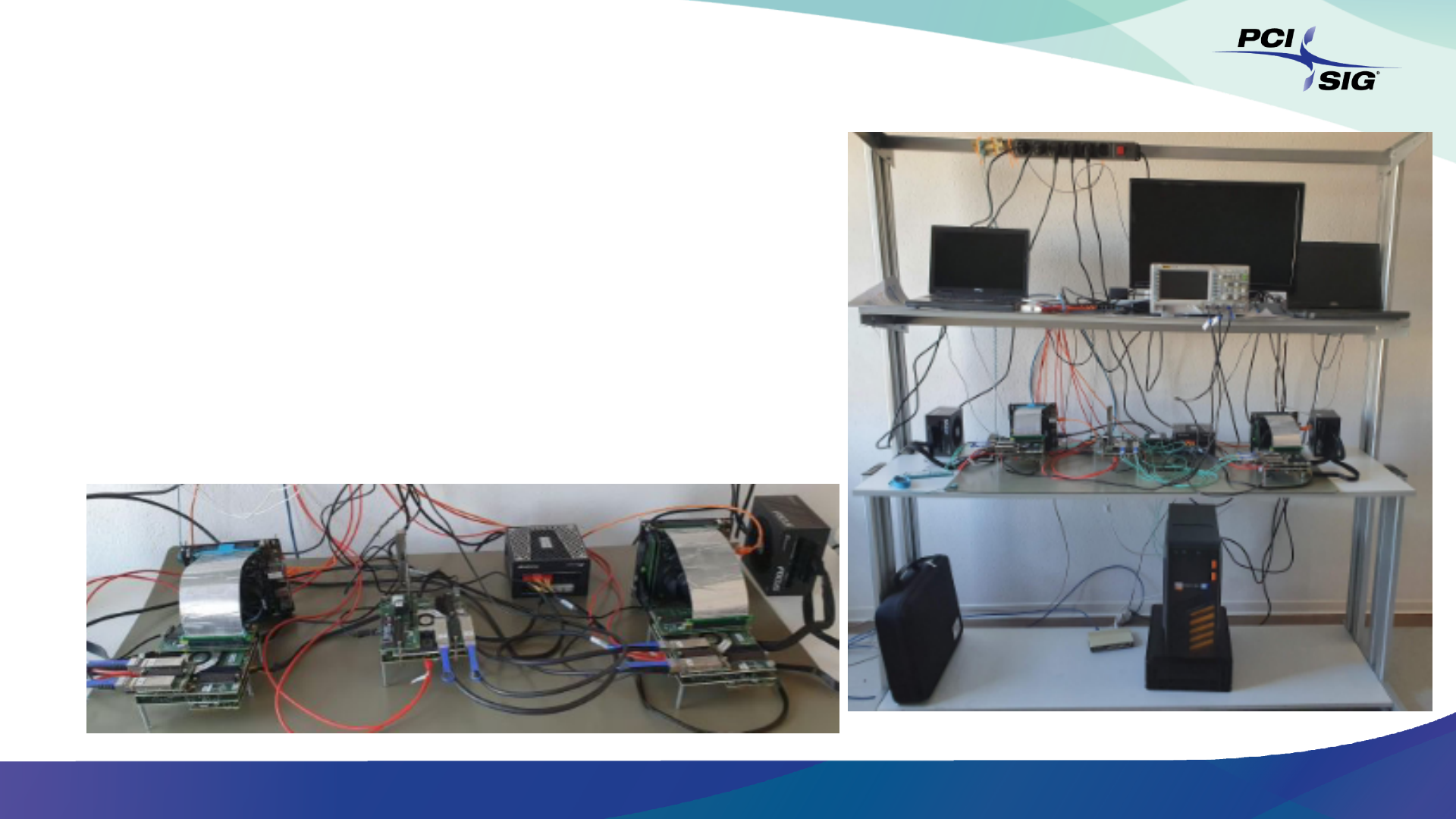

PCIe-over-TSN “Labcar”

25

Apr 19 2021

• In-vehicle connectivity is quickly evolving, driven by cost/performance and compliance

• Migration towards centralized so-called Zone-Based Architectures

• PCIe key choice for short-distance local connect between CPUs, GPUs, FPGAs, SoCs

• A layered stack of open-standard protocols extends reach of PCIe over real-time

Ethernet / Automotive Ethernet

• Implementation as a digital circuit delivers rebust behavior at deterministic, low

latencies

Conclusion
