Platform Choices for FPGA-Based
In-Network Compute Acceleration
Endric Schubert, Ph.D.
CTO
Missing Link Electronics
San Jose, CA April 26-28, 2022
Key Contributors
Alex Forencich, Ph.D. - UC San Diego
Ulrich Langenbach, Dir. Eng. Missing Link Electronics
2
Dr. David Boggs
1950 - 2022
Co-Inventor of
Ethernet
3
San Jose, CA April 26-28, 2022
Backgrounder MLE
Mission: “If It Is Packets, We Make It Go Faster!”
High-Performance (Embedded) Compute & Connected Systems-of-Systems
• PCIe (CXL, NVMe)
• Ethernet (TCP/IP, TSN)
• Audio/Video (HDMI, SDI)
4
San Jose, CA April 26-28, 2022
MLE Technology & Manufacturing Partnerships
5
San Jose, CA April 26-28, 2022

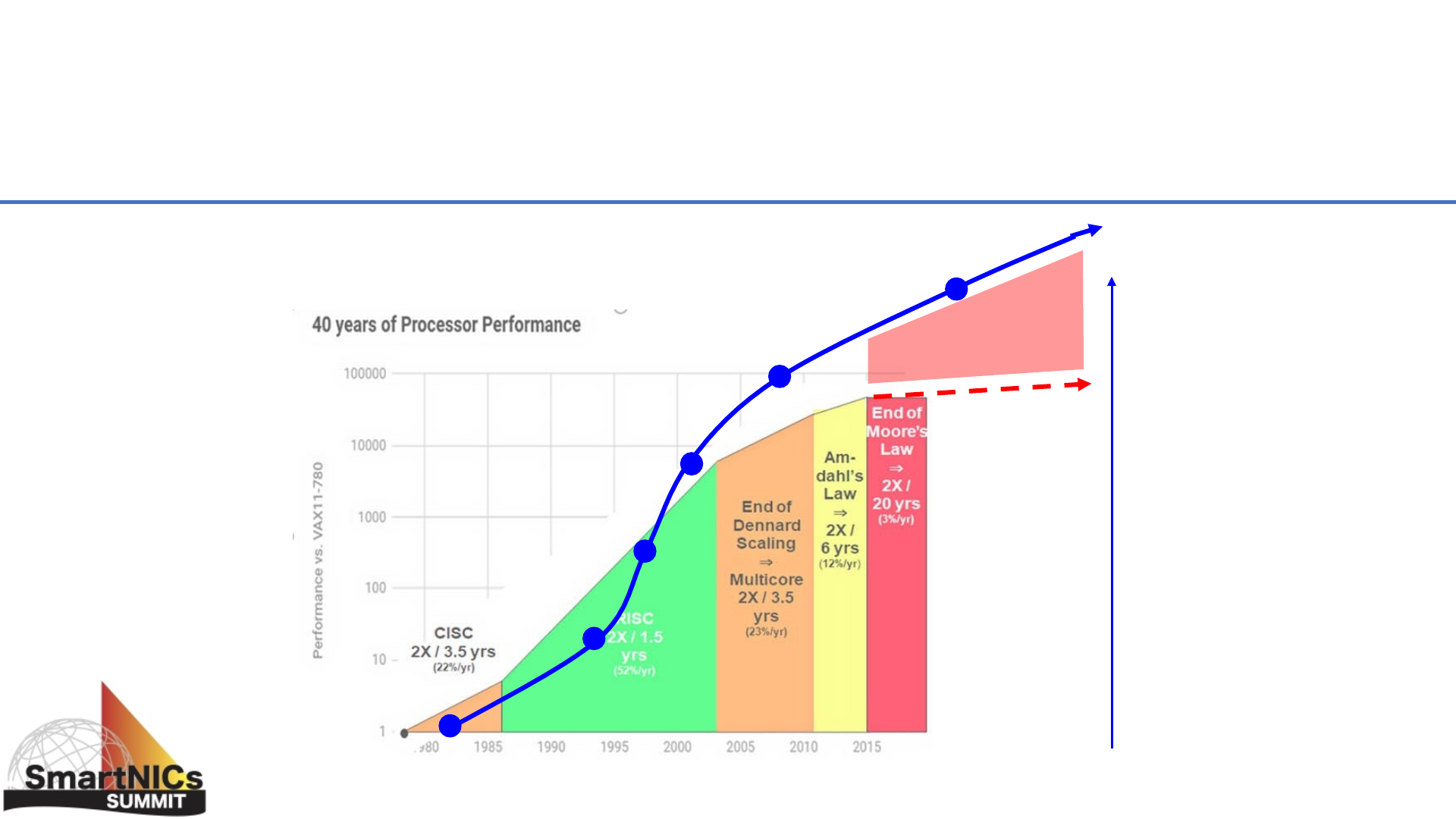

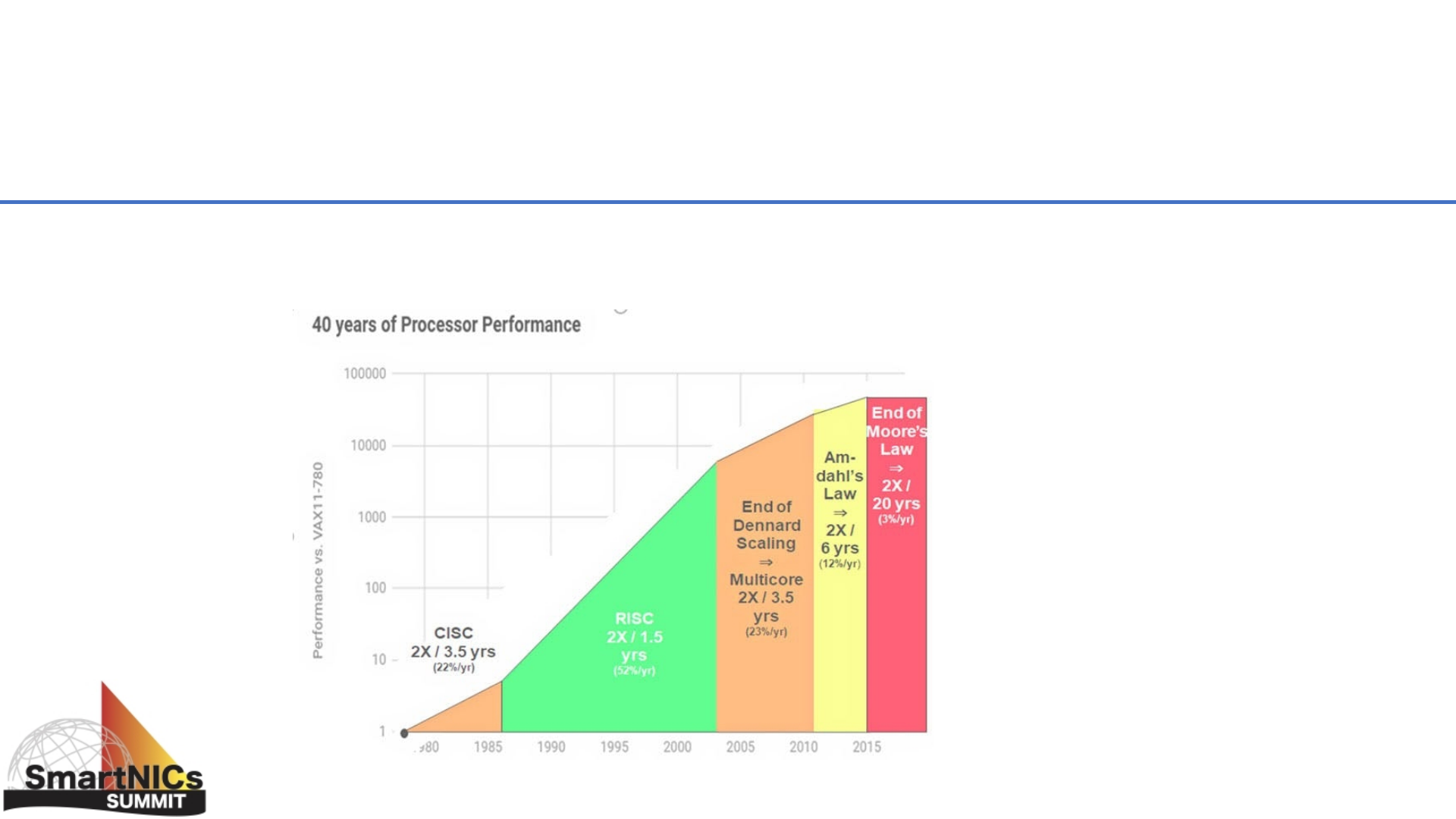

The Need for Domain-Specific Architectures
7
San Jose, CA April 26-28, 2022
Network Port Speeds Outstrip CPU Performance
8
100 Mbps
1 Gbps
10 Gbps
100 Gbps
800 Gbps
10 Mbps
Performance Gap
San Jose, CA April 26-28, 2022

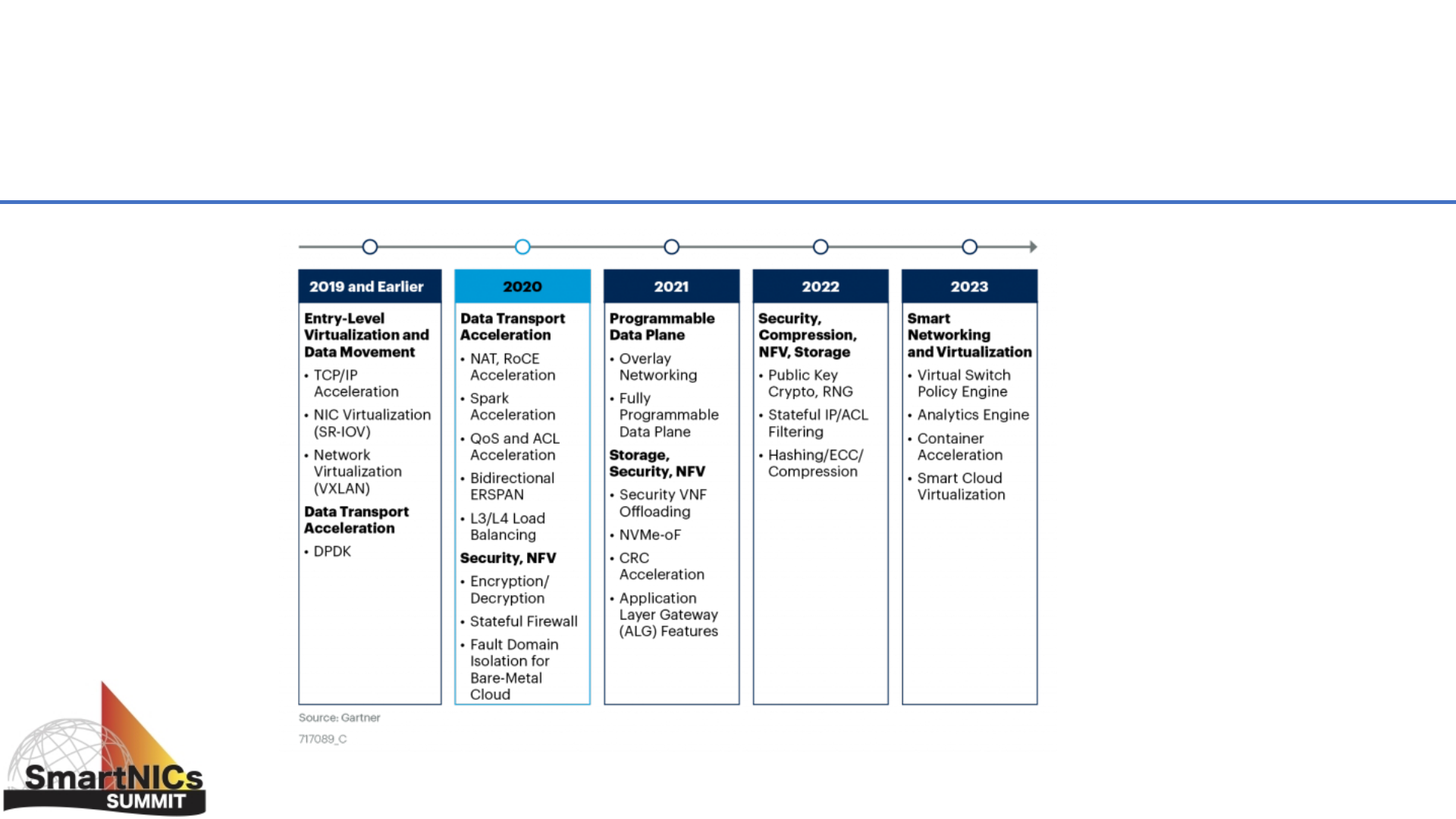

Evolution of Function Accelerators / SmartNICs
9
San Jose, CA April 26-28, 2022
NPAP
Corundum
Platforms to Reduce Complexity & to De-Risk
10
CPU
SW
FPGA
“SW”
Acceleration

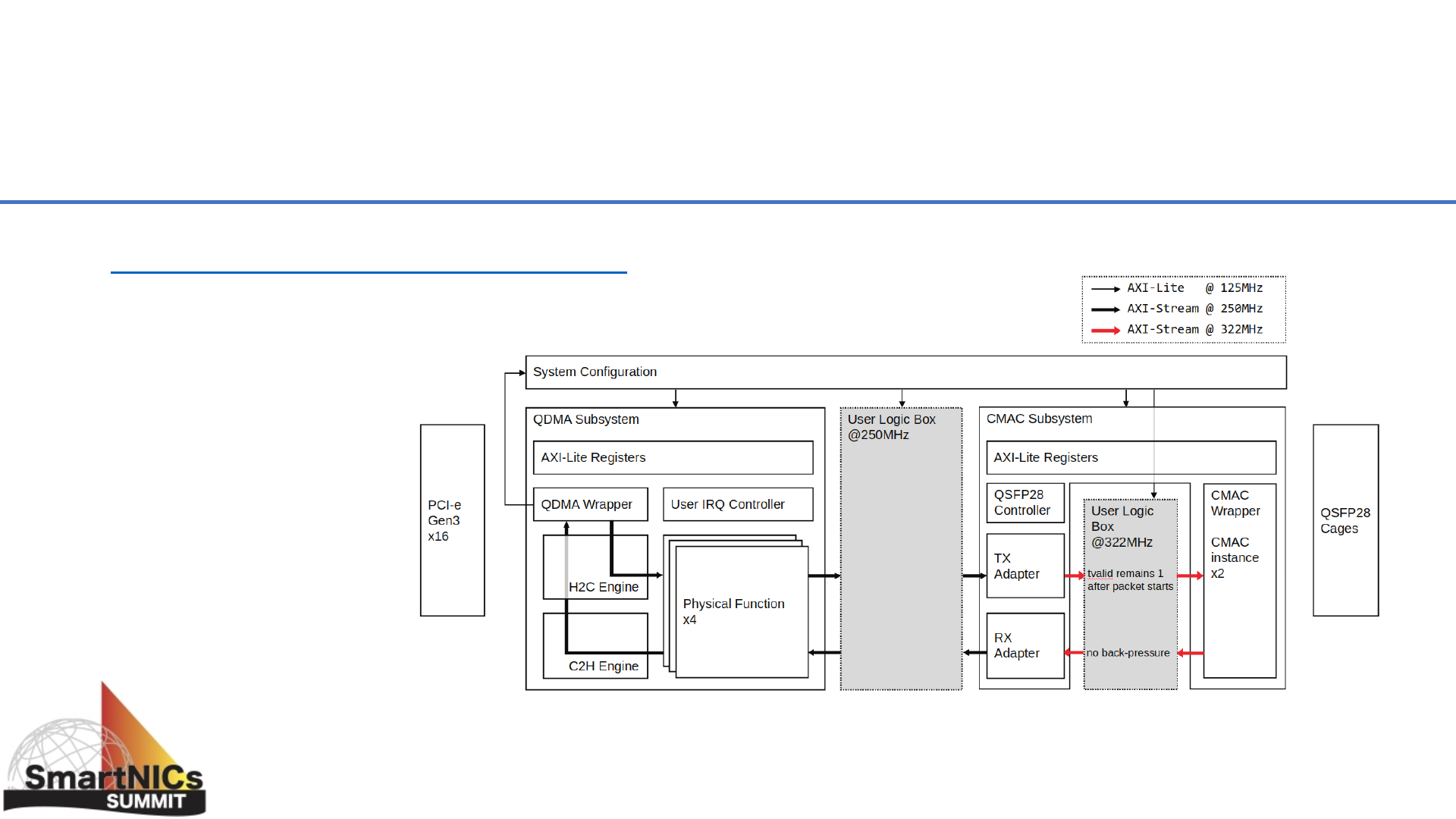

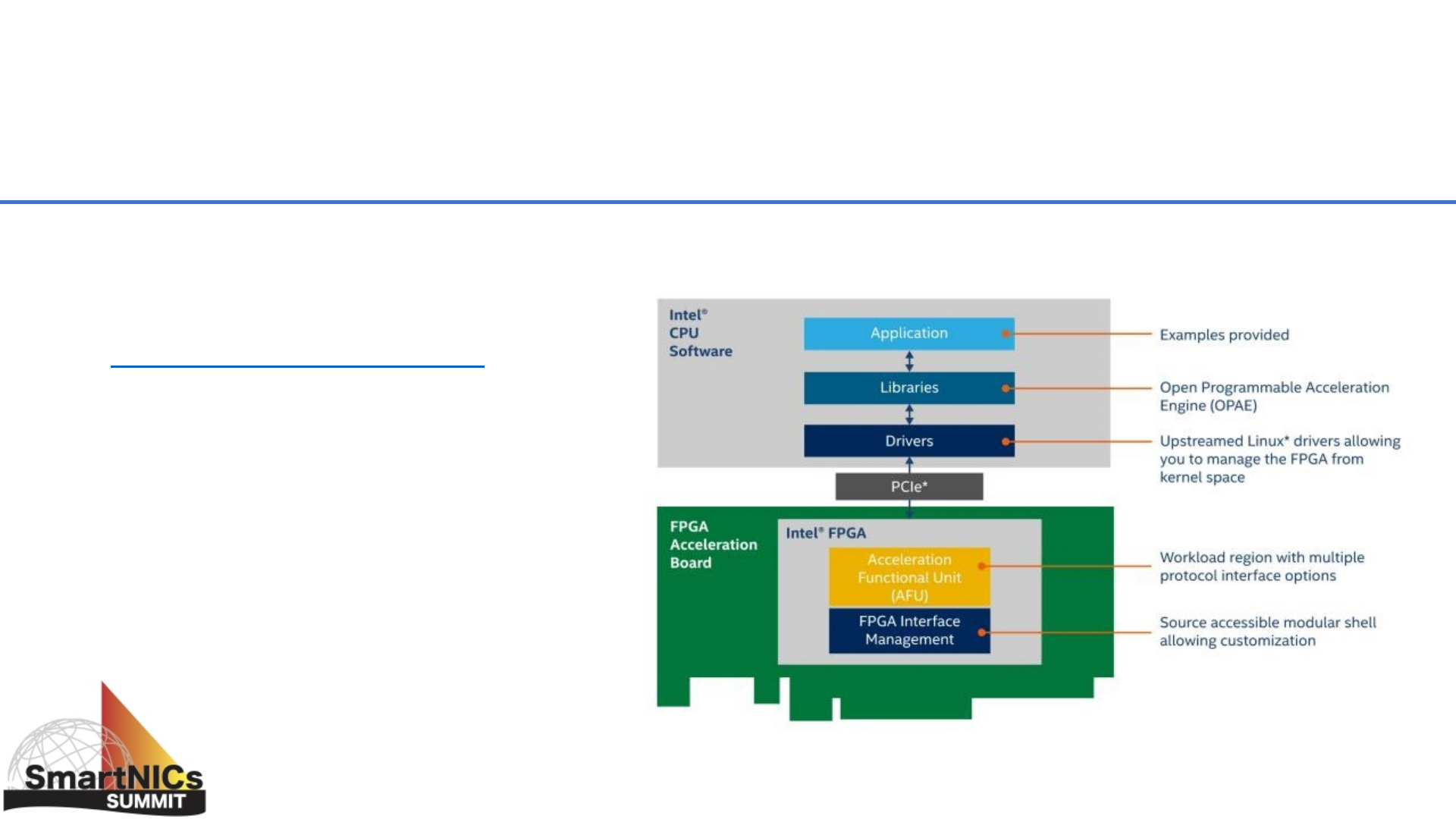

OpenNIC
IOFS
Linux kernel DPDK
FPGA programming requires special expertise
need for high levels of optimization which makes “App Store” approach difficult.
⇒ Platforms enable small expert teams to deliver solutions more rapidly!
San Jose, CA April 26-28, 2022

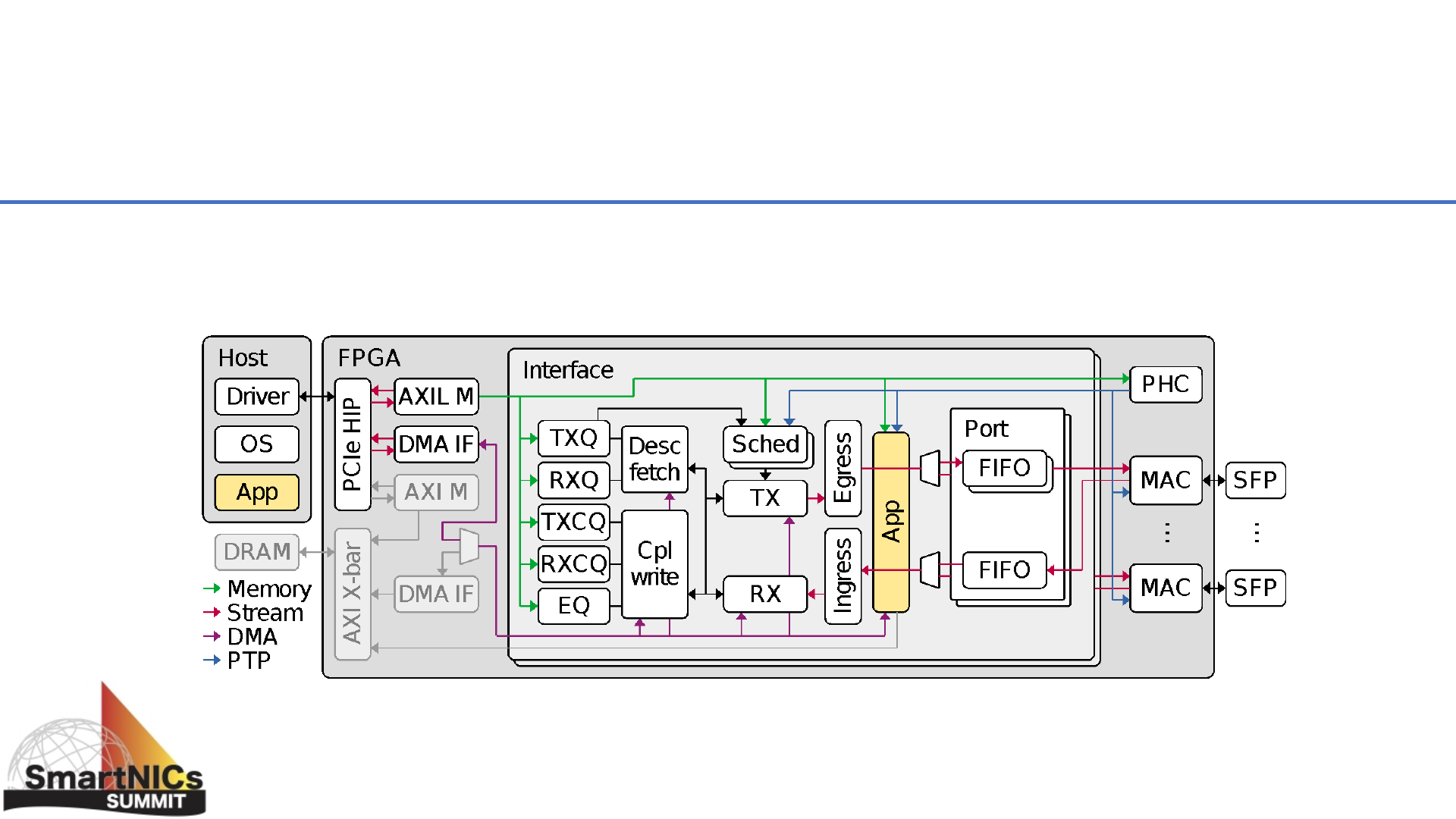

Corundum Architectures
11
Open-source, FPGA-based NIC and platform for in-network compute
Full System Stack implementing a Data Stream Oriented Architecture
San Jose, CA April 26-28, 2022
Corundum Features
• Open-source, high-performance, FPGA-based NIC
– PCIe Gen3 x16, multiple 10G/25G/100G Ethernet ports
– Fully custom, high-performance DMA engine; Linux driver
• Application block for custom logic
– Access to network traffic, DMA engine, on-card RAM, PTP time
• Fine-grained traffic control
– 10,000+ hardware queues, customizable schedulers
• PTP timestamping and time synchronization
• Management features (FW update, etc.)
• Wide device support (AMd/Xilinx and Intel)
• Source code: https://github.com/corundum/corundum
12
San Jose, CA April 26-28, 2022

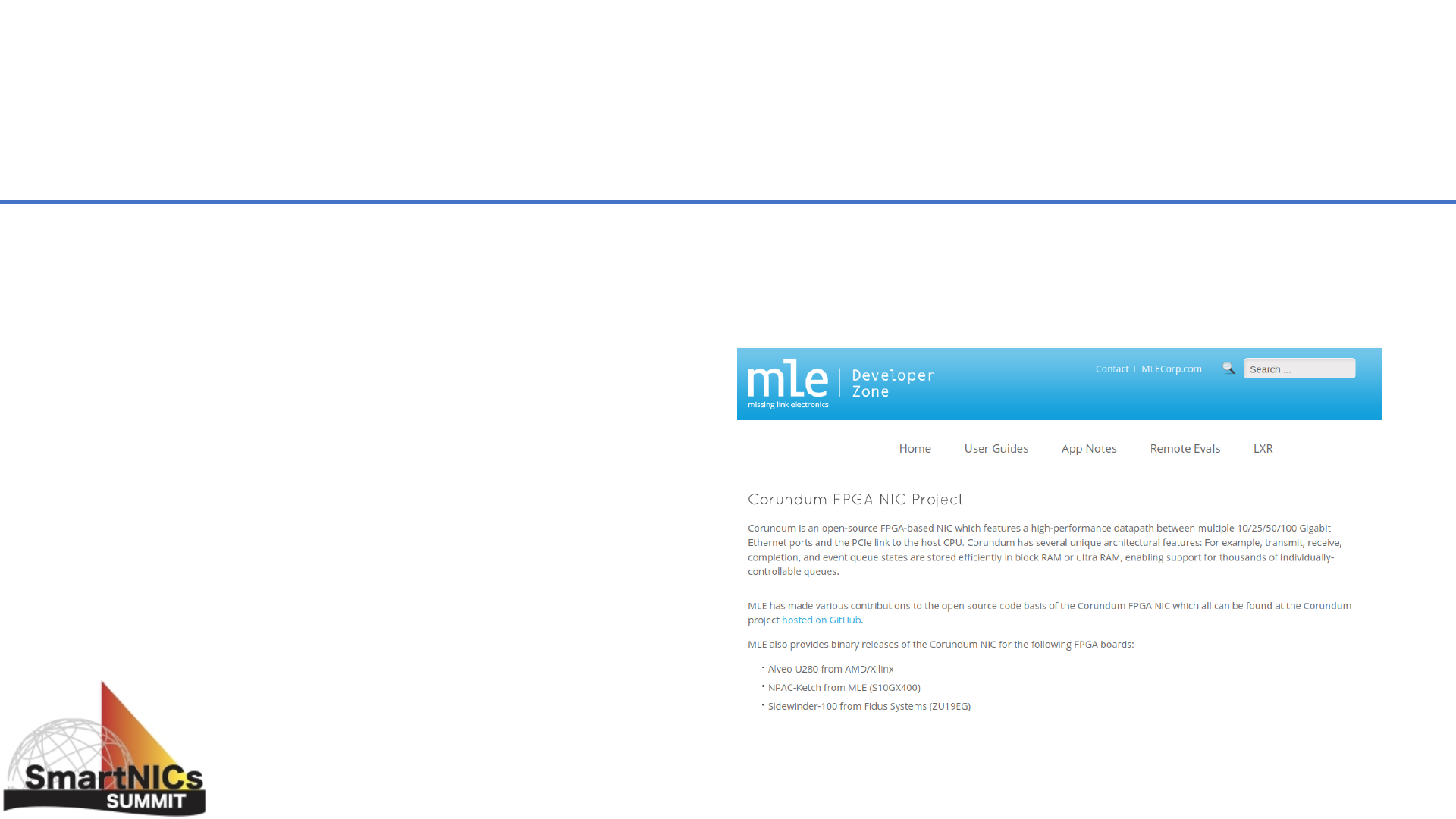

Corundum Hardware Support & Services
● Alpha Data ADM-PCIE-9V3 (Xilinx Virtex UltraScale+ XCVU3P)
● Exablaze ExaNIC X10/Cisco Nexus K35-S (Xilinx Kintex
UltraScale XCKU035)
● Exablaze ExaNIC X25/Cisco Nexus K3P-S (Xilinx Kintex
UltraScale+ XCKU3P)
● Silicom fb2CG@KU15P (Xilinx Kintex UltraScale+ XCKU15P)
● NetFPGA SUME (Xilinx Virtex 7 XC7V690T)
● Intel Stratix 10 MX dev kit (Intel Stratix 10 MX
1SM21CHU1F53E1VG)
● Xilinx Alveo U50 (Xilinx Virtex UltraScale+ XCU50)
● Xilinx Alveo U200 (Xilinx Virtex UltraScale+ XCU200)
● Xilinx Alveo U250 (Xilinx Virtex UltraScale+ XCU250)
● Xilinx Alveo U280 (Xilinx Virtex UltraScale+ XCU280)
● Xilinx VCU108 (Xilinx Virtex UltraScale XCVU095)
● Xilinx VCU118 (Xilinx Virtex UltraScale+ XCVU9P)
● Xilinx VCU1525 (Xilinx Virtex UltraScale+ XCVU9P)
● Xilinx ZCU106 (Xilinx Zynq UltraScale+ XCZU7EV)
13
Growing list pre-compiled and tested
systems stacks for COTS FPGA Cards
San Jose, CA April 26-28, 2022

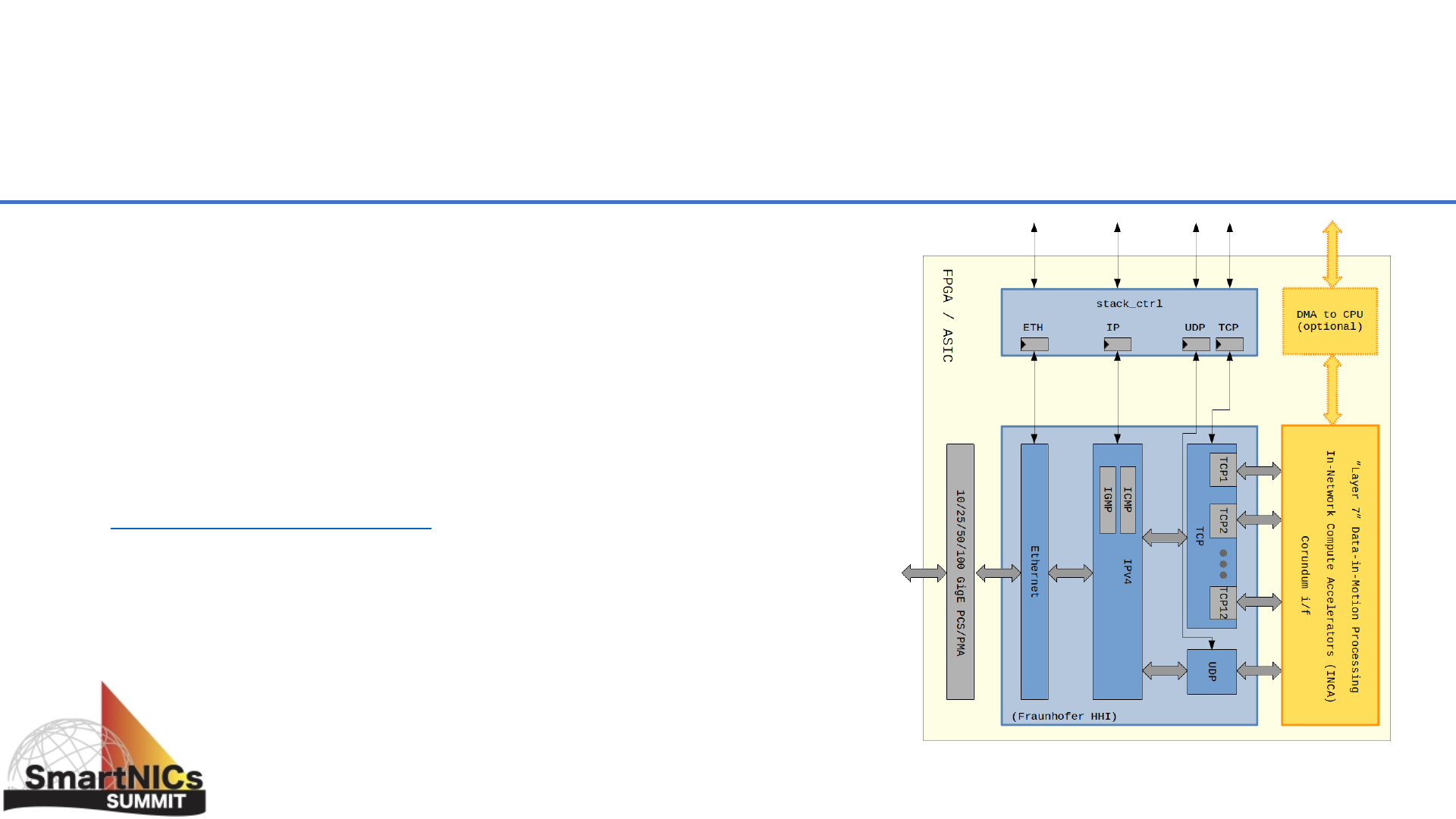

NPAP - A TCP/IP Full Accelerator
● Interface to 1 / 2.5 / 5 / 10 / 25 / 40 / 50 / 100 Gigabit
Ethernet
● Bidirectional datapath width 128 bit each
● Line rate >60 Gbps per individual TCP session in FPGA
● Line rate >100 Gbps per individual TCP session in ASIC
● Low round trip time NPAP-to-NPAP
700 nanoseconds for 100 Bytes RTT
http://MLEcorp.com/NPAP
14
San Jose, CA April 26-28, 2022
NPAP Bandwidth & Latency
Ongoing Engineering Work to Optimize Bandwidth
and Latency:
• Tuning for Intel Hyperflex
Was 40 Gbps (@ 311 MHz)
Now 67 Gbps (@525 MHz)
• Next tune for AMD/Xilinx Versal

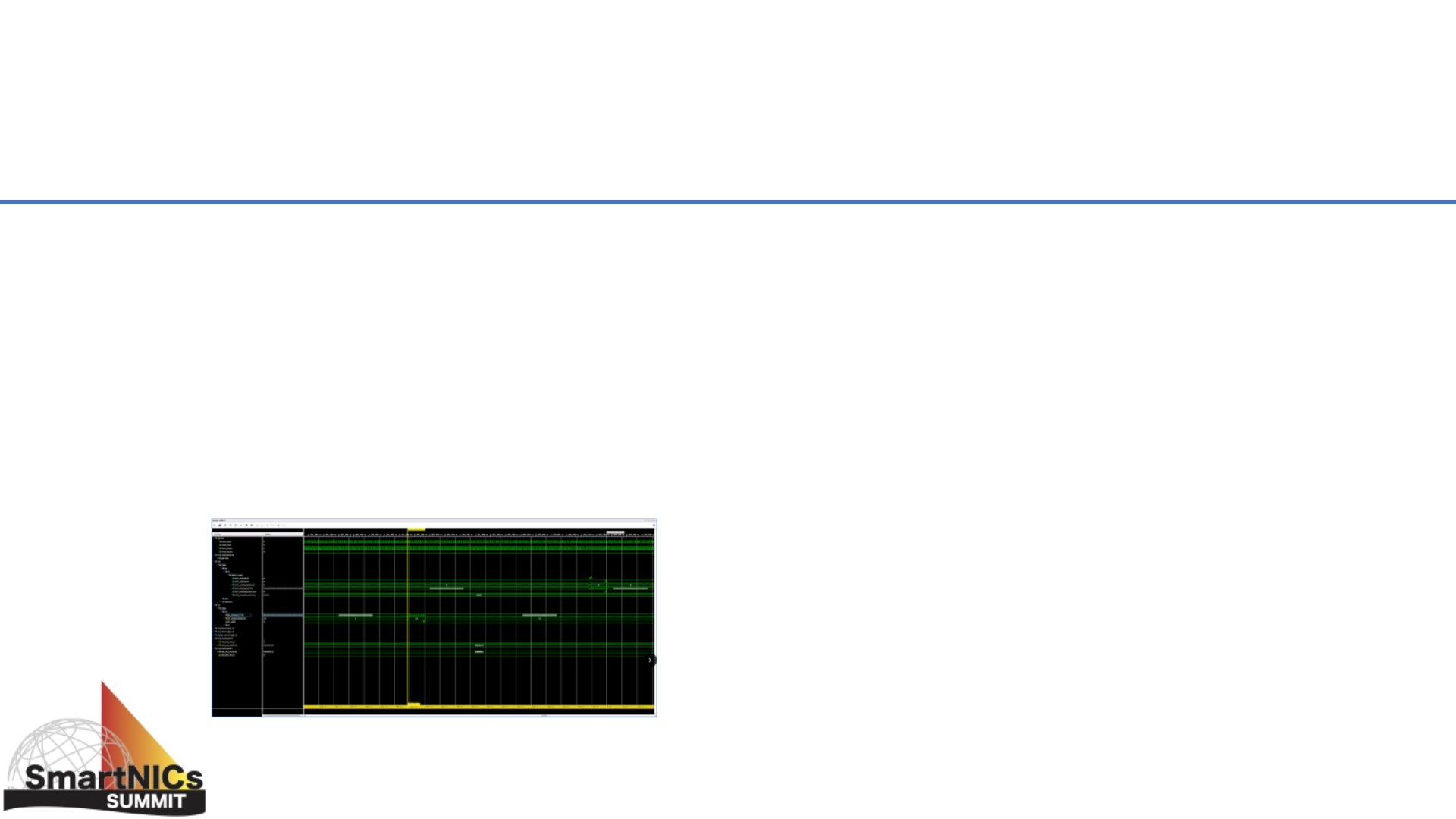

Verification & Latency Analysis using Siemens Questa
15
Continuous integration:
● 10G on in Xilinx ZCU102 with ZU9EG MPSoC
● 10G Xilinx ZC706 with Zynq-7045 SoC
● 10G on Intel Cyclone 10 GX Development Kit
● 10G on Intel Stratix 10 GX Development Kit
● 10G on Microsemi PolarFire MPF300-EVAL-KIT
● 25G on Xilinx ZCU111 with ZU28EG RFSoC
● 25G on Fidus Sidewinder 100 ZU19EG MPSoC
● 25G/100G on Xilinx Versal
● 25G/100G on Intel Agilex
San Jose, CA April 26-28, 2022

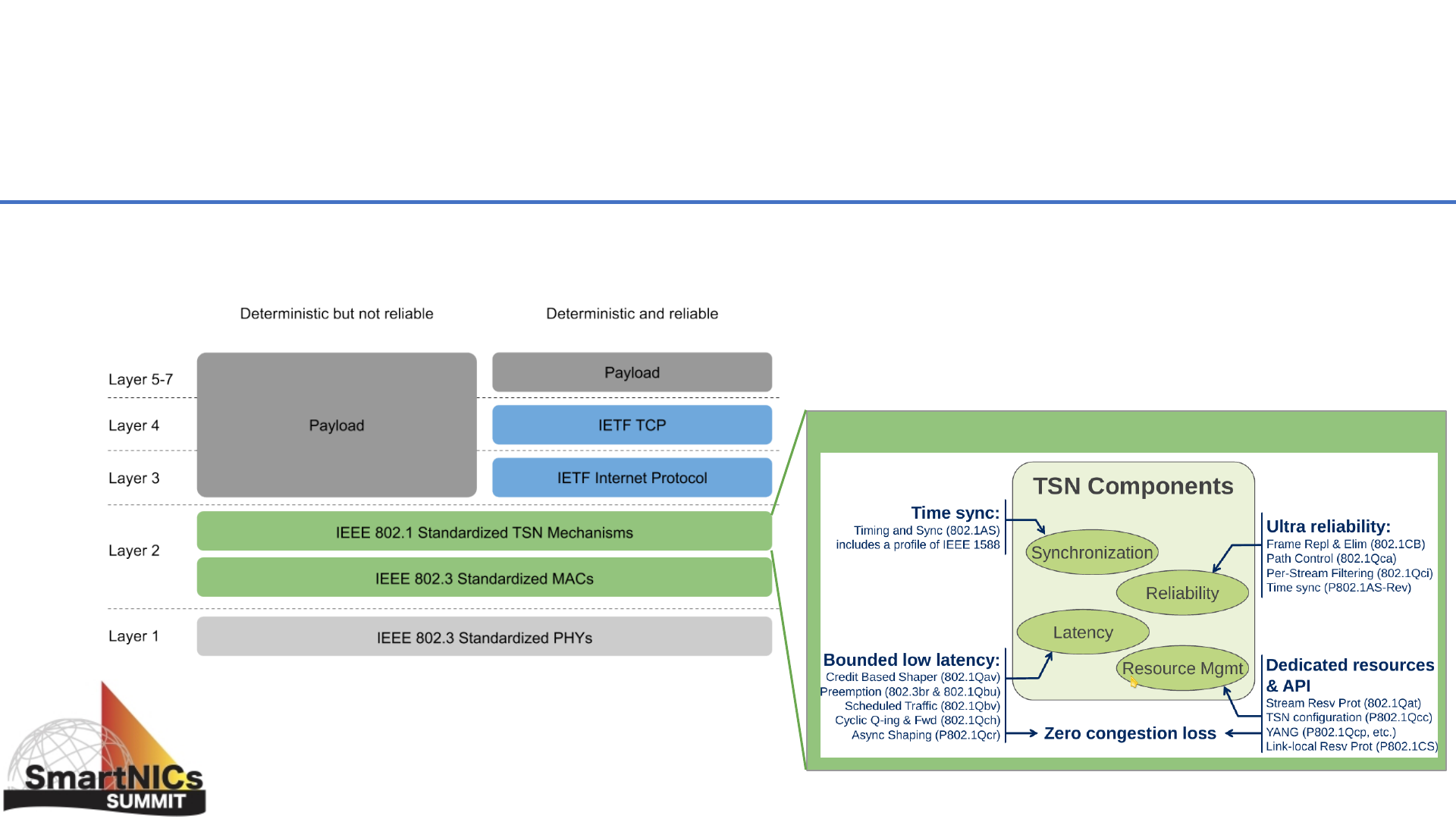

Deterministic Networking With NPAP + TSN
Following ideas from IETF RFC8655 “DetNet”
16
Courtesy: Janos.Farkas@ericsson.com
San Jose, CA April 26-28, 2022

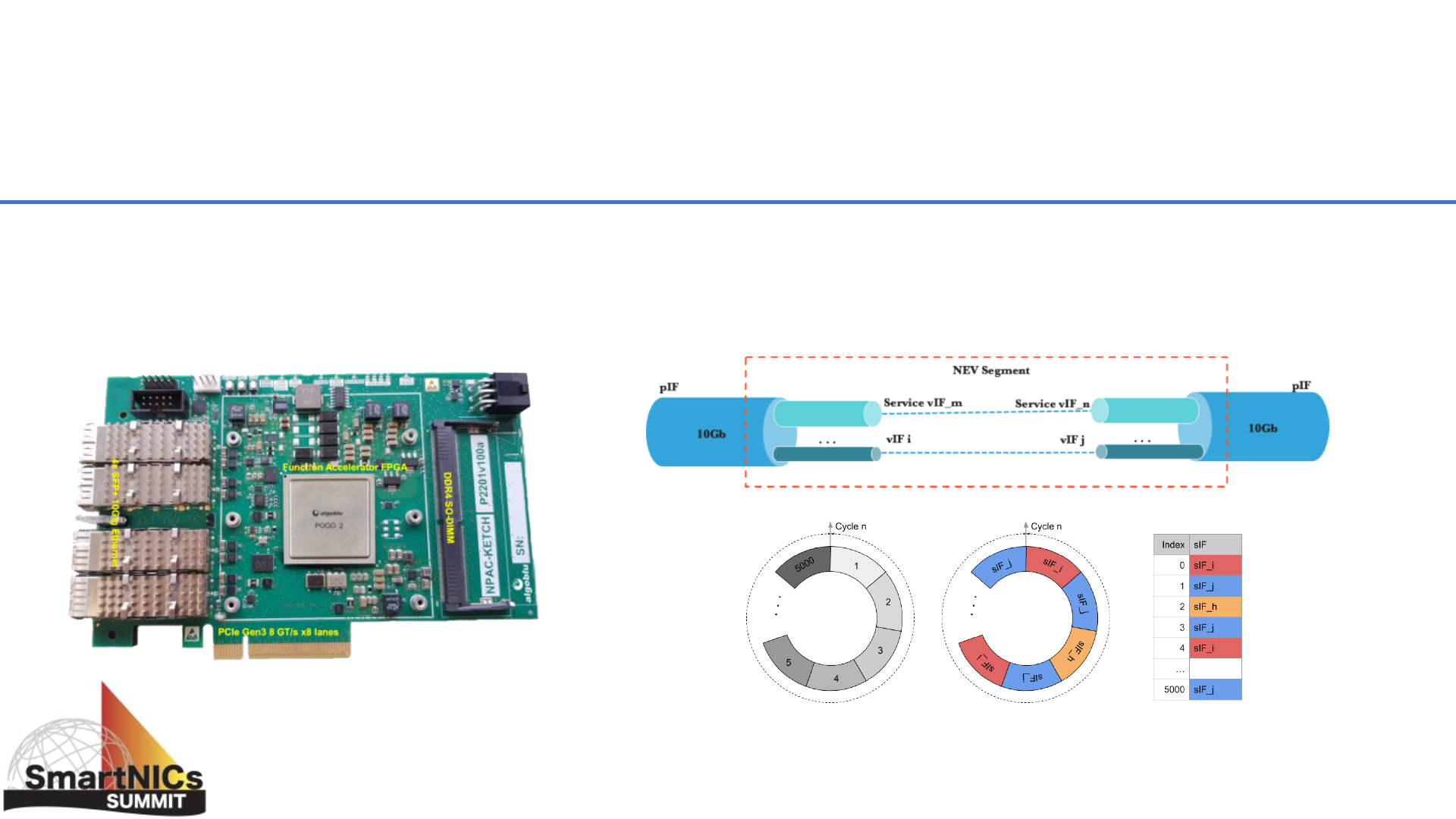

Use case: FPGA SmartNIC for Algoblu, a NaaS provider
4x 10 GigE, PCIe Gen3 x8
Cost Optimized FPGA
20
Network Element Virtualization (NEV) implementation
targeting for TSN low-latency applications
San Jose, CA April 26-28, 2022

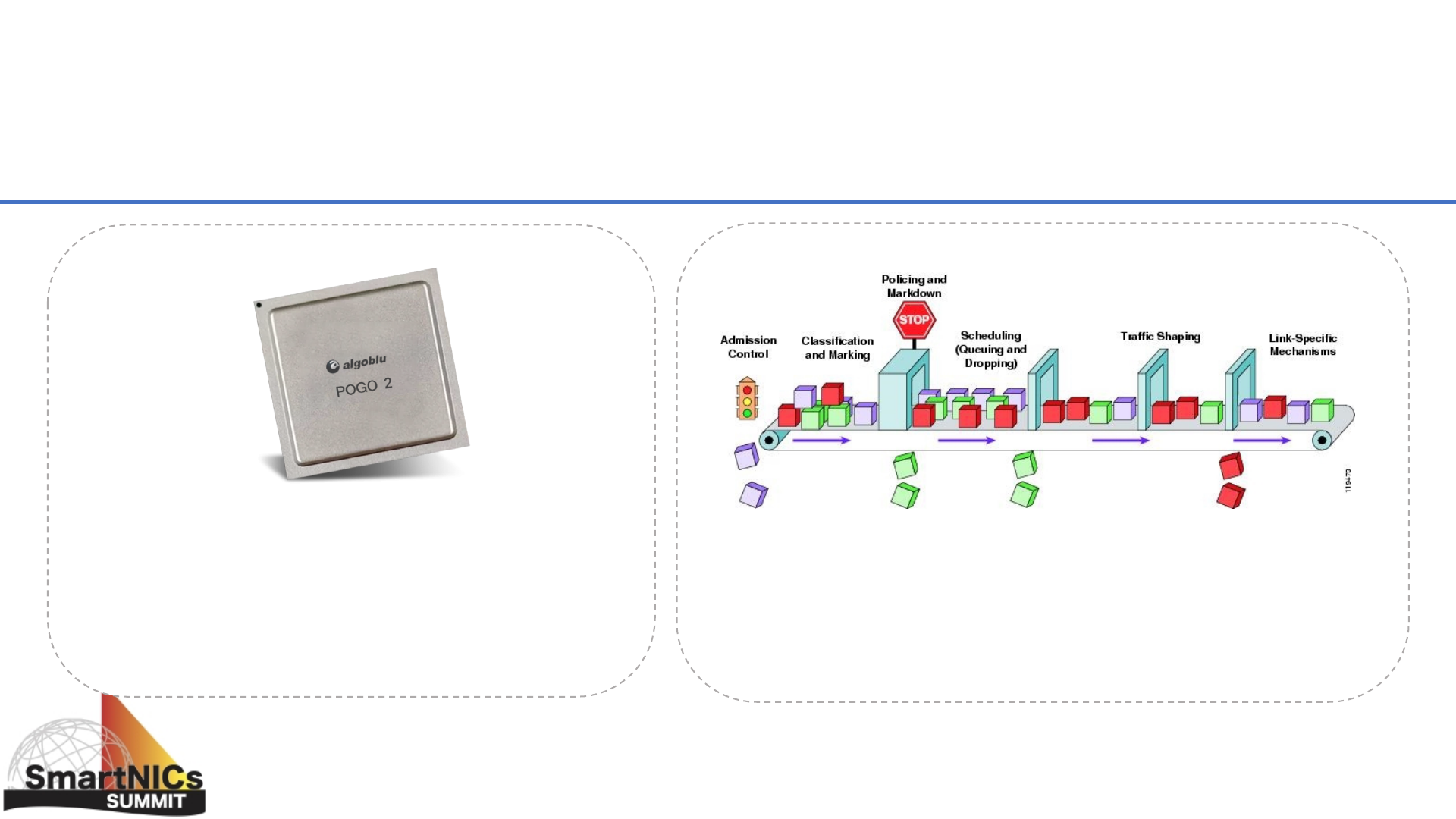

TSN&NEV implementation on a FPGA
▪ TDMA based hardware(FPGA) control
▪ Much more simpler configurations
▪ Strict SLA guarantee
▪ TSN low-latency application support
▪ Software based control
▪ Complex configurations and CPU intensive
▪ No strict SLA guarantee
San Jose, CA April 26-28, 2022

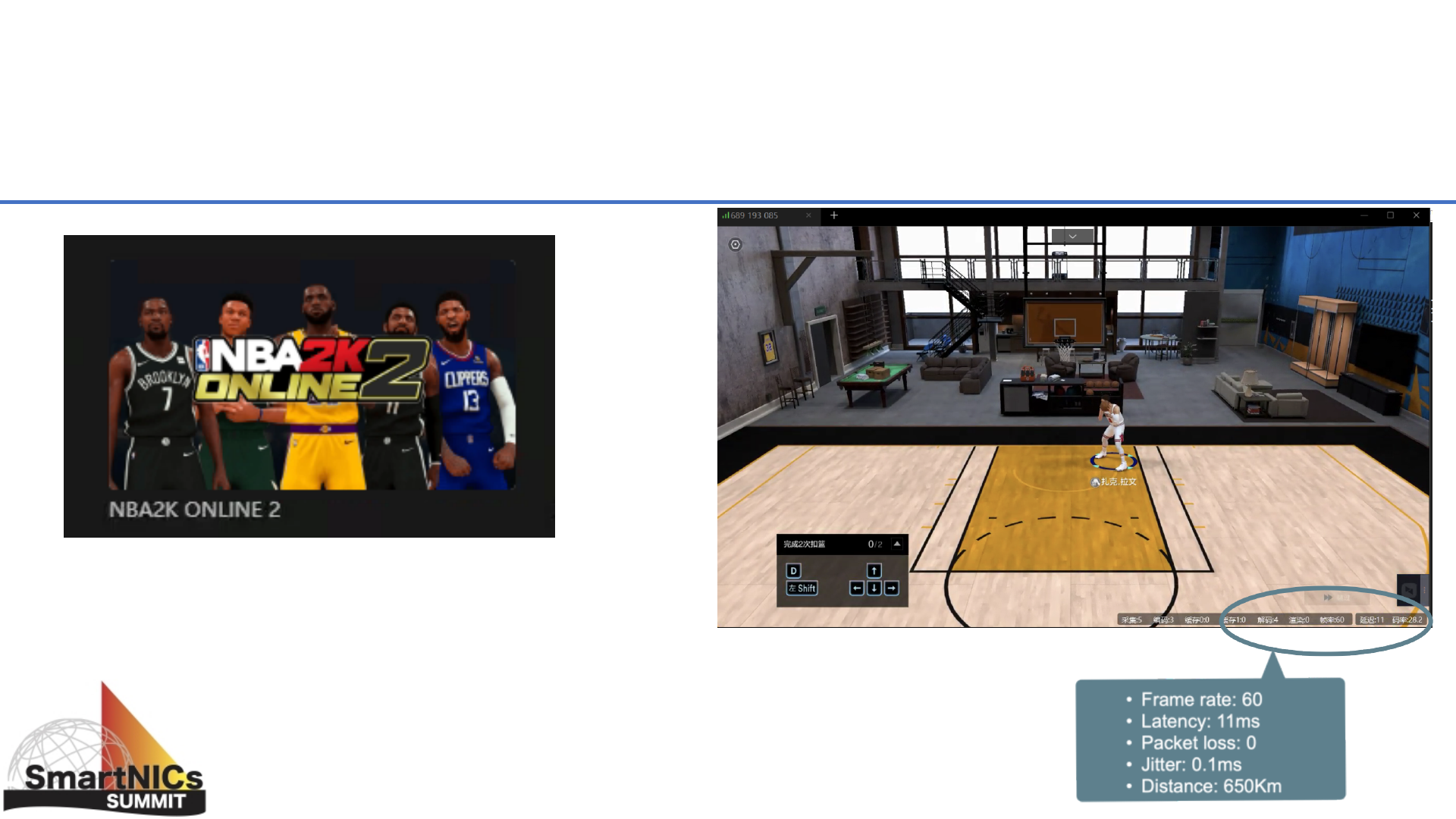

Use case: Algoblu application broadband service for cloud game
22
▪ End to end SLA guaranteed from player’s home to cloud game platform
▪ Dedicated bandwidth(30M), ultra low latency(11ms), zero packet loss
▪ Great gaming experience far beyond the Internet
San Jose, CA April 26-28, 2022
Conclusion
Freedom of Choice:
• Wide range of off-the-shelf FPGA cards available, more on the horizon
• Industry-wide collaboration starts producing useful (open source) platforms
Freedom from Choice (a’la Alberto Sangiovanni-Vincentelli):
• To be useful FPGA platforms must be complete
Hardware, “FPGA-ware” and Software
• Wedged between standards:
• open source SDN software at top level
• and IEEE Ethernet at bottom level
23
