How Bad is TCP?

(And What Are the Alternatives?)

Endric Schubert, Ph.D. endric@mle.biz

MLE Mission: “From Software to Silicon!”

High-Performance (Embedded) Compute & Connected Systems-of-Systems need “Offload Engines” for

better performance, lower and deterministic latency and improved energy efficiency.

Focus on standards such as PCIe, NVMe, Ethernet, TCP/UDP/IP, TSN.

Multi-Gigabit Real-Time Networking

Market & Technology Forces

6G Radio Integrated

Communication and

Sensing (ICAS)

Zone-Based In-Vehicle

Networking (Auto/TSN)

100G Real-time Backbone

for Virtualized PLC

(Robo/TSN)

Work Motivation

Systems-of-systems

● Tightly-coupled: i.e. distributed processing with microservices

● Loosely-connected via networks (which continuously are the bottleneck)

Need to optimize

● for power / energy efficiency

● for throughput

● for (deterministic) latency and real-time delivery

Domain-Specific Architectures:

● “Offload” (protocol) processing software onto silicon

but adhere to (defacto) standards and APIs

● Make networks more deterministic and Time-Sensitive

Presentation Outline

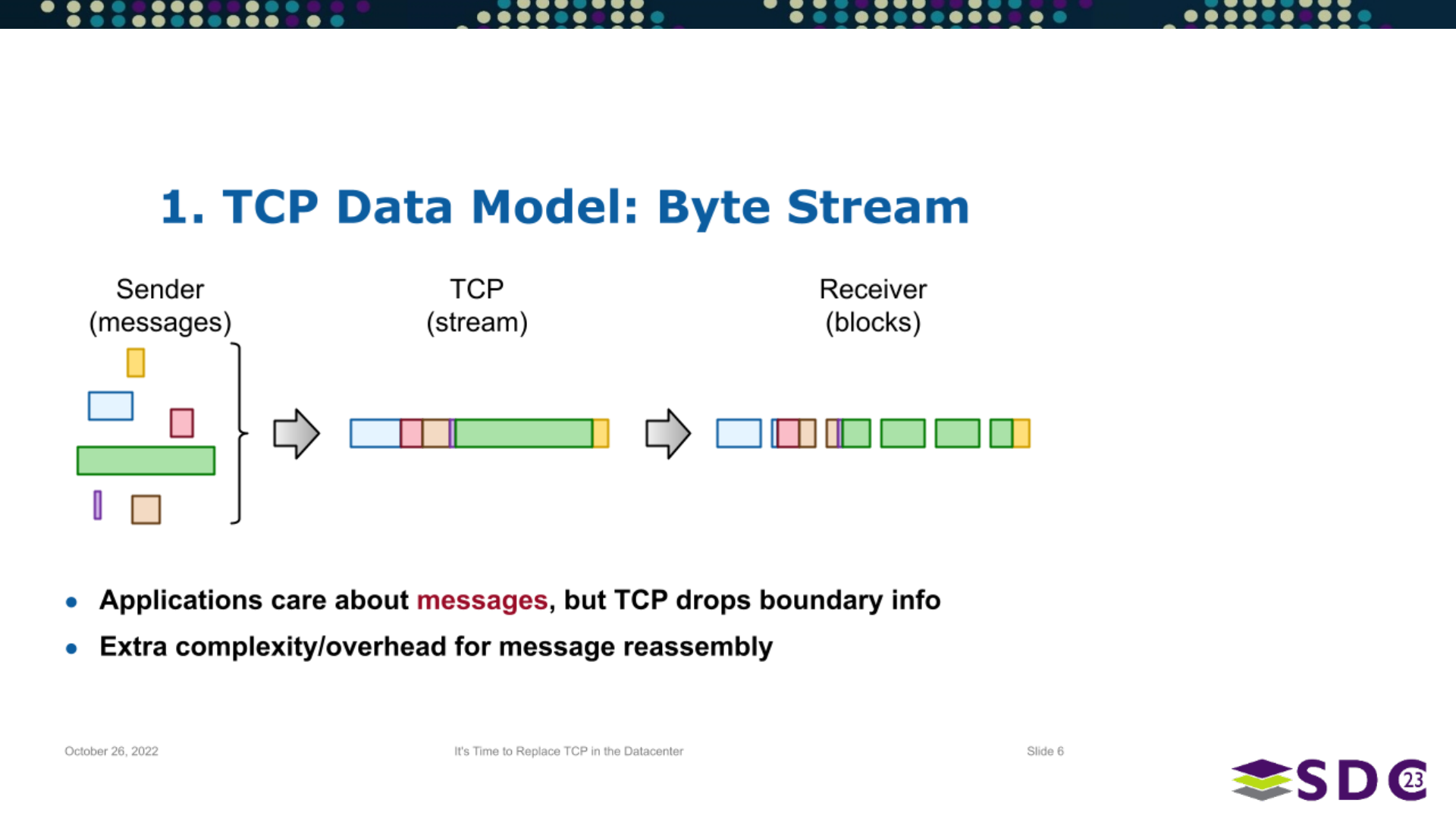

▪ How Bad is TCP?

▪ Computational Burden

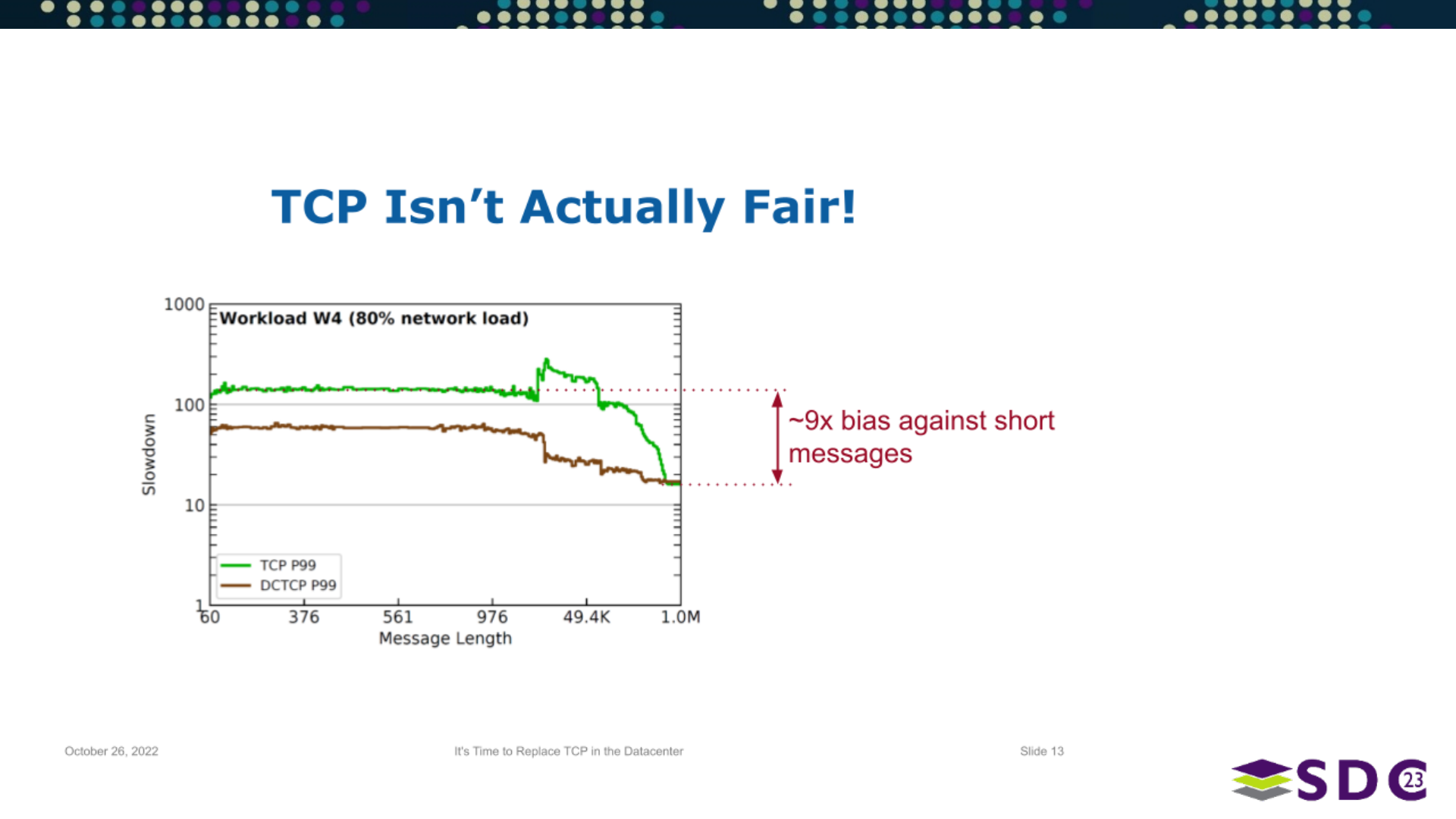

▪ Tail-end Latencies

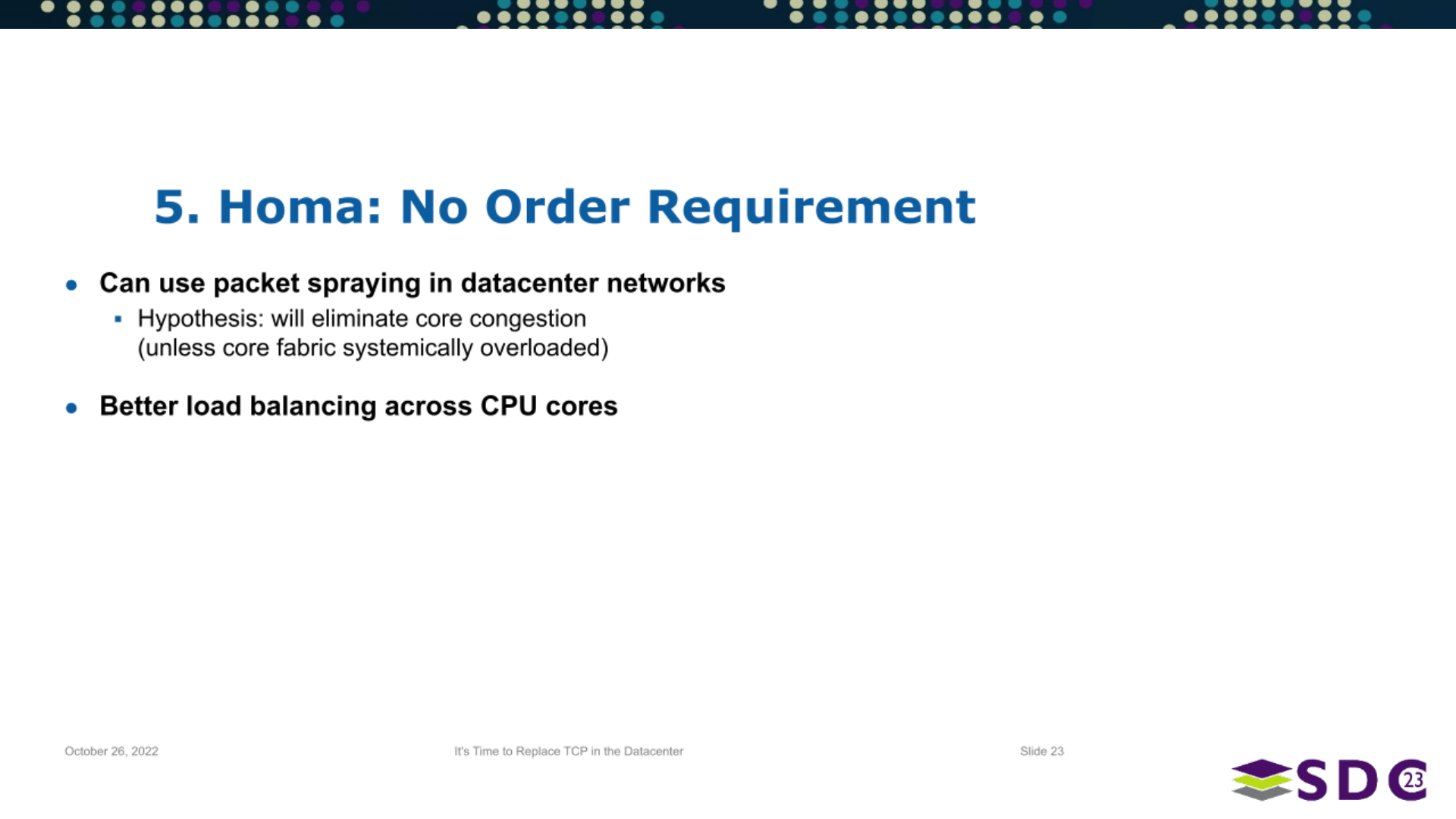

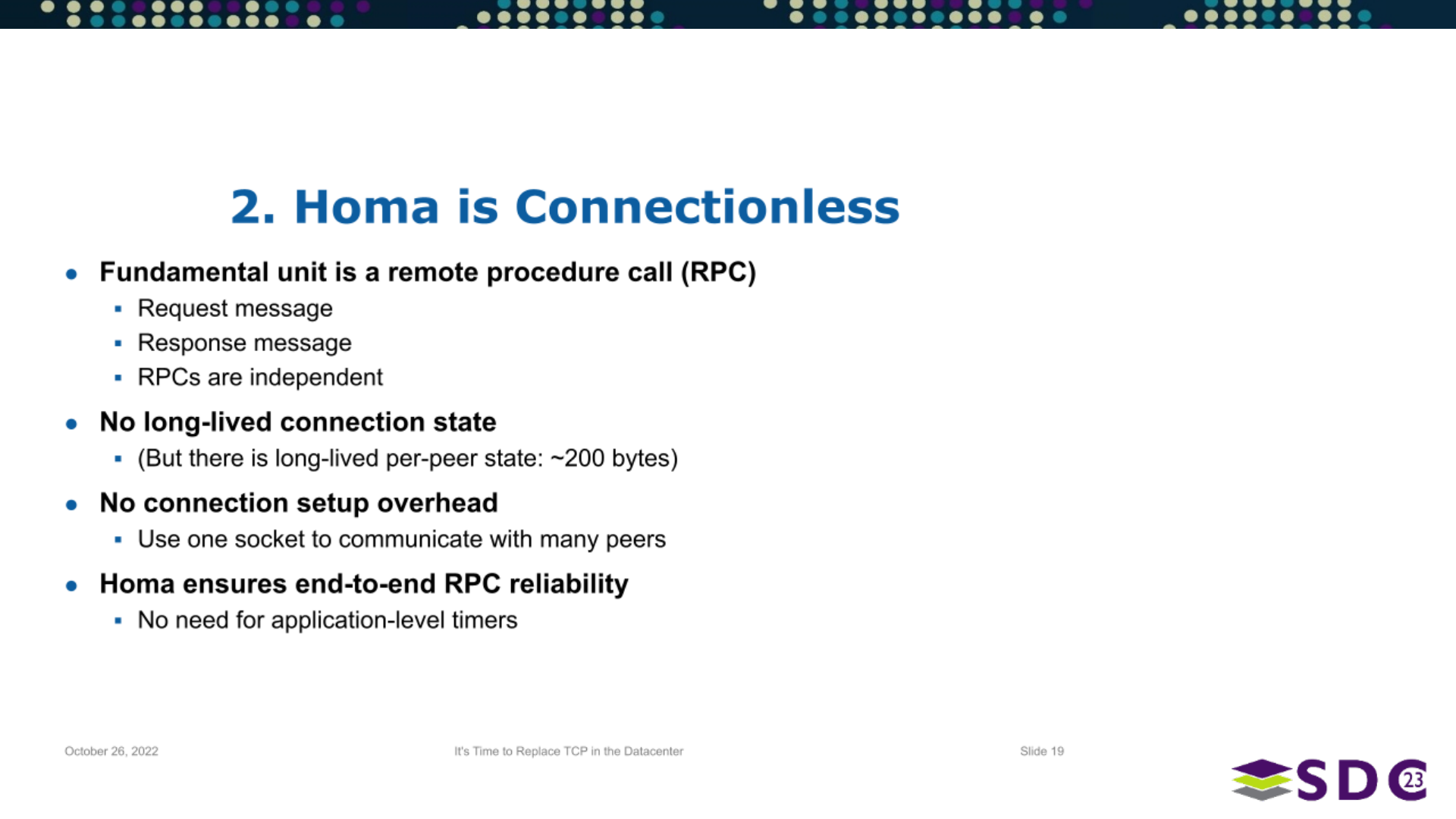

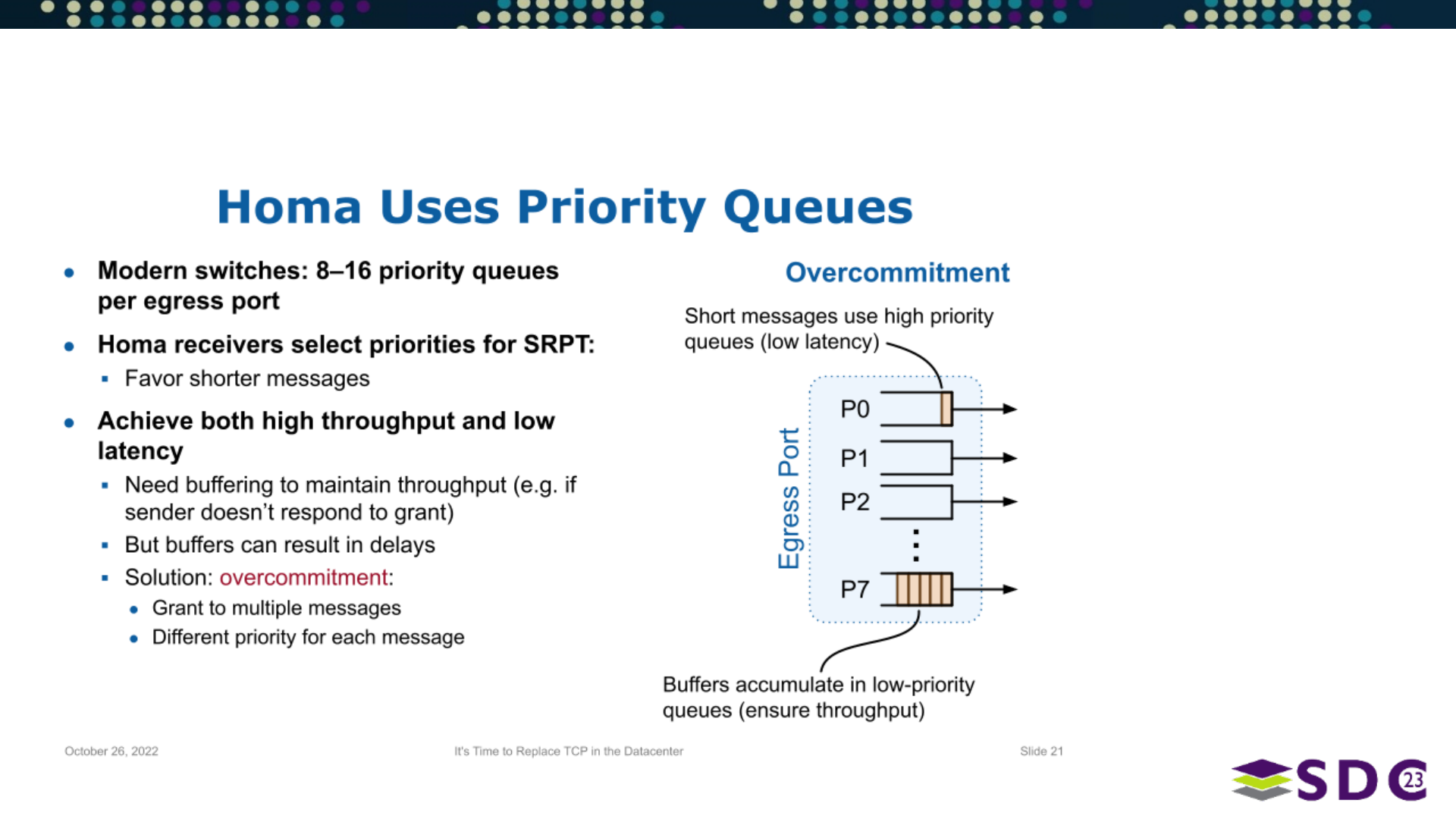

▪ What Are the Alternatives?

▪ Homa from John Ousterhout’s team at Stanford University

▪ QRP (Quad R P) - a Hardware Accelerated Version of Homa

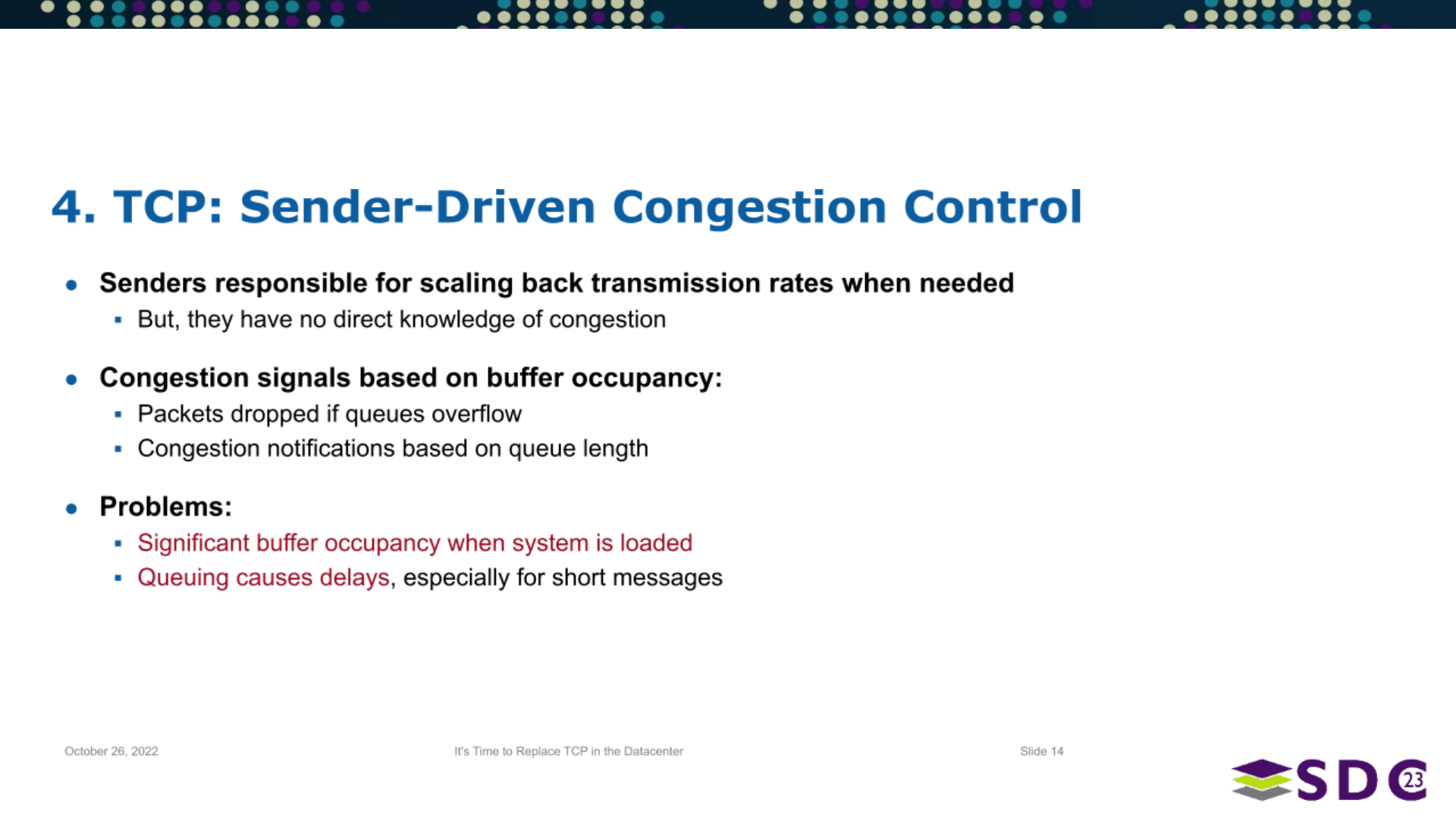

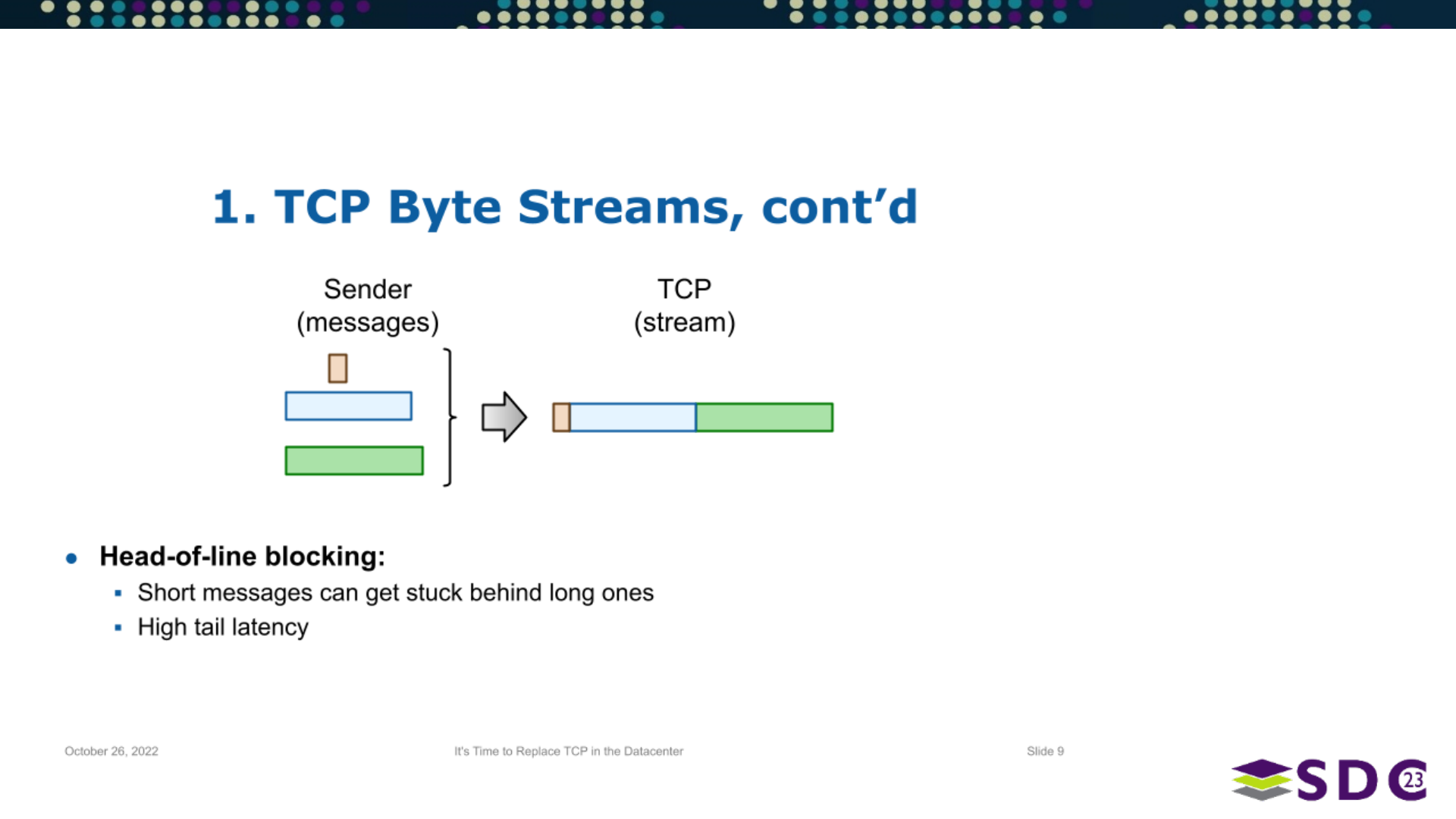

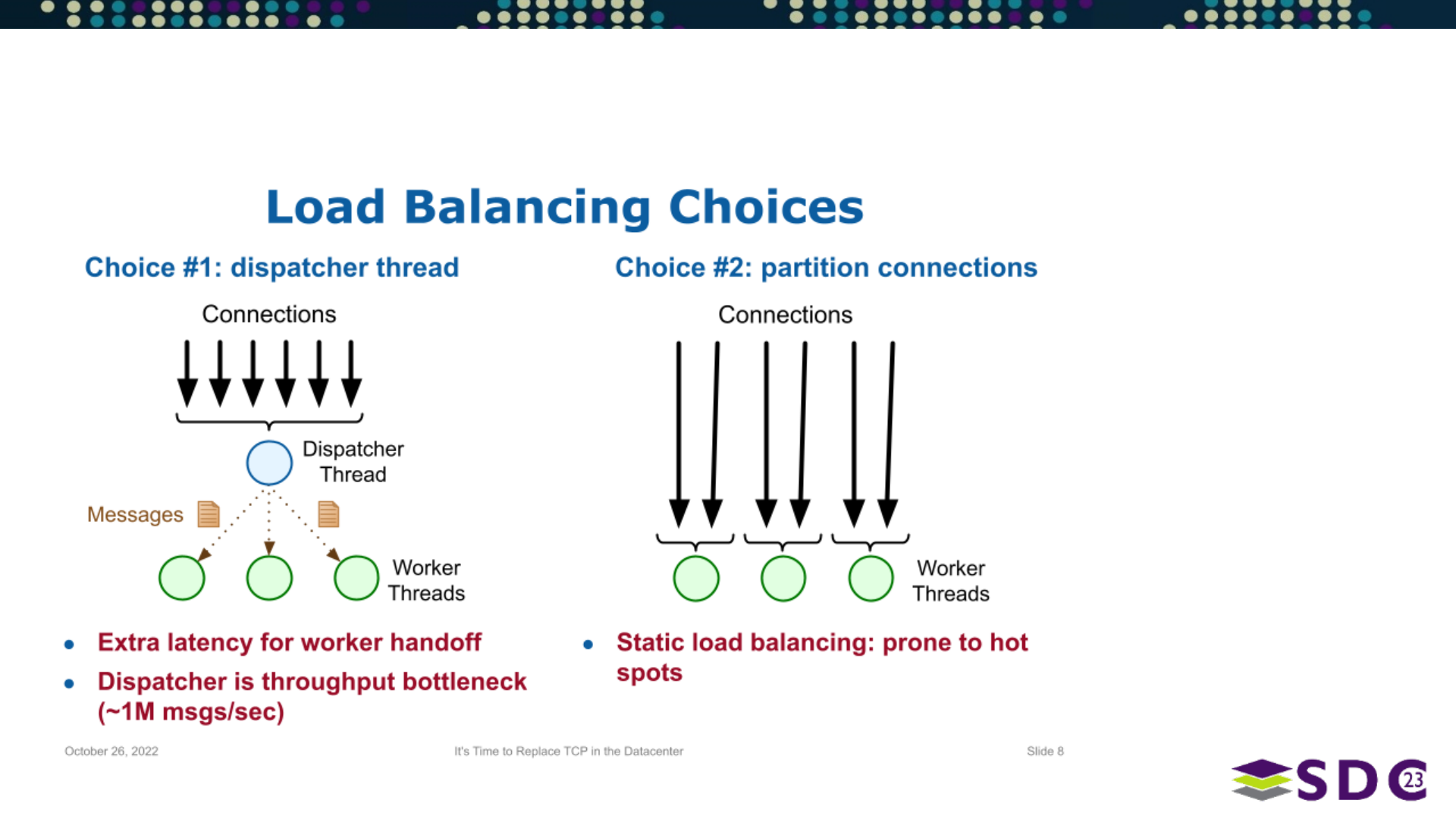

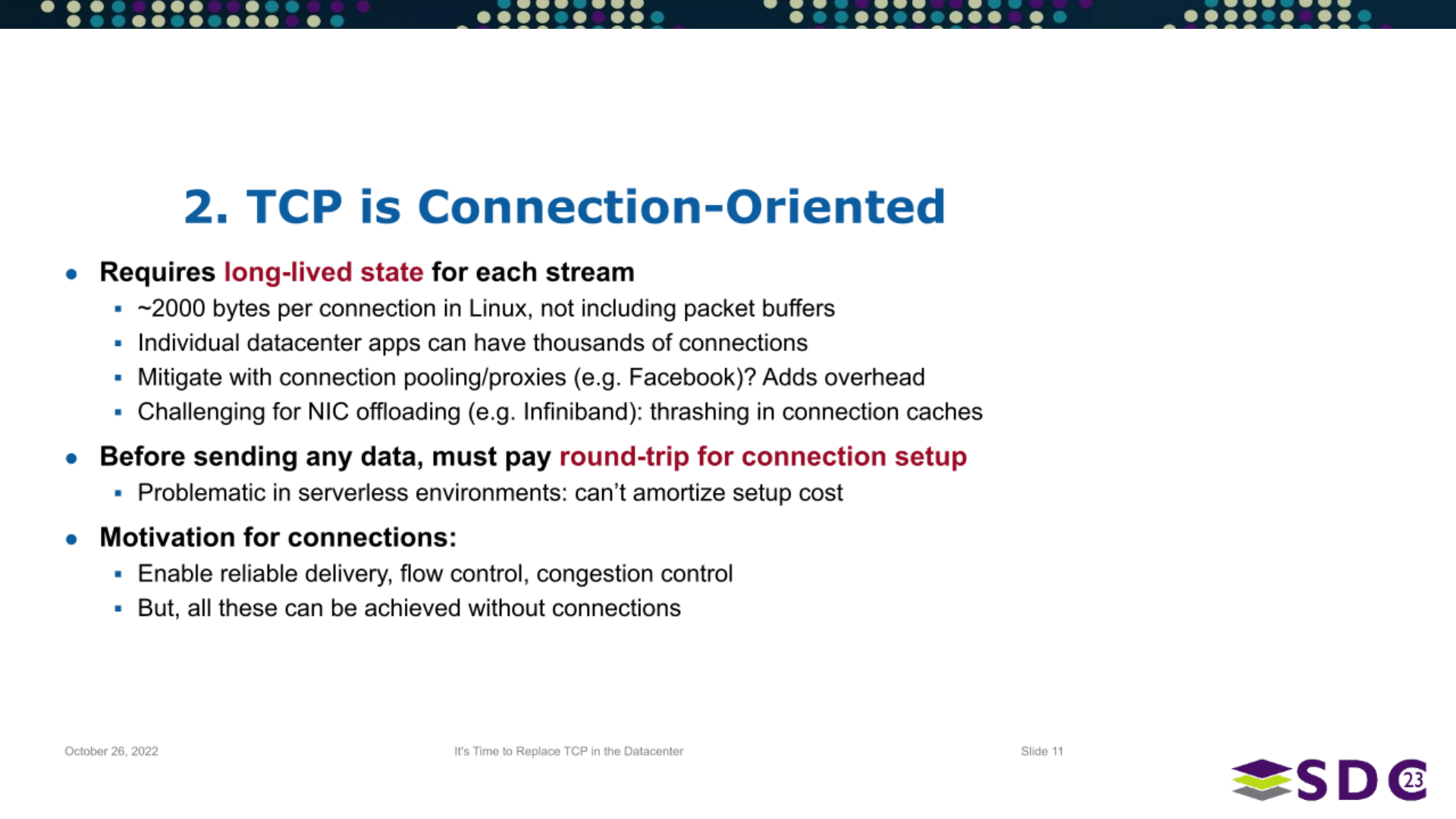

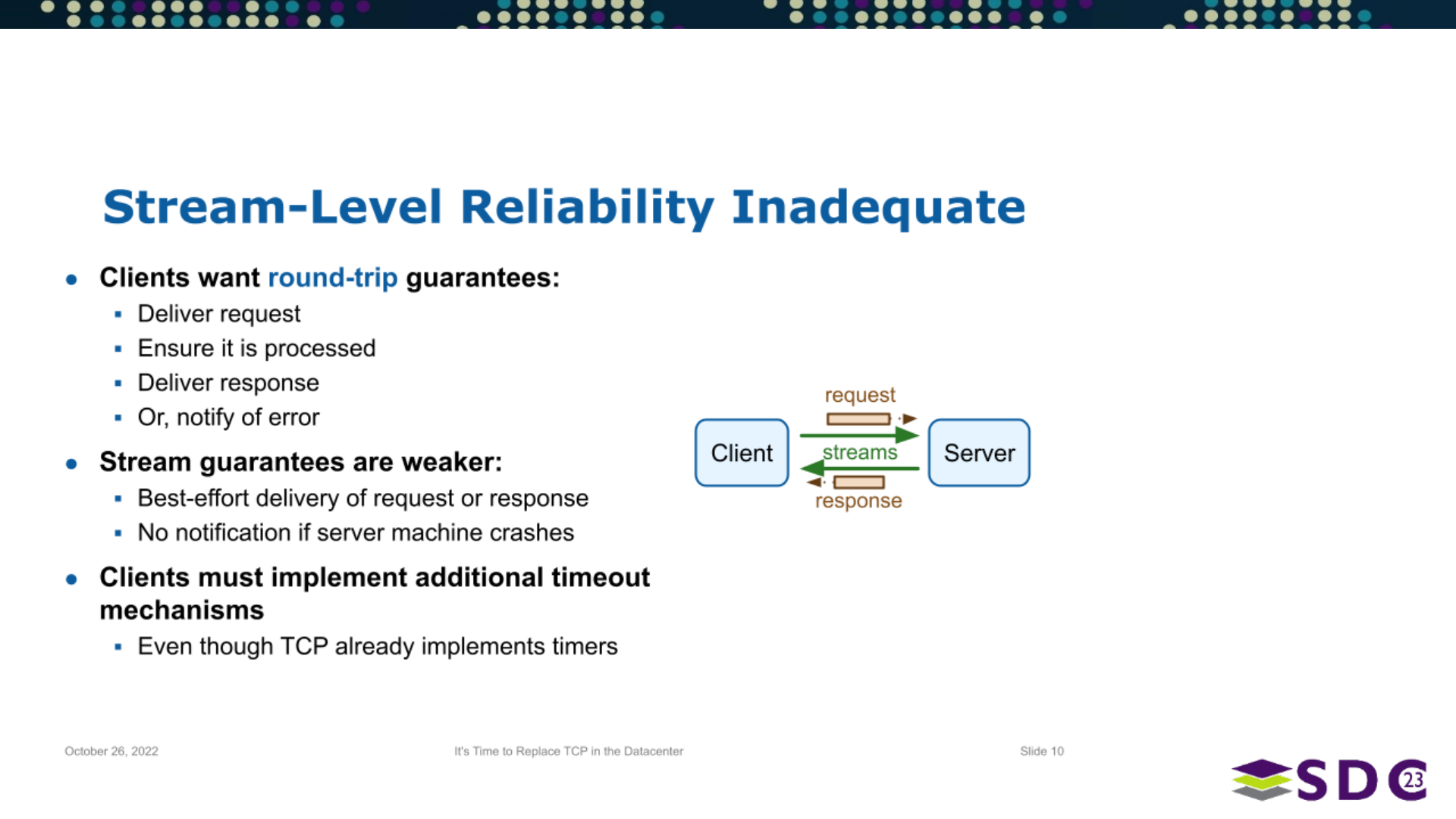

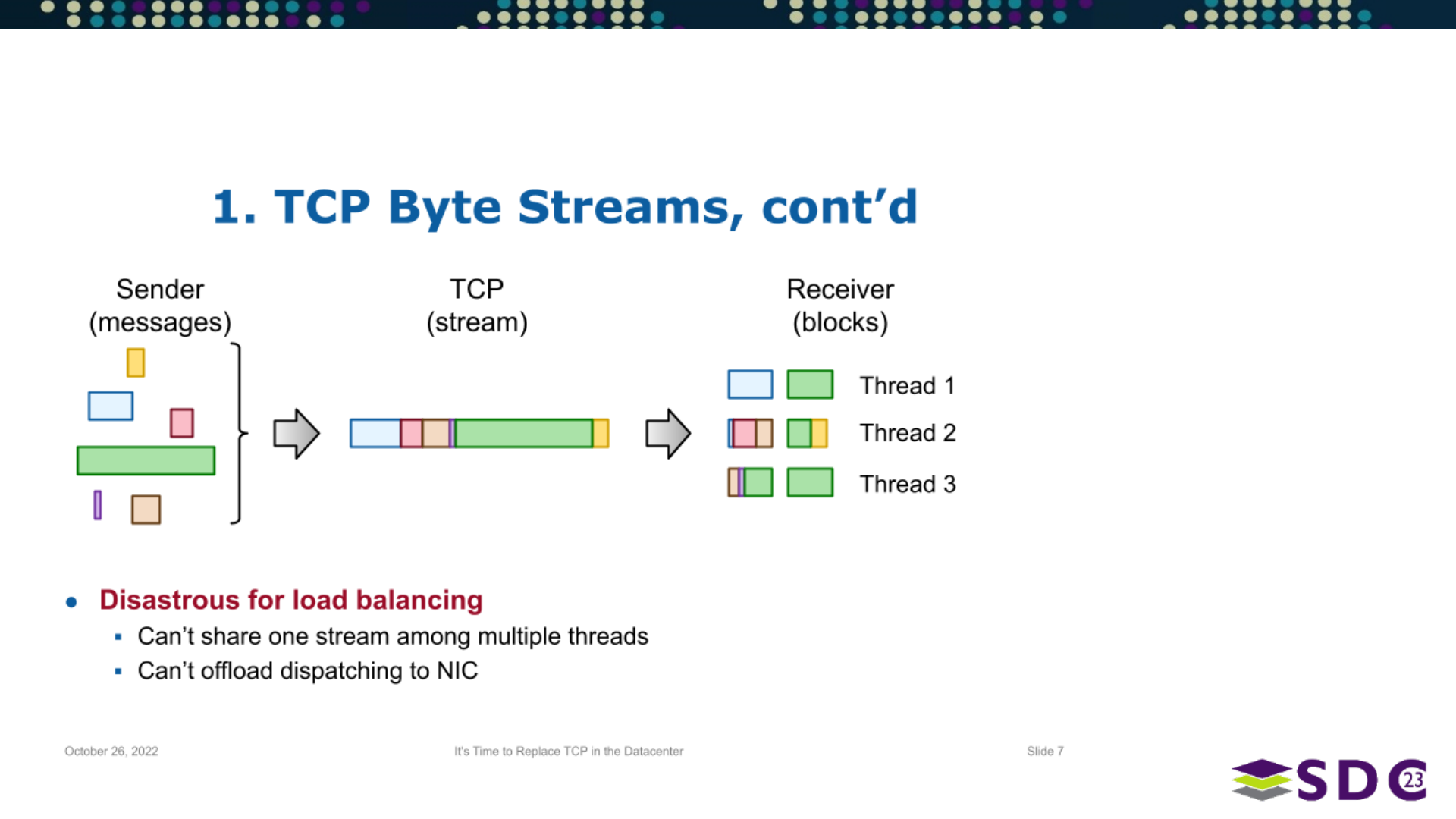

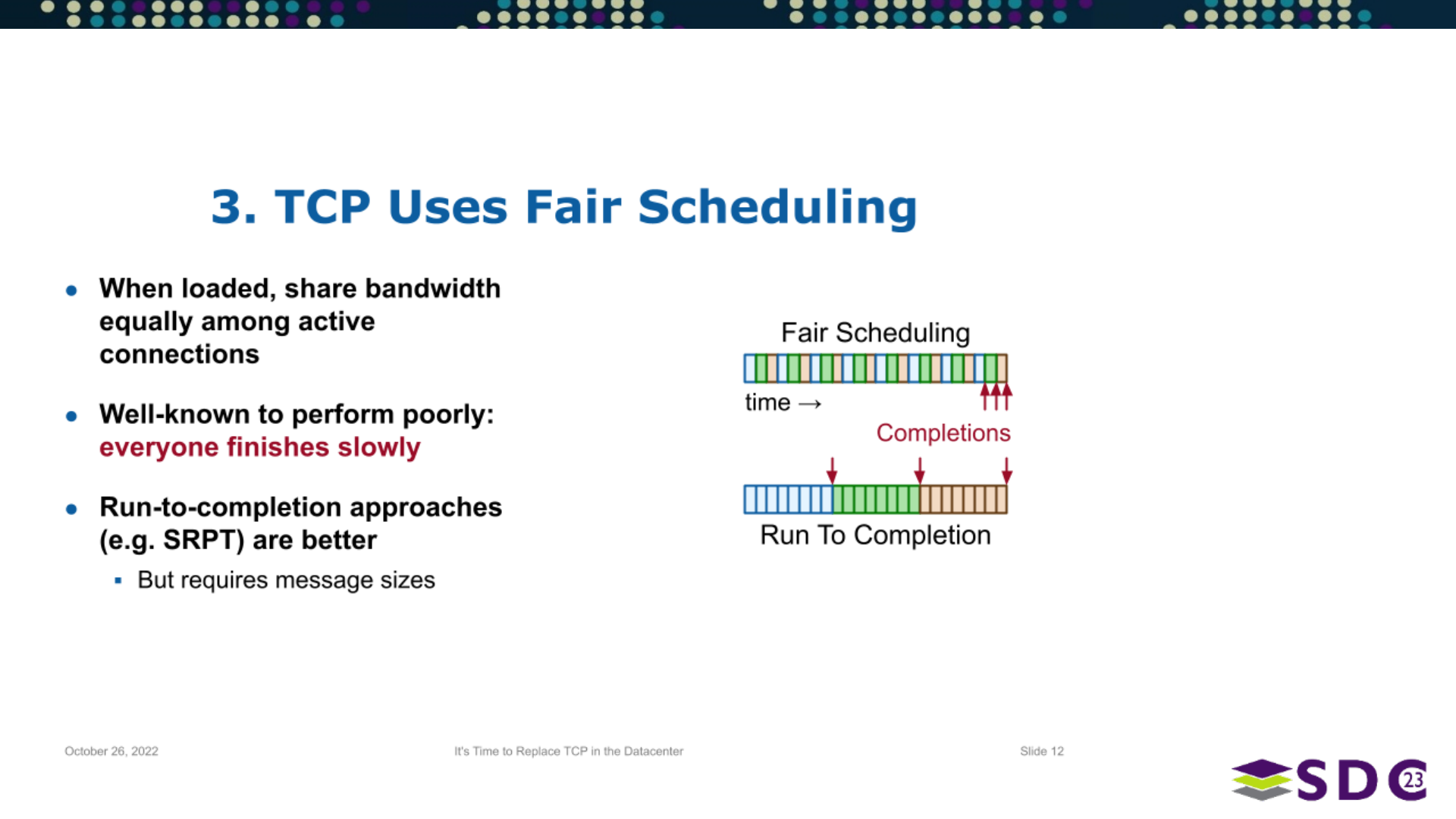

Courtesy of John Ousterhout, Stanford University

The Computational Burden of TCP

Benchmark TCP Point-to-Point with Netperf 2.6

● TCP_STREAM (and TCP_MAERTS) for

throughput in Gbps

● CPU Load on Tx and Rx side

● TCP_RTT for Round-Trip-Time

● Efficiency = Throughput / CPU Load

System Setup

● AMD FPGA w/ NPAP-25G

(Fraunhofer HHI’s TCP/UDP/IP Full Accelerator)

● 25 GigE NIC: Mellanox ConnectX-4 LX

● CPU: Intel(R) Xeon(R) e5-1620 v0 @ 3.60GHz

1 socket, 4 cores, 1 thread per core

RAM: 32G (4x8G) (Samsung, DDR3, 1600 MT/s,

syn reg)

Effects of different Linux kernels

● Vanilla 4.19 vs vanilla 5.15. vs vanilla 6.3.6

● Vanilla 4.19 vs Centos 4.18

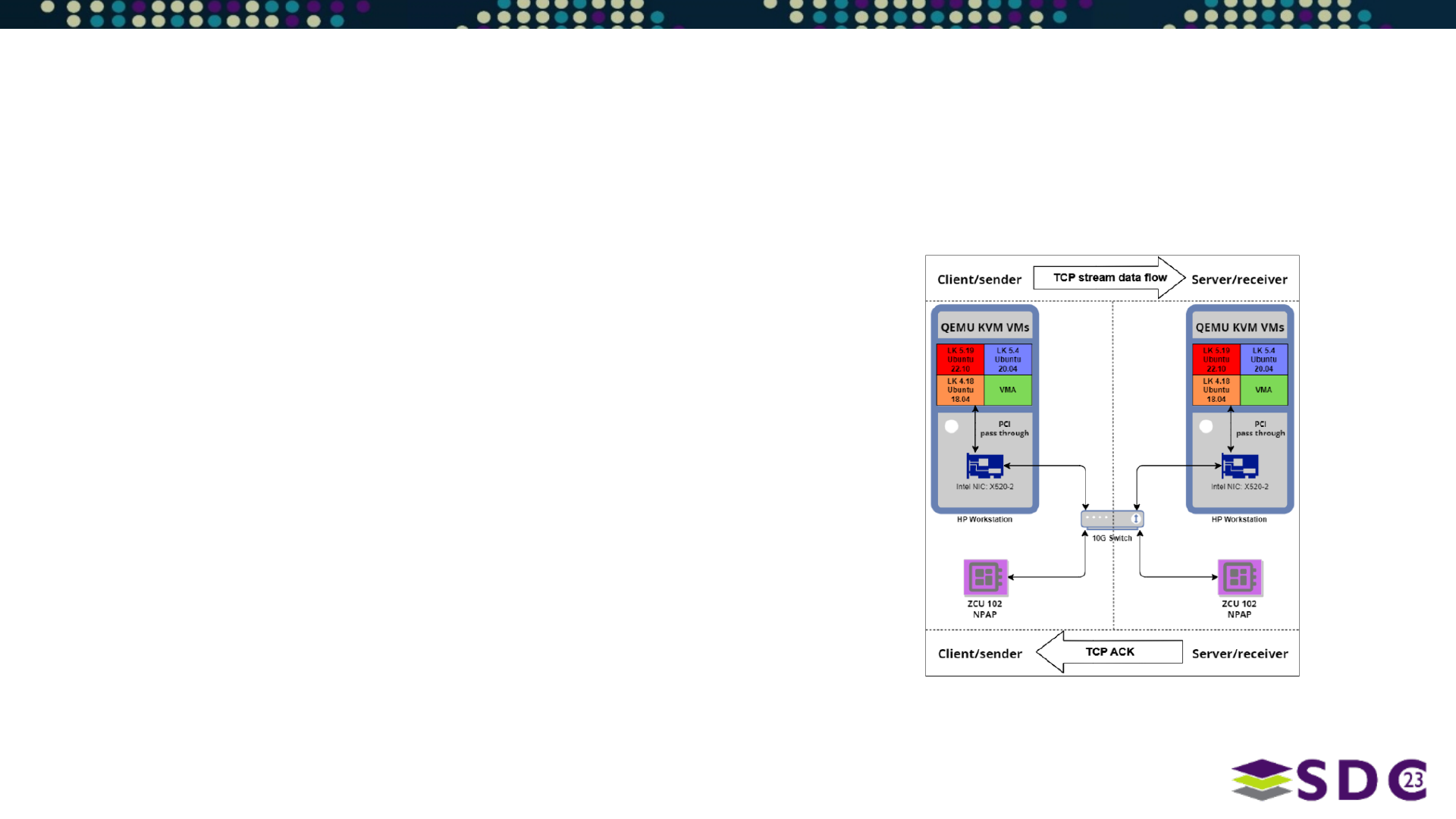

Experimental Setup

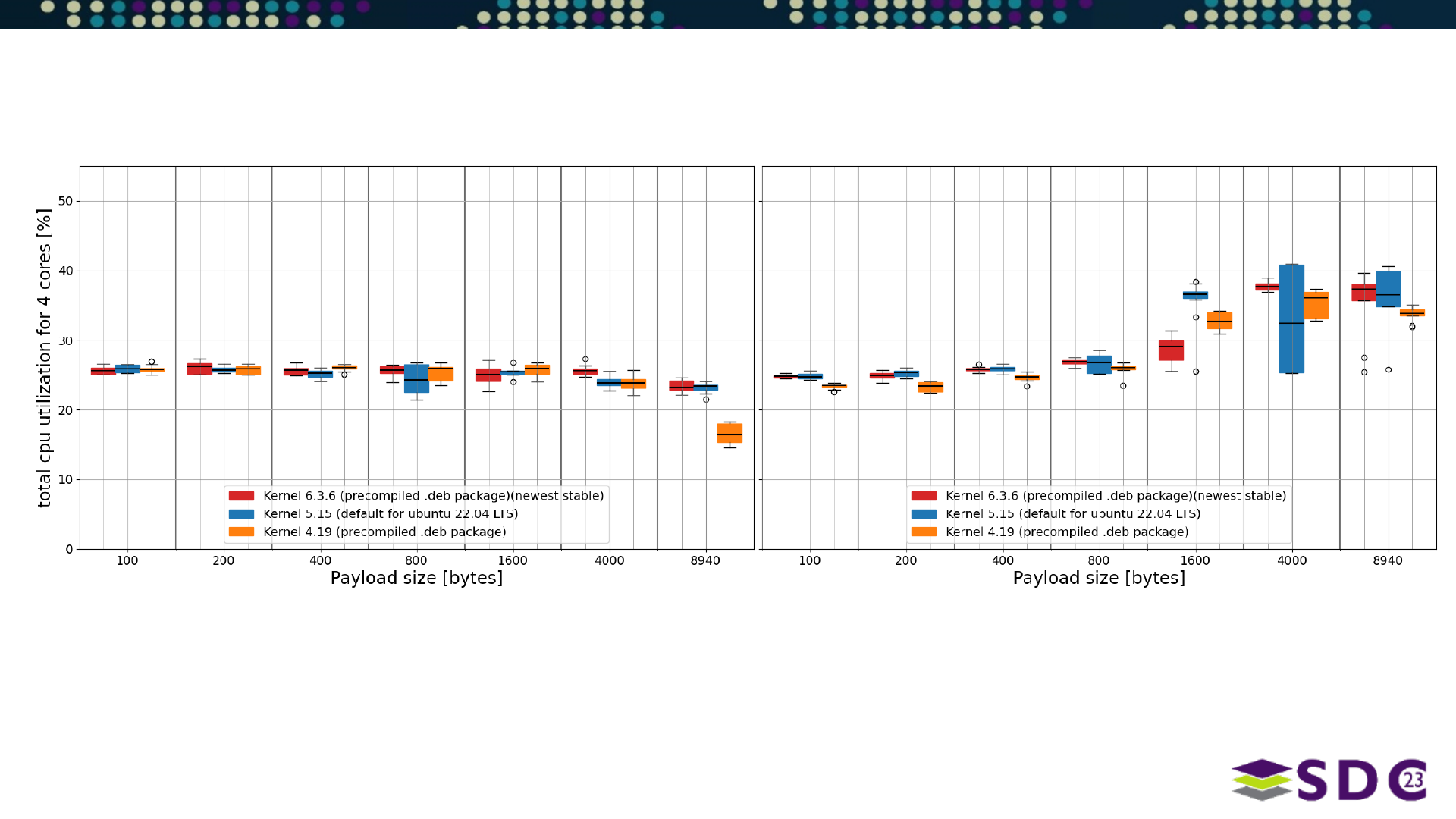

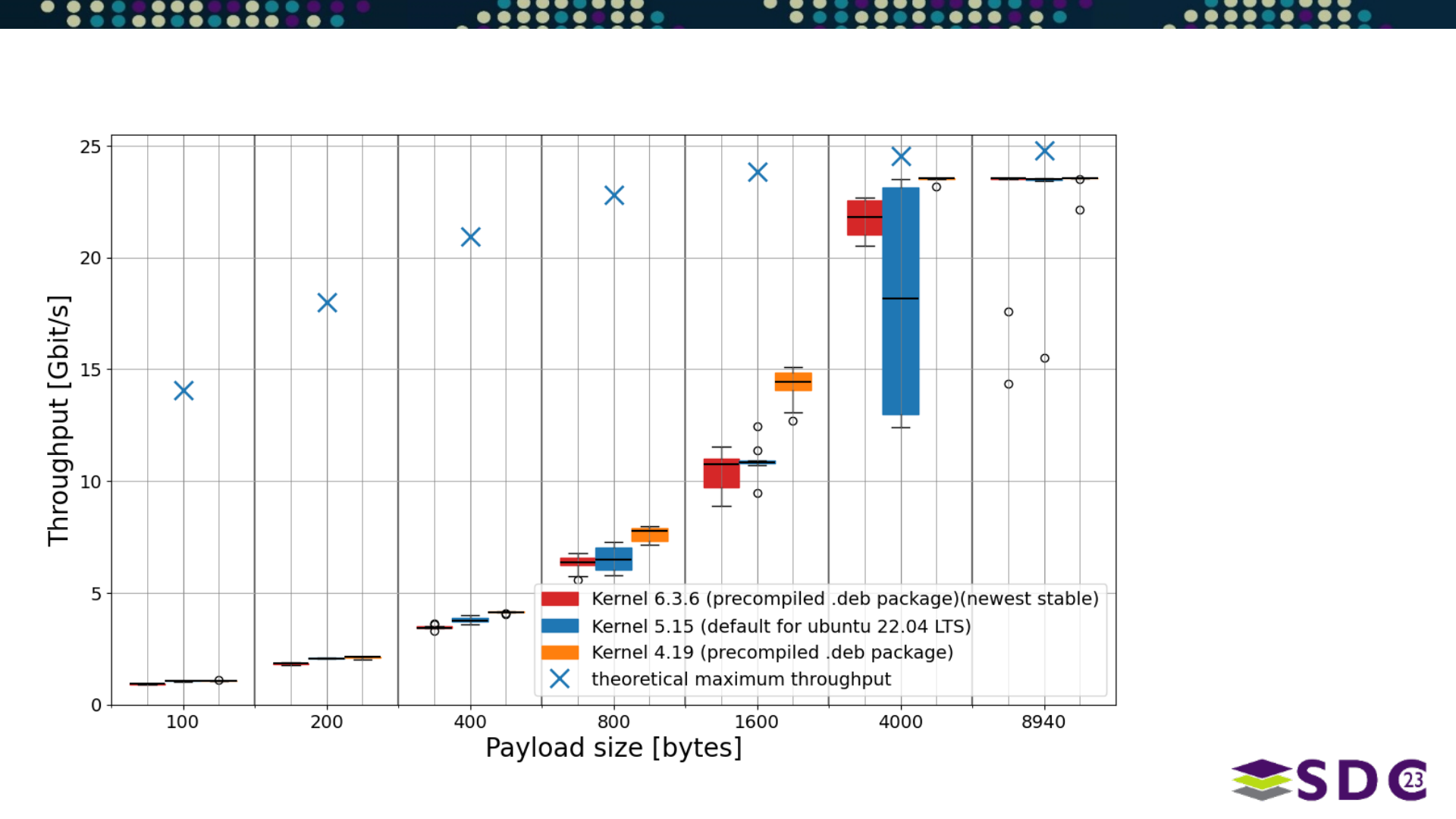

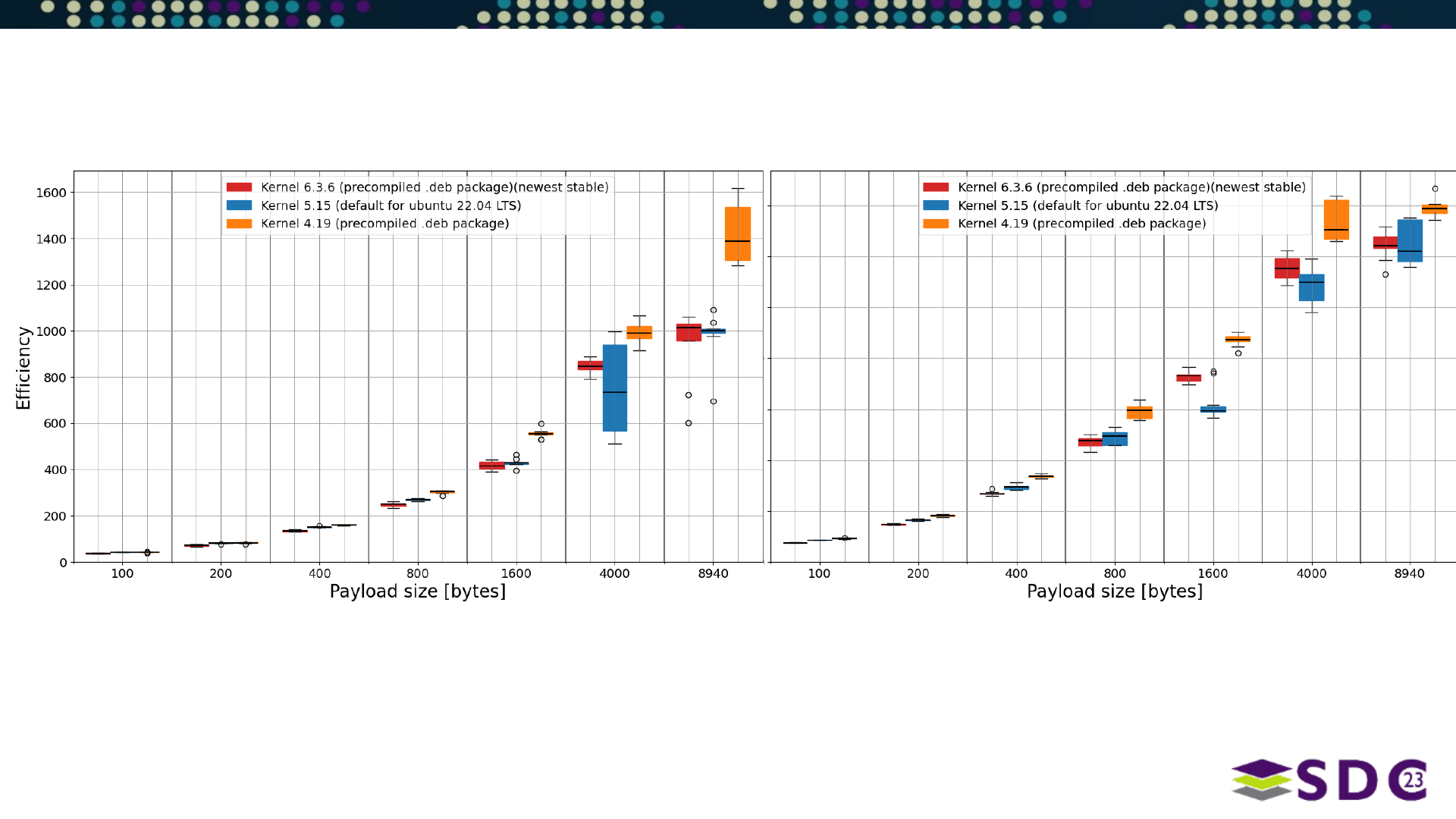

TCP_STREAM Results for Different Linux kernels

Tx Side Rx Side

TCP_STREAM Results for Different Linux kernels

Tx Side Rx Side

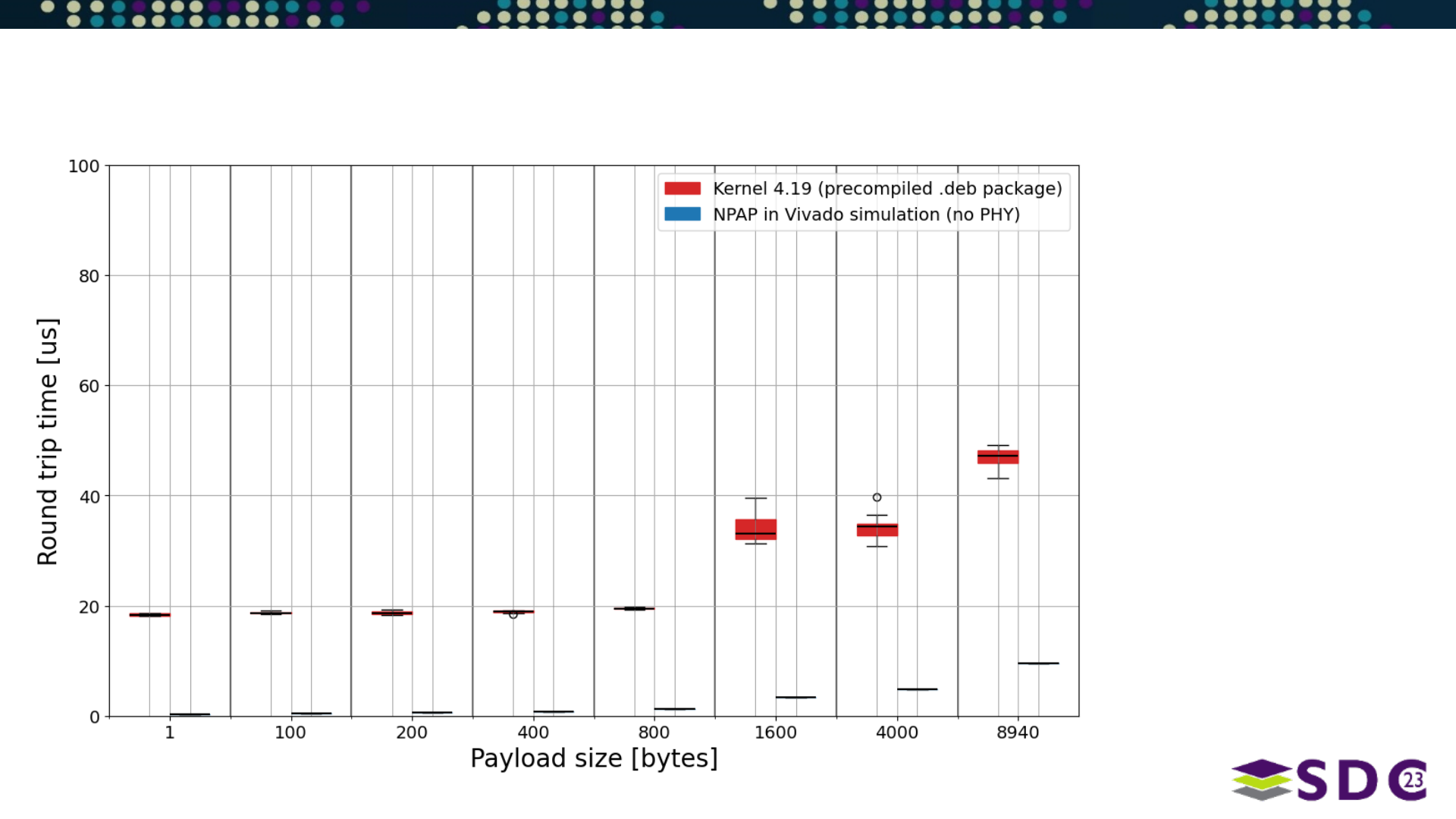

TCP_RR Results for Different Linux kernels

Average RTT

of FPGA Full

Accelerator clearly

outperforms (Linux)

software

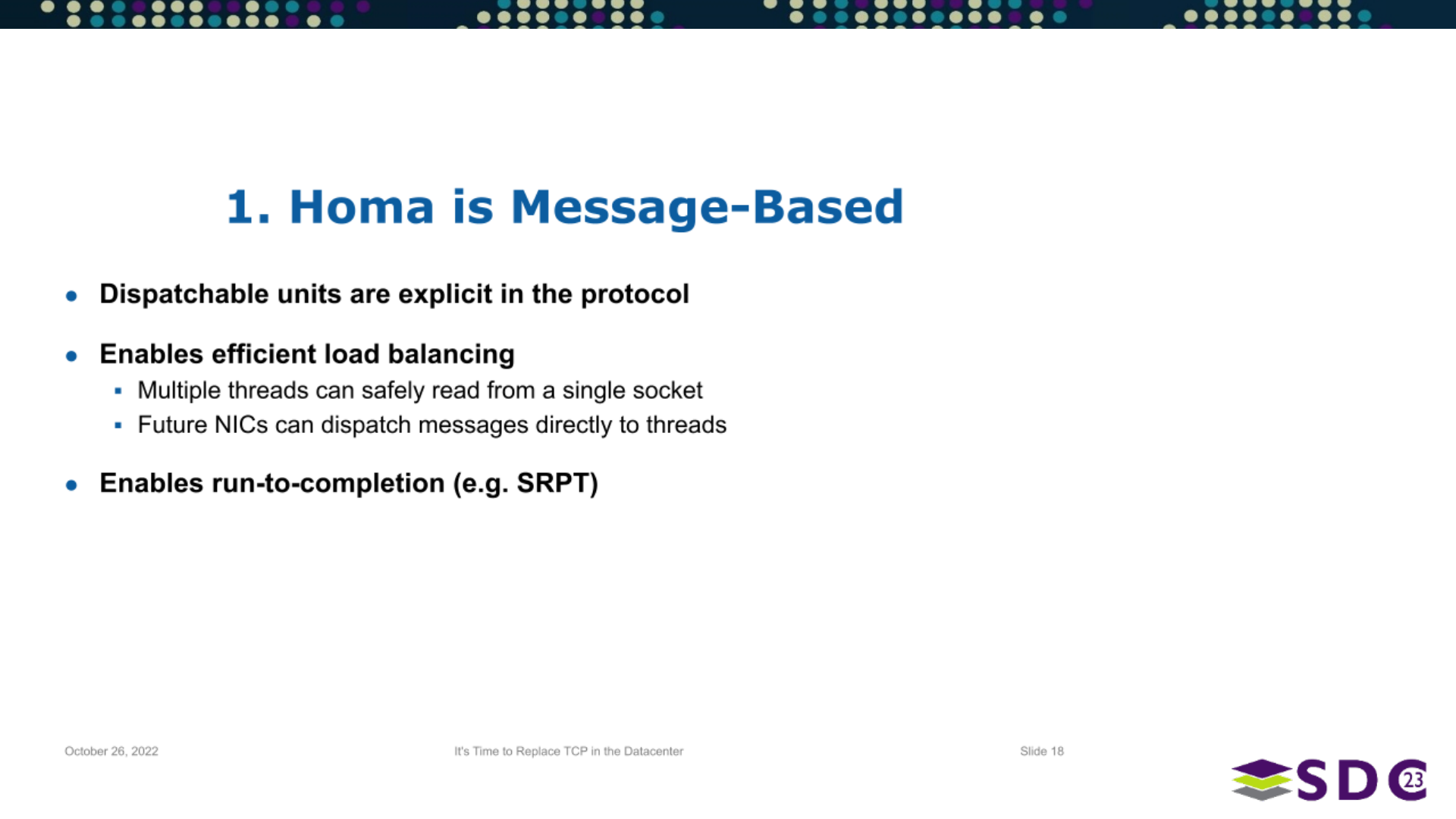

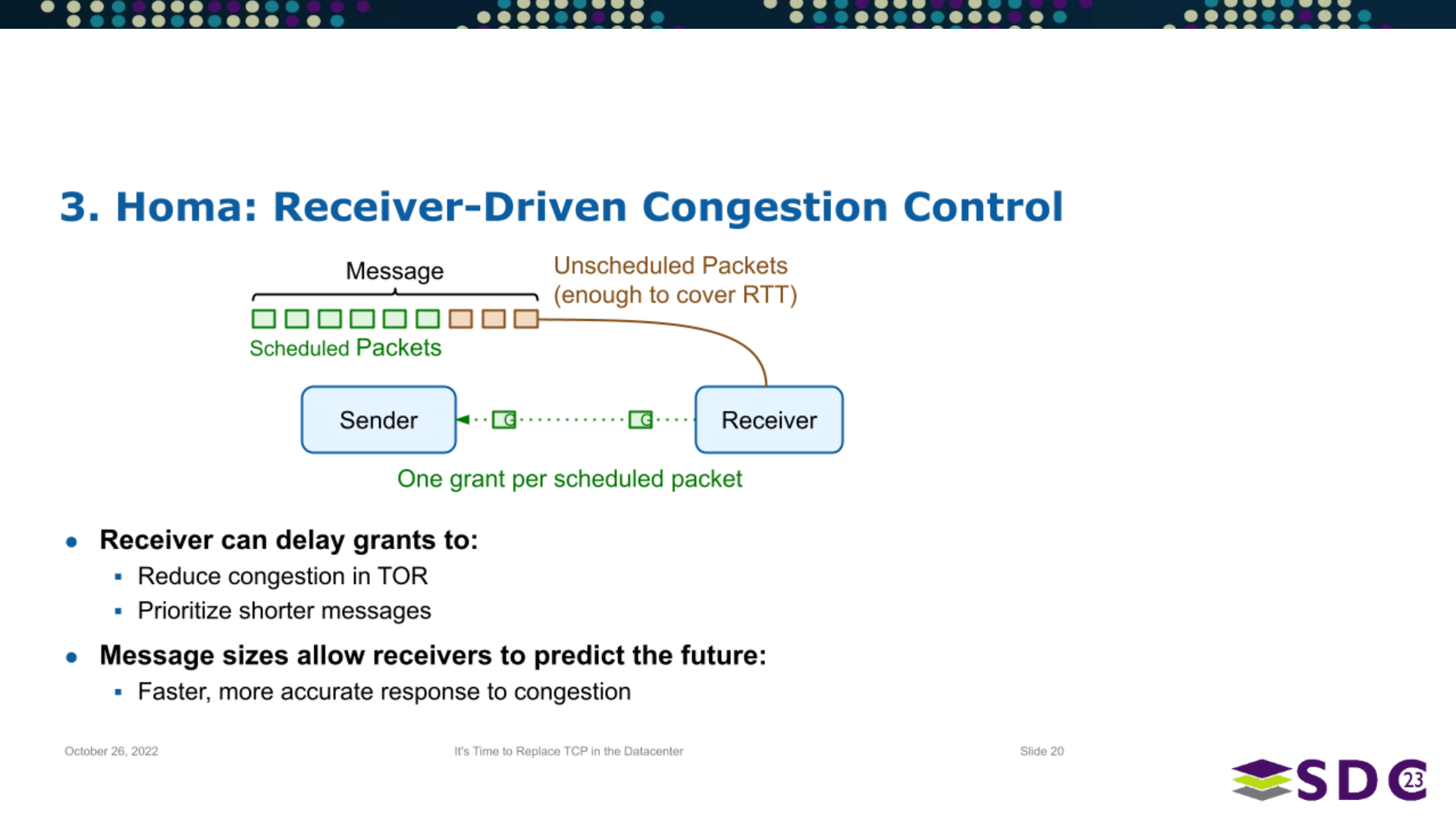

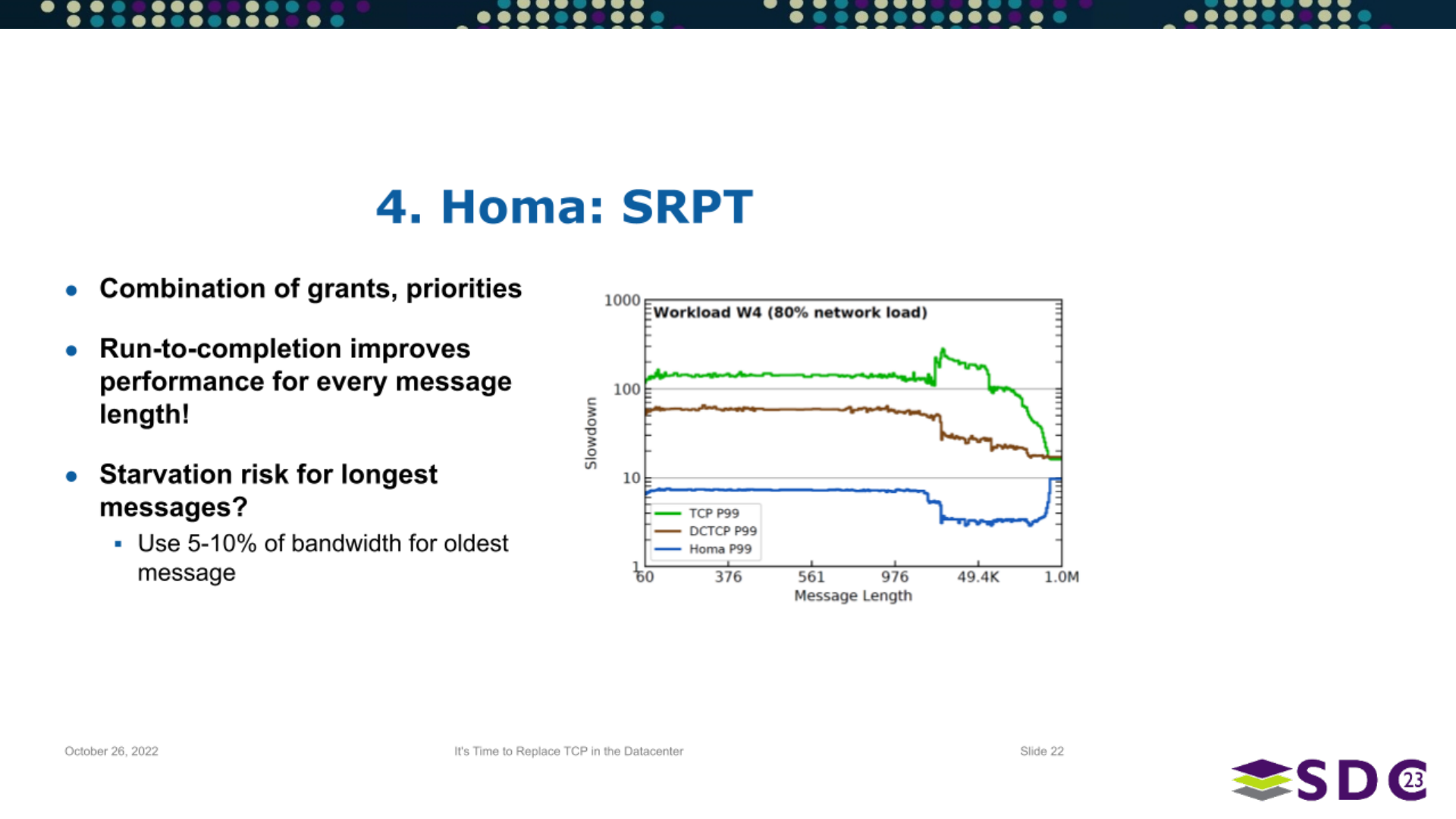

Courtesy of John Ousterhout, Stanford University

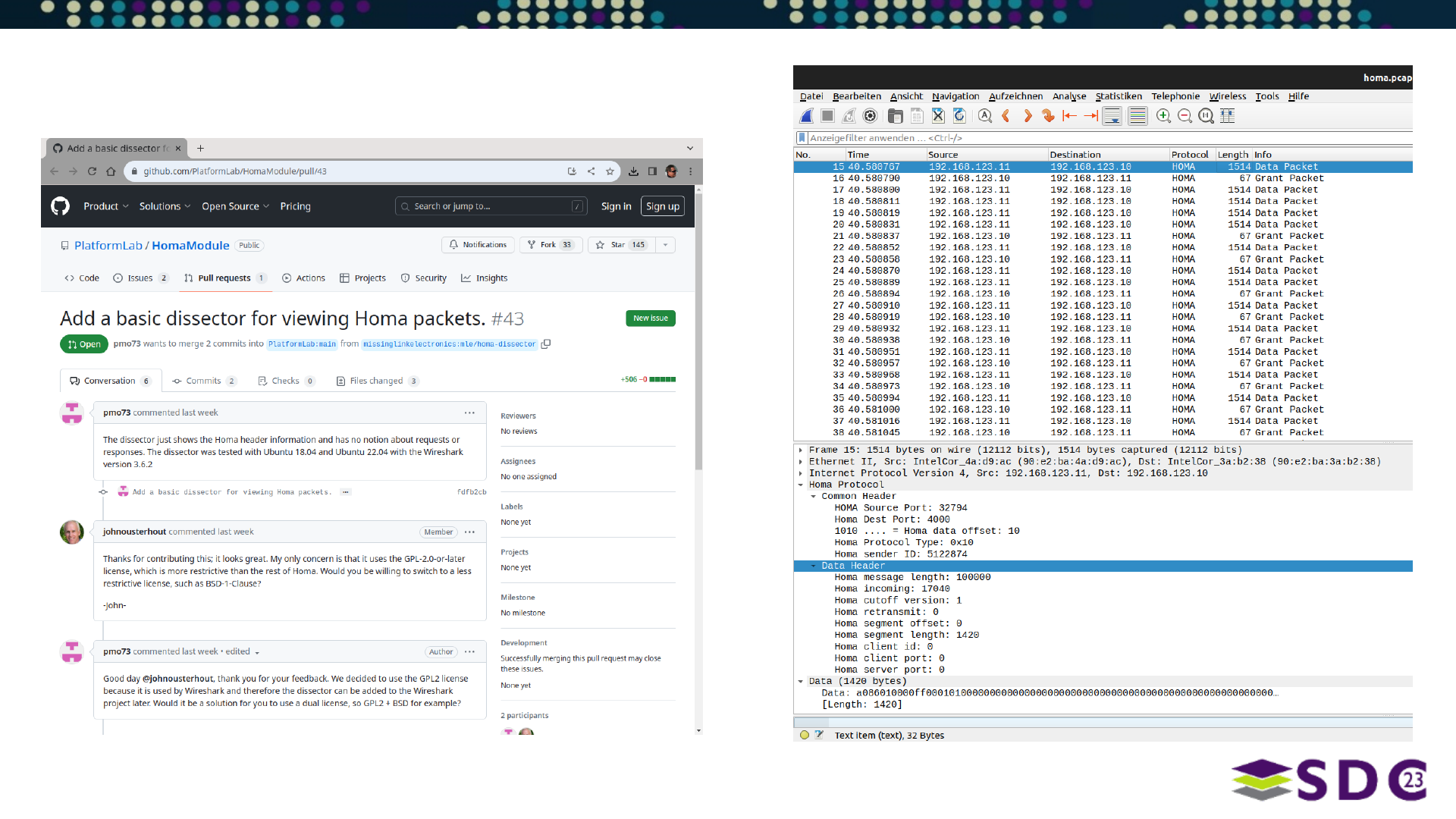

Wireshark Dissector for Homa

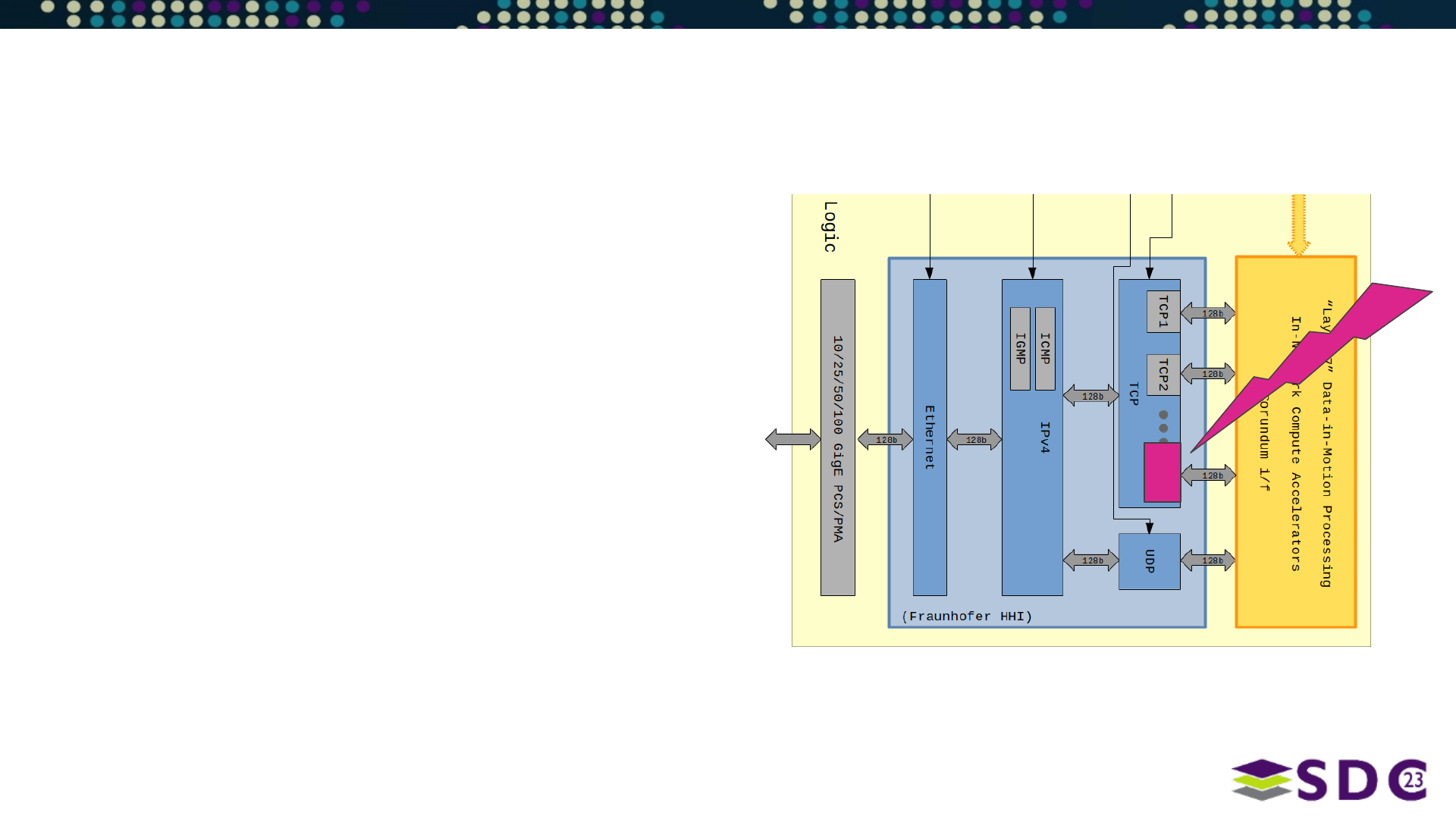

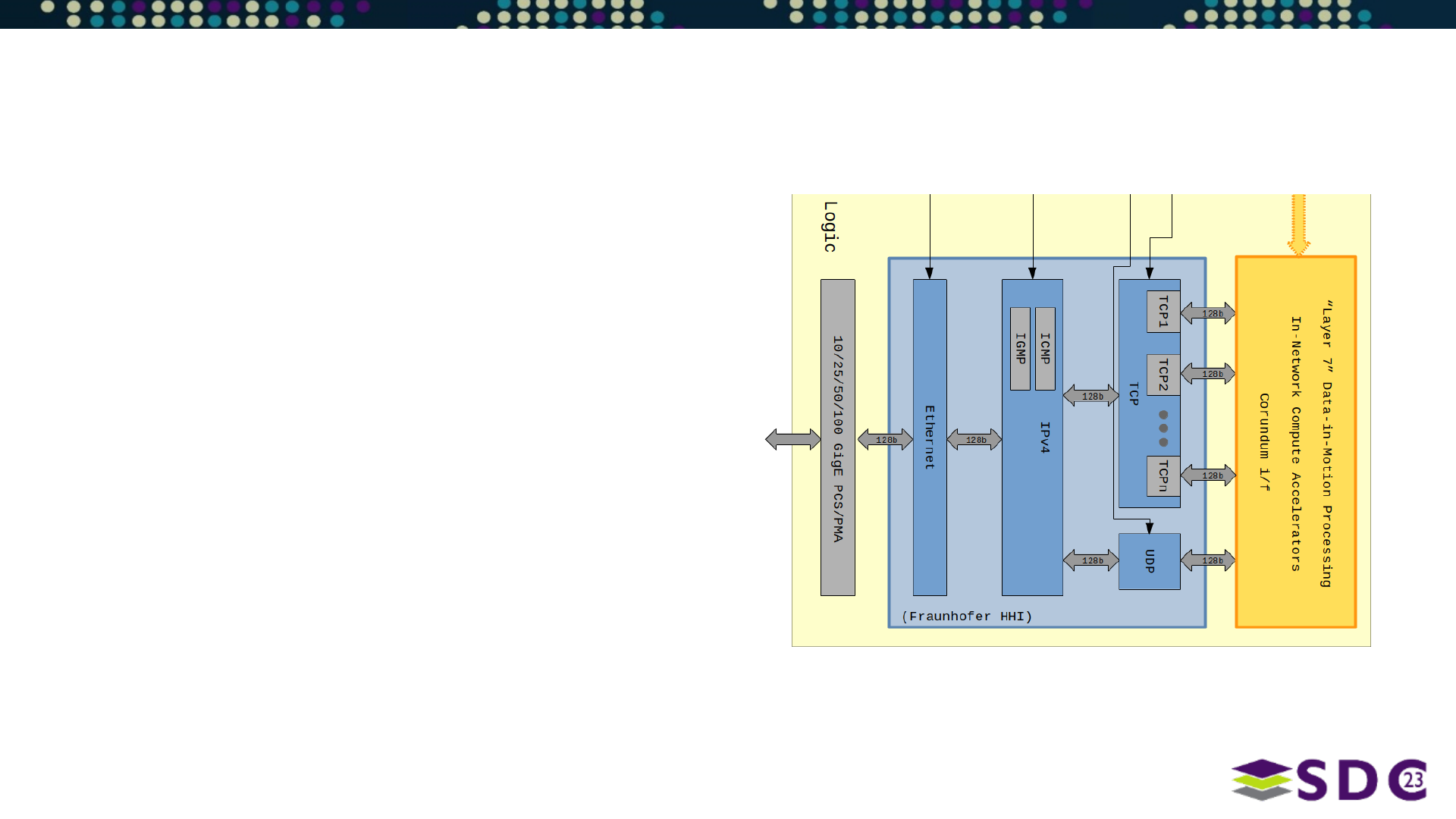

NPAP - Network Protocol Accelerator Platform

● Full Accelerator = no CPUs, no software

● Standard IEEE Ethernet PHYs with RMII,

GMII, XGMII, etc via PCS/PMA via

ASIC/FPGA Ethernet Subsystem

● Ethernet, ARP, IPv4, ICMPv4, IGMPv4, UDP

& TCP, DHCP

● Optional TSN, optional TLS

● Datapath via AXI4-Stream 128-bit

● Complete stack uses generic VHDL code

● In production use for automotive, aero &

defense, industrial test & measurement, telco

applications

QuadRP - Reliable, Rapid Request-Response Protocol

● Based on Homa

● Implemented within NPAP

Tested and proven Ethernet and IPv4

● Complements TCP/IP and UDP/IP

⇒ Best of both worlds:

● No CPU load

● Very low, deterministic latency

● Option for handling messages in

○ Programmable Logic, or

○ in Linux software

QRP

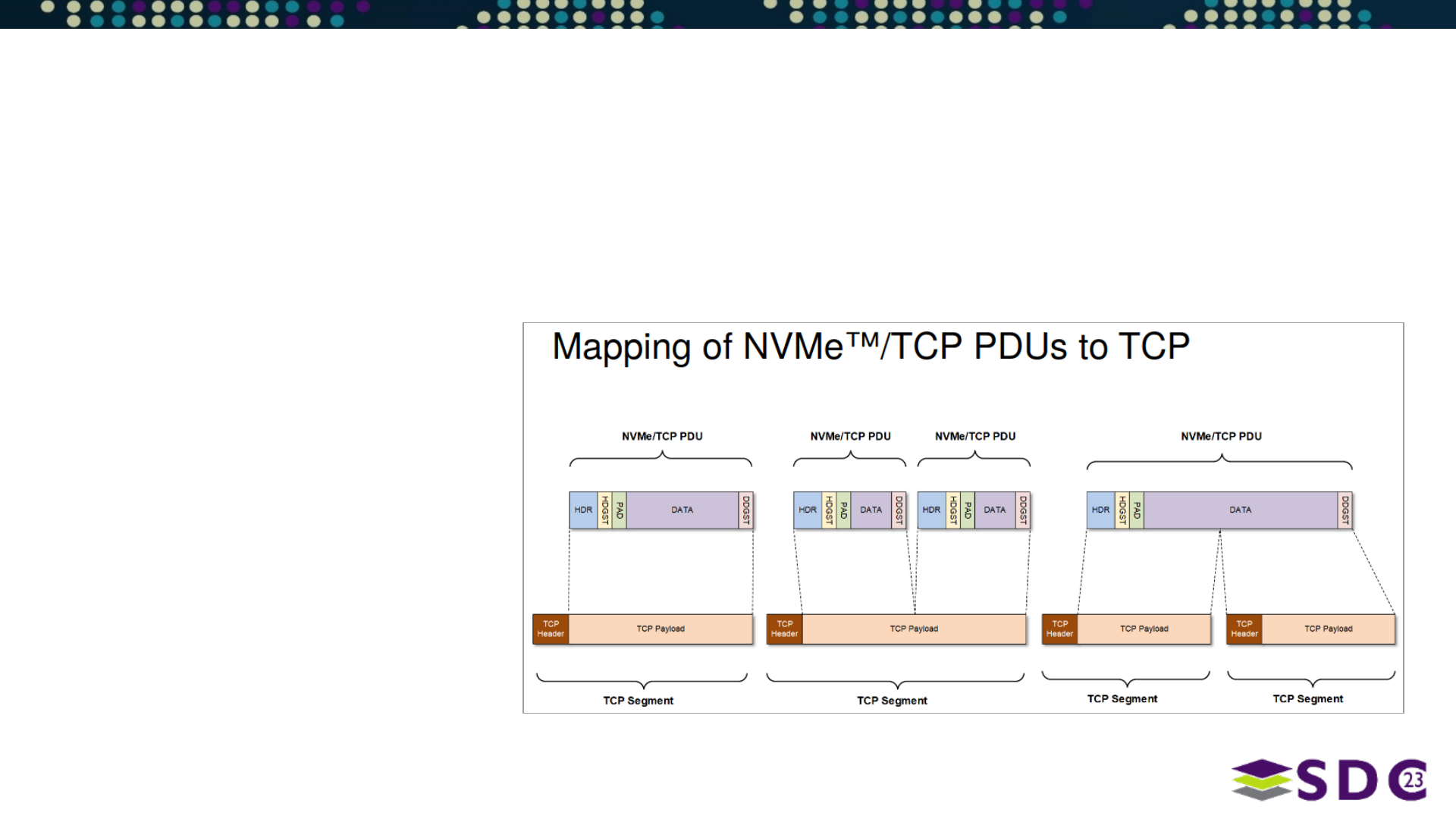

Homa’s Benefits for NVMe-over-Fabric

LAN is the bottleneck already, with now additional burden from heavy SAN traffic.

Homa latencies can be 100x faster that TCP and promises to put less load on the network.

NVMe eliminated the legacy software overhead and uses fast PCIe Posted Writes for better response times and IOPS.

So, is TCP then the proper foundation for NVMe-over-Fabric?

NVMe-over-Homa can be a

drop-in replacement or an add-on,

achieving storage latencies close

to DAS performance,

with less overhead on network

and servers.

HOMA References

[1] John Ousterhout, Stanford University: https://web.stanford.edu/~ouster/cgi-bin/papers/replaceTcp.pdf

[2] John Ousterhout’s presentation at USENIX ATC’21 (15 minutes)

https://www.usenix.org/conference/atc21/presentation/ousterhout

[3] Montazeri’s presentation at SIGCOMM18 (starts at 1:22)

https://www.youtube.com/watch?v=o_sg1nnN2bQ&t=4927s

https://conferences.sigcomm.org/sigcomm/2018/files/slides/paper_4.4.pptx

[4] Homa Linux kernel module implementation

https://github.com/PlatformLab/HomaModule

[5] Montazeri’s PhD dissertation

http://purl.stanford.edu/sp122ms2496
