Converging PCIe and TSN Ethernet

for Composable Infrastructure in

High-Performance In-Vehicle

Embedded Systems

Endric Schubert, PhD, CTO Missing Link Electronics

Marcus Pietzsch, Research Lead Fraunhofer IPMS

MLE: “If It Is Packets, We Make It Go Faster!”

MLE is an Integrator and Turnkey Solutions / Systems Provider for

High-Performance (Embedded) Compute & Connected Systems-of-Systems

▪ PCIe (CXL, ISB, NVMe)

▪ Ethernet (TCP/IP, TSN)

▪ Audio/Video (HDMI, SDI)

MLE Technology & Manufacturing Ecosystem

Fraunhofer Elemaster

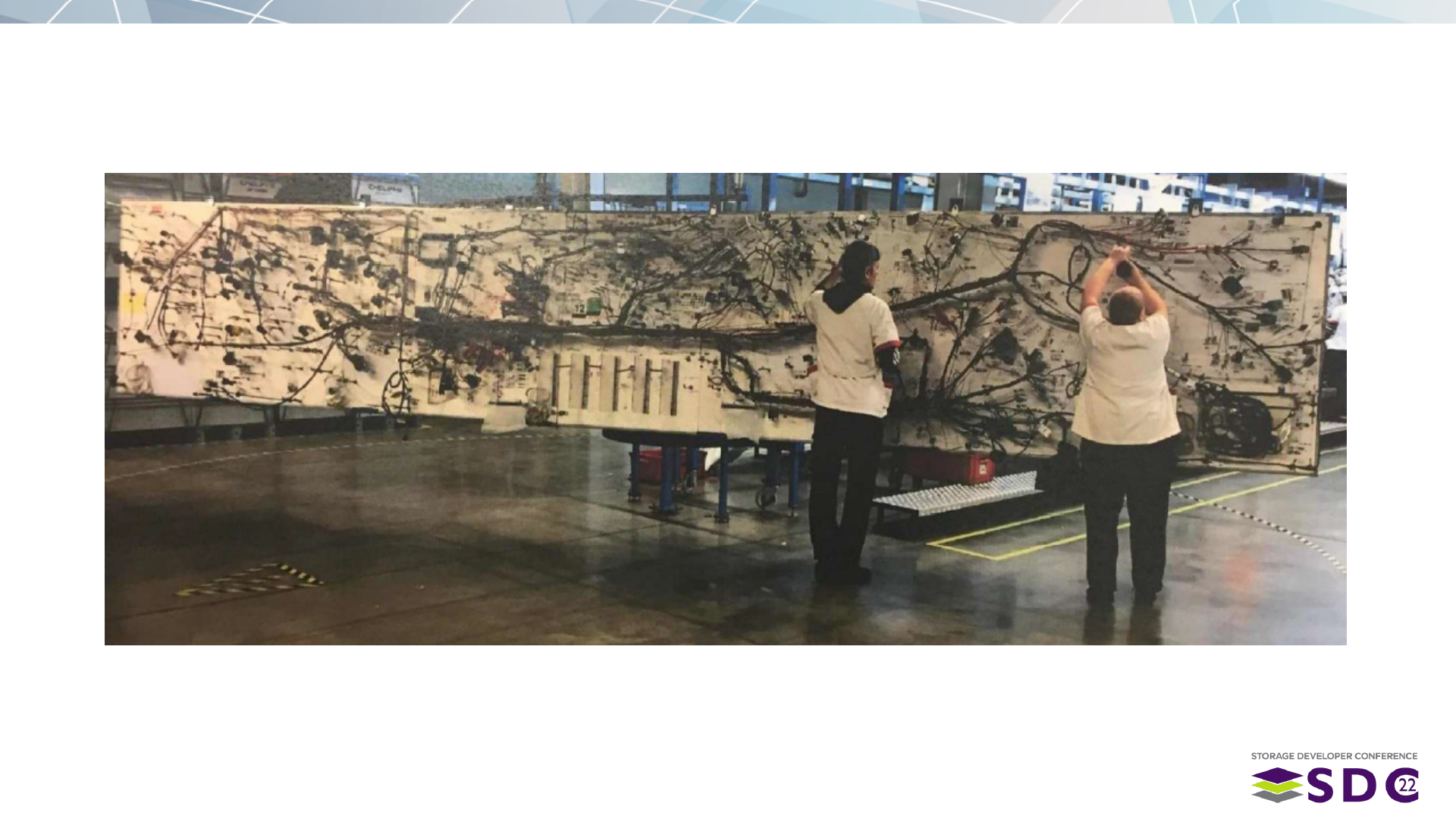

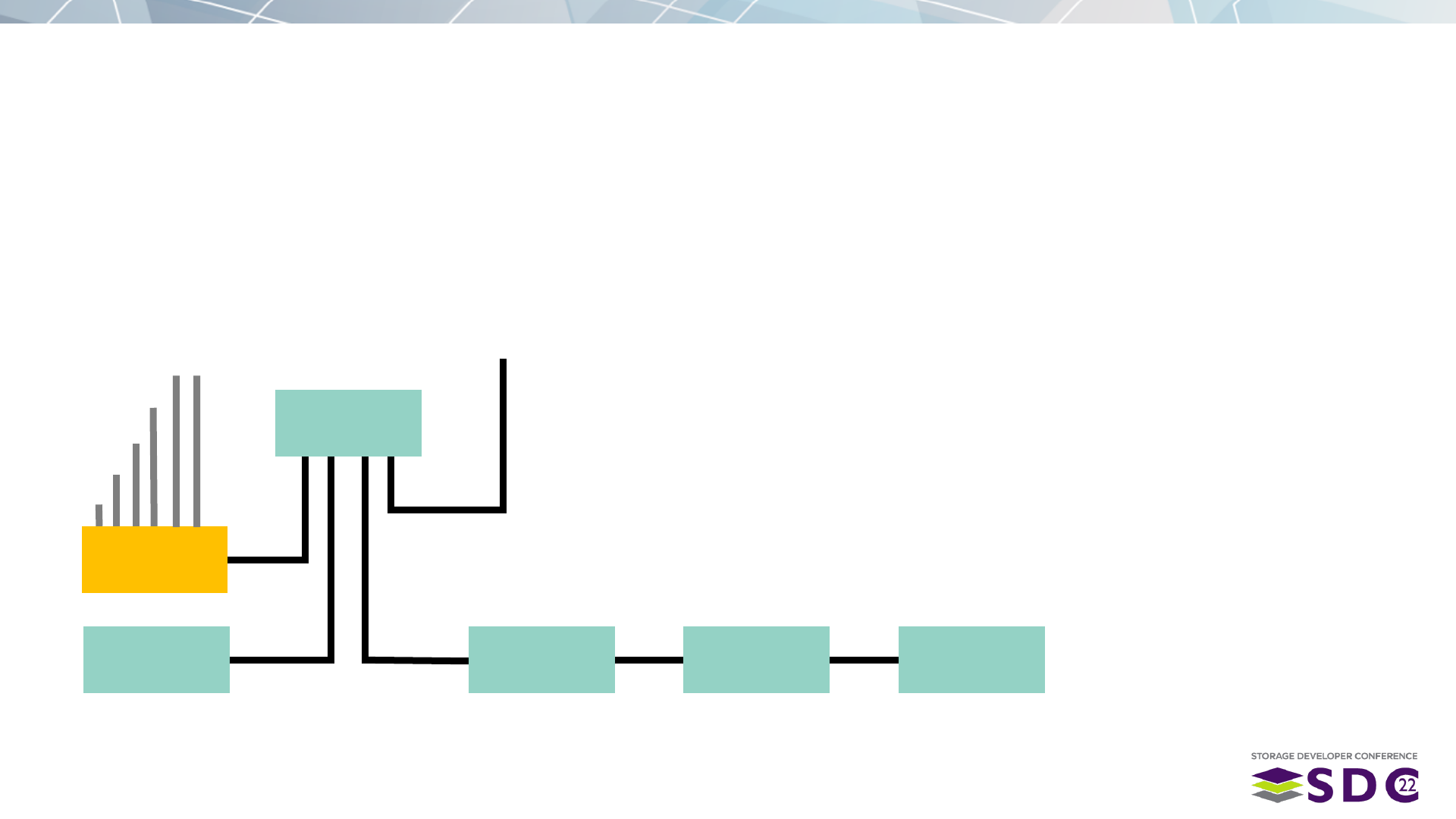

Automotive’s Expensive Wiring Nightmare

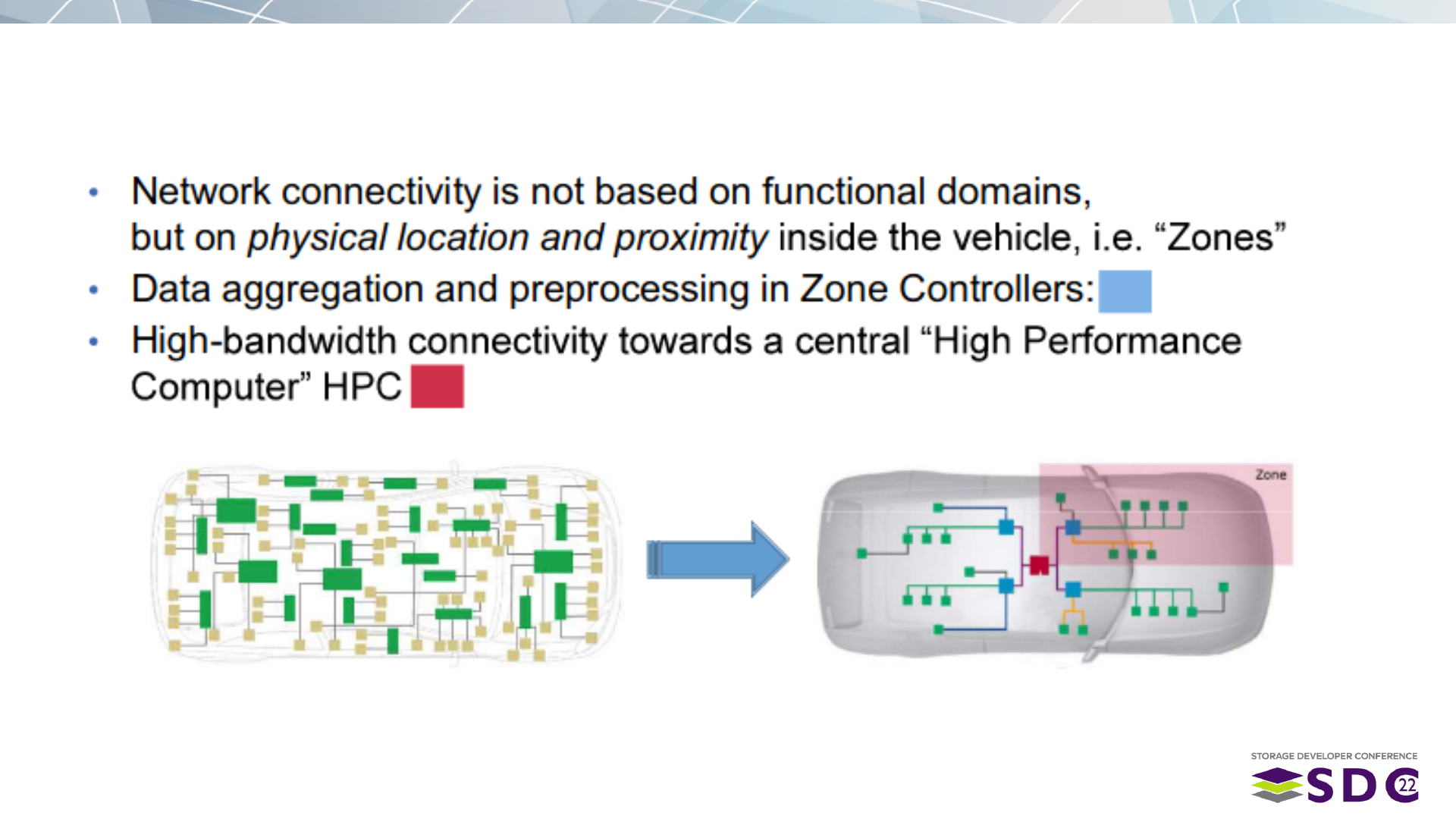

Next: Zone-Based Architectures

More centralized, better to scale, lower cost

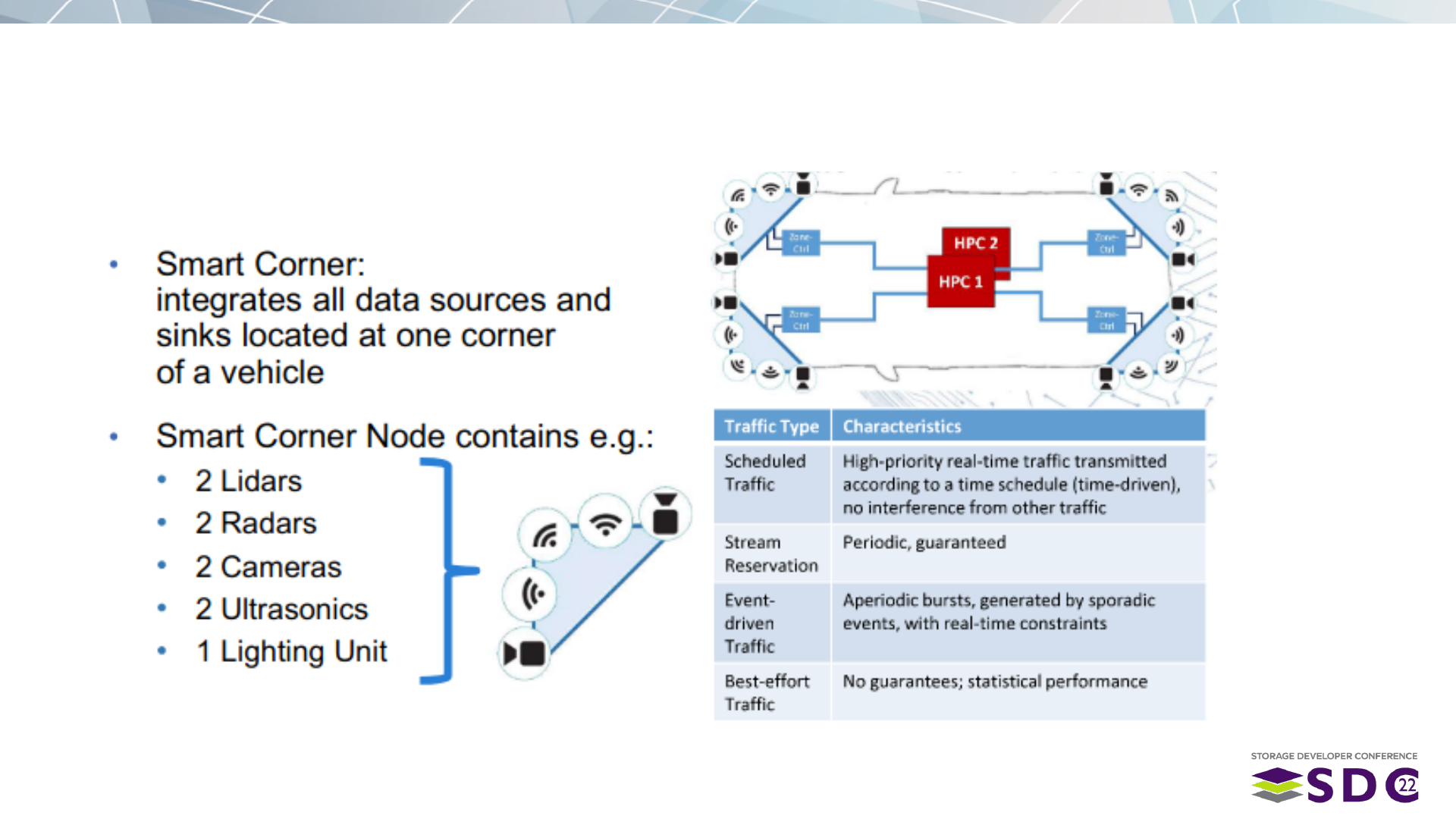

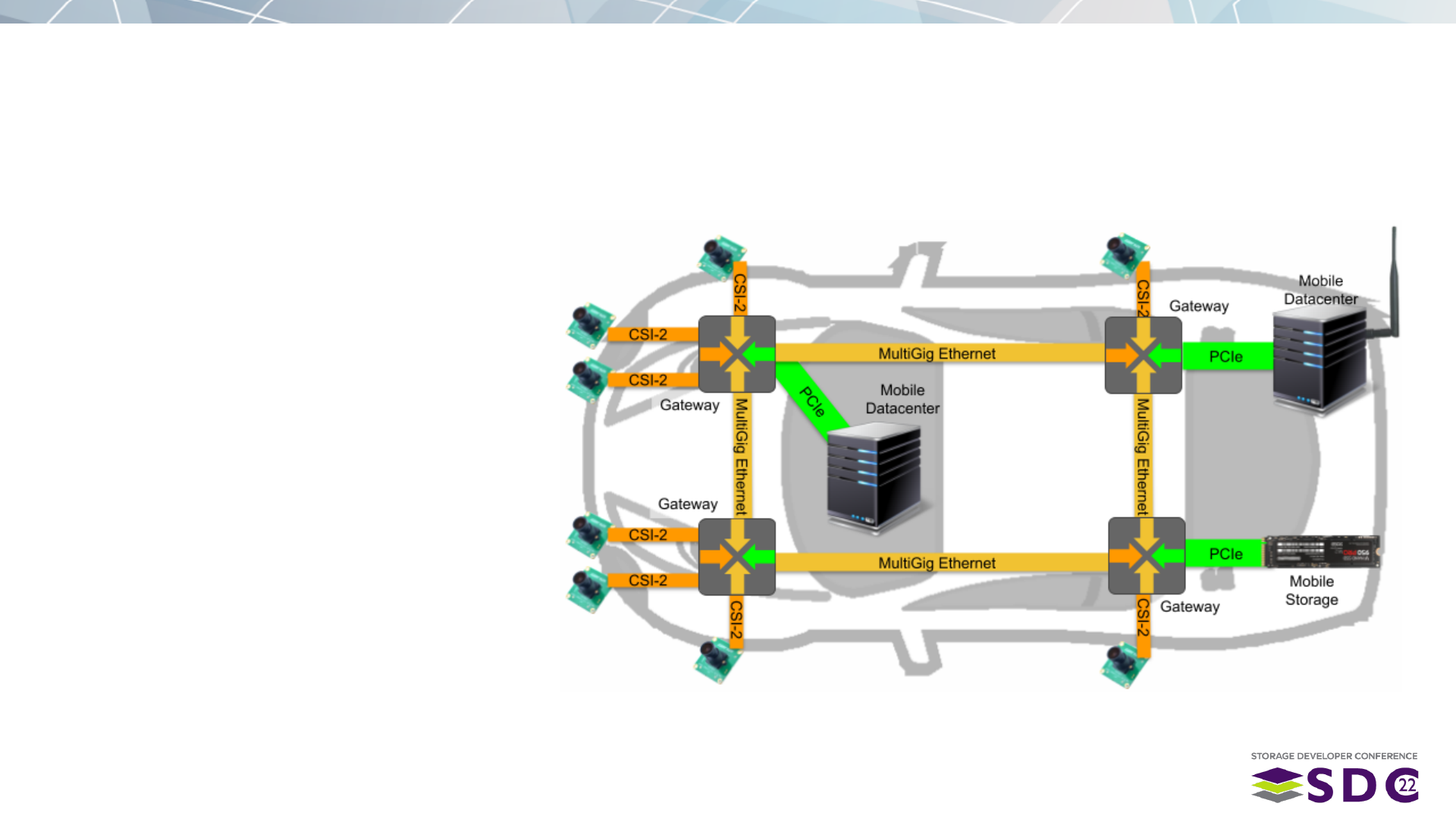

Application Example: “Smart Corner”

Zone-Based Automotive Networks Need PCIe/NVMe

Driven by Cost/Performance, i.e.

Centralized Compute & Storage:

• PCIe (for Embedded CPUs,

GPUs, FPGAs and SoCs)

• NVMe (for SSDs)

Driven by Compliance

• FuSa ISO 26262

• Security ISO/SAE 21434

• SOTIF ISO 21448

• etc

“Borrowing” from Datacenter Infrastructure (... and Giving Back)

Aspect Datacenter Infrastructure In-Vehicle Networks

Longevity ~ 15 years ~ 15 years

Proper functioning High-Availability via SLA Functional Safety as in ISO 26262

Security Encryption in flight and at rest

ISO 27001 etc

Soon: Encryption in flight and at rest

ISO 21434

Network timing behavior Low tail-end transport latency

Avoid congestion and HoL blocking

Deterministic low latency

Real-time

Environmental Low power and high energy efficiency Low power and high energy efficiency

Resistant to shock, vibration, temp

cycles

Number of nodes within system 100s of thousands < 10

Flexibility needs ability to deal with many different work loads,

screwdriver-less add/change HW and SW

ability to field-upgrade functionality and

security, screwdriver OK

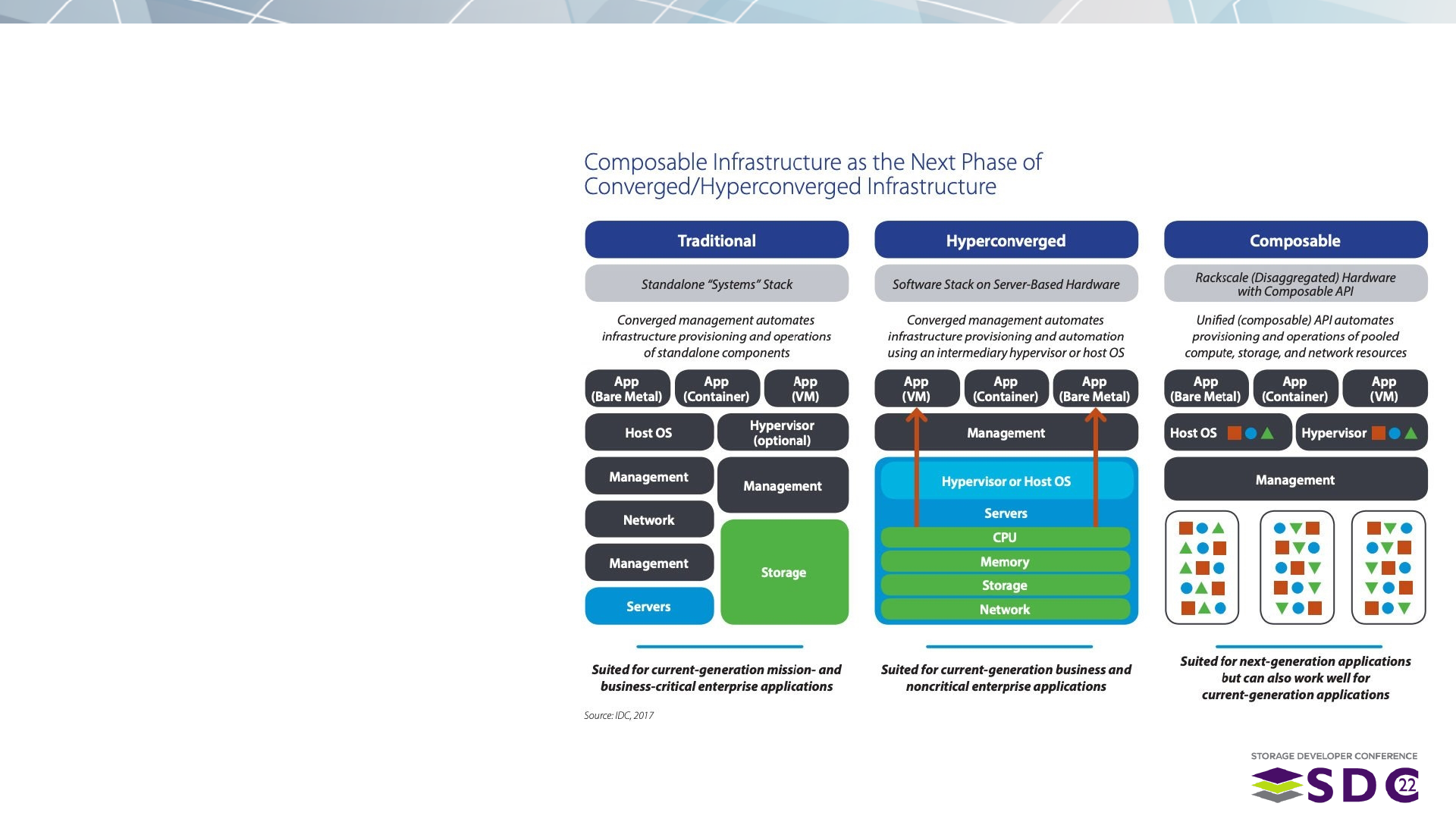

Composable Datacenter Infrastructure

Automotive

▪ Today: Traditional

(~100 ECUs)

▪ Next: Leap-frog towards

Composable i/f

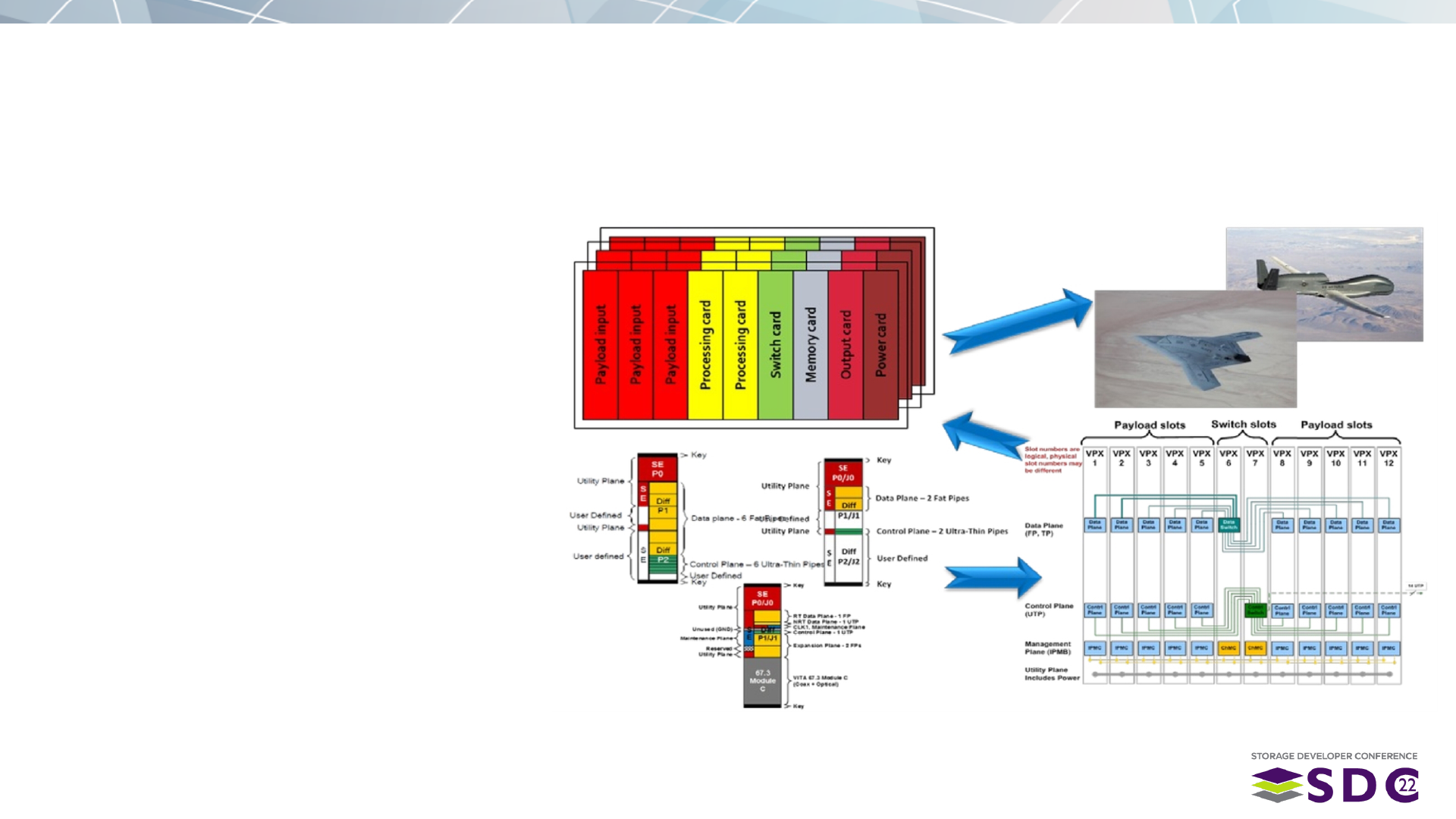

Sensor Open Systems Architecture (SOSA)

Other Embedded

▪ Similar life-cycle challenges

▪ Need for field-upgrade and

in-field repair

▪ Connectivity based on

▪ PCIe/NVMe

▪ Ethernet

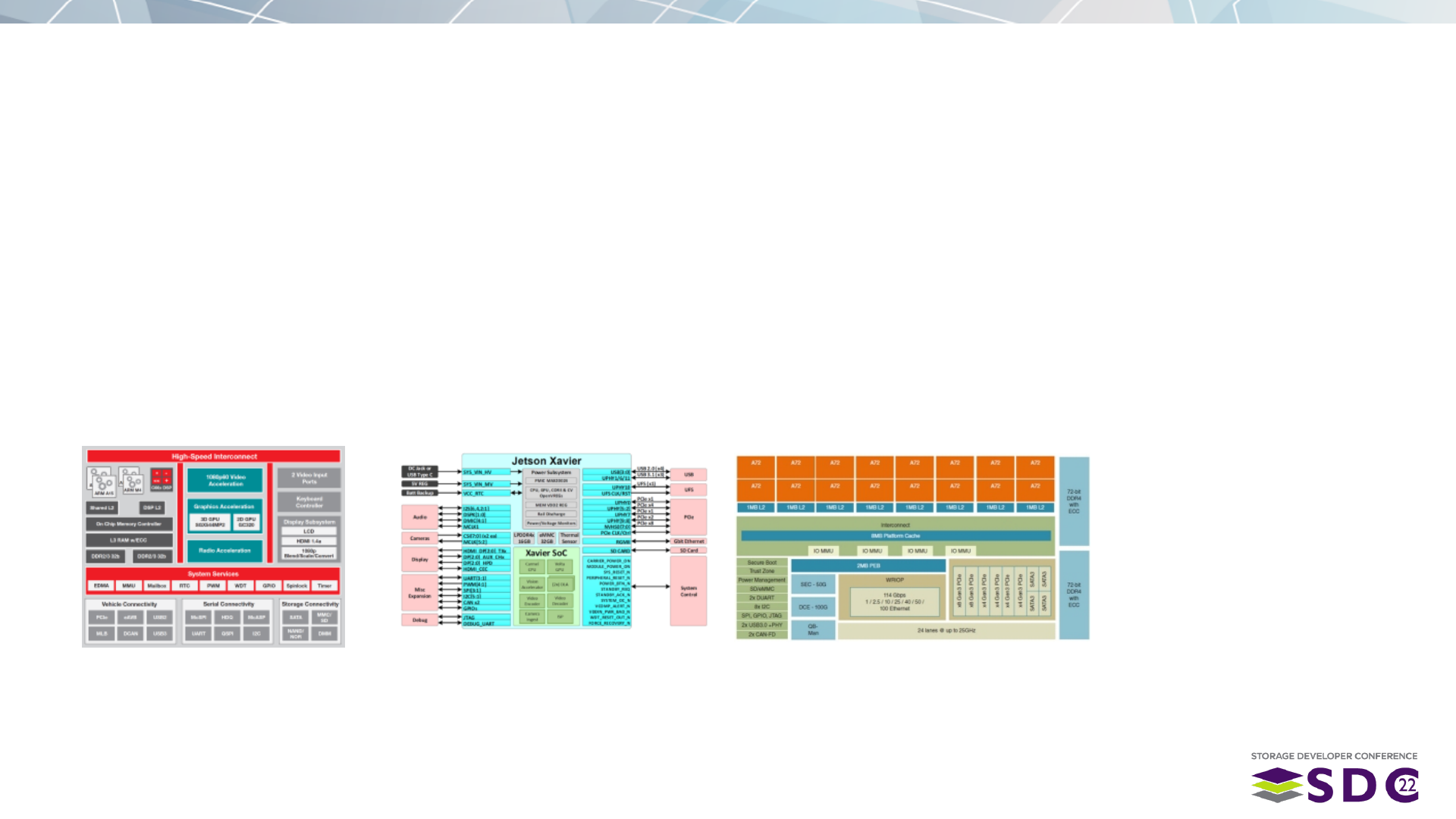

Why PCI Express?

• Future-proof road-map, driven by PCI-SIG

• NVM Express cost/performance/power optimized storage

• PC, Cloud Computing, Embedded Systems drive this roadmap

• Best-in-class price ($) per performance (Gbps) ratio

• Common to modern SoCs, ability to commoditize silicon

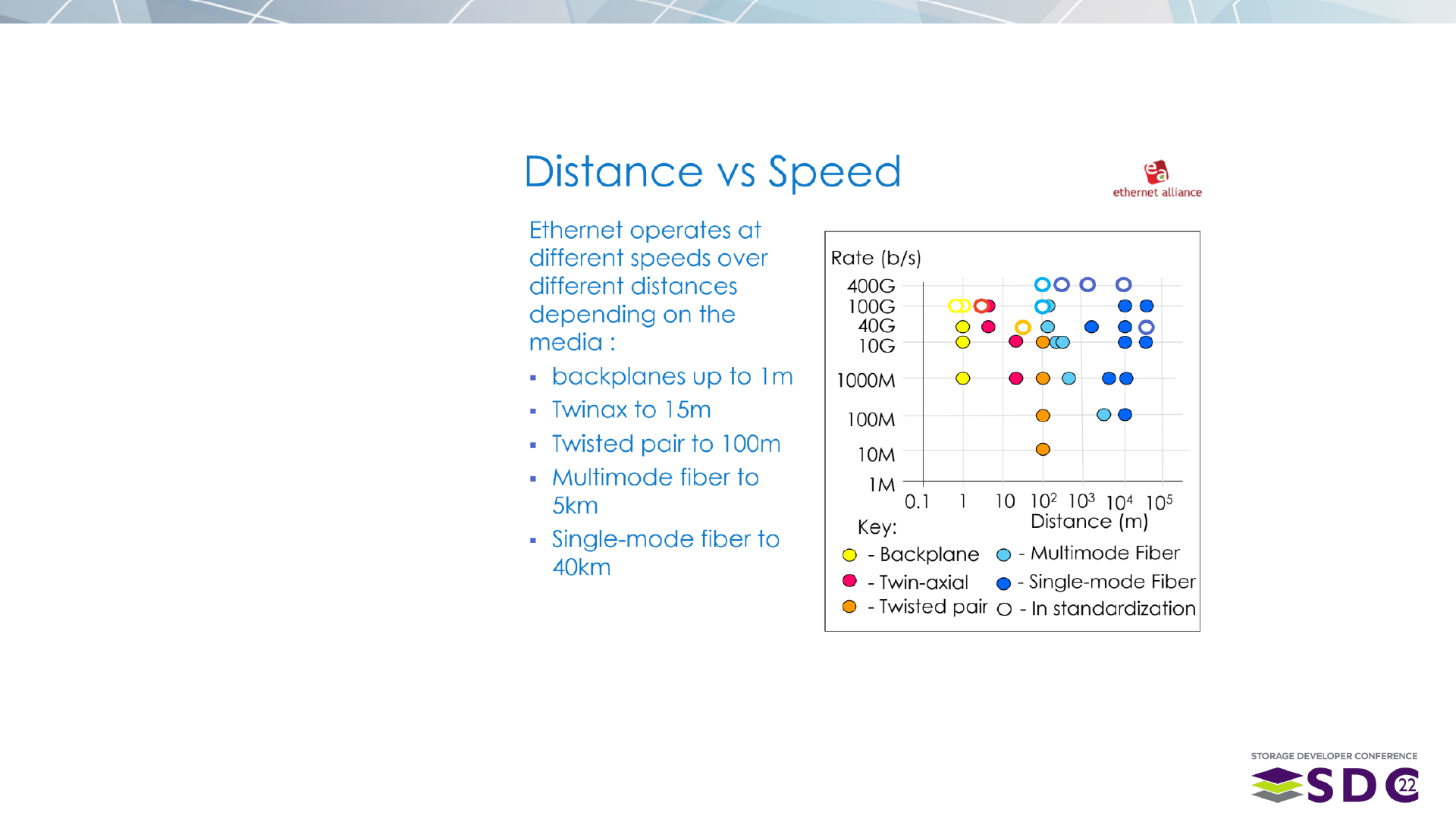

Why Ethernet?

• Future-proof road-map

• PC, Cloud Computing,

Embedded Systems drive this

roadmap

• Best-in-class price ($) per

performance (Gbps) per

length (meters) ratio

Why TSN?

▪ Time Sensitive Networking

▪ The history

▪ AVB Task Group for latency free delivery of audio/video data

▪ 2012 the TSN Task Group evolved from the AVB Task Group (IEEE 802.1)

▪ TSN is not a single standard

▪ It‘s a collection of sub standards and extensions

▪ Network wide time synchronization

▪ Determinism

▪ Low latency

▪ Low jitter

▪ Scalable speed

TSN Profiles & Standards

▪ Standards

▪ Time Synchronization (802.1AS & it‘s profile IEEE 1588, 802.1AS/-2020)

▪ Bounded low latency (802.1Qav, 802.1Qbv, 802.3br & 802.1Qbu, 802.1Qch, P802.1Qcr, P802.1Qcr,

P802.1DC)

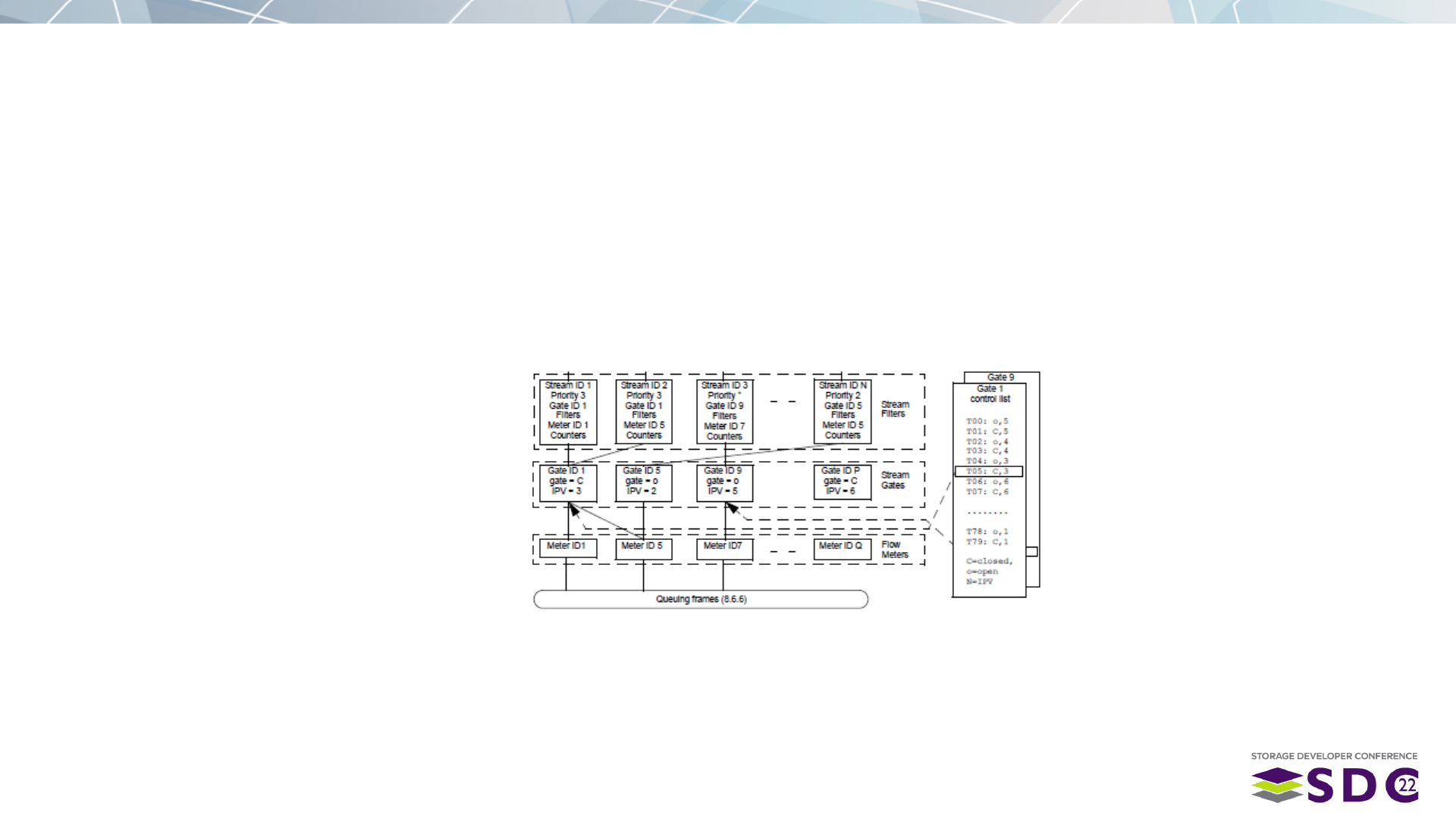

▪ High availability/reliability (802.1CB, 802.1Qci, 802.1Qca)

▪ Resources and API (802.1Qat, 802.1Qcc, 802.1Qcp, P802.1Qcx, P802.1ABcu, P802.1Qcw,

802.1CBcv, P802.1CS, P802.1Qdd, P802.1CBdb..)

▪ Profiles

▪ Audio Video Bridging (802.1BA)

▪ Fronthaul (802.1CM)

▪ Industrial Automation( IEC/IEEE P60802)

▪ Automotive In-Vehicle (P802.1DG)

▪ Service Provider (P802.1DF)

▪ TSN for Aerospace Onboard Ethernet (P802.1DP)

▪ TSN for Avionics (SAE AS-1A2*)

TSN Technology from Fraunhofer IPMS

TSN-SW

TSN-SE

TSN-GW

TSN-EP

TSN-SE TSN-EP

Pre-Certified & cut through IP Cores

▪ TSN Endpoint (TSN-EP)

▪ TSN Switched Endpoint (TSN-SE)

▪ TSN Switch (TSN-SW)

▪ CAN, LIN

Solutions

▪ Automotive Network bridges & gateways

▪ LIN, CAN, CAN-FD, CAN-XL,… over TSN

▪ Automotive communication subsystems

▪ EMSA5-FS co integrated TSN solutions

CAN-FD

CAN

LIN

CAN-XL

PCIE, CSI,

I2C, SPI, UART

Challenges for TSN at Multi-Gigabit Speeds

TSN <= 1 Gbps

▪ Used in industrial networks

▪ Limited amount of data,

mostly for control

▪ SW-rich systems running RTOS

▪ CPUs fast enough for data

processing

▪ DMA i/f to SW

▪ Little or no offloading needed

TSN >= 10 Gbps

▪ High-performance distributed

systems in vehicles and robots

▪ Large amounts of data from

sensors

▪ Radar, Lidar, Cameras

▪ CPUs too slow for data

processing mostly

▪ Onchip stream i/f

▪ Fixed and programmable

function accelerators

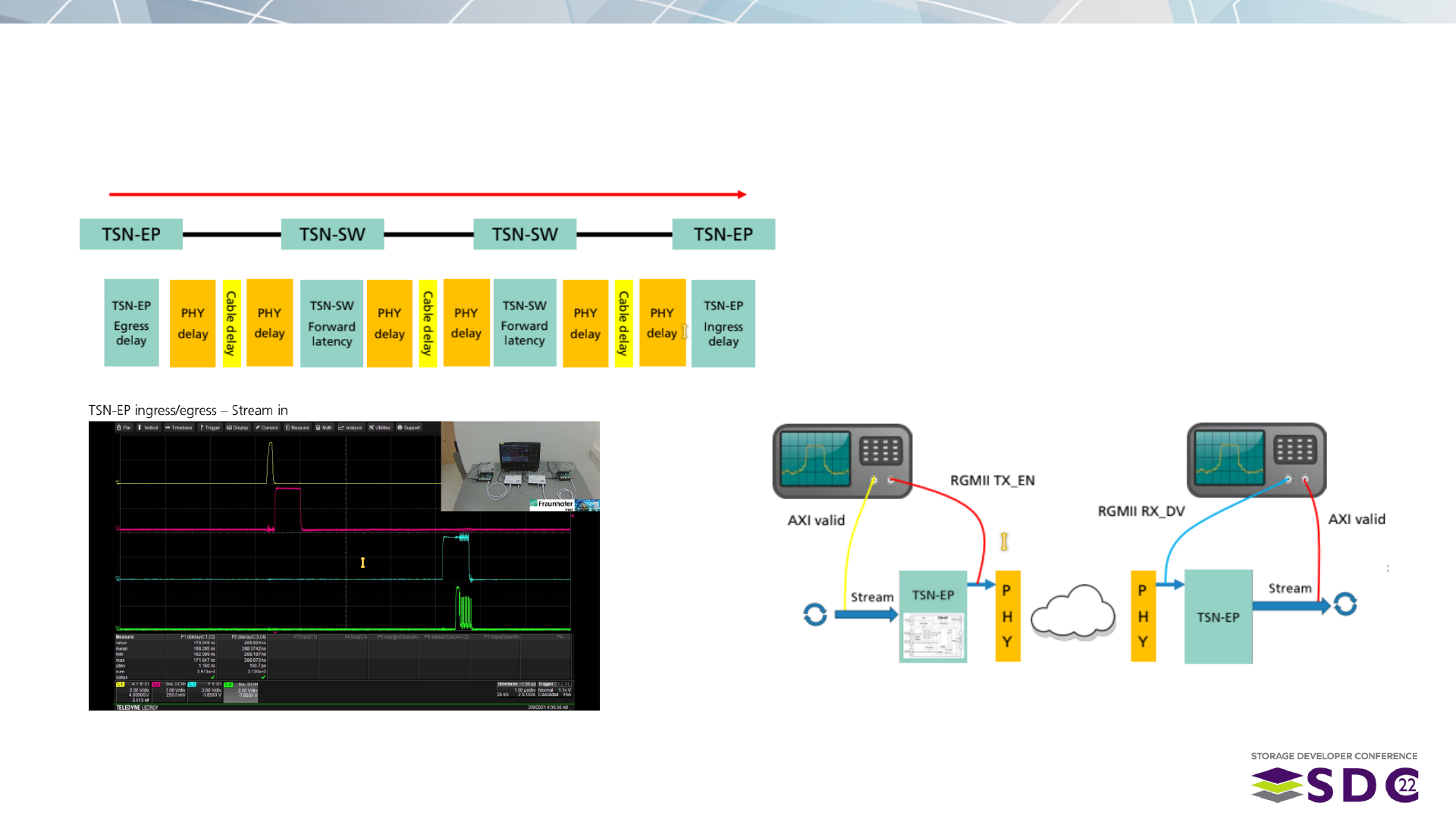

TSN Technology from Fraunhofer IPMS

168 ns 288 ns

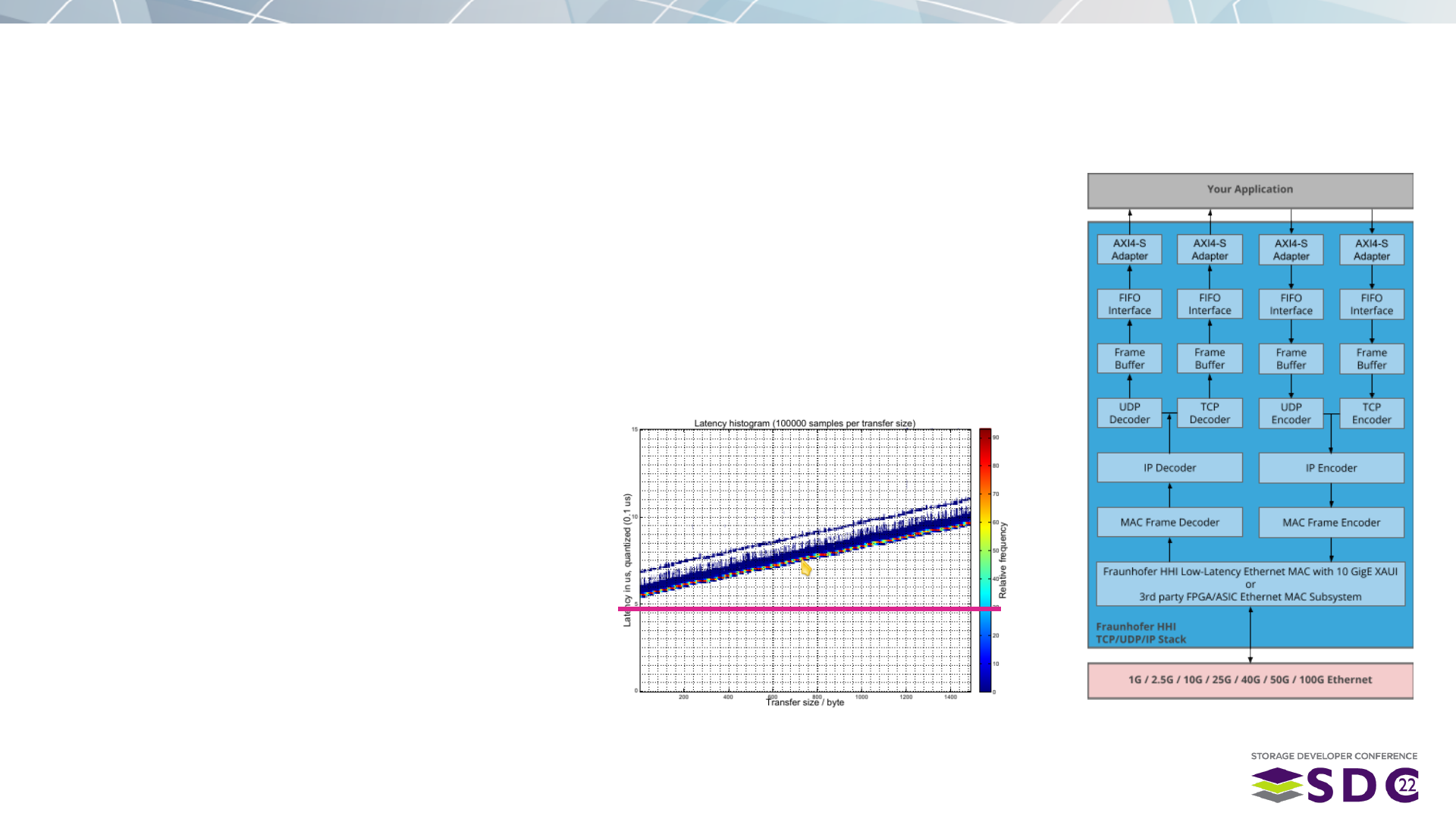

Why TCP?

Benefits

▪ PCIe Transport Layer required

reliability

▪ Long established and well

understood SW API

▪ On-chip Full Accelerator from

Fraunhofer HHI

▪ Industry-proven

▪ Resource efficient

▪ 128 bit wide for up to 100 Gbps

linerate processing

▪ Low and deterministic latency

(700 ns RTT for 100B)

PCIe Offset

Converging PCIe/NVMe and TSN - Automotive Connectivity

PCIe-over-TSN

NVMe-over-TSN

over 10/25/50/100 GigE

over copper/fiber

CPU to CPU

via PCIe NTB

CPU to CPU

via PCIe NTB

PCIe-over-TSN / NVMe-over-TSN Hardware Portion

▪ PCIe from PCI-SIG, TSN from IEEE

▪ Symmetric for CPU-to-CPU (e.g. PCIe NTB) or Asymmetric Sensor-to-CPU

▪ US Patents 10,140,049 10,708,199 10,848,442 11,356,388

PCIe-over-TSN over

10/25/50/100 GigE

over copper/fiber

Our Contact Information

Missing Link Electronics GmbH

+49 (731) 141149-0

Industriestrasse 10

89231 Neu-Ulm

Germany

Email contact: sales-web@mlecorp.com

Missing Link Electronics, Inc.

+1 (408) 475-1490

2880 Zanker Road, Suite 203

San Jose, CA 95134

United States

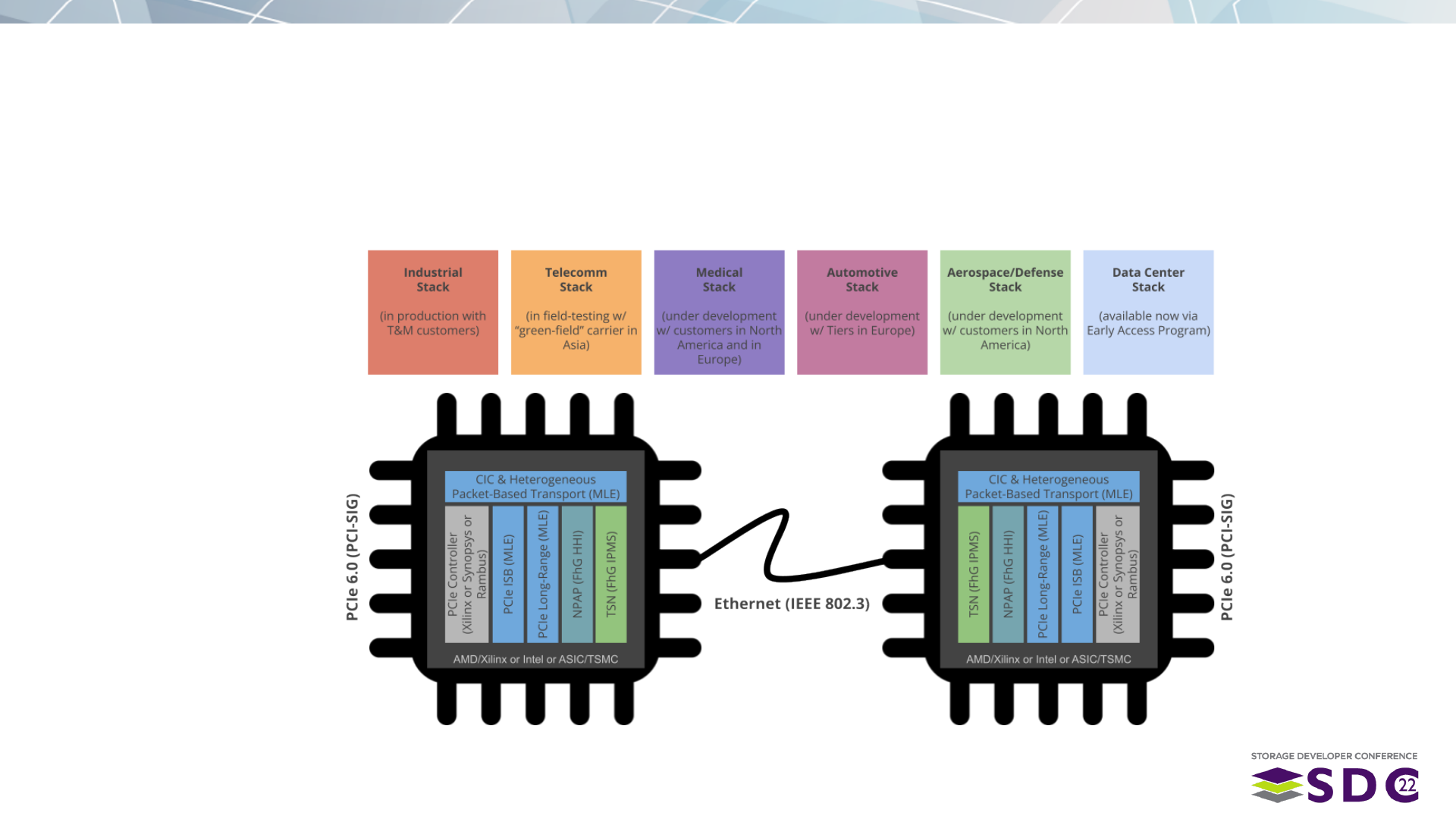

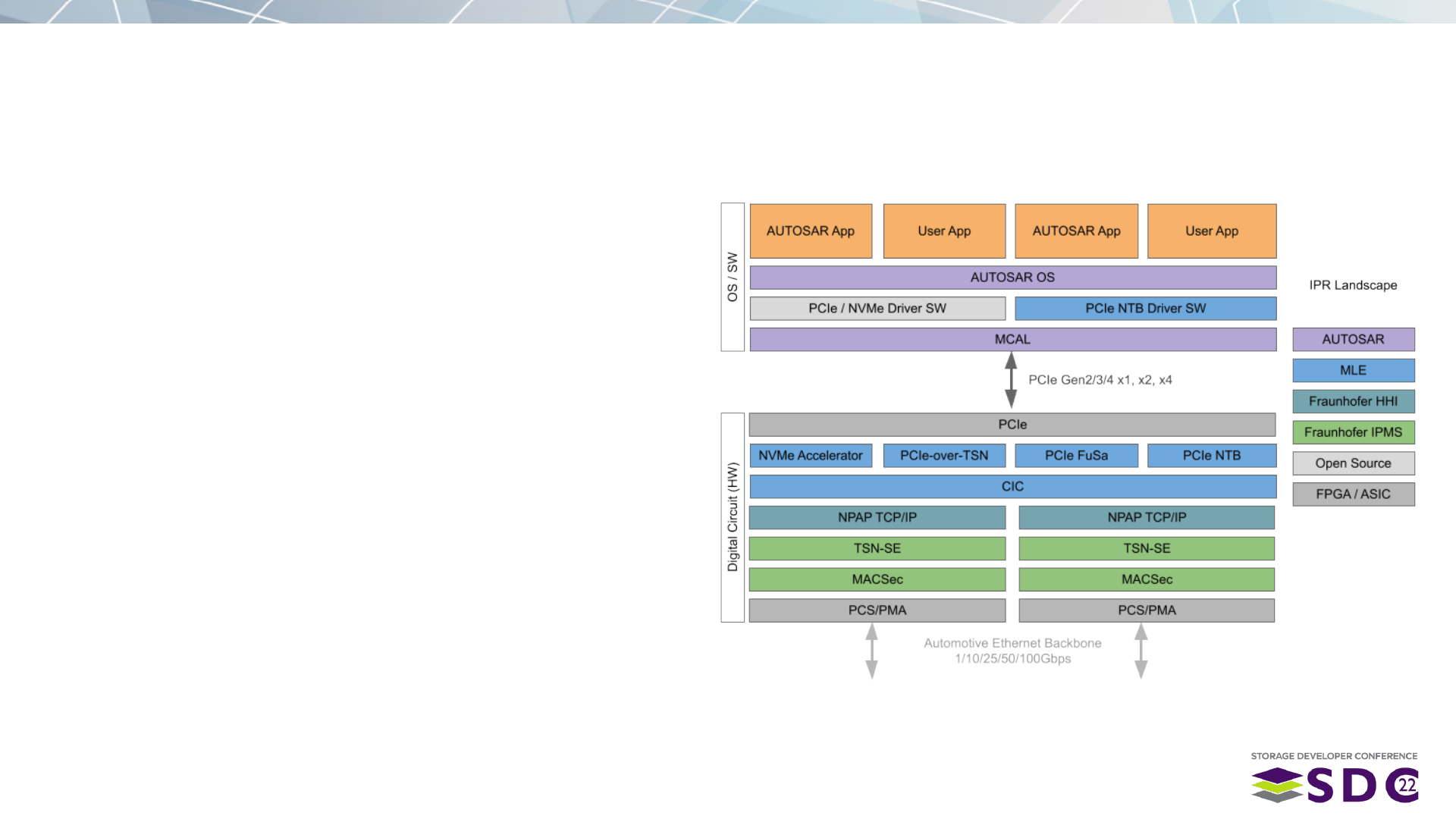

PCIe-over-TSN / NVMe-over-TSN System Stack

System Stack is

• Hardware (Digital Circuit)

• Software (Drivers)

Features

• PCIe Endpoint and Root-Port in FPGA/ASIC

• PCIe Switch in FPGA/ASIC

• PCIe NTB in FPGA/ASIC

• TCP/UDP/IP over TSN in FPGA/ASIC

• netdev Linux Device Drivers

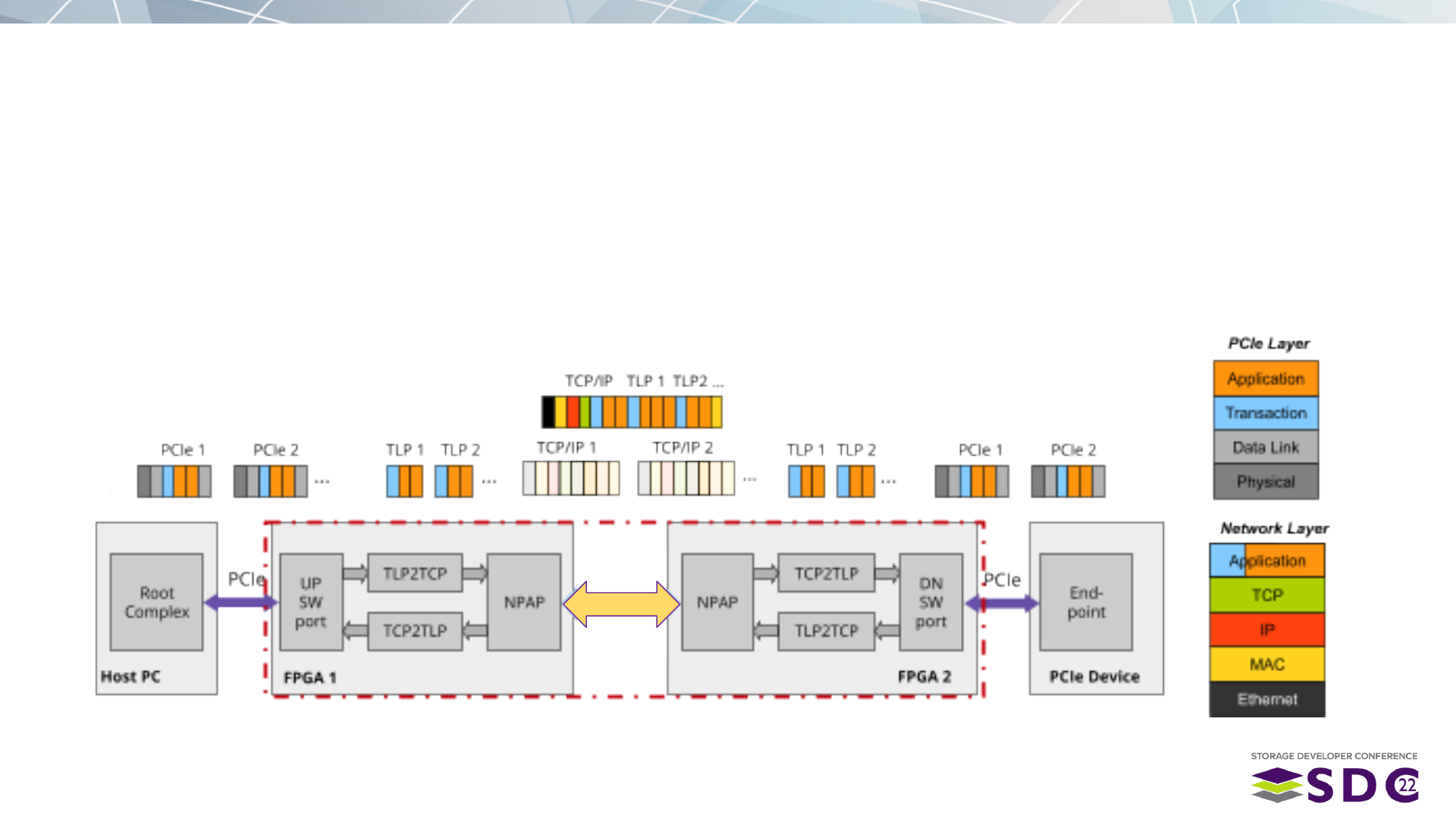

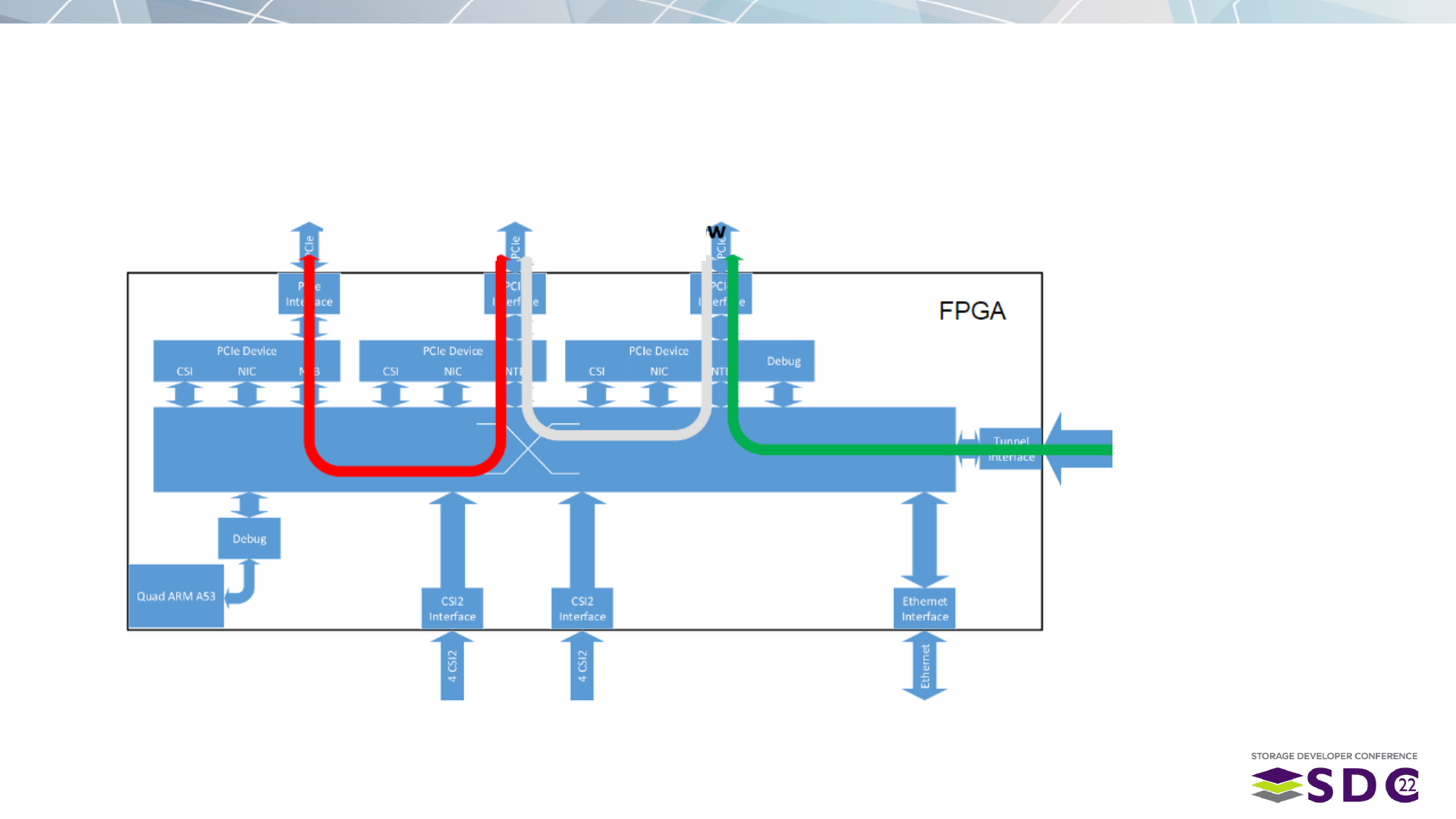

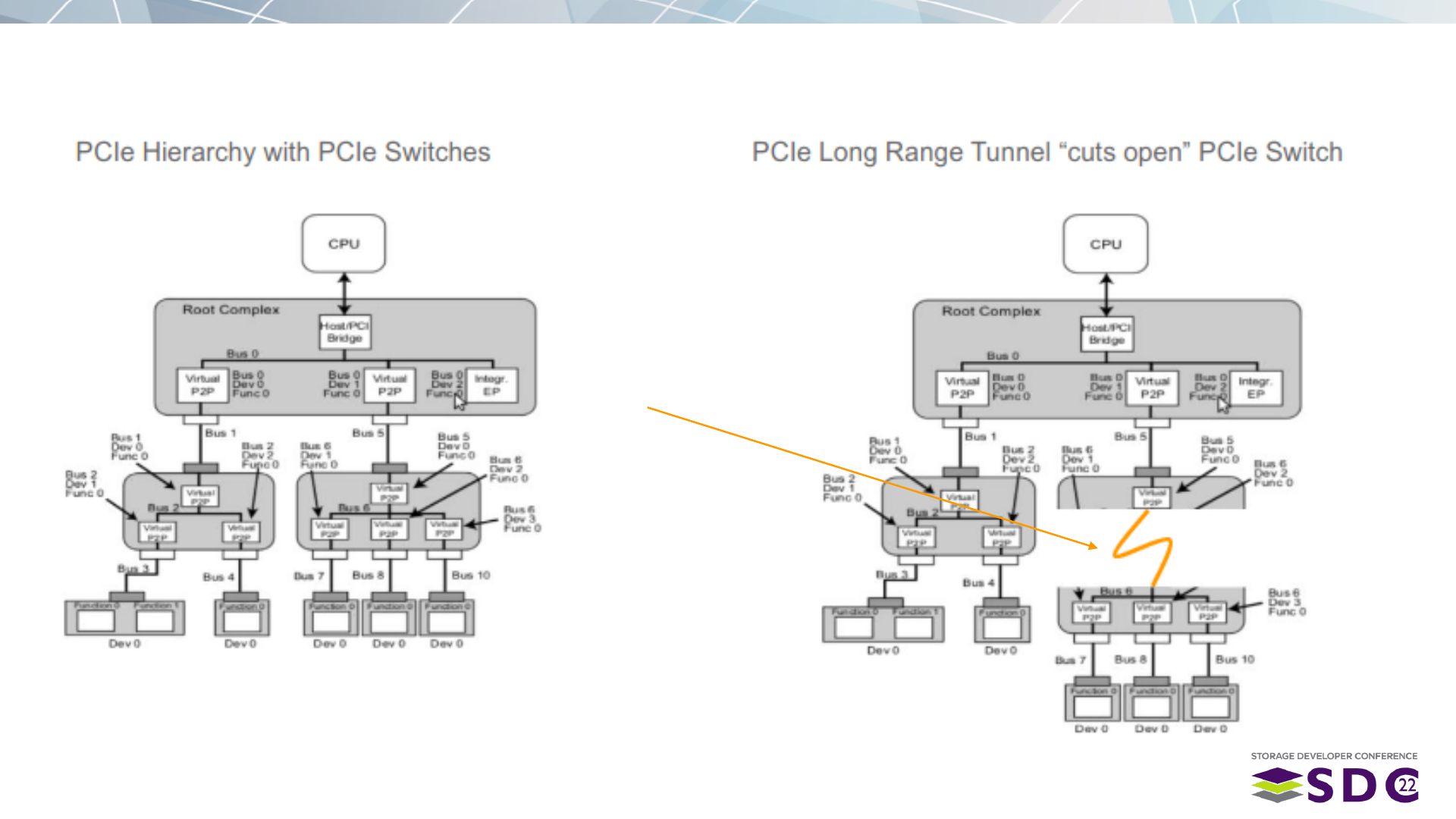

PCIe-over-TSN Concept: A Distributed PCIe Switch

TSN

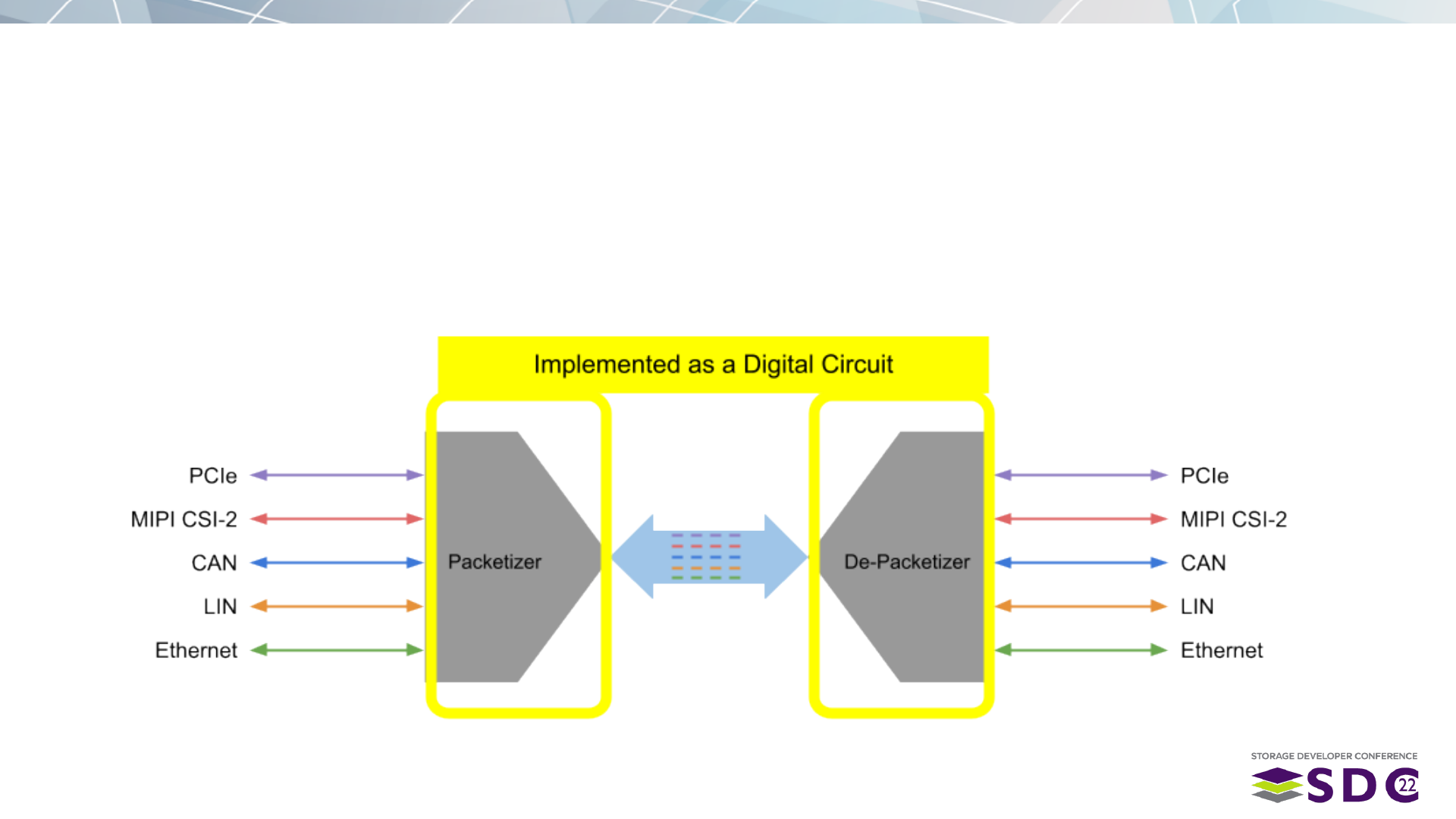

PCIe-over-TSN Concept: Distributed PCIe Switch

Encapsulate and Decapsulate PCIe TLPs. PCIe demands reliability, therefore we transport

TLPs over TCP/IP over TSN over Ethernet.

TSN

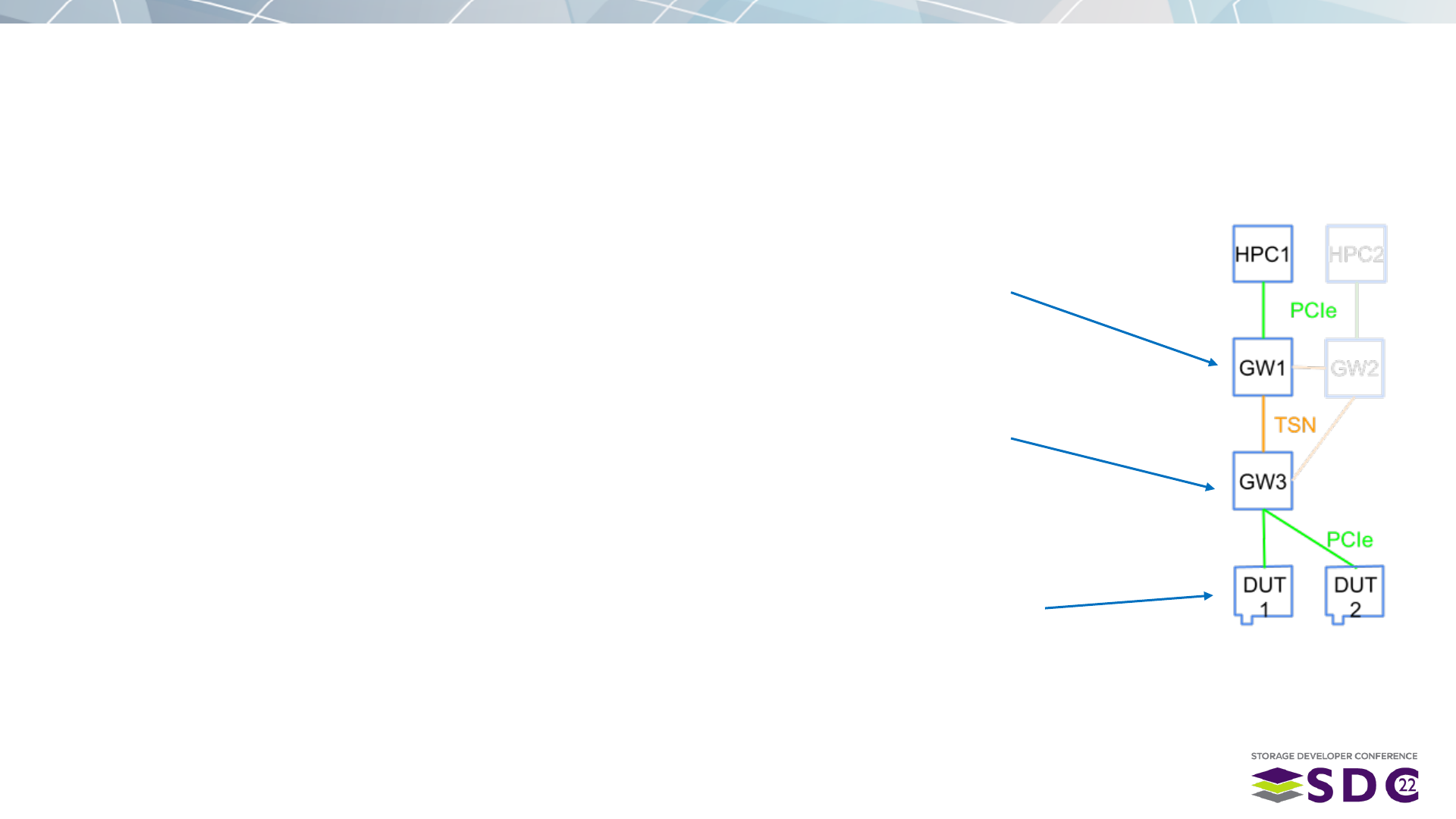

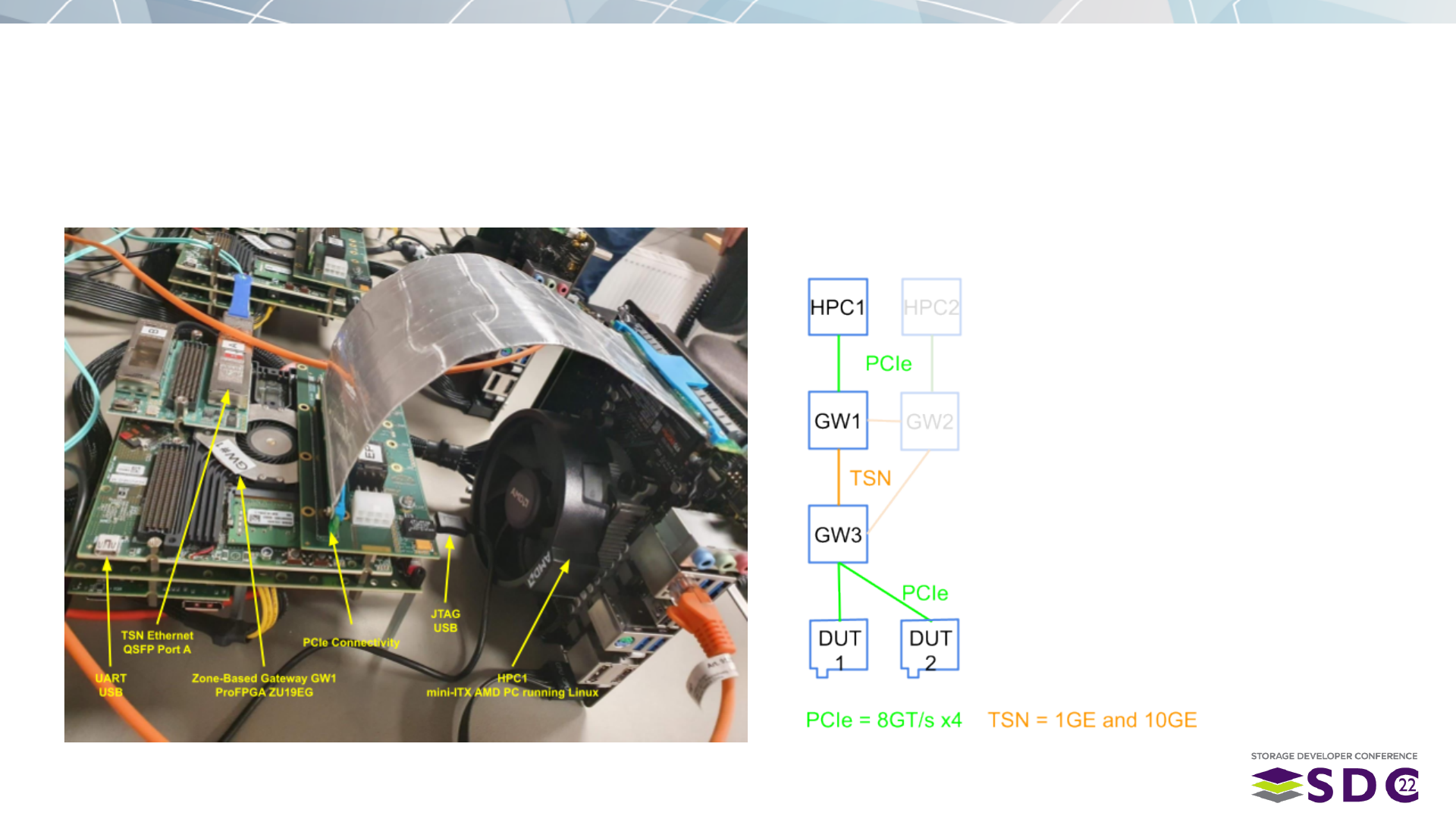

PCIe-over-TSN / NVMe-over-TSN Lab Car

Labcar Setup w/ PCIe Connect to HPC Labcar Setup for Experiments

PCIe/NVMe PCIE NTB

NVMe-over-TSN Results With SSD

Linux lspci

00:00.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:15d0]

00:01.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452]

01:00.0 PCI bridge [0604]: Xilinx Corporation Device [10ee:9034] (prog-if 00 [Normal decode])

Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-

Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-

Latency: 0, Cache Line Size: 64 bytes

Bus: primary=01, secondary=02, subordinate=03, sec-latency=0

Capabilities: [70] Express (v2) Upstream Port, MSI 00

Capabilities: [1c0 v1] #19

Kernel driver in use: pcieport

Kernel modules: shpchp

02:00.0 PCI bridge [0604]: Xilinx Corporation Device [10ee:9134] (prog-if 00 [Normal decode])

Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-

Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-

Latency: 0, Cache Line Size: 64 bytes

Bus: primary=02, secondary=03, subordinate=03, sec-latency=0

Capabilities: [70] Express (v2) Downstream Port (Slot+), MSI 00

Capabilities: [1c0 v1] #19

Kernel driver in use: pcieport

Kernel modules: shpchp

03:00.0 Non-Volatile memory controller [0108]: Samsung Electronics Co Ltd Device [144d:a808] (prog-if 02 [NVM Express])

Subsystem: Samsung Electronics Co Ltd Device [144d:a801]

Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+

Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-

Latency: 0, Cache Line Size: 64 bytes

Interrupt: pin A routed to IRQ 30

NUMA node: 0

Region 0: Memory at fcf00000 (64-bit, non-prefetchable) [size=16K]

Kernel driver in use: nvme

Kernel modules: nvme

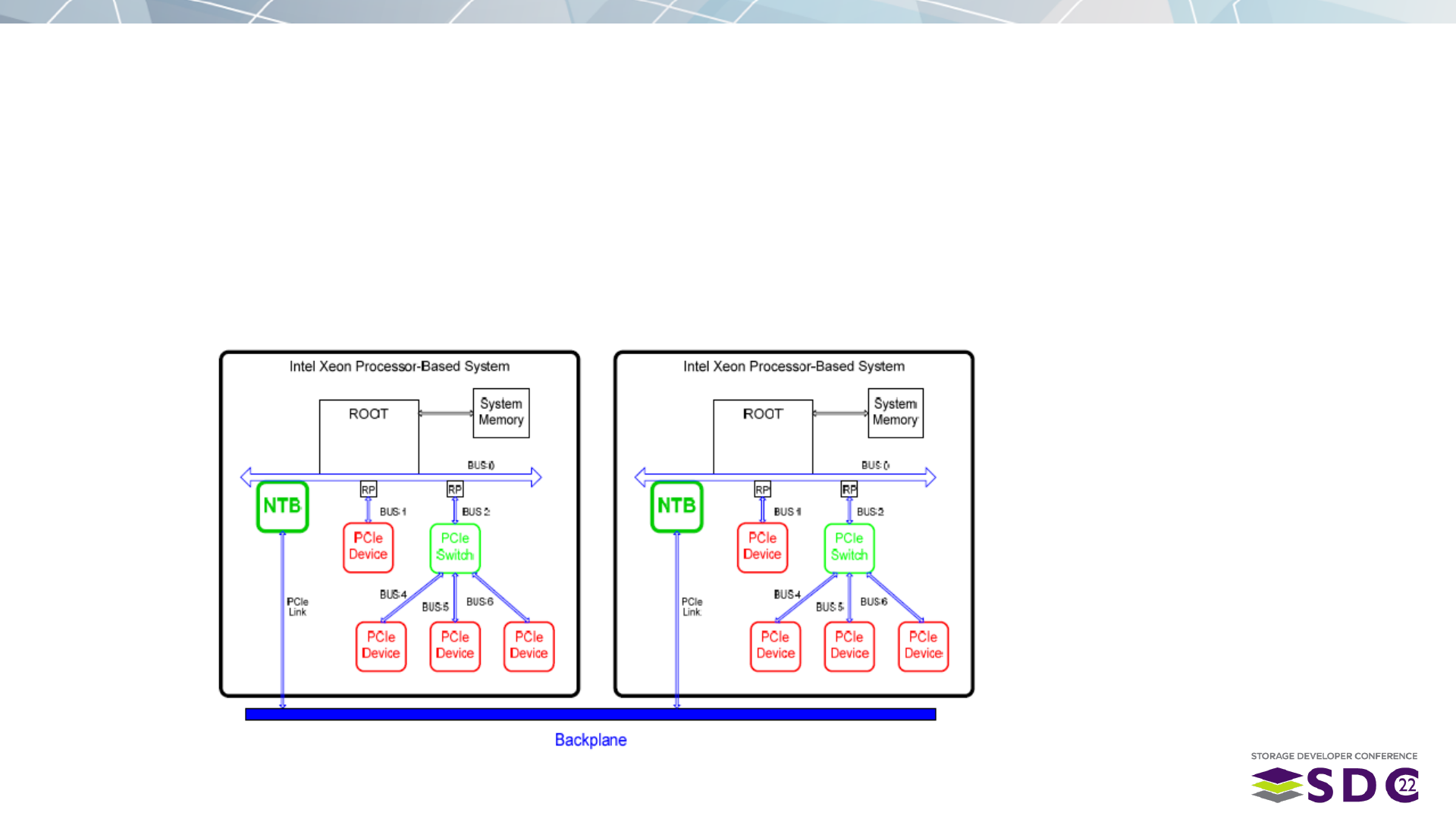

PCIe Non-Transparent Bridge

o Non-Transparent Bridge (NTB) connects multiple Root Ports

o Example of NTB Back-2-Back

(Example from Intel Xeon C5500)

Delivering Performance for PCIe NTB

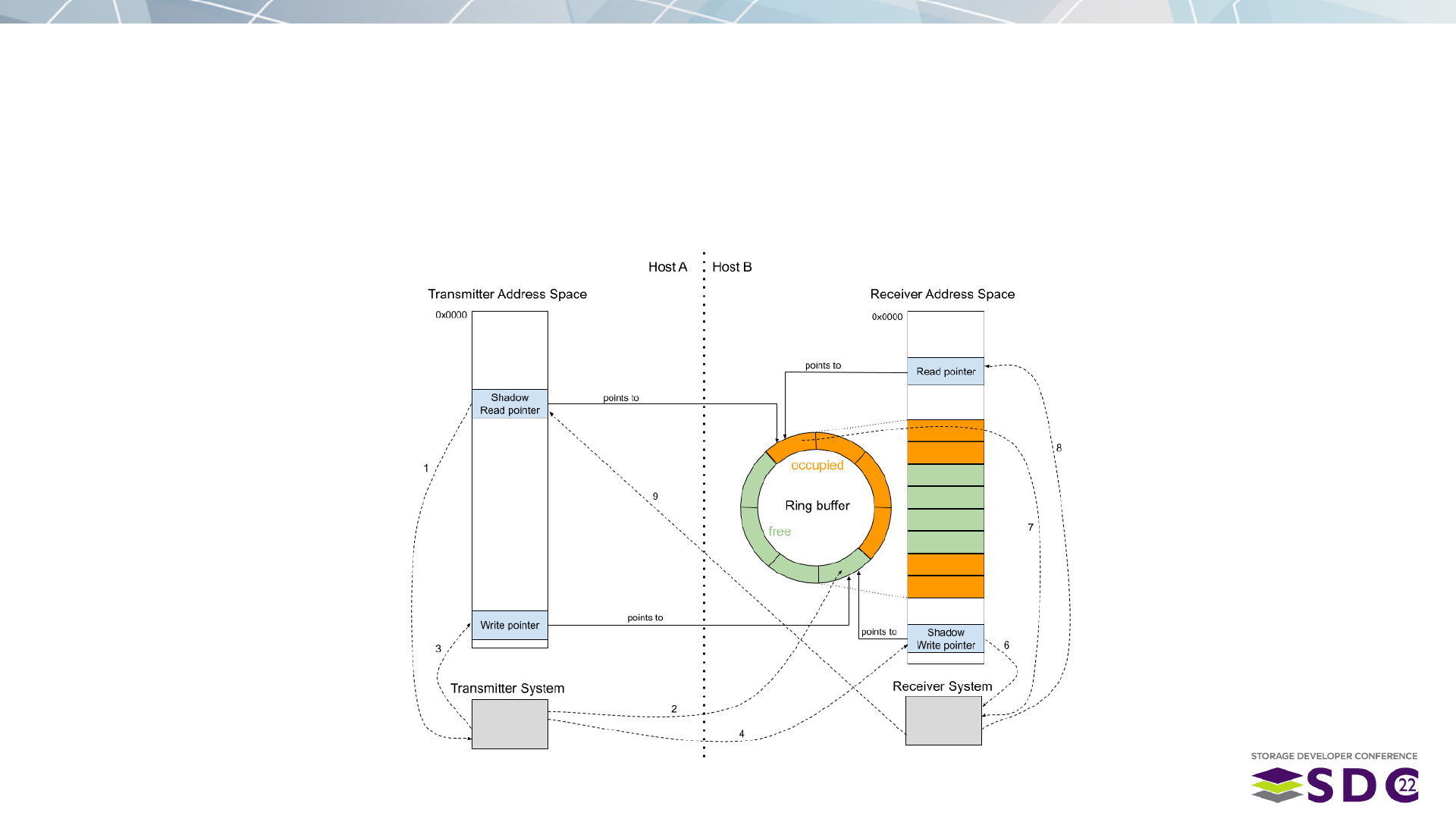

Write-Only Communication via Doorbells - NVMe-style

o Avoids difficulties

of multi-device

o Scales to >32 RCs

o Posted Writes

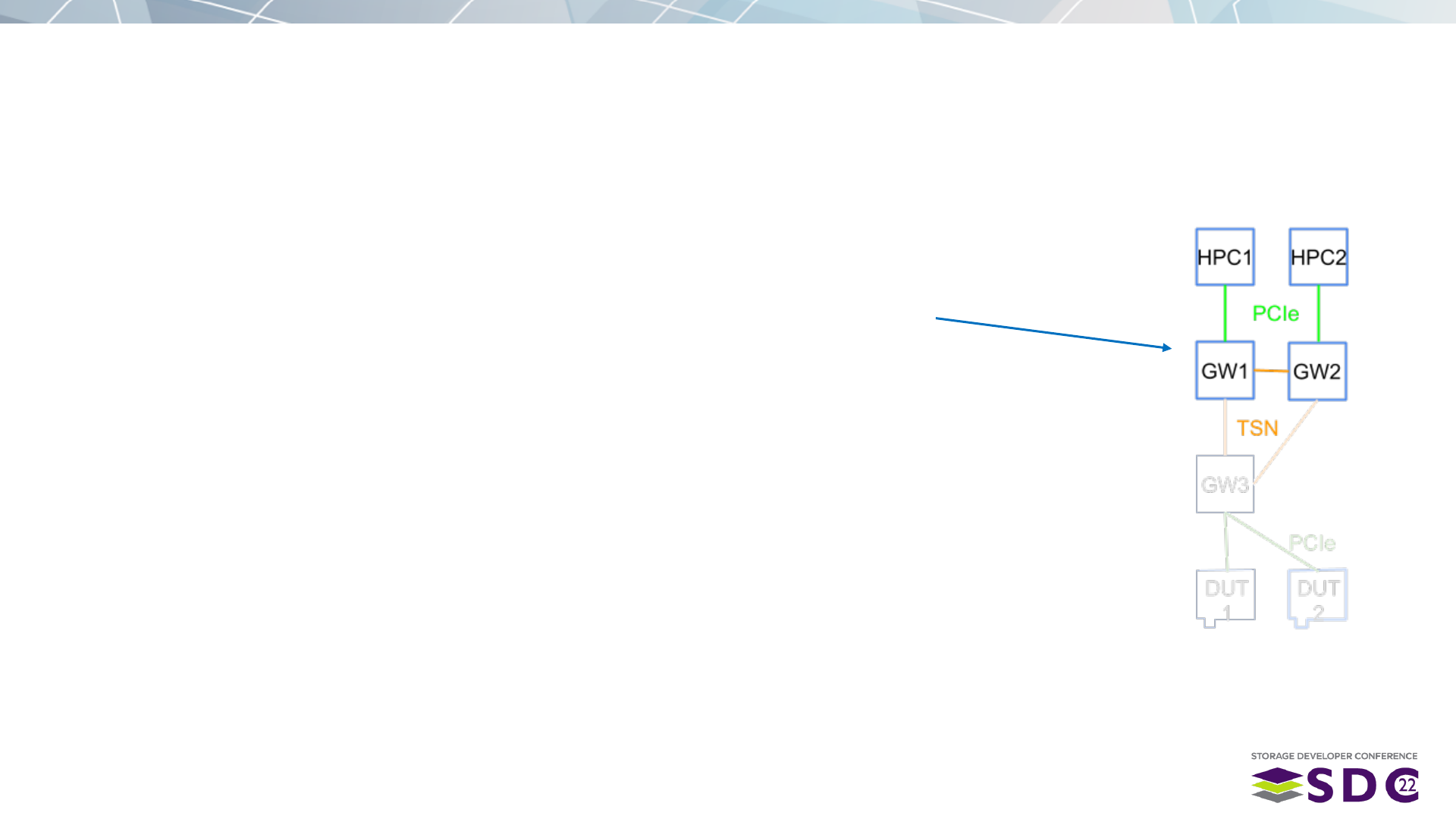

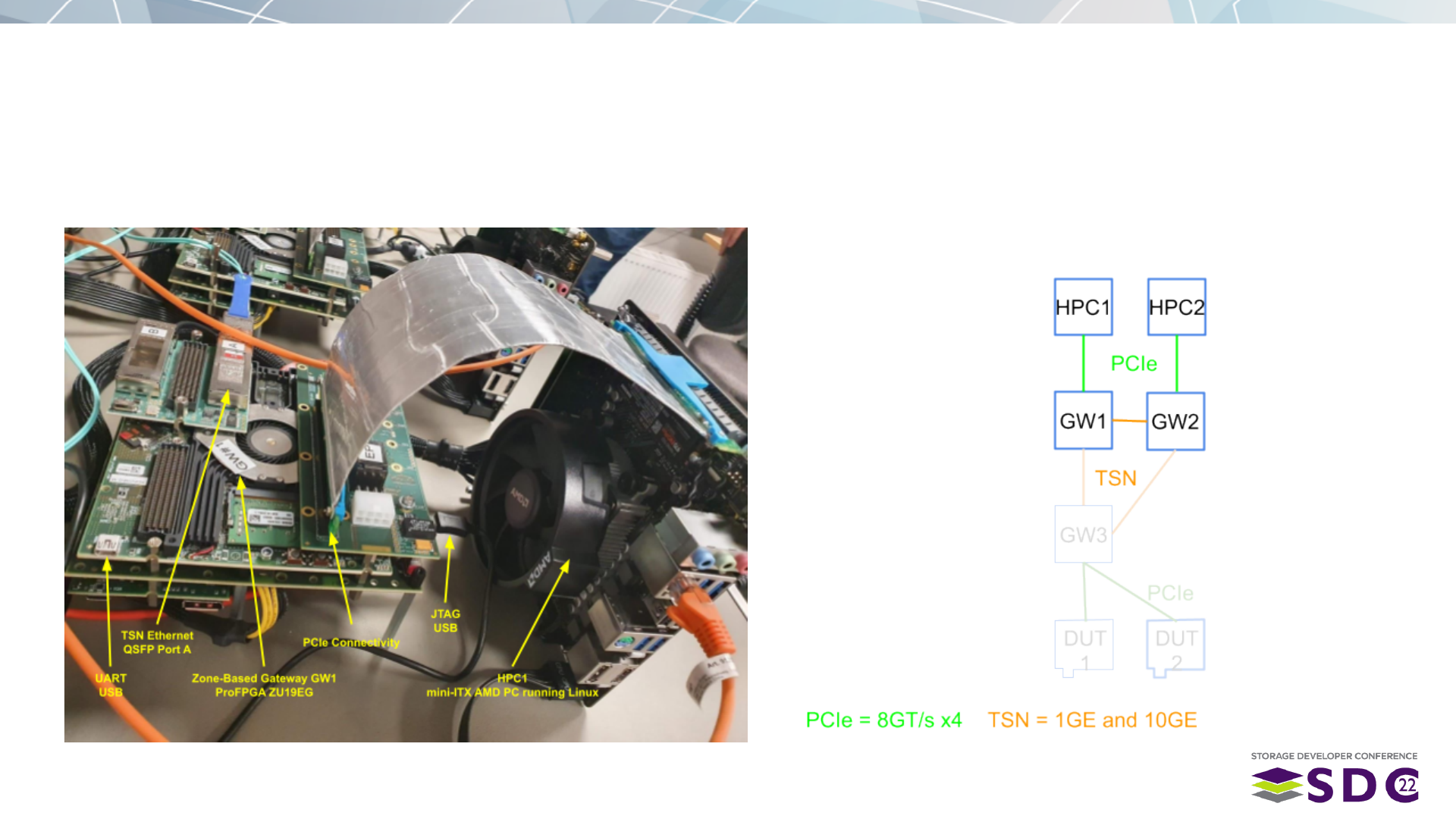

PCIe-over-TSN for NTB Lab Car

Labcar Setup w/ PCIe Connect to HPC Labcar Setup for Experiments

PCIe/NVMe PCIE NTB

PCIe-over-TSN for Non-Transparent Bridging (NTB)

> lspci -vt

-[0000:00]-+-00.0AdvancedMicroDevices,Inc.[AMD]Raven/Raven2RootComplex

+-00.2AdvancedMicroDevices,Inc.[AMD]Raven/Raven2IOMMU

+-01.0AdvancedMicroDevices,Inc.[AMD]Family17h(Models00h-1fh)PCIeDummy

Host Bridge

+-01.1-[01]----00.0MissingLinkElectronicsDevice22fb

...

> lspci -vv -s 01:00.0

01:00.0 Memory controller: Missing Link Electronics Device 22fb

Subsystem:XilinxCorporationDevice0007

Control:I/O-Mem+BusMaster+SpecCycle-MemWINV-VGASnoop-ParErr-Stepping-SERR-

FastB2B- DisINTx+

Status:Cap+66MHz-UDF-FastB2B-ParErr-DEVSEL=fast>TAbort-<TAbort-<MAbort->SERR-

<PERR- INTx-

Latency:0,CacheLineSize:64bytes

Region0:Memoryatd0000000(64-bit,prefetchable)[size=256M]

Region2:Memoryatc0000000(64-bit,prefetchable)[size=256M]

Region4:Memoryatfcf10000(32-bit,non-prefetchable)[size=64K]

Region5:Memoryatfcf00000(32-bit,non-prefetchable)[size=64K]

Capabilities:[1c0v1]#19

Kerneldriverinuse:ntb_hw_mle

Kernelmodules:ntb_hw_mle

Convergence of PCIe/NVMe and TSN - Conclusion

Foundation Technology With Many Applications

Built on top of open

standards from PCI-

SIG and IEEE

Implemented in

ASIC and FPGA

Today TCP:

▪ PCIe-over-TSN / NVMe-over-

TSN

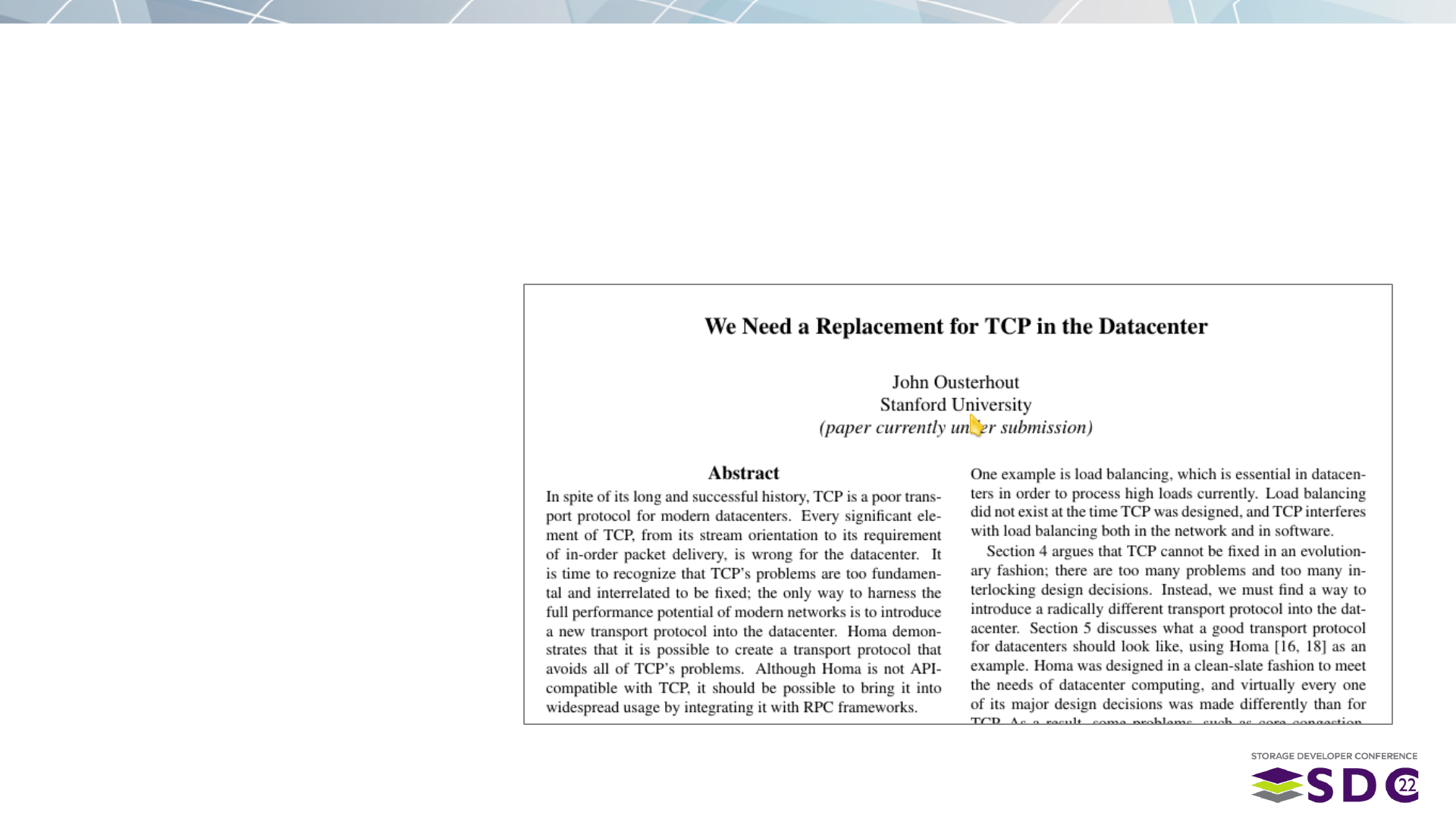

Next Homa:

▪ Alternatives to TCP

for Storage

▪ Add security

Outlook & Future Work

NVMe-over-Homa?

Today: PCIe-over-TSN /

NVMe-over-TSN

Next Steps: MLE Investigating

Alternatives to TCP for

Storage:

NVMe-over-Homa

Please take a moment to rate this session.

Your feedback is important to us.

TSN Standards (1)

▪ Network wide operation

▪ Non 802.1as capable devices break up network

▪ Periodic announce messages

▪ Grand Master (GM) is selected for device with the

best master clock algorithm (BMCA)

▪ Periodical Sync + Followup frames

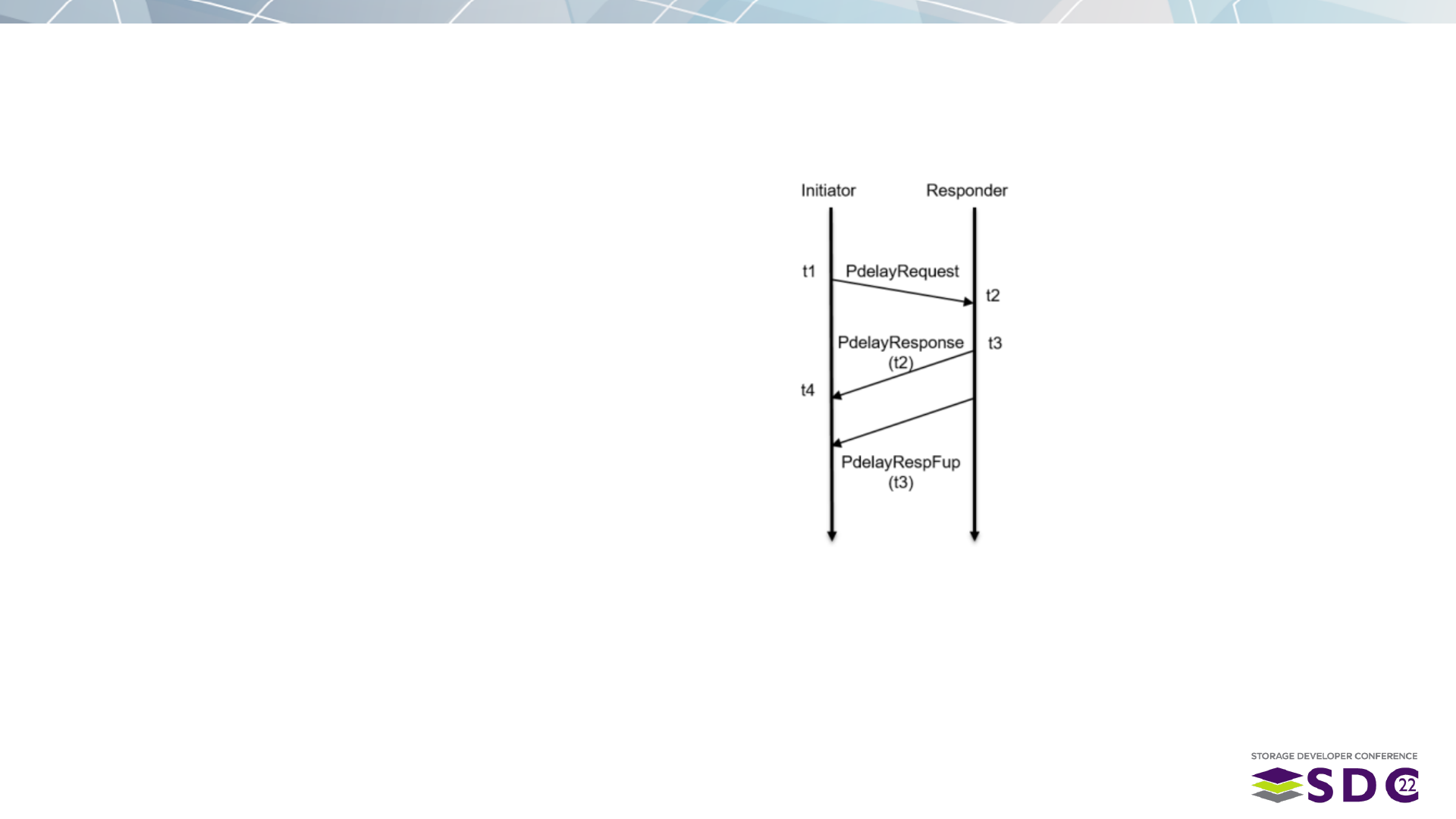

▪ delay measurement is a two-step peer-to-peer

path delay algorithm

Time synchronization - IEEE 802.1AS (AS-2020)

TSN Standards (2)

▪ Forwarding and Queuing

Enhancements for Time-Sensitive

Streams

▪ Allready used in AVB

▪ Credit based scheduling

▪ Positive credit allowing traffic to be sent

▪ Negative credit will prevent packets to

be send

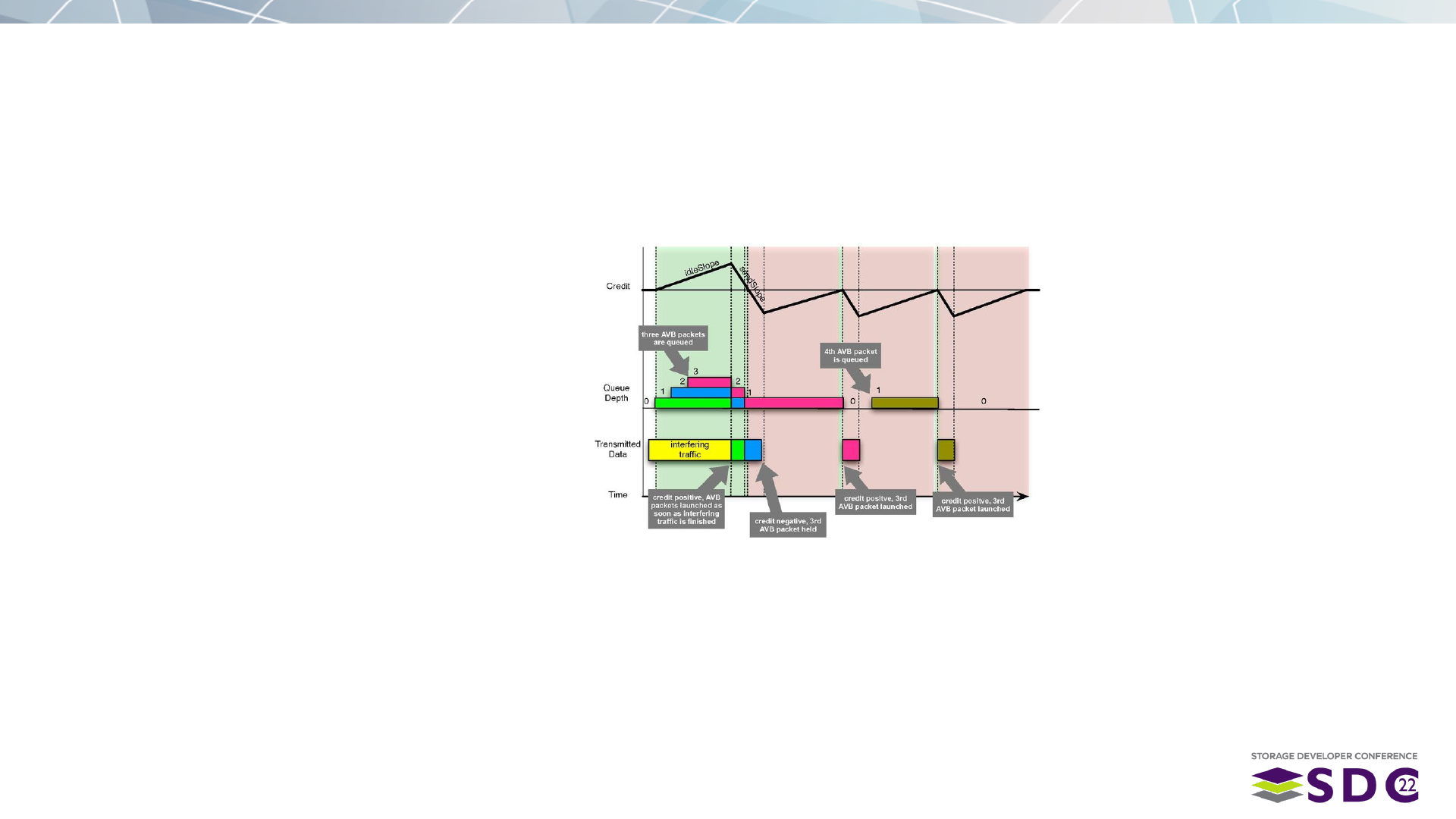

IEEE 802.1Qav - Credit Based Shaper

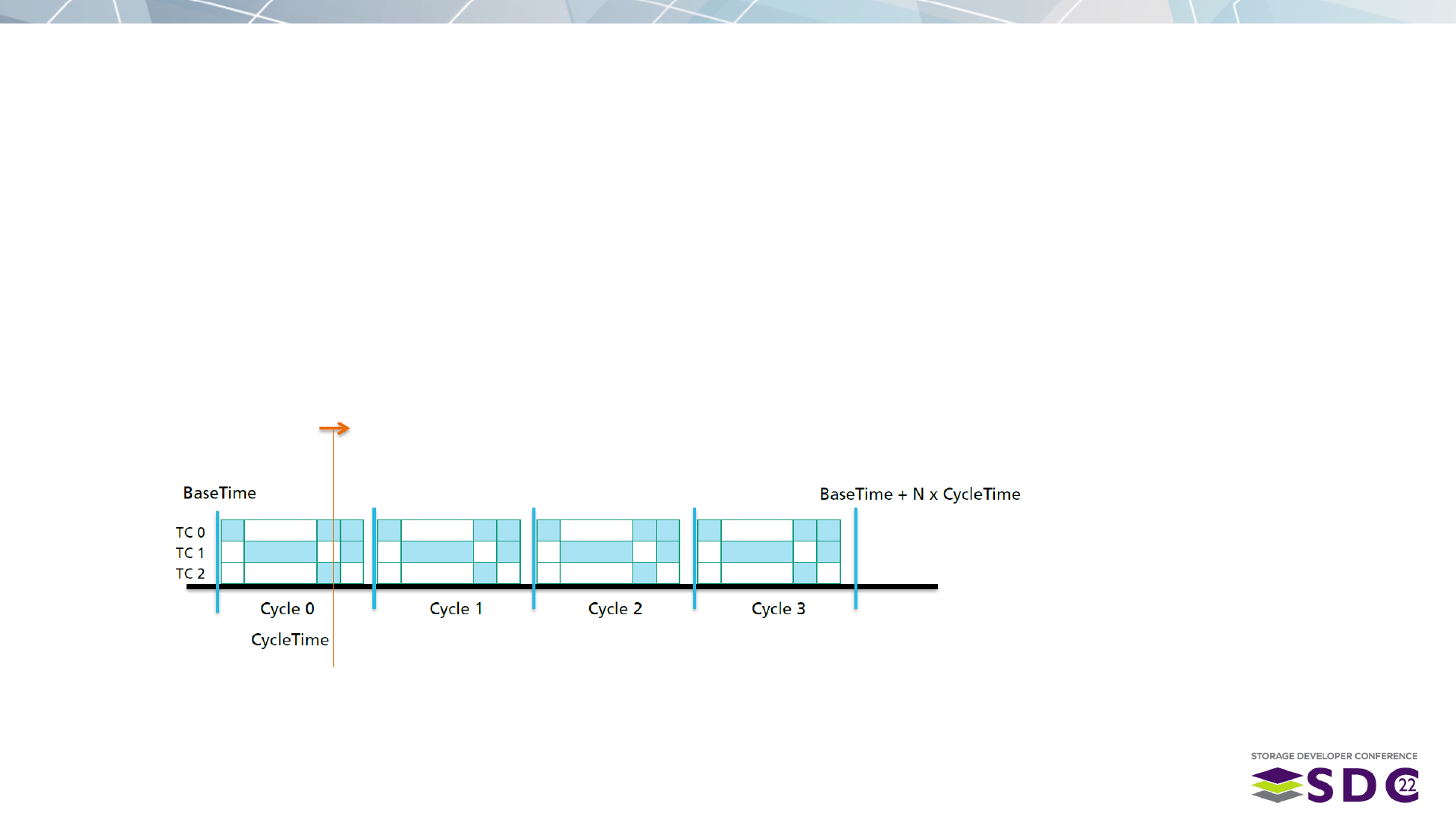

TSN Standards (3)

▪ Cycle based scheduling of frames

▪ Cycle length

▪ A number of gate operations

▪ Guard bands prevent violation of cycle timings

IEEE 802.1Qbv - Time Aware Shaper

TSN Standards (4)

▪ Extreme low latency for chosen traffic (express traffic)

▪ Special mPackets (express packet, preemptable packet, fragment of a packet)

▪ 64bytes of minimal fragment size

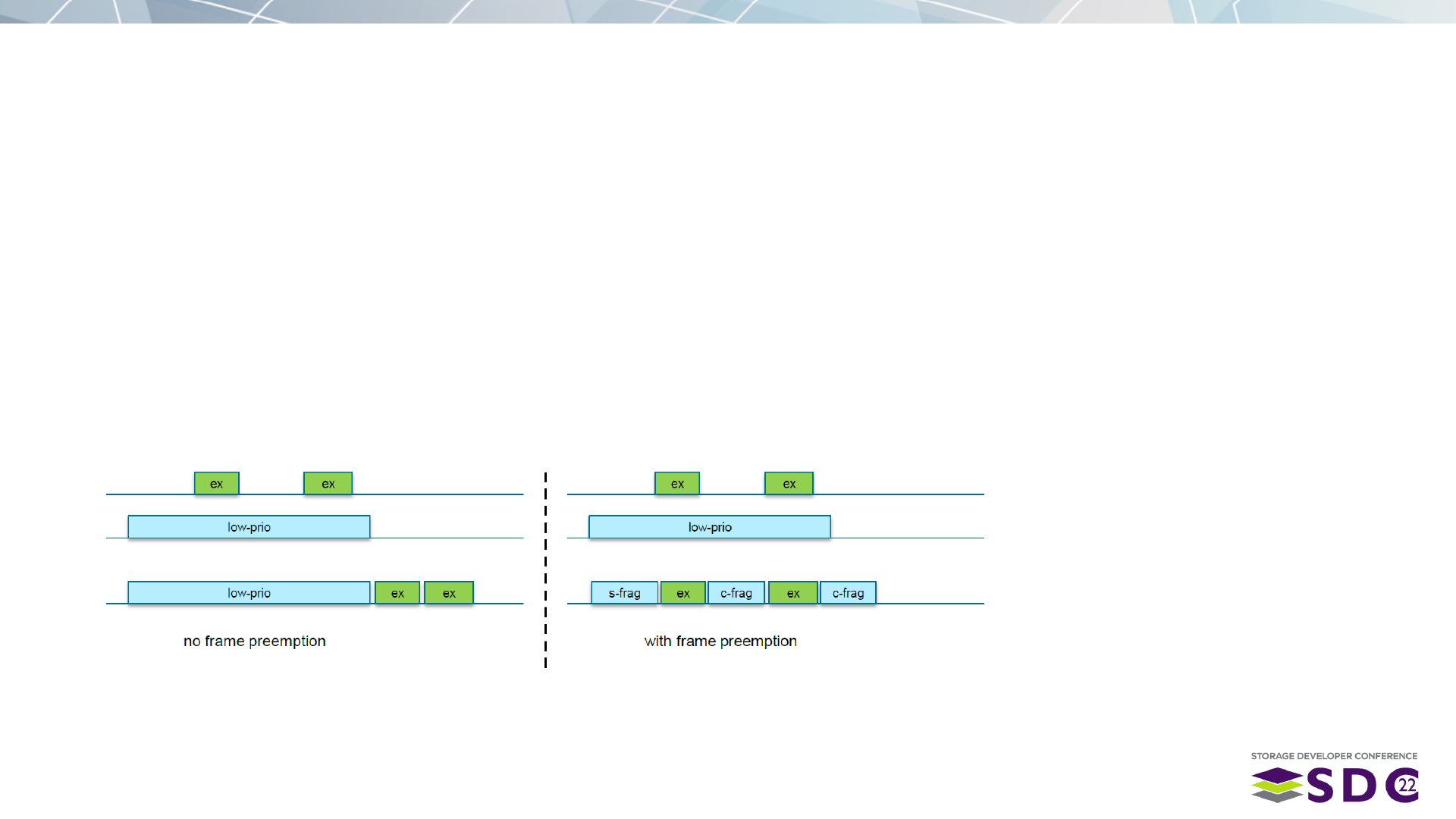

802.3br & 802.1Qbu – Frame preemption

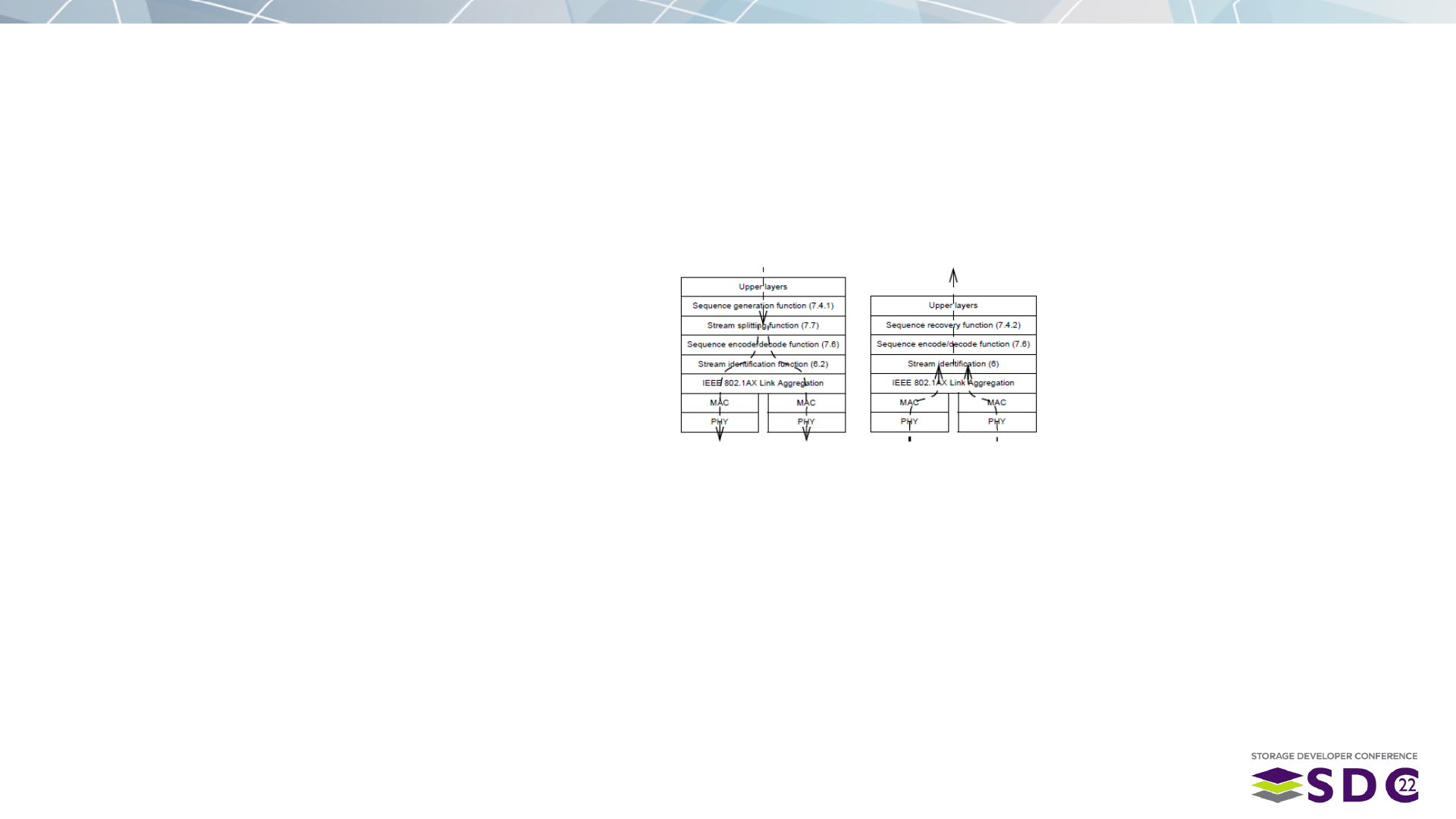

TSN Standards (5)

▪ Sequence generation

▪ Split/Recovery

▪ Redundancy tag seq encode/decode

▪ Stream identification

▪ Link aggregation (802.1AX)

IEEE 802.1CB - Frame replication and elimination for redundancy

TSN Standards (6)

▪ Filtering and policing and frame queue

decisions made on a per-stream basis for

received frames

▪ Stream gate id ᾆ open/closed

IEEE 802.1Qci – Per-Stream Filtering and Policing (PSFP)
