Low-Latency Solutions for Storage-
Hungry Embedded Applications
“Flash-on-Ethernet?”
Dr. Endric Schubert, MLE
Dr. David Boggs, MLE
Dr. Ulrich Langenbach, Fraunhofer HHI
Dr. Peter Gregorius, Fraunhofer HHI
MLEcorp.com/FoE
Flash Memory Summit 2014
Santa Clara, CA 1
Endric Schubert
endric@MLEcorp.com

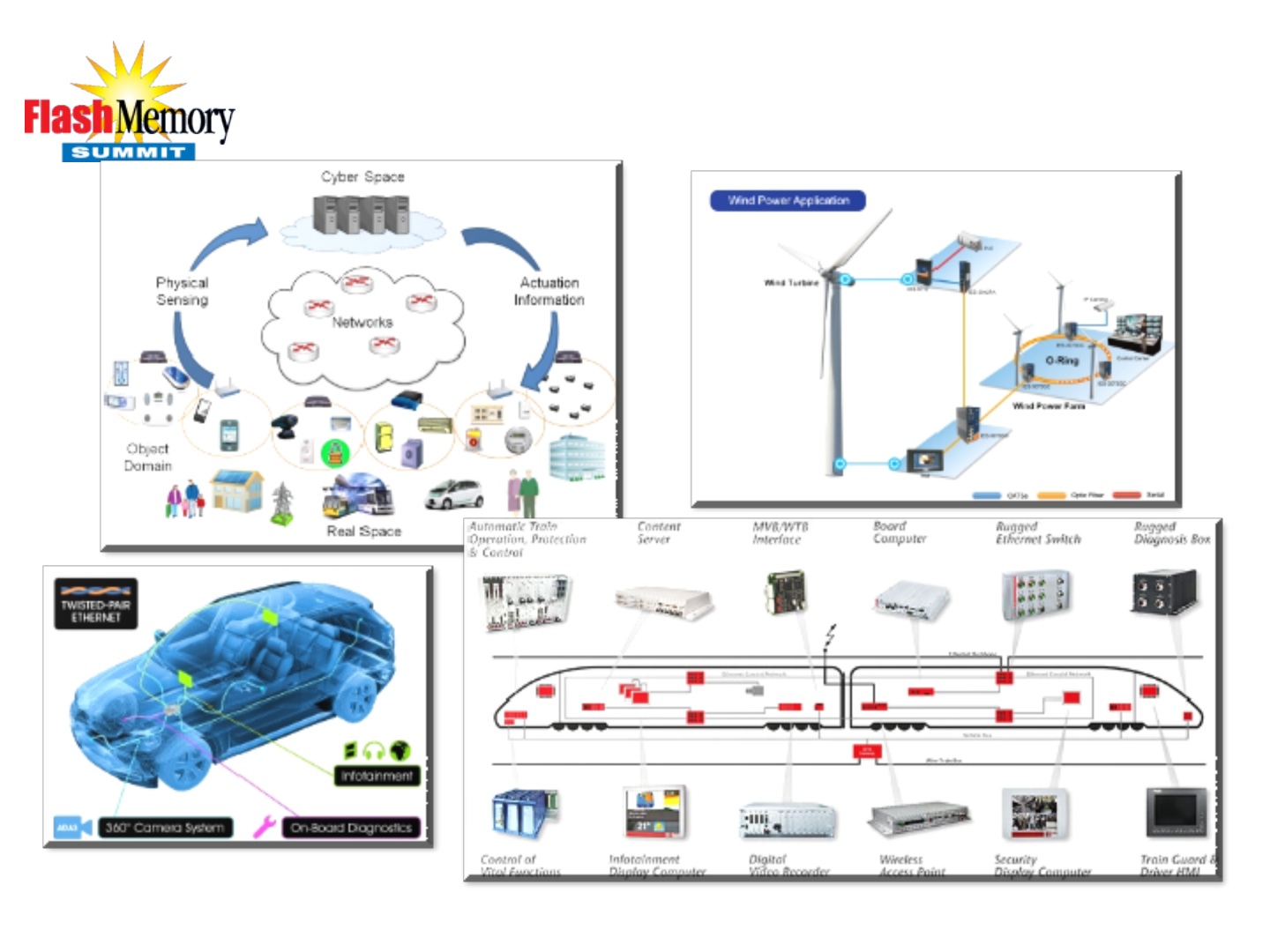

Systems-of-Systems
Flash Memory Summit 2014
Santa Clara, CA 2
Endric Schubert
endric@MLEcorp.com

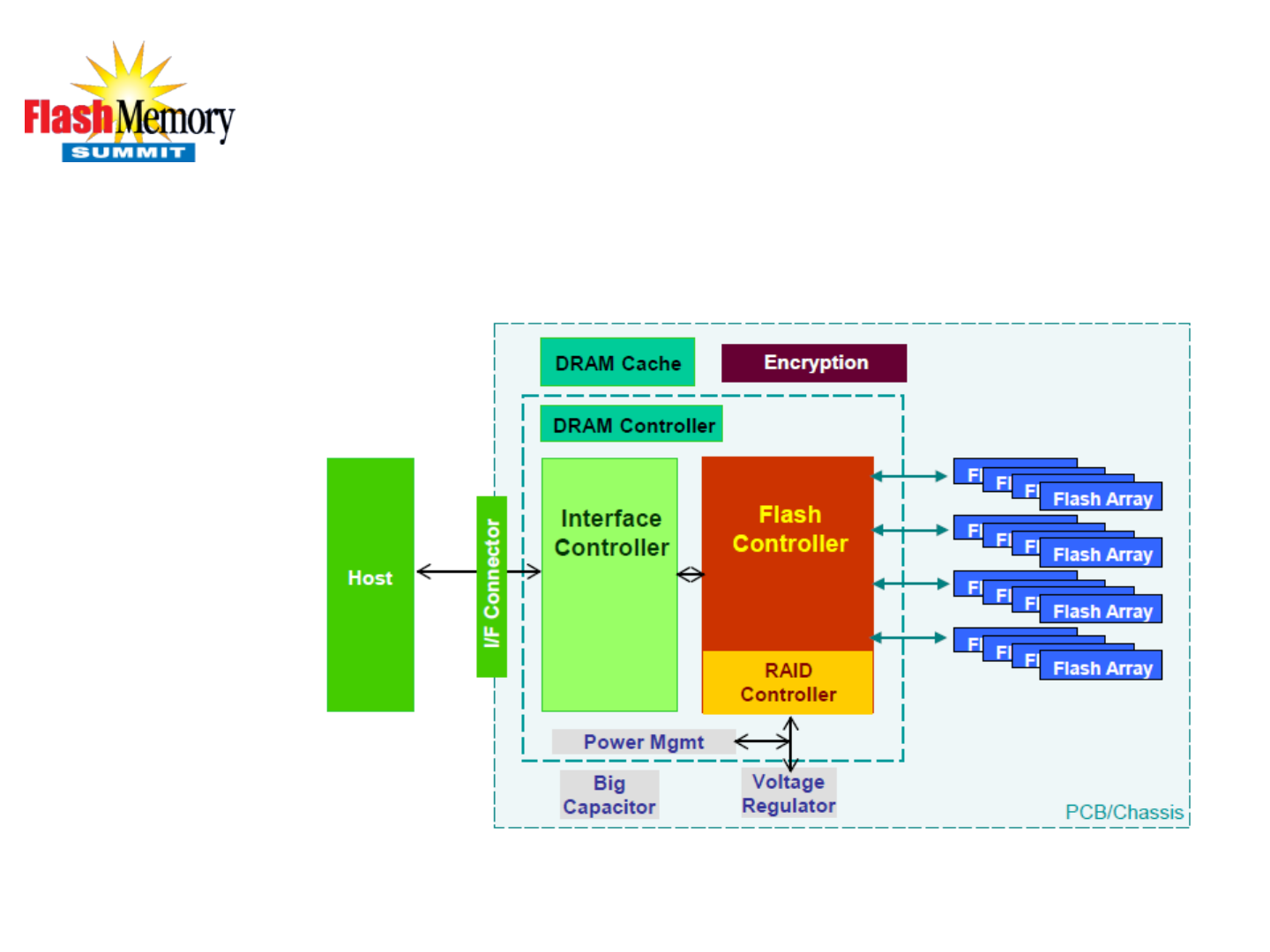

SSD Architecture Overview
• Others:
Flash Controller
• MLE:
Interface Controller
(Courtesy: SNIA.org)
Flash Memory Summit 2014
Santa Clara, CA 3
Endric Schubert
endric@MLEcorp.com

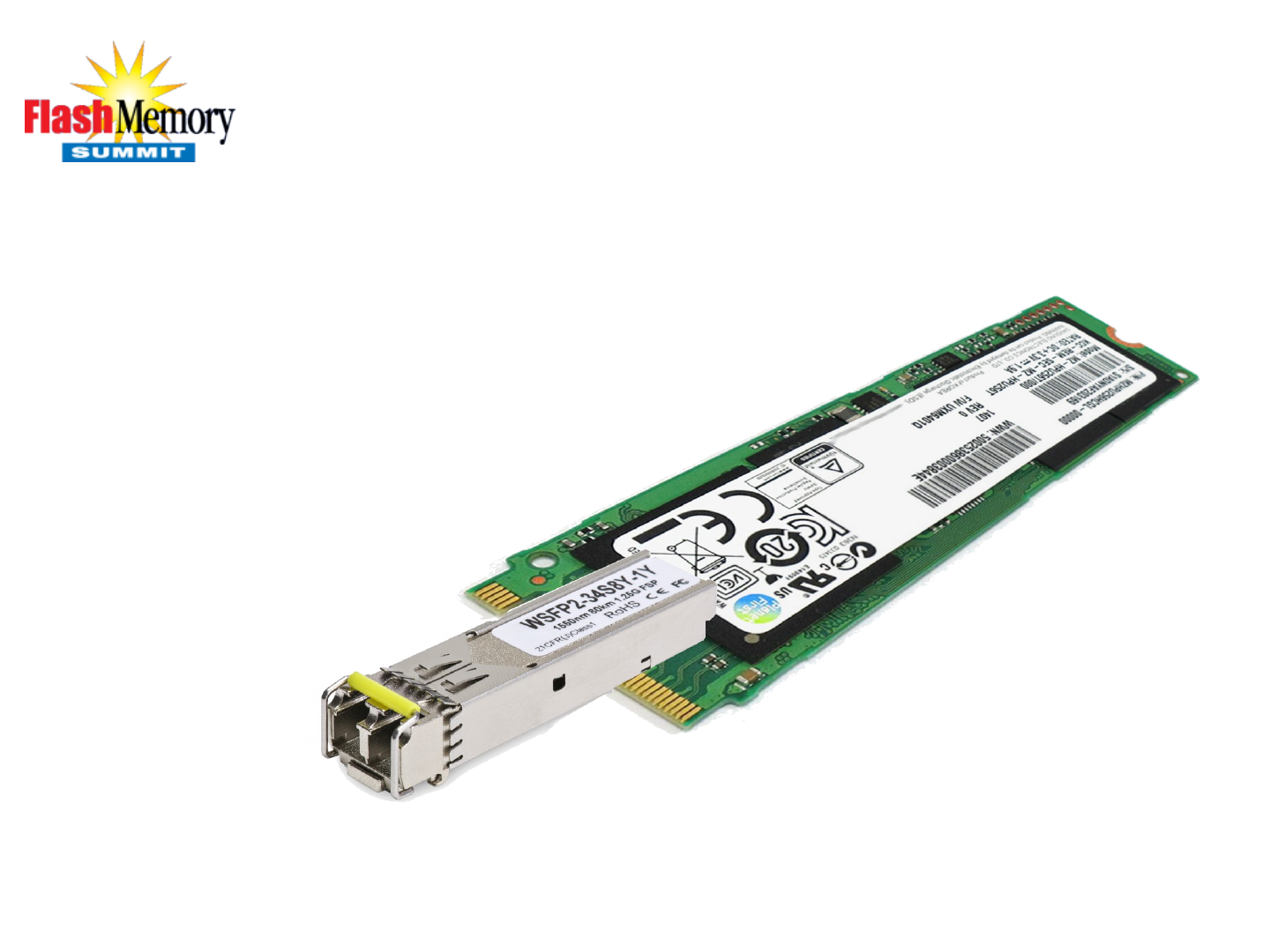

Flash-on-Ethernet
• Fast Network i/f
• 10GbE / 40GbE
• Dependable Protocol
• iSCSI
• Future-proof SSD i/f
• NVMexpress
Flash Memory Summit 2014
Santa Clara, CA 4
Endric Schubert
endric@MLEcorp.com

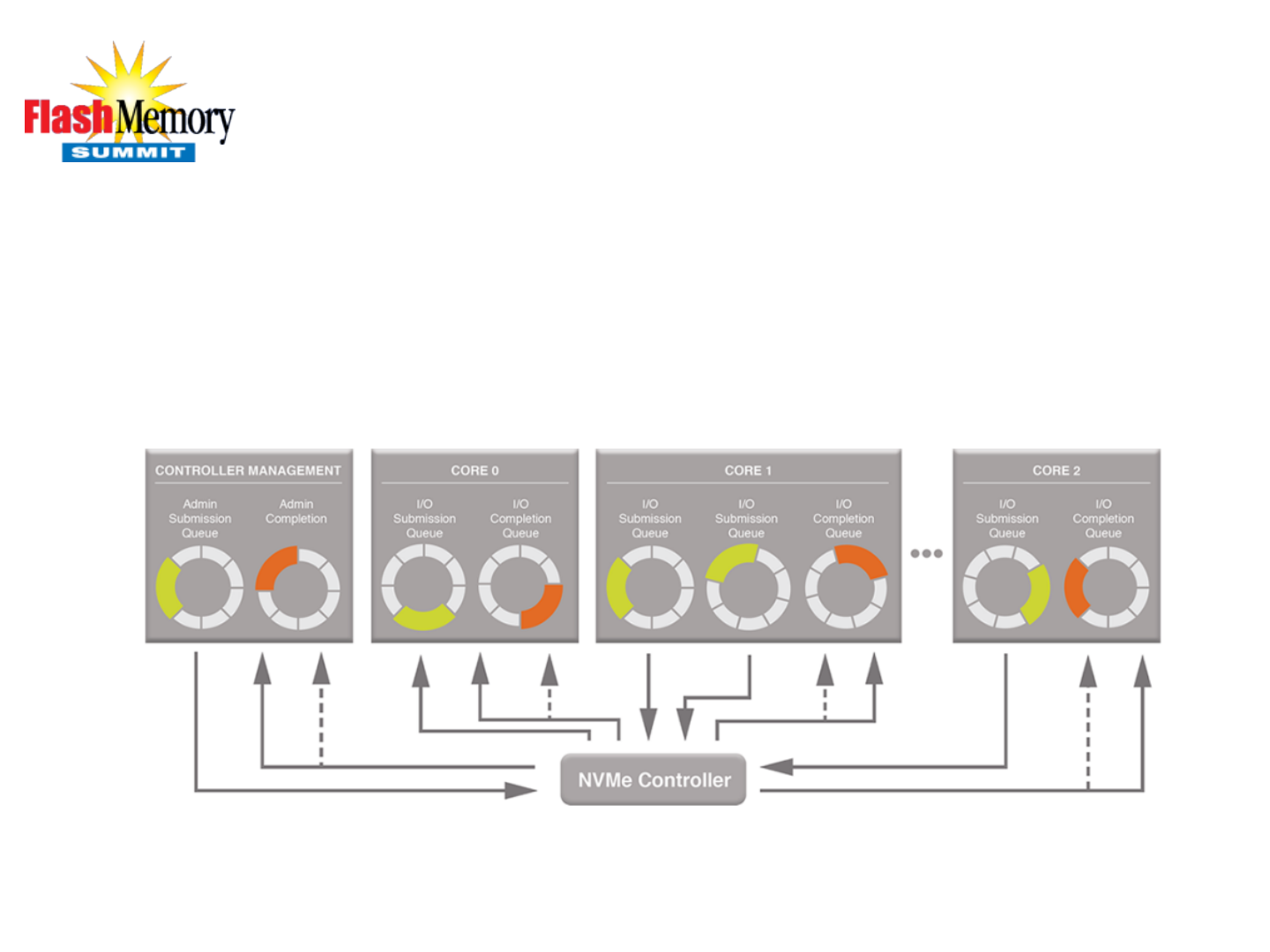

Benefits of NVMexpress
• Built for PCIe and Flash
• Multi-Queue Facilitates Acceleration
Flash Memory Summit 2014
Santa Clara, CA 5
Endric Schubert
endric@MLEcorp.com

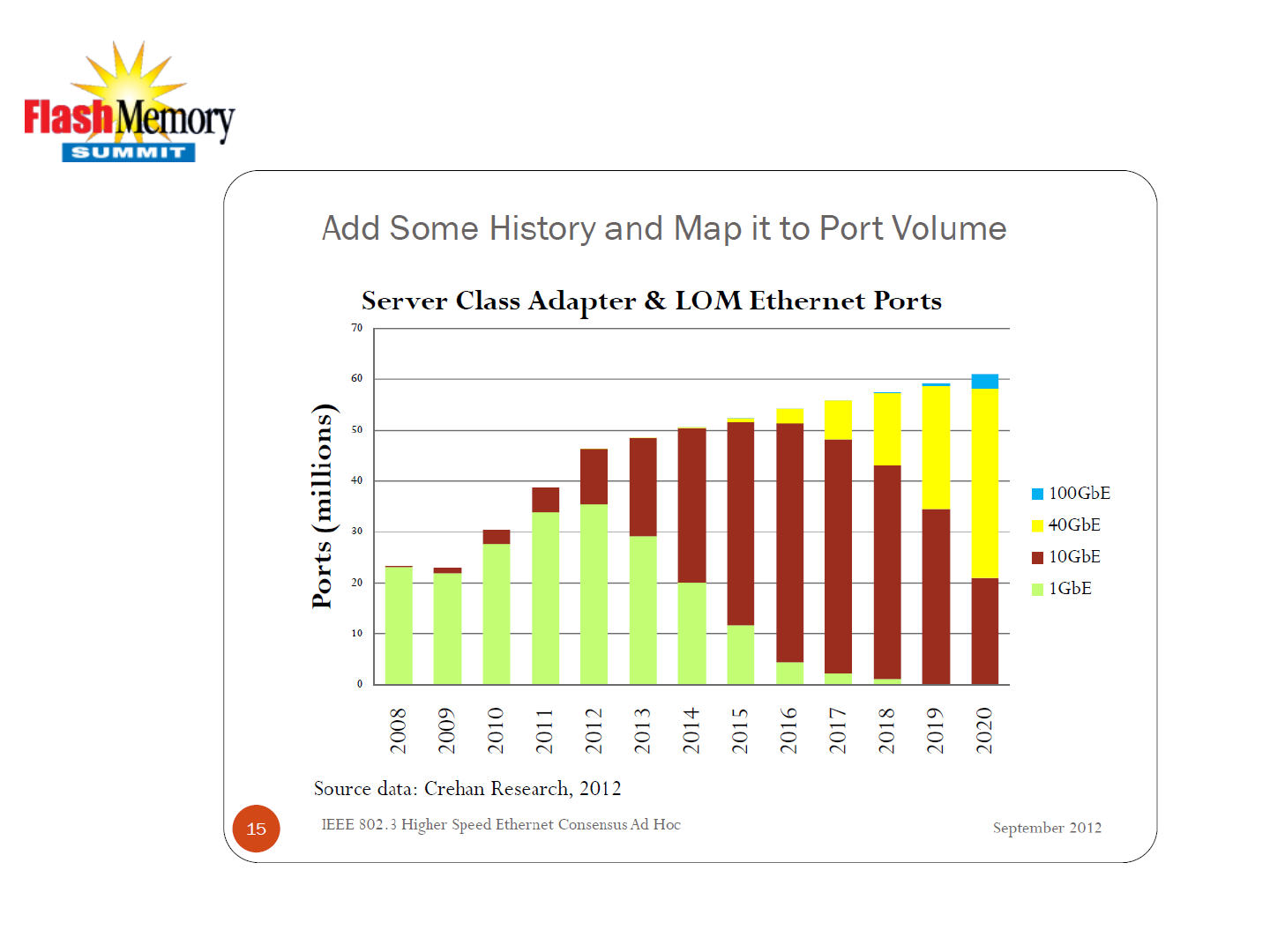

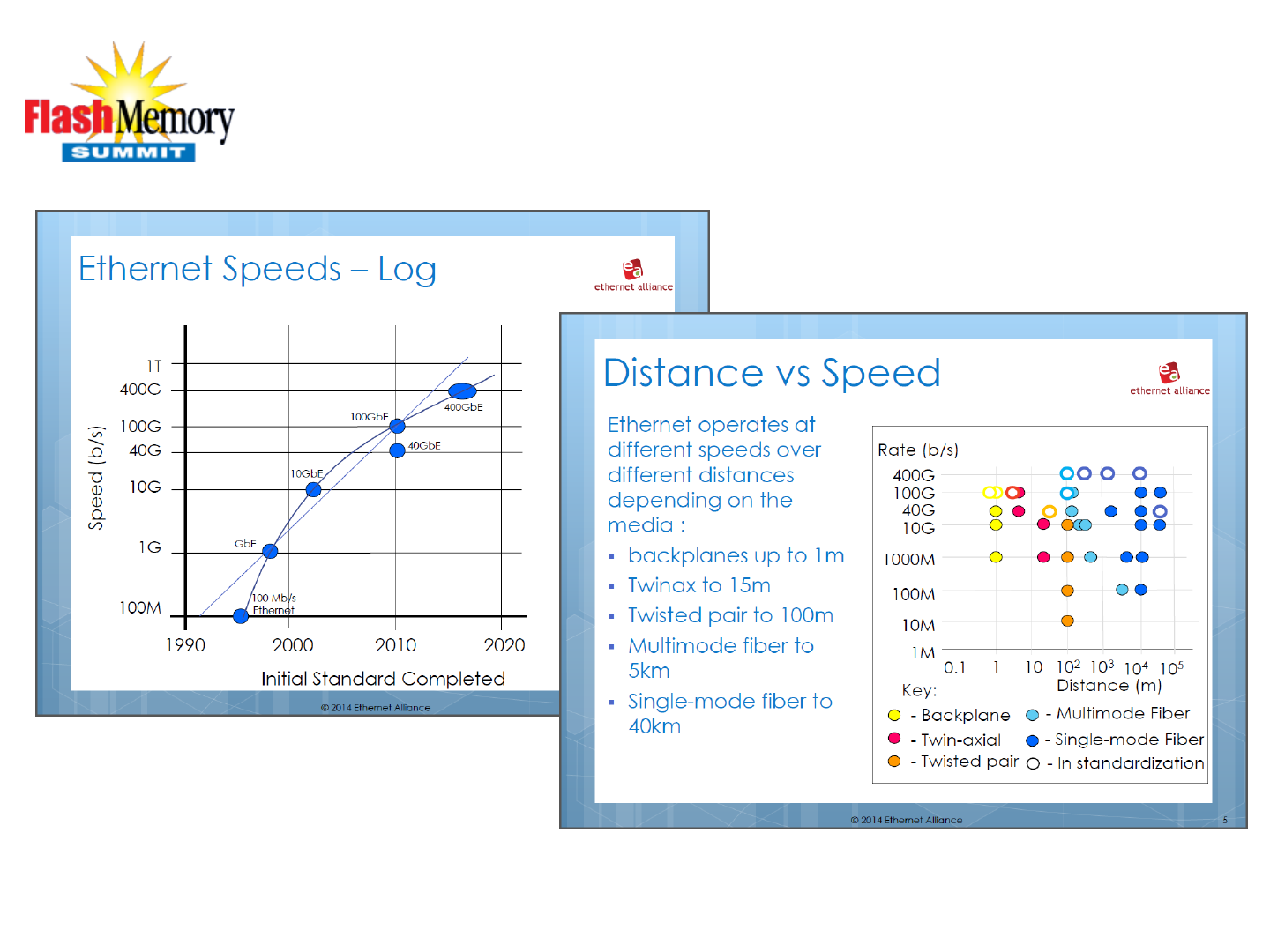

Benefits of Ethernet
Flash Memory Summit 2014
Santa Clara, CA 6
(Courtesy: Ethernet Alliance)
Endric Schubert
endric@MLEcorp.com

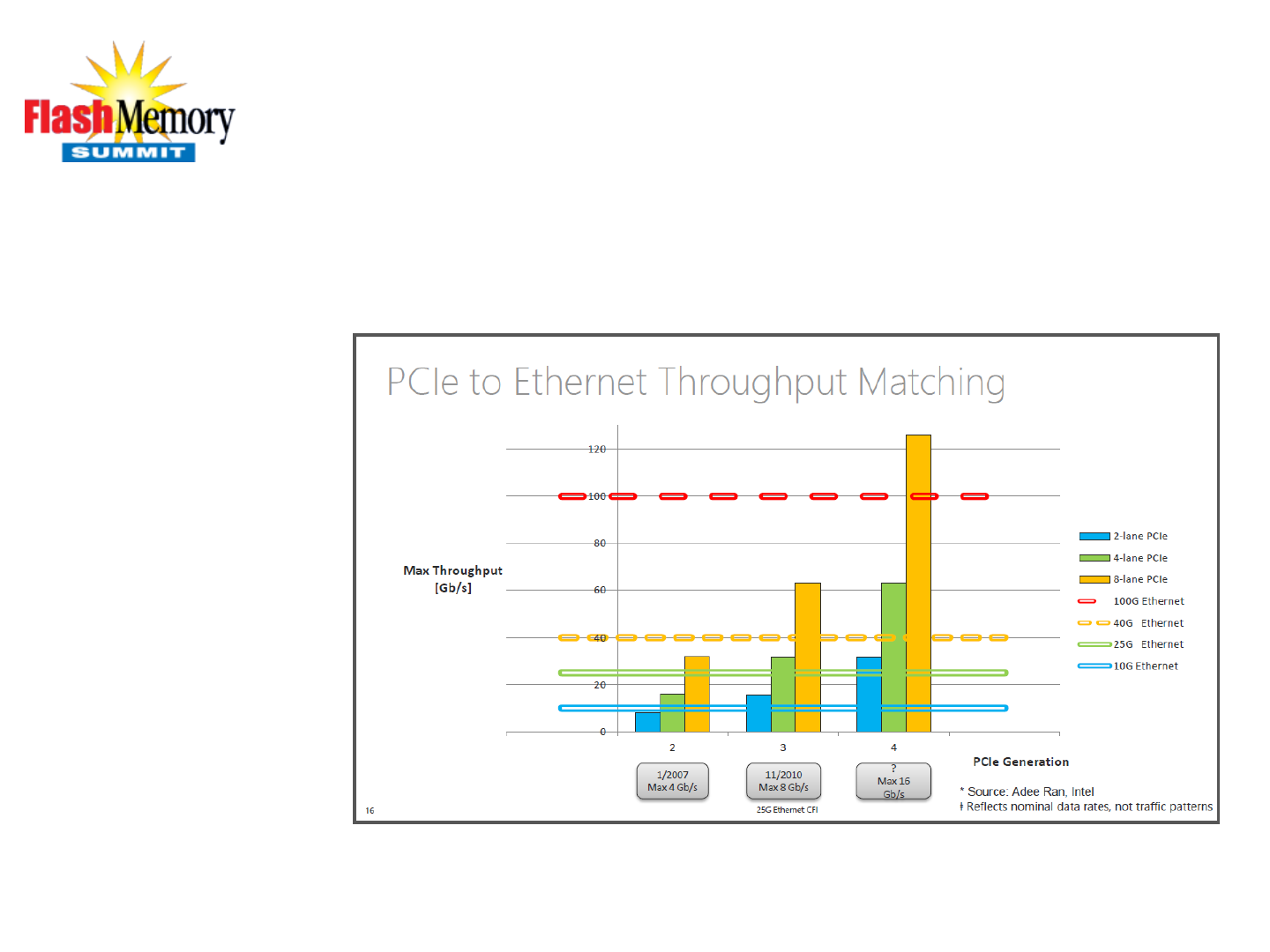

Benefits of Ethernet
Flash Memory Summit 2014
Santa Clara, CA 7
Endric Schubert
endric@MLEcorp.com

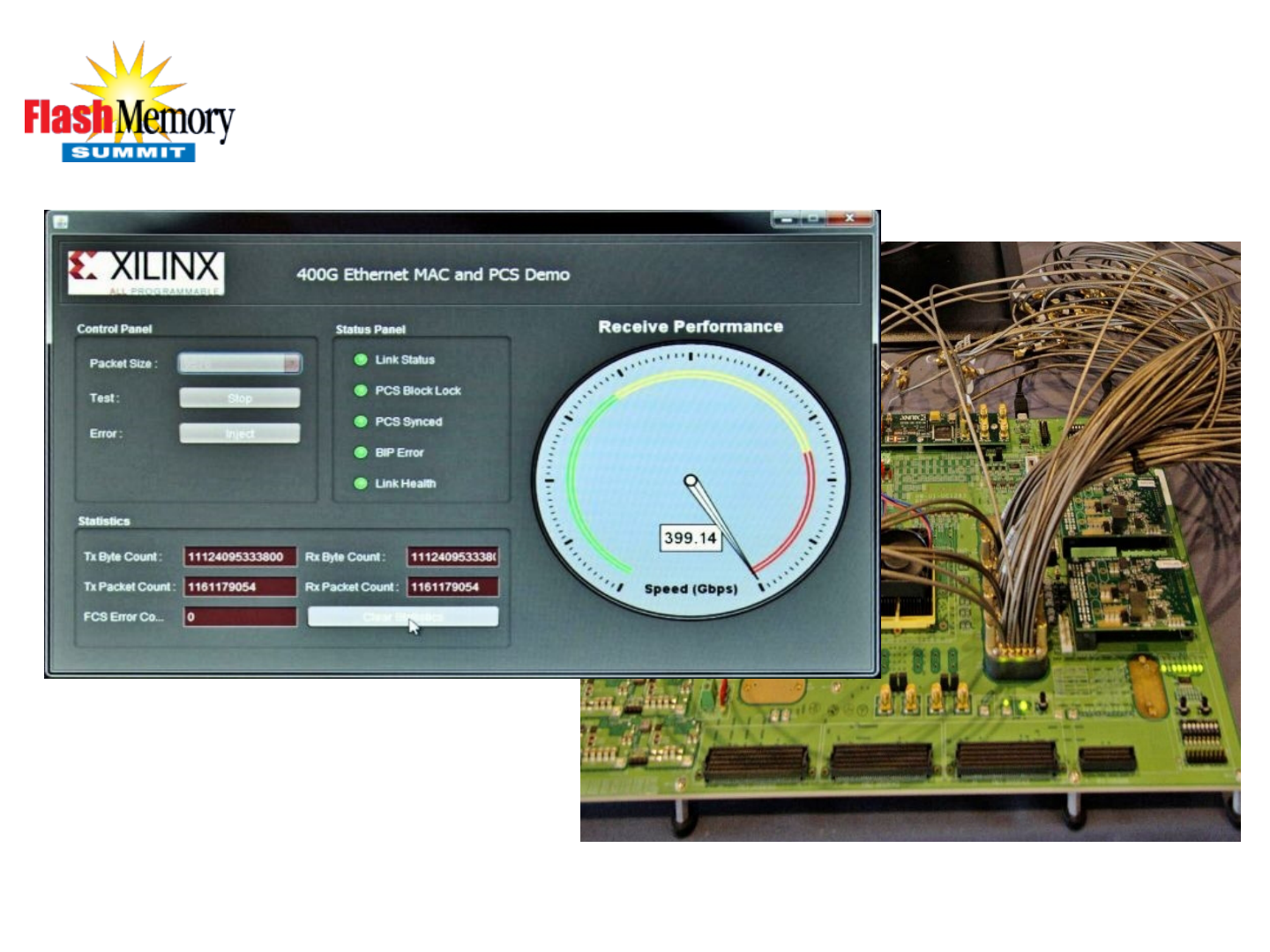

400 Gigabit/s Ethernet
Flash Memory Summit 2014
Santa Clara, CA 8
WDM & Next Generation Optical
Networking 2014 conference in
Nice, France (courtesy Xilinx)
Endric Schubert
endric@MLEcorp.com

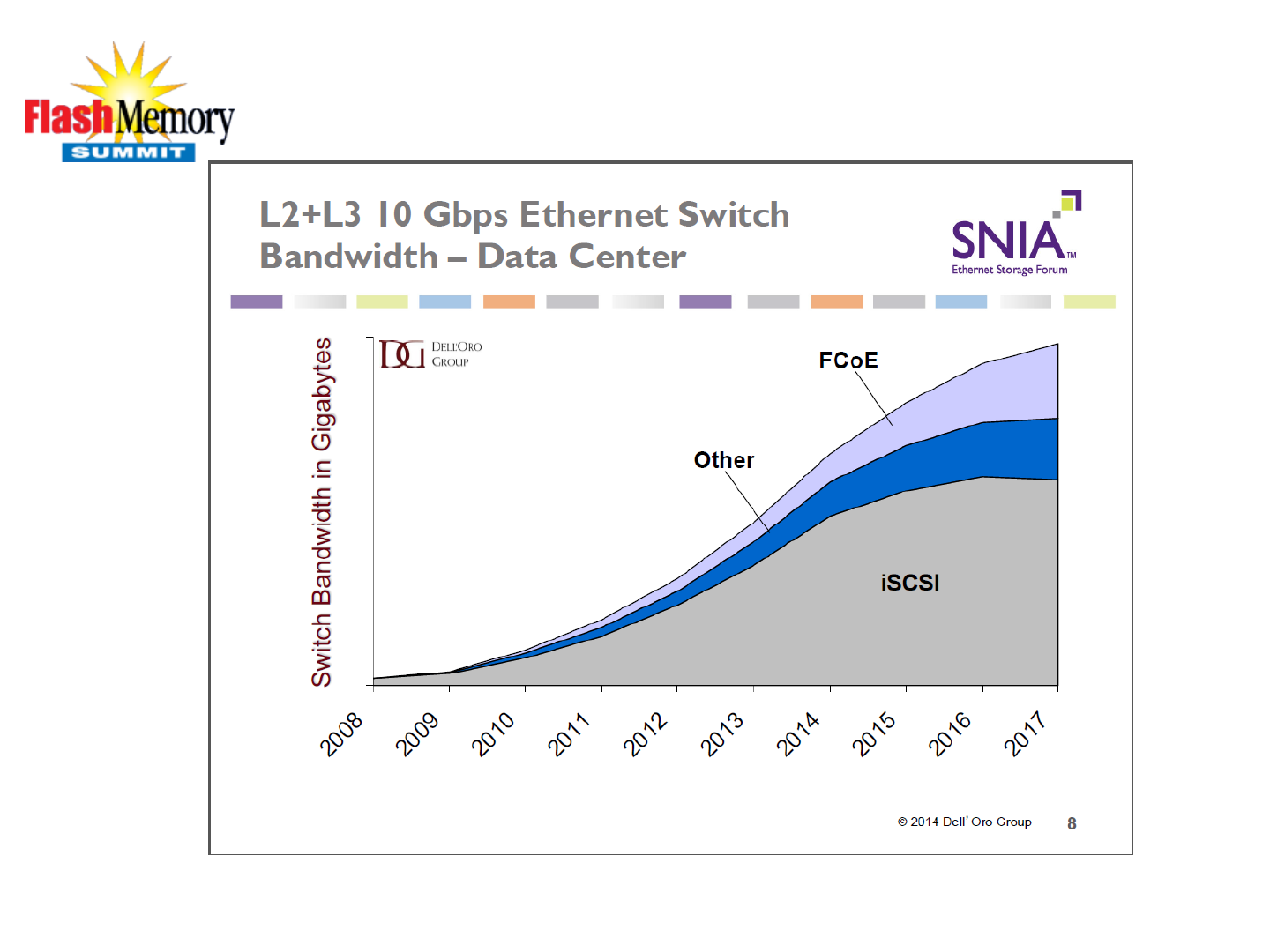

Benefits of iSCSI
Flash Memory Summit 2014
Santa Clara, CA 9
Endric Schubert
endric@MLEcorp.com

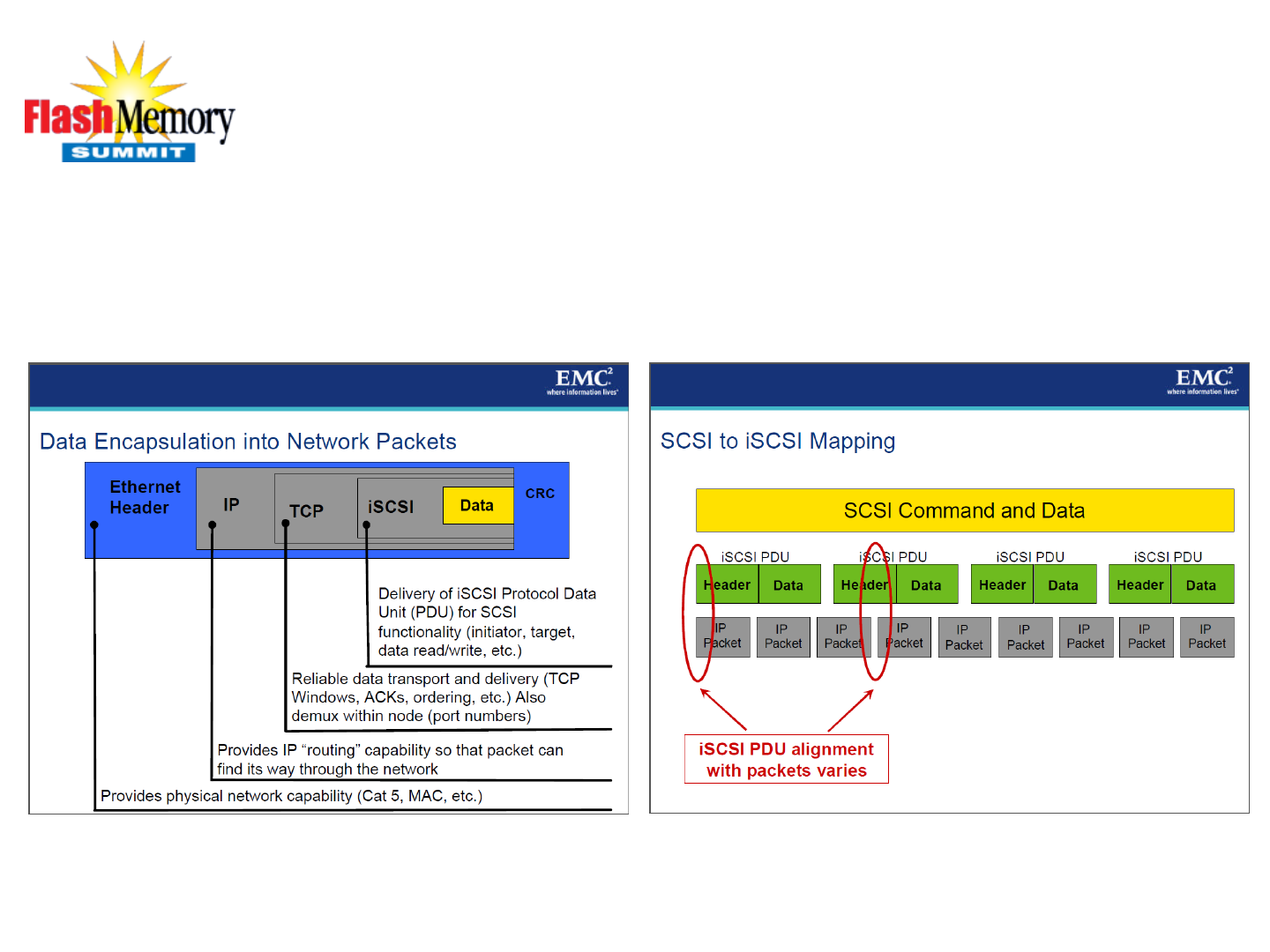

Challenges with iSCSI
Computational complexity, Unpredictable latency
Flash Memory Summit 2014
Santa Clara, CA 10
Endric Schubert
endric@MLEcorp.com

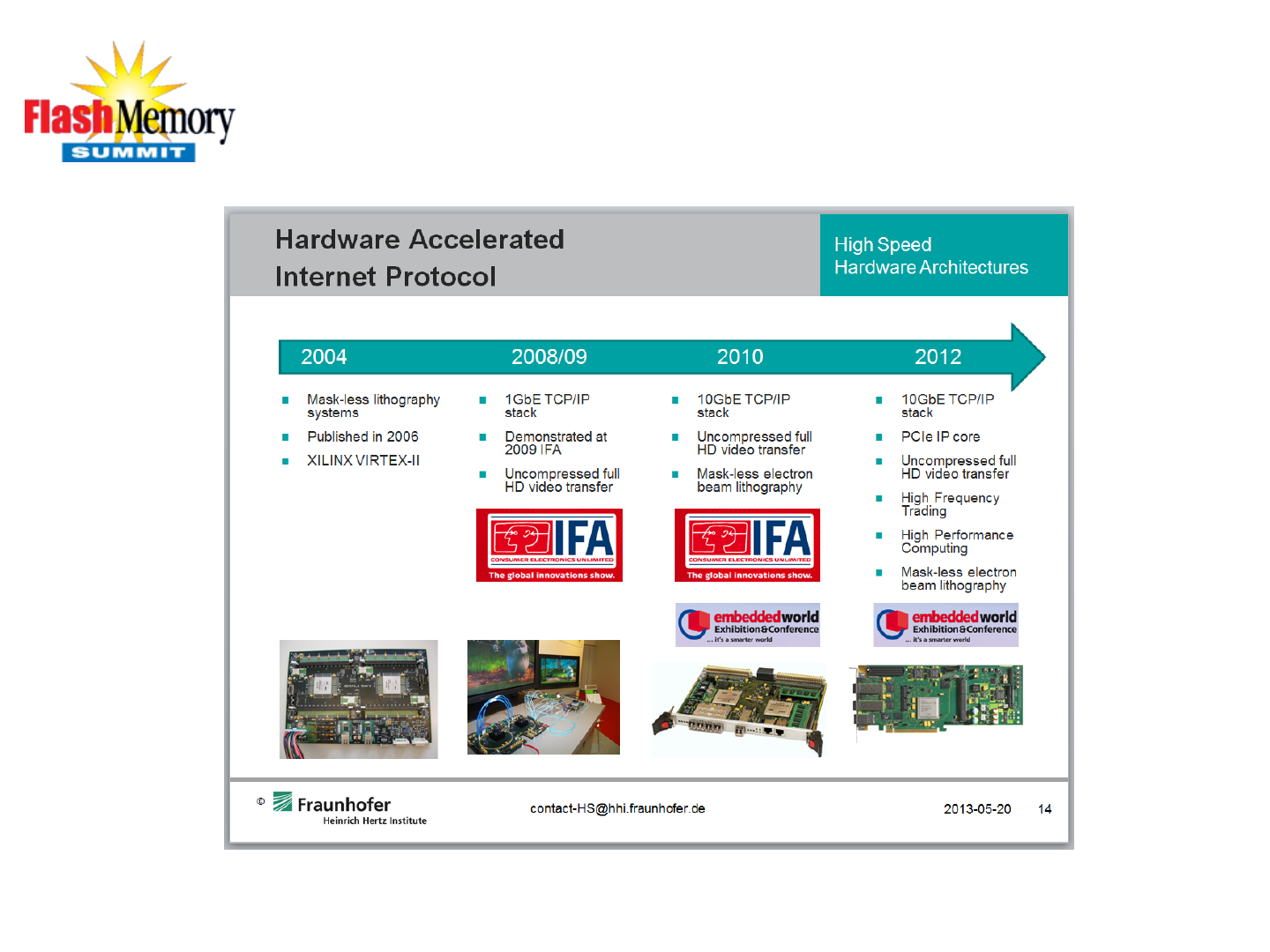

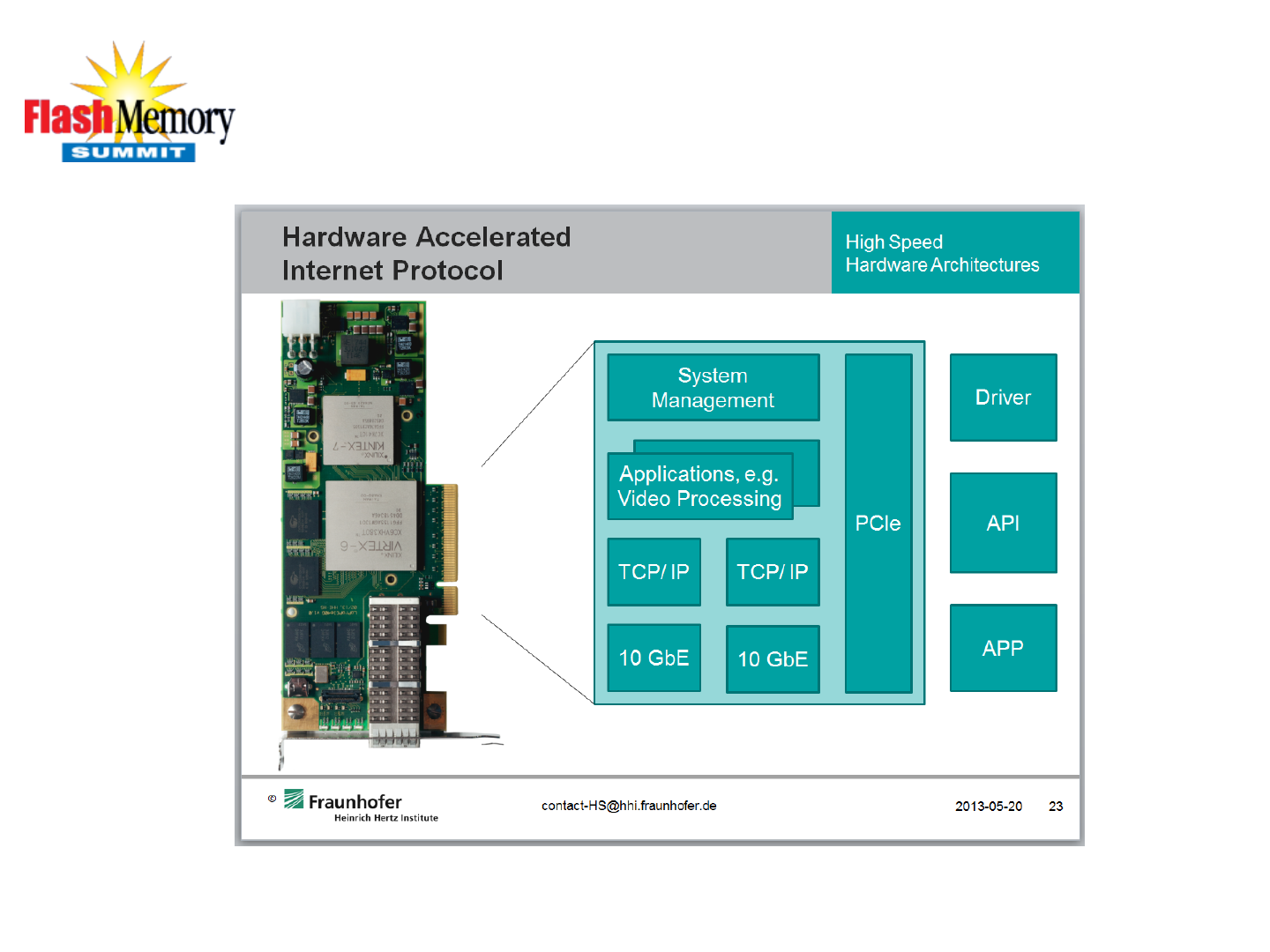

Network Protocol Acceleration
Technology from FhG HHI
Flash Memory Summit 2014
Santa Clara, CA 11
Endric Schubert
endric@MLEcorp.com
Network Protocol Acceleration
Technology from FhG HHI
Flash Memory Summit 2014
Santa Clara, CA 12
Endric Schubert
endric@MLEcorp.com

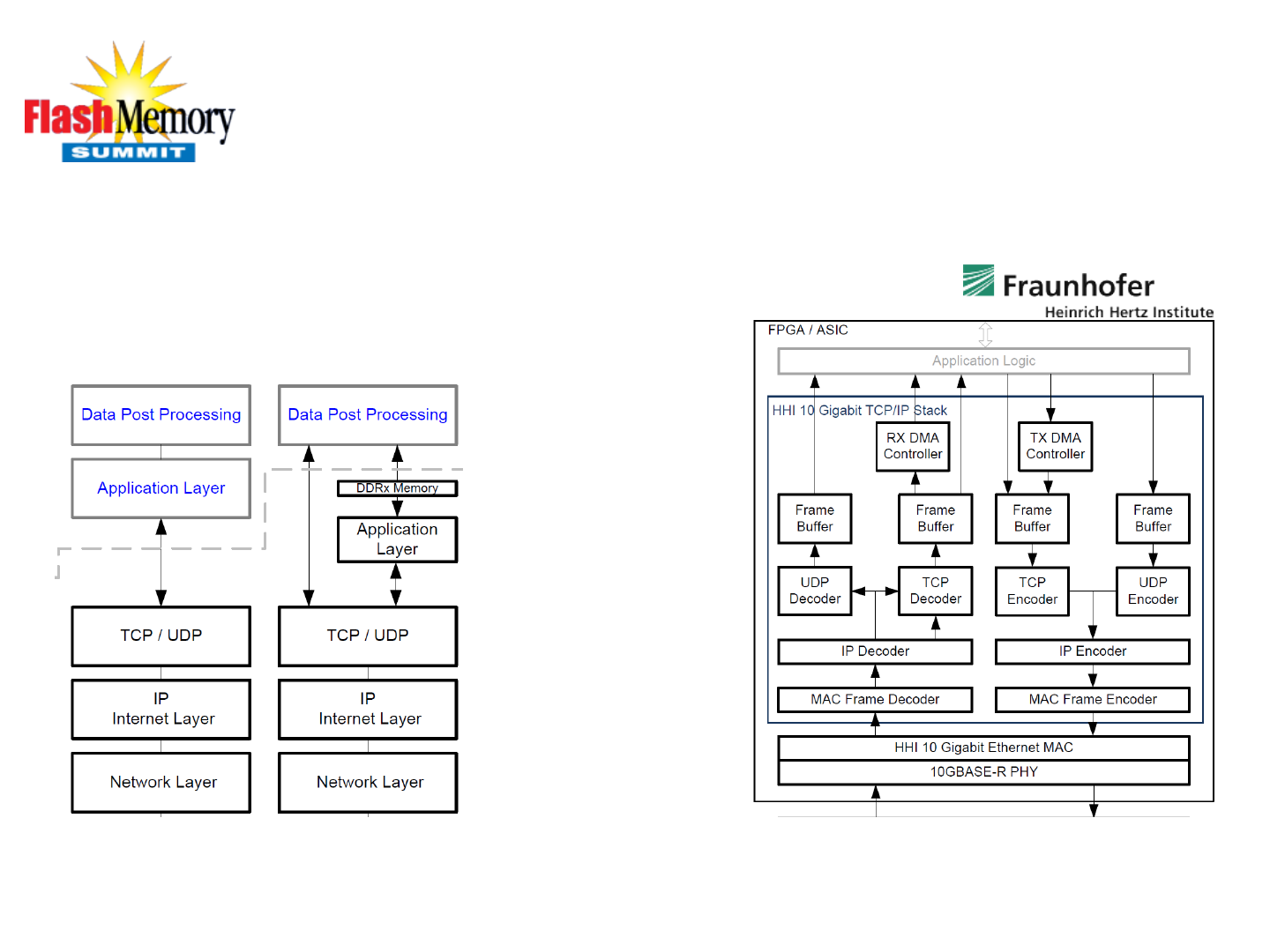

Network Protocol Acceleration
More Than TOE
Fraunhofer HHI
• Entire TCP /
UDP protocol
processing
inside FPGA
• Option to run
Application
Layer
processing in
HW, too!
State-of-the-Art
• Software-only
• TCP Offload
Engine (TOE)
• requires CPU
Flash Memory Summit 2014
Santa Clara, CA 13
Endric Schubert
endric@MLEcorp.com

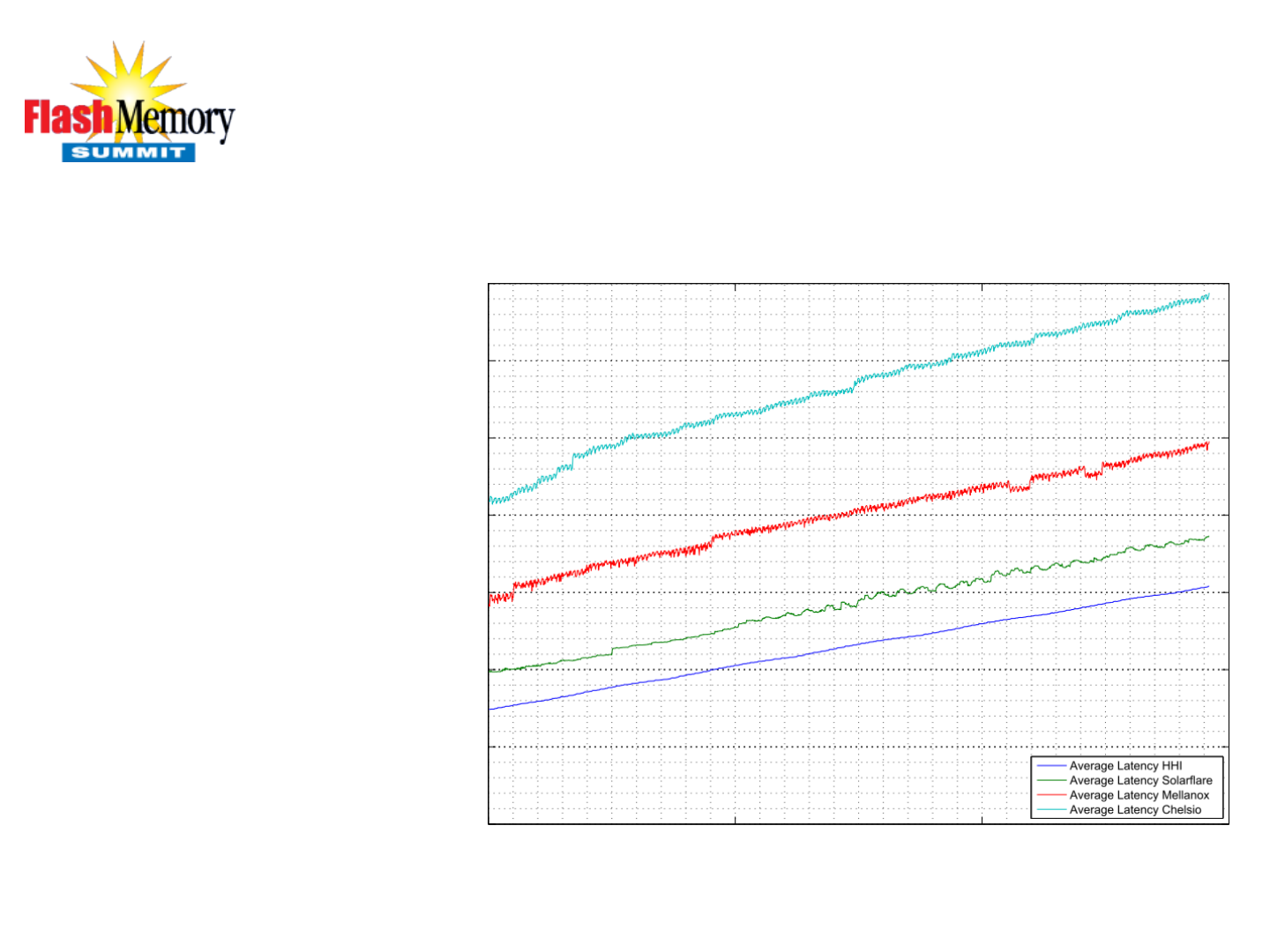

Network Protocol Acceleration
Best in Class Performance
• Stand-alone TCP/IP &
UDP/IP stack
• Point-to-point 1GbE or
10GbE
• Full line rate of TPRmax
= 9.5896 Gbps
• TCP R/W latency of
TTR(W) ≥ 1.4 µs
• UDP R/W latency of
TUR(W) ≥ 0.75 µs
• Round trip time of
RTTmin ≥ 2.25 µs
(2013 benchmarking
data from Fraunhofer
HHI)
Flash Memory Summit 2014
Santa Clara, CA 14
8 µS
2 µS
4 µS
6 µS
Chelsio
Mellanox
Solaflare
FhG HHI
Endric Schubert
endric@MLEcorp.com

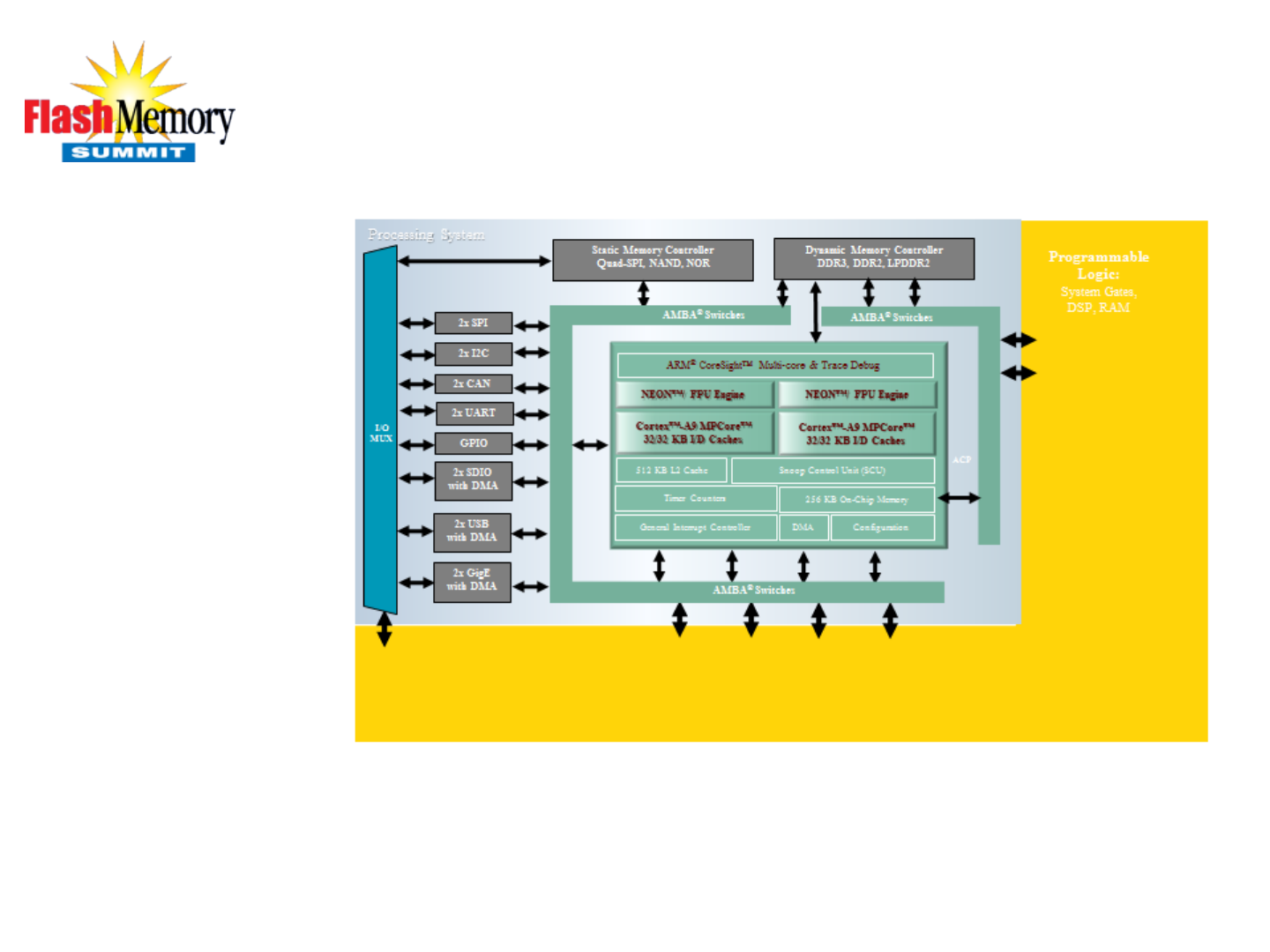

Hardware Acceleration Enabled by
Modern All-Programmable SoC
Programmable
I/O
Programmable
Software
Programmable
Logic
“Put the processing burden where it belongs!”
Flash Memory Summit 2014
Santa Clara, CA 15
Endric Schubert
endric@MLEcorp.com

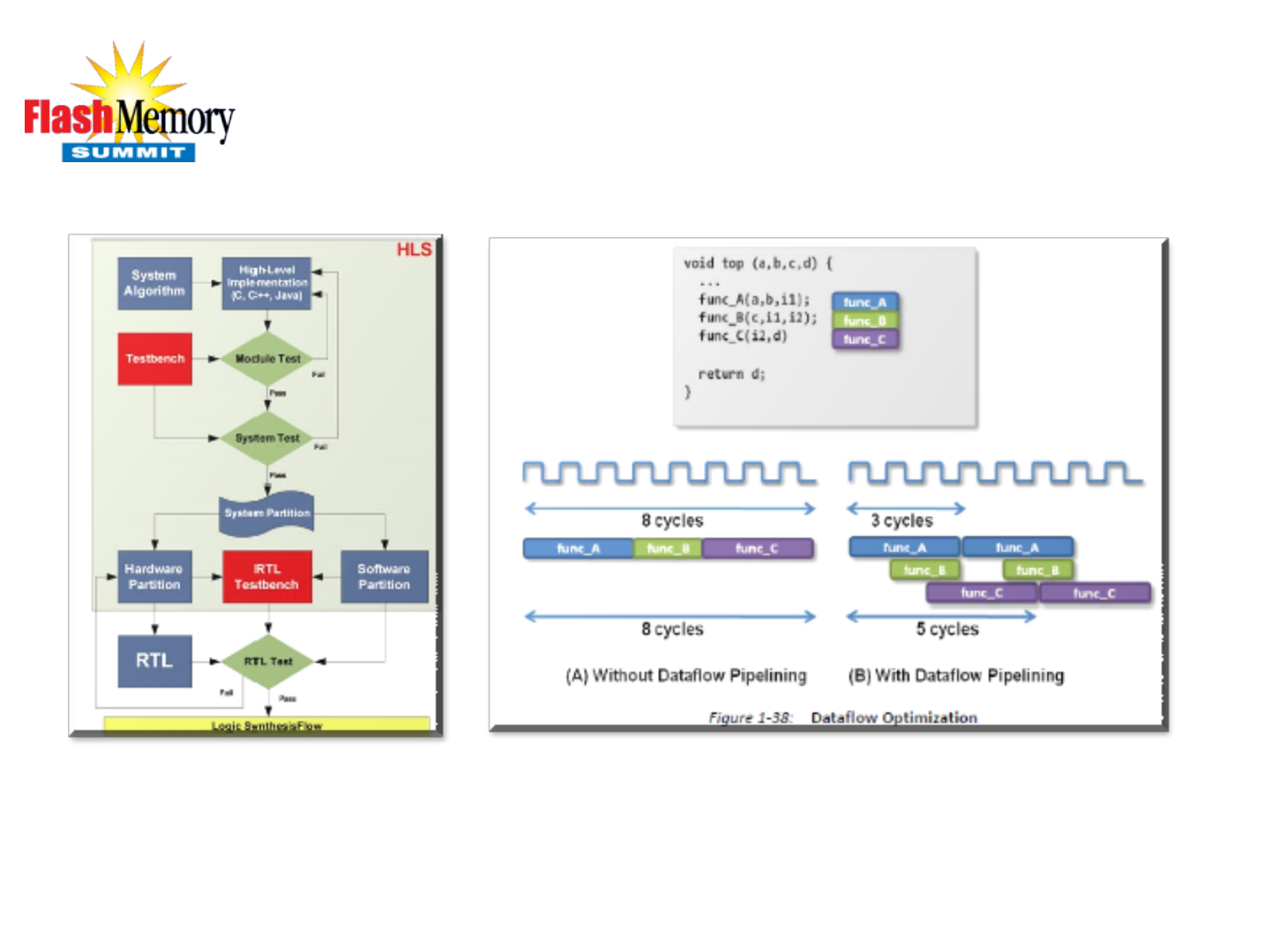

FPGA Implementation via
High-Level Synthesis
• Xilinx UG902 – Vivado Design Suite User Guide, High-Level Synthesis
• Xilinx XAPP1209 – Designing Protocol Processing Systems with Vivado HLS
Flash Memory Summit 2014
Santa Clara, CA 16
Endric Schubert
endric@MLEcorp.com

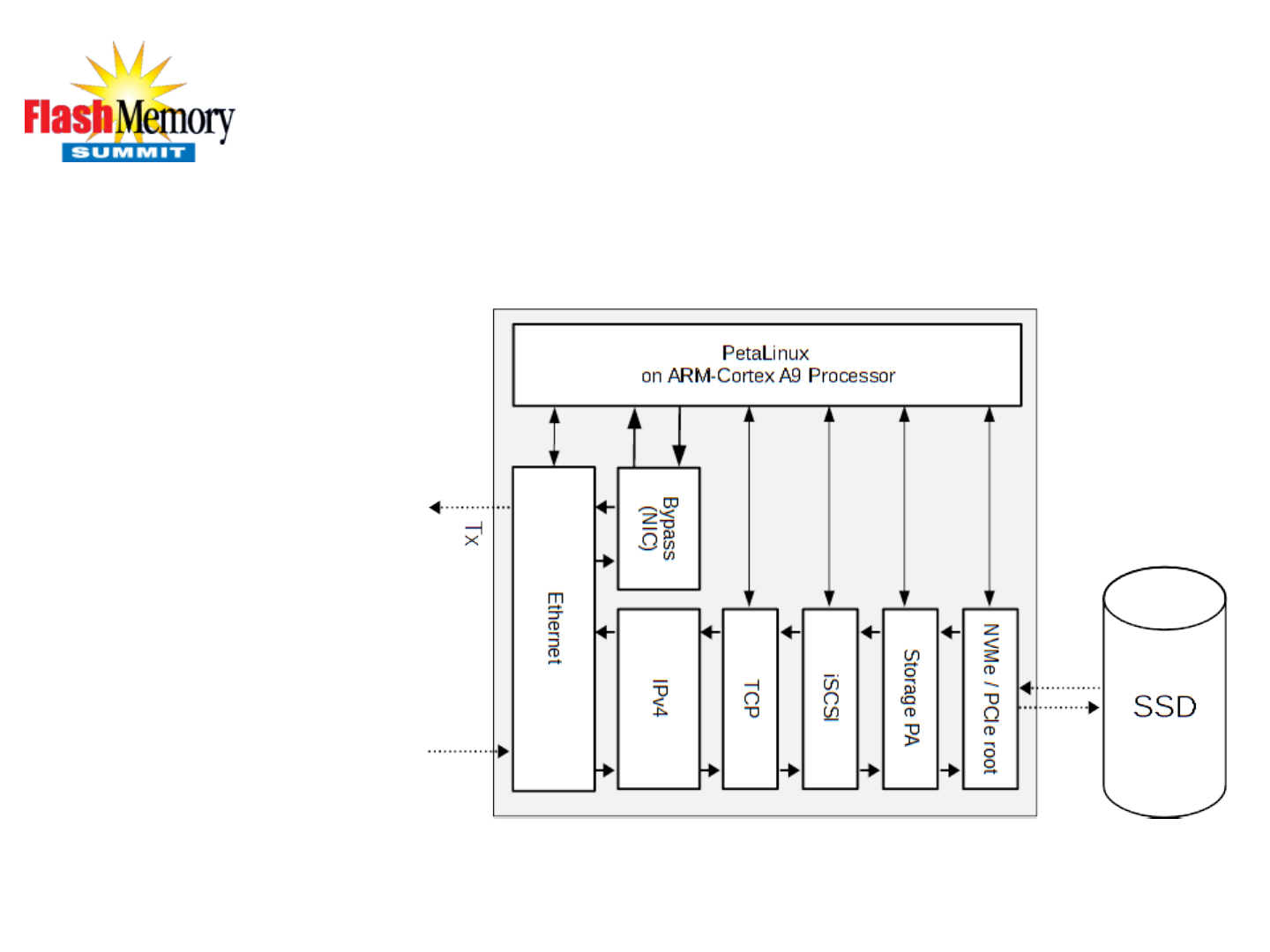

Flash-on-Ethernet Architecture
Configurable, elastic
system
Balance data rates for
Latency and Bandwidth
• SSD
200k IOPS
800 MB/s
PCIe Gen2 x2
10GbE
• SSD
800k IOPS
3 GB/s
PCIe Gen3 x4
40 GbE
Flash Memory Summit 2014
Santa Clara, CA 17
Endric Schubert
endric@MLEcorp.com

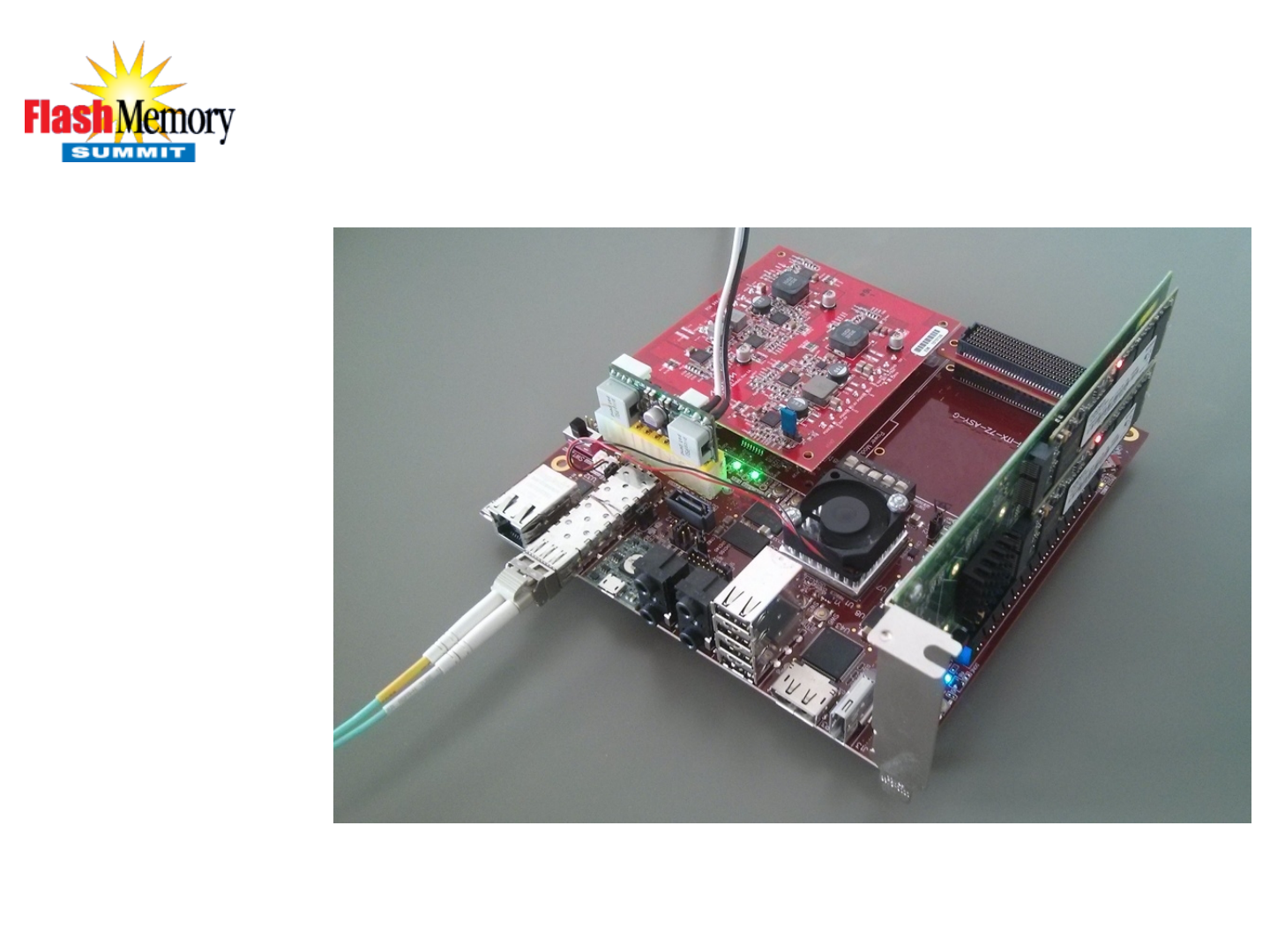

Flash-on-Ethernet
Lab Setup at MLE
• Avnet
Mini-ITX
• Xilinx
Zynq 7045
• PetaLinux
• AHCI SSD
via PCIe
• NPAP
• 10GbE
Flash Memory Summit 2014
Santa Clara, CA 18
Endric Schubert
endric@MLEcorp.com

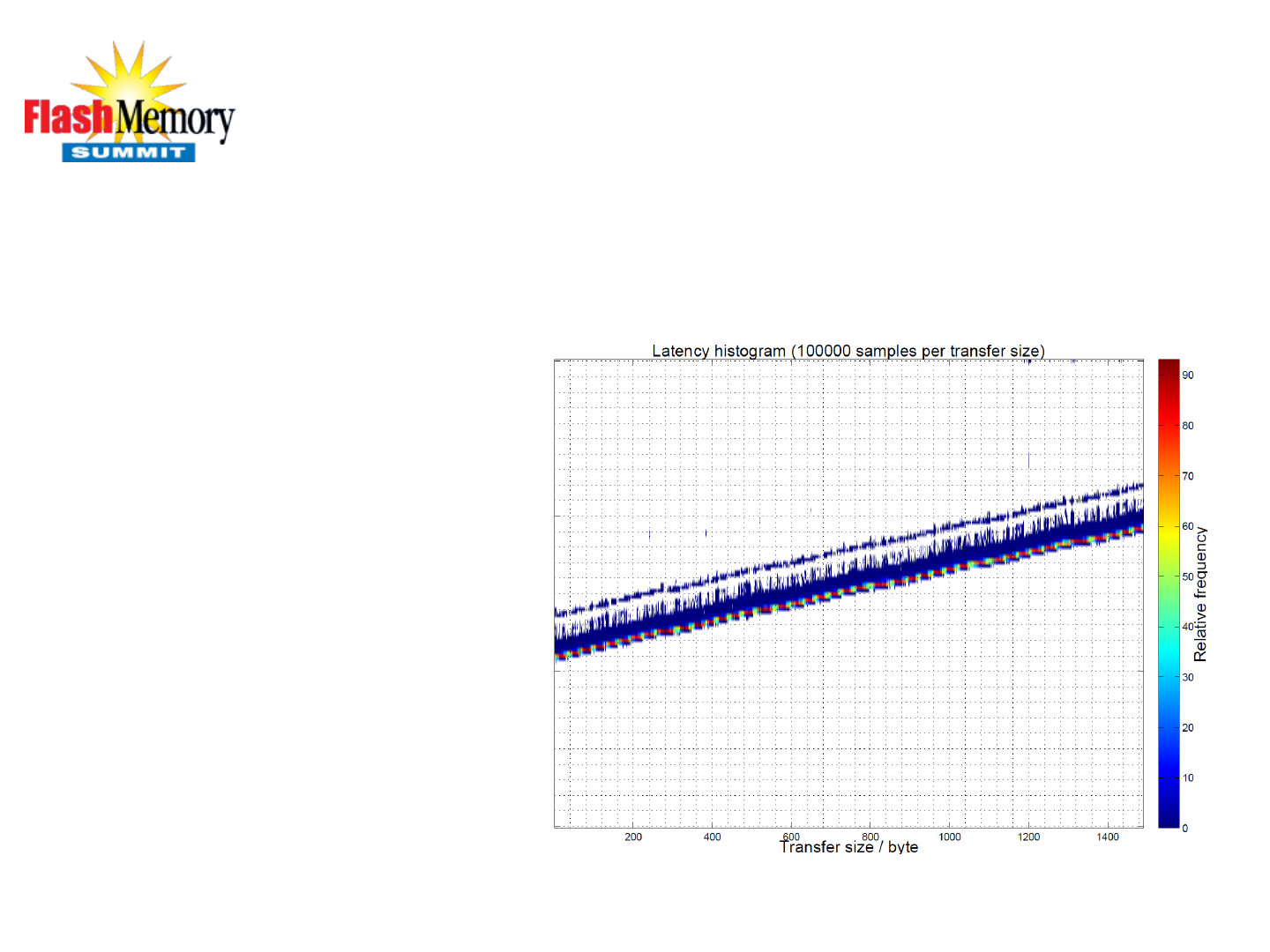

Preliminary Results
• Good determinism
• Reasonable
Latency
Flash Memory Summit 2014
Santa Clara, CA 19
10 µS
5 µS
Endric Schubert
endric@MLEcorp.com
Outlook
• Embrace Faster Ethernet: 25GbE, 40GbE
(Courtesy:
Brad Booth,
Microsoft,
25G Ethernet CFI)
Flash Memory Summit 2014
Santa Clara, CA 20
Endric Schubert
endric@MLEcorp.com
Abstract
System-of-systems are loosely coupled Embedded Systems which greatly benefit
from the high performance of modern SSD technology. Machine visioning, medical
imaging, and advanced driver assist systems are among those storage-hungry
applications. However, communication latency and bandwidth in between the
systems have a significant impact on the overall robustness, cost and performance.
Current techniques based on fieldbuses such as CAN, Flexray, have begun to hit
the bandwidth wall and are more and more replaced by multi-Gigabit Ethernet plus
techniques for hardware-acceleration of networking protocol stacks.
We present a proof-of-concept implementation specifically targeted for storage-
hungry System-of-systems. Integrated into a modern FPGA with multicore ARM
CPUs to run Open Source Linux, single-chip solutions become possible which
provide full compatibility with all relevant network and storage interface protocols
and can reach userspace latencies within few microseconds.
Flash Memory Summit 2014
Santa Clara, CA 22
Endric Schubert
endric@MLEcorp.com
Missing Link Electronics is …
We are a Silicon Valley based technology company with offices in
Germany. We are partner of leading electronic device and solution
providers and have been enabling key innovators in the automotive,
industrial, test & measurement markets to build better Embedded
Systems, faster.
Our mission is yo develop and market technology solutions for
Embedded Systems Realization via pre-validated IP and expert
application support, and to combine off-the-shelf devices with Open-
Source Software for dependable, configurable Embedded System
platforms.
Our expertise is I/O connectivity and acceleration of data communication
protocols, additionally opening up FPGA technology for analog
applications, and the integration and optimization of Open Source Linux
and Android software stacks on modern extensible processing
architectures.
MLE is a technology partner of Fraunhofer Heinrich-Hertz-Institute, a
Certified Xilinx Alliance Partner, a member of the Altera Design Service
Network, and an active contributor to the Open Source software
ecosystem.
Flash Memory Summit 2014
Santa Clara, CA 23
Endric Schubert
endric@MLEcorp.com
Fraunhofer HHI is…
Founded in 1949, the German Fraunhofer-Gesellschaft undertakes
applied research of direct utility to private and public enterprise and
of wide benefit to society. With a workforce of over 23,000, the
Fraunhofer-Gesellschaft is Europe’s biggest organization for applied
research, and currently operates a total of 67 institutes and research
units. The organization’s core task is to carry out research of
practical utility in close cooperation with its customers from industry
and the public sector.
Fraunhofer HHI was founded in 1928 as "Heinrich-Hertz-Institut für
Schwingungsforschung“ and joined in 2003 the Fraunhofer-
Gesellschaft as the "Fraunhofer Institute for Telecommunications,
Heinrich-Hertz-Institut„
Today it is the leading research institute for networking and
telecommunications technology, “Driving the Gigabit Society” .
Flash Memory Summit 2014
Santa Clara, CA 24
Endric Schubert
endric@MLEcorp.com
References
• [1] E. P. Markatos, “Speeding up tcp/ip: Faster processors are not enough,” in In 21st IEEE International
Performance, Computing, and Communication Conference. IEEE, 2002, pp. 341–345.
• [2] P. E. McKenney, Is Parallel Programming Hard, And, If So, What Can You Do About It? Corvallis, OR,
USA: kernel.org, 2011, available: http://kernel.org/pub/linux/kernel/people/paulmck/perfbook/perfbook.html.
• [3] Z.-Z. Wu and H.-C. Chen, “Design and implementation of tcp/ip offload engine system over gigabit
ethernet,” in Computer Communications and Networks, 2006. ICCCN 2006. Proceedings.15th International
Conference on, 2006, pp. 245–250.
• [4] G. Regnier, D. Minturn, G. McAlpine, V. Saletore, and A. Foong, “Eta: experience with an intel reg; xeon
trade; processor as a packet processing engine,” in High Performance Interconnects, 2003. Proceedings.
11
th
Symposium on, 2003, pp. 76–82.
• [5] R. Braden, “Requirements for Internet Hosts - Communication Layers,” RFC 1122 (INTERNET
STANDARD), Internet Engineering Task Force, Oct. 1989, updated by RFCs 1349, 4379, 5884, 6093, 6298,
6633, 6864. [Online]. Available: http://www.ietf.org/rfc/rfc1122.txt
• [6] A. Salman, M. Rogawski, and J. Kaps, “Efficient hardware accelerator for ipsec based on partial
reconfiguration on xilinx fpgas,” in Reconfigurable Computing and FPGAs (ReConFig), 2011 International
Conference on, 2011, pp. 242–248.
• [7] U. Langenbach, A. Berthe, B. Traskov, S. Weide, K. Hofmann, P. Gregorius, "A 10 GbE TCP/IP
Hardware Stack as part of a Protocol Acceleration Platform", 2013 IEEE 3rd International Conference on
Consumer Electronics
• [8] E. Schubert, D. Boggs, P. Gregorius, S. Voss, U. Langenbach, “Low-Latency Networking for Systems-of-
Systems”, 2014 Embedded World Conference
